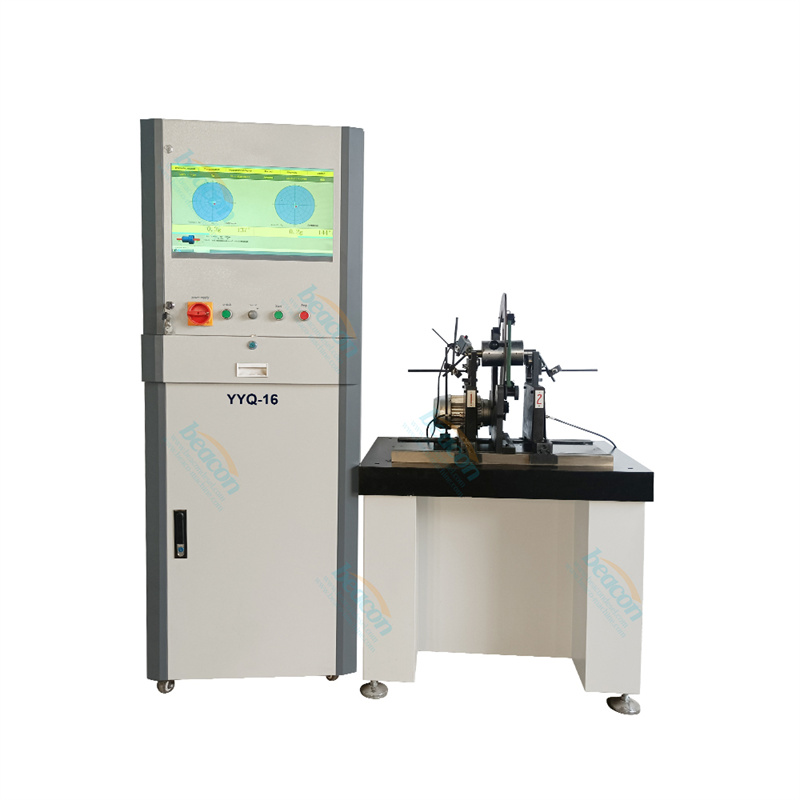

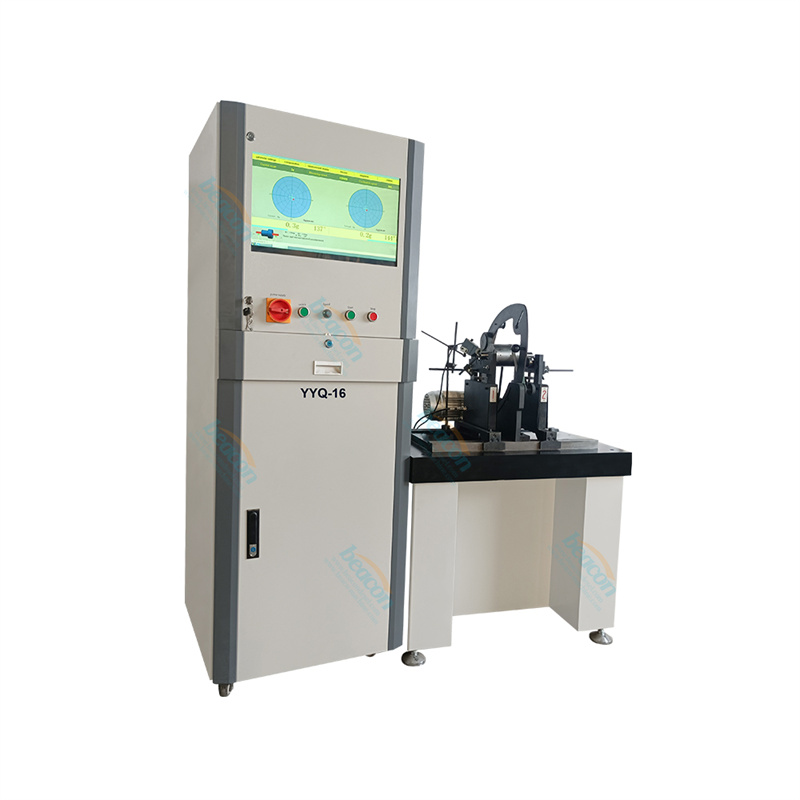

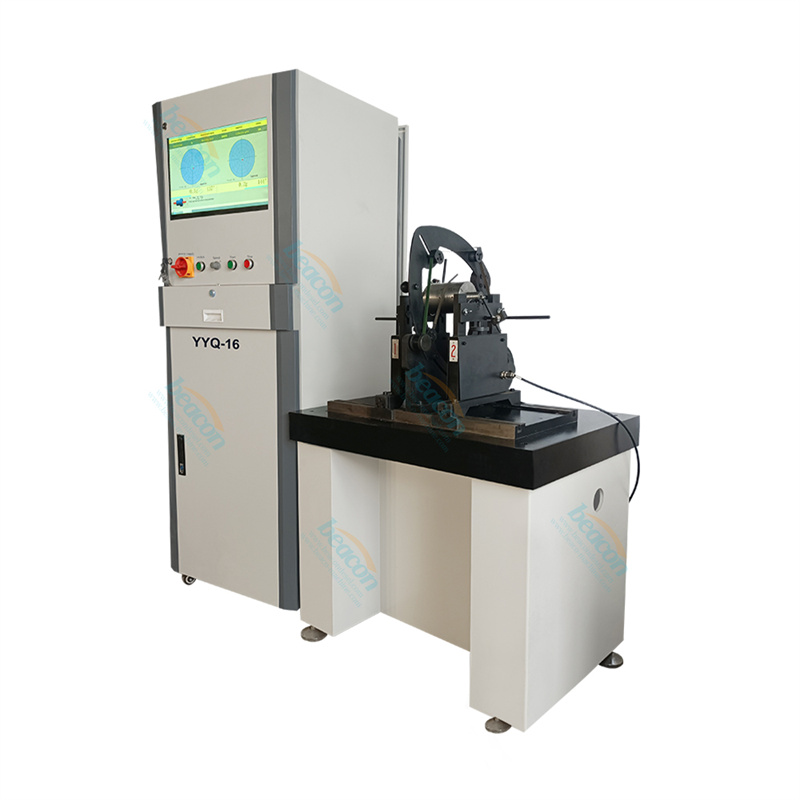

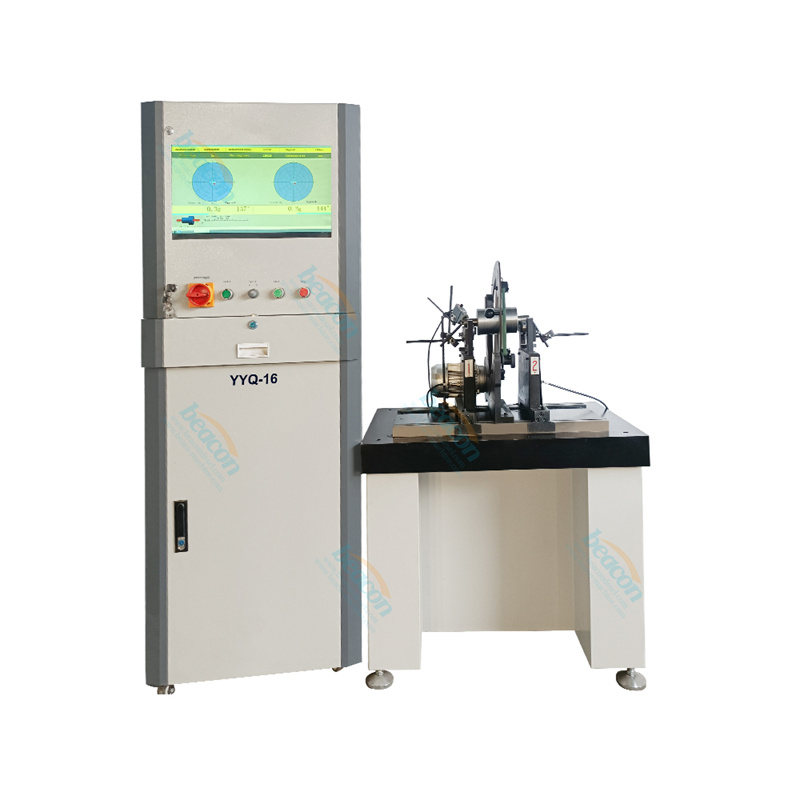

YYQ Series Horizontal Soft Support Crankshaft Wheel Balancing Machine YYQ-16A With Roller Bearing And Gimbal Couplings Drive
Model YYQ-16A
The measuring time 10s (measurement cycle can be arbitrary set).
Software version Windows XP
display mode 19 inch LCD
power supply The power of three-phase four-wire type AC 380V, 50/60HZ
Working continuously
Work-piece quality range (Kg) 16
Beam supporting interval distance (mm) 60-600
Trunnion range (mm) Φ 5-40
Workpiece diameter (mm) 500
Balance speed (r/min) 300-2500 variable frequency speed regulation
Motor power (KW) 0.18
Unbalance reduction ratio% ≤90
Minimum can reach surplus balabcing (emar) ≤0.5g・mm/kg
Tel:+86-13375386268
Email: beacon@beacon-machine.com
YYQ Series Horizontal Soft Support Crankshaft Wheel Balancing Machine YYQ-16A With Roller Bearing And Gimbal Couplings Drive
This series of equipment is hard support horizontal dynamic balance machine, with roller bearing, gimbal couplings drive, routine for double-speed motor drive, "A" type for variable frequency speed regulation system, an industrial control computer data processing LCD monitor real-time display imbalance, value, phase Angle and real-time speed, and lathe bed are integrally cast. Widely used in motor, blower, diesel engine, agricultural machinery, textile machinery and other industries, can be in the single side, double side and multiple correction plane balance measurement. Suitable for axle plate type and the barycenter overhanging rotor. With high efficiency and precision accurate, show intuitional, reliable quality, convenient maintenance characteristic.
Speed range 100 R.P.M. - 5000r/min
Phase error use a standard signal measurement error < 0.3 DHS
Amplitude error use a standard signal measurement error < 1,000
Storage rotor number 255 a
Angle decomposition coun 60
The machine maximum power 2million
YYQ Series Horizontal Soft Support Crankshaft Wheel Balancing Machine YYQ-16A With Roller Bearing And Gimbal Couplings Drive
Speed range 100 R.P.M. - 5000r/min
Phase error use a standard signal measurement error < 0.3 DHS
Amplitude error use a standard signal measurement error < 1,000
Storage rotor number 255 a
Angle decomposition coun 60
The machine maximum power 2million
