YLD-20S Turbo Balance Vertical Single Plane Rotor YLD-20S Balancing Machine For Rotor
Weight of work-piece (kg): 1-20
Max diameter of work-piece (mm): φ500
Tel:+86-13375386268
Email: beacon@beacon-machine.com

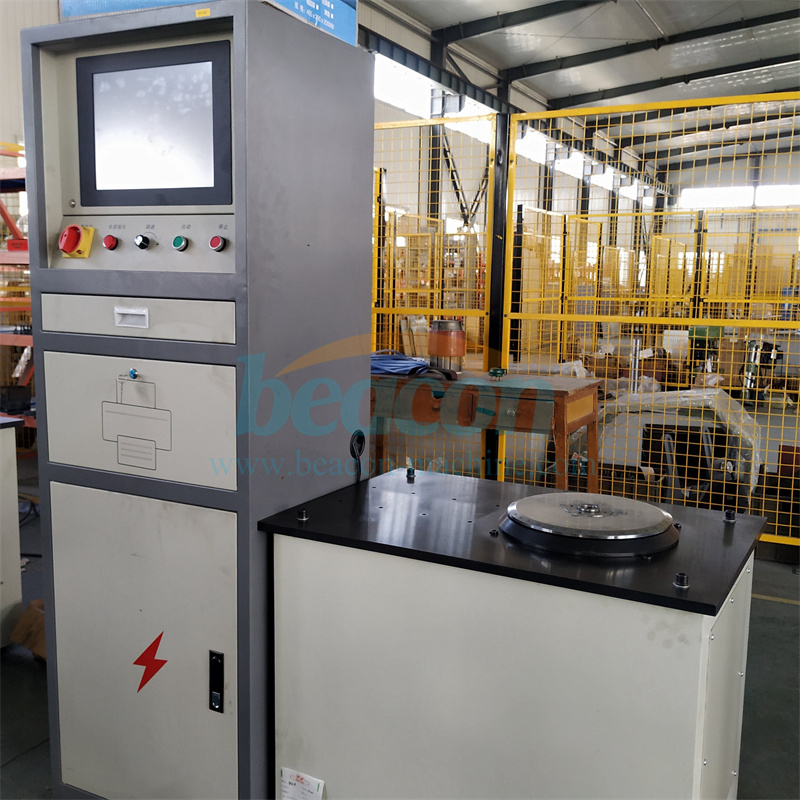

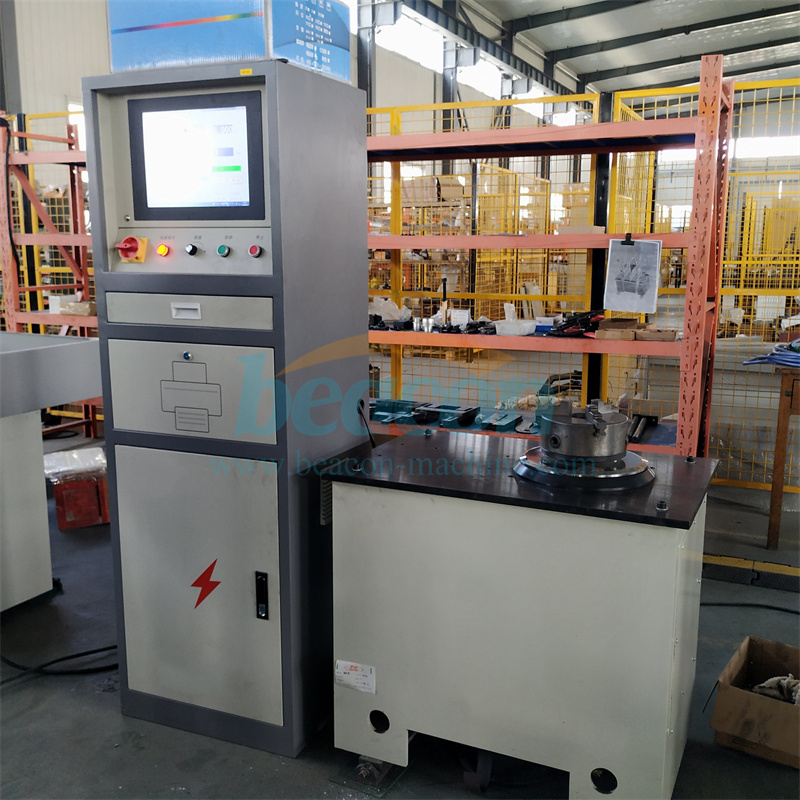

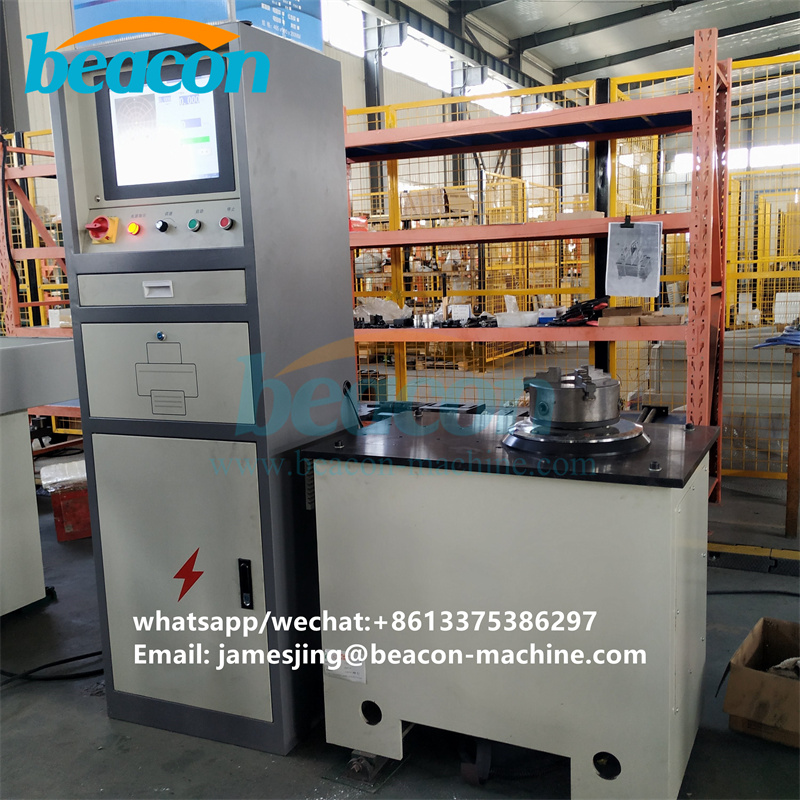

YLD-20S Single-sided Vertical Dynamic Balancing Machine
1) On lathe bed installing bearing frame and principal axis
Swing frame material is Mn65, can exactly collect vibration signal, integrated structure, there is piezoelectric sensor assembly behind elastic beam, used to measuring the shake of swing frame.
2) Driven part:
One piece unsplit bed-plate
One set principal axis
One set 1.1kw motor
One piece aluminum dial
One set reference signal sensor
3) Strong current system include:
Operation control panel ahead control cabinet installed power switch, start stop knob, inside vertical industry cabinet installed strong current controlling circuit board, air switch, IVNT frequency converter, converter dedicated filtering device, all above low-voltage components adopt domestic famous brands.
4) Measuring system include:
One set 32 bits industrial control computer;
One set 19 inches flat panel LCD monitor;
One piece LENOVO anti-interference keyboard, one piece mouse;
One set high-end electronic control cabinet;
A set of foundation bolt, wedge iron for leveling, and tools with the machine;
A set of balancing machine software and technical manual.
Specification
Weight of work-piece (kg): 1-20
Max diameter of work-piece (mm): φ500
Min achievable residual unbalance amount(gmm/kg): ≤3
Unbalance reduction ratio(%): ≥90
Rotating speed(r/min): 200-1500
Motor power(kw): 1.1
Drive mode:
V-ribbed belt driven
Work environment: Temperature: -5---45℃; Humidity: 0-85%
