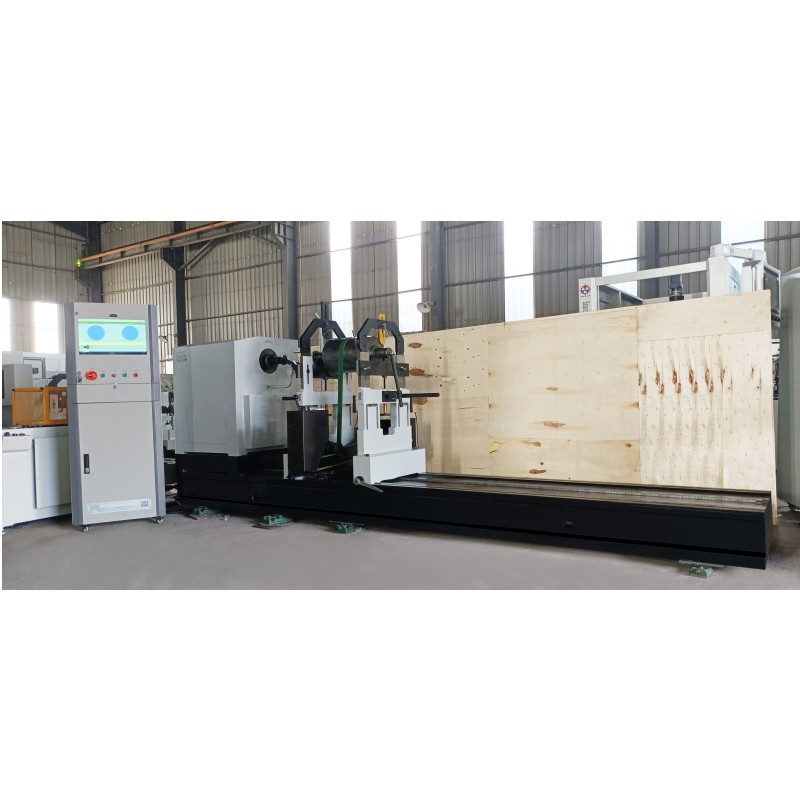

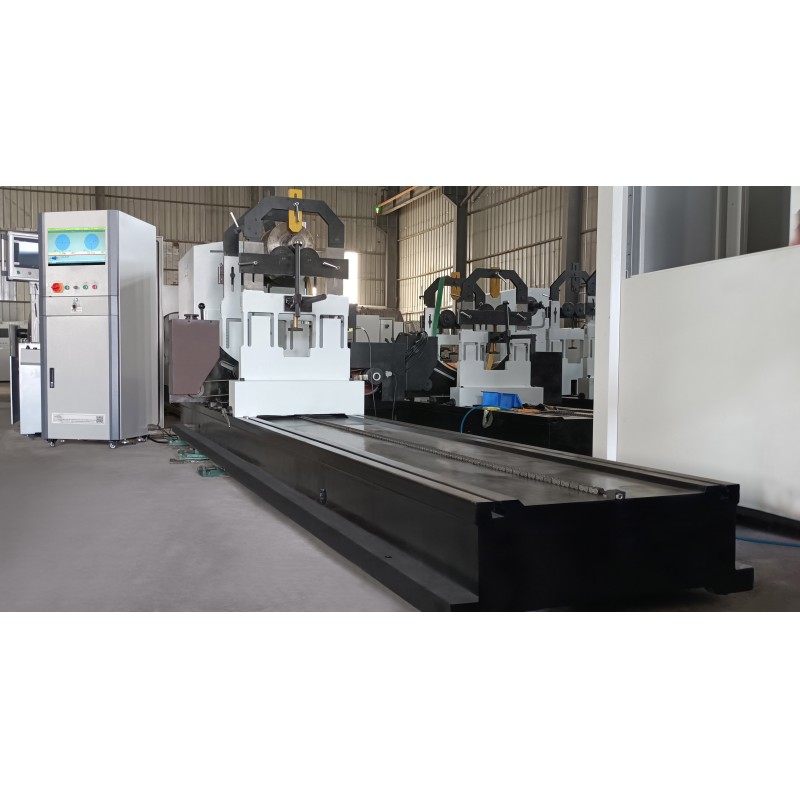

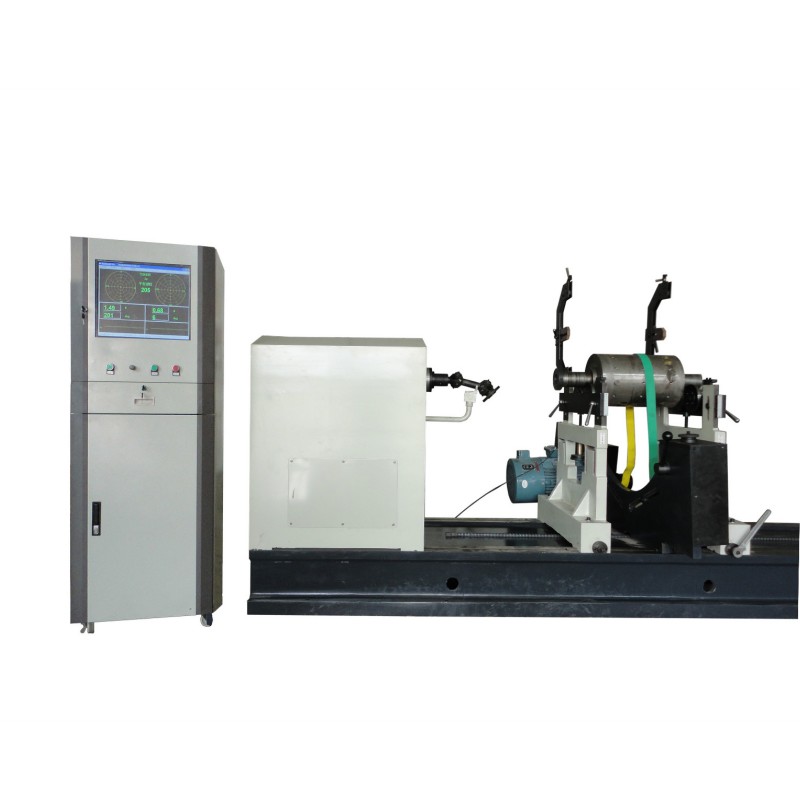

YYH-1000A dual drive rotor Balancing Machine
Product Application
this series is hard backing horizontal dynamic balancing machine, using the wheel backing, universal coupling to drive, the popular style is two-speed electric - driven,
"A" is variable-frequency electromotor plus inverter speed, industrial control computer data processing, color screen real-time shows the value of the amount of unbalance ,
phase and real-time rotational speed, bases have adopted the overall foundry, stability is good. It is widely used in electric motors, fan, diesel engine, farm machine, textile machinery,
It can balance and measure on single side, double side and many test sides, fit for axial, plate and gravity out-stretching roller. It has characterstics of high efficency, correct precision,
direct display, good quality, convenient maintenance and so on, the soft has both common work piece and standard roller special functions,
avoid demarcate equipment non-automatically for customers who use other hard support balancing machine measure system, and you can choose many measure method and function,
it can realize to input parameter, preview, test, save results, type, use chinese menu to operate, man-machine conversation, auto prompting.
MAIN TECHNICAL PARAMETERS
Model YYH-1000A
EThe measuring time :10s (measurement cycle can be arbitrary set).
Software version Windows XP
display mode :19 inch LCD
power supply The power of three-phase four-wire type AC 380V, 50/60HZ
Working continuously
Workpiece quality range (Kg) 10-1000
Beam supporting interval distance (mm) :100-3500
Trunnion range (mm) :Φ 10-120
Workpiece diameter (mm) :1500
Balance speed (r/min) :300-2500 variable frequency speed regulation
Motor power (KW) :7.5
Unbalance reduction rate% :≤90
Minimum can reach surplus balabcing (emar) :≤1g・mm/kg
