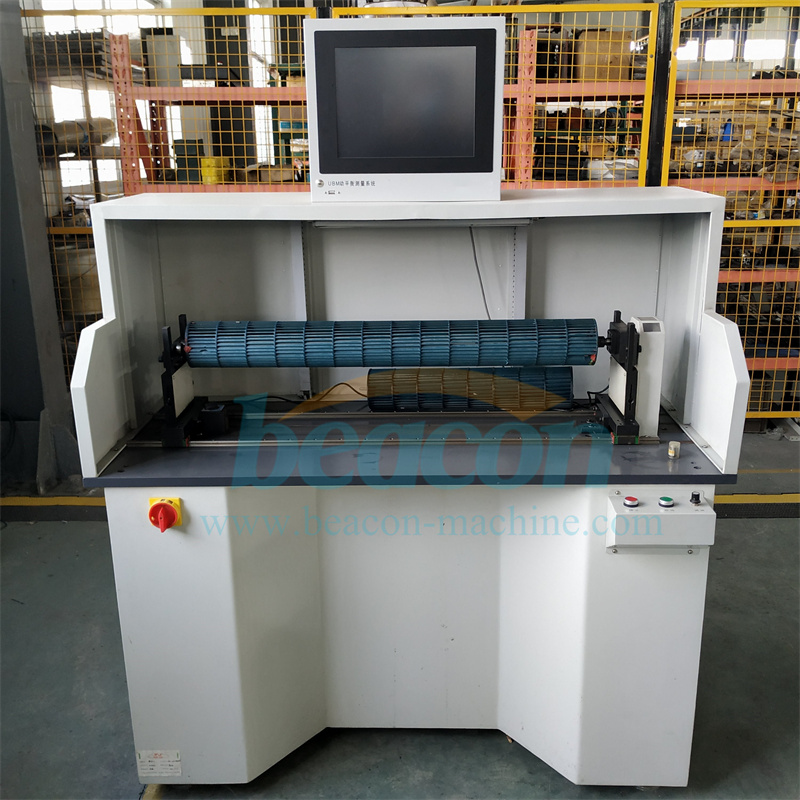

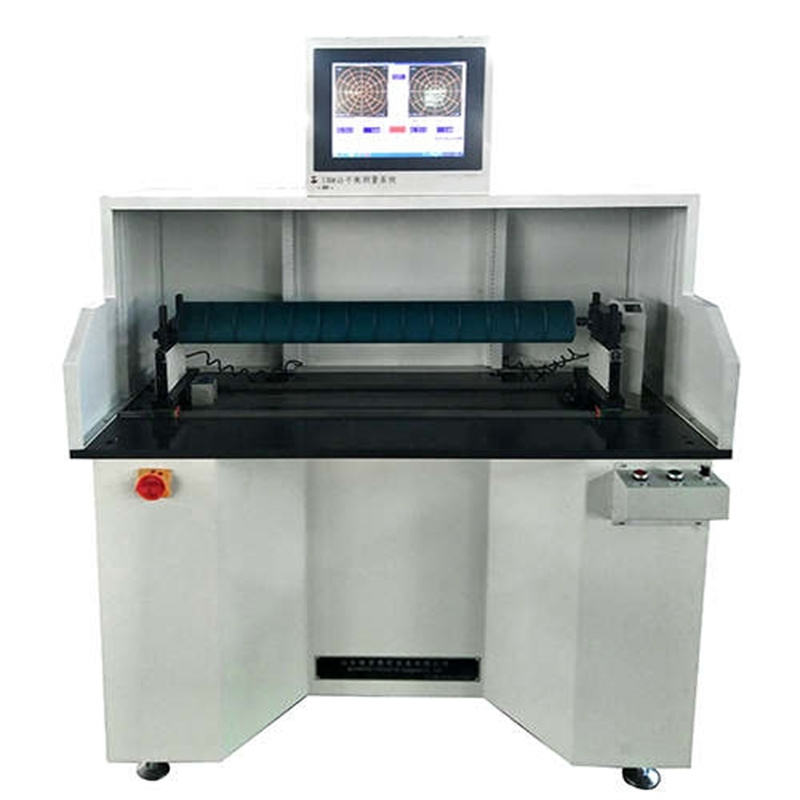

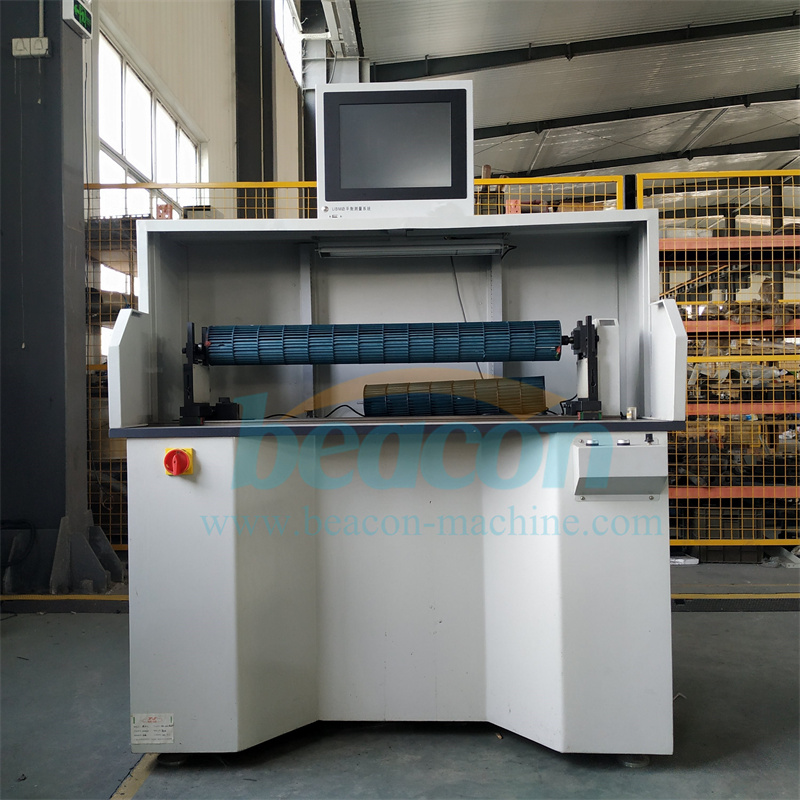

YYQ-10GLS Cross flow blade dynamic balancing machine
Main technical indicators:
The maximum load-bearing capacity of the equipment is 20kg, and under the condition of GD2 permission, the overload can be evenly carried out for a short time. The two swing frames can evenly load 10kg.
Machine structure
Main bed L=1200mm
The maximum use length of the main bed is 1000mm
The maximum allowable rotor turning diameter above the machine bed is φ400 mm
Drive mode:
Loop belt drive, 0.18kw motor and flat belt
The smallest achievable residual imbalance caused by (emar): ≤0.5gmm/kg
Electrical control:
High-end electric control cabinet
INVT inverters (A-share listed company) can achieve impact-free soft start and braking to ensure equipment accuracy and service life; through technological innovation, since 2006, our company’s dynamic balancing machine motors have adopted inverters of the same power. Minimize the loss of motor output power during the use of the equipment, make the equipment more energy-saving, more environmentally friendly, and the constant torque output design scheme to ensure that the flat belt drive will never break, while ensuring the balance of small workpieces Constant torque and variable power output are maintained at all times, saving electricity and ensuring no damage to the motor.
Support method:
The material used for the rollers on the balancer is GCr15 bearing steel. After high-frequency quenching, the hardness is above HRC55, and the surface is processed to an arc of R2000. After grinding, it is ground and demagnetized. The roller bearing adopts NSK small groove curvature P5 level C2 group The precision bearing ensures the wear resistance of the roller, and its contact with the workpiece is wide-line contact. Greatly improve the accuracy and service life of the roller.
Ring belt drive supporting roller frame configuration: shaft diameter φ3-40mm one set
Measuring system:
Self-developed Windows dynamic balancing machine special measurement software, intuitive display, accurate measurement.
Technical indicators of dynamic balancing machine:
1) Workpiece quality range (KG): 1-20kg
2) Maximum rotating diameter of workpiece（mm） φ400
3) The maximum diameter of the dragging part of the ring belt （mm） φ150
4) The maximum distance between the centers of the two swing frames (mm): 1000
5) Length of bed (mm): 1200mm
6) Bearing diameter (mm): φ4-φ40 (standard supporting roller stand)
7) The smallest achievable residual unbalance (gmm/kg): ≤0.5
8) Balance reduction rate (%): ≥90
9 Balance speed (r/min): 200-1500
10) Motor power (KW): 0.18kw
11) Transmission mode: ring belt drag
12) Working environment: temperature -5℃--45℃; humidity 0-85%
