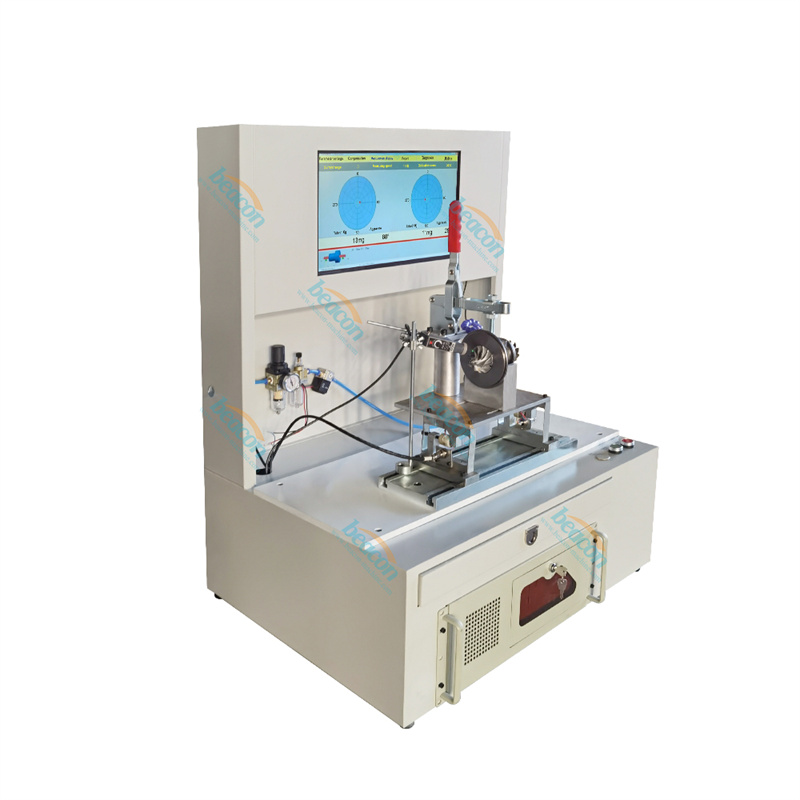

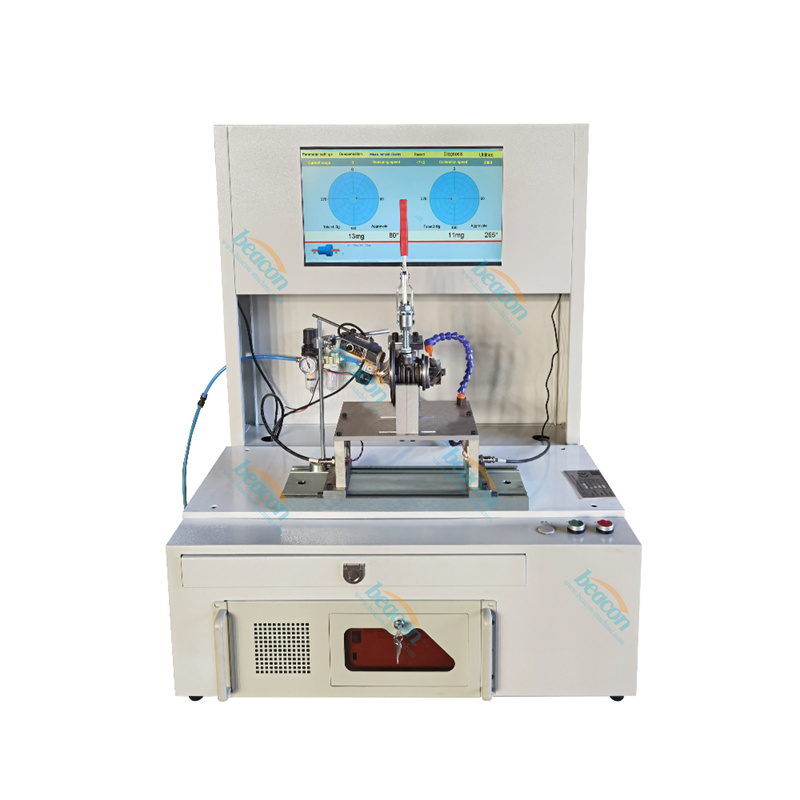

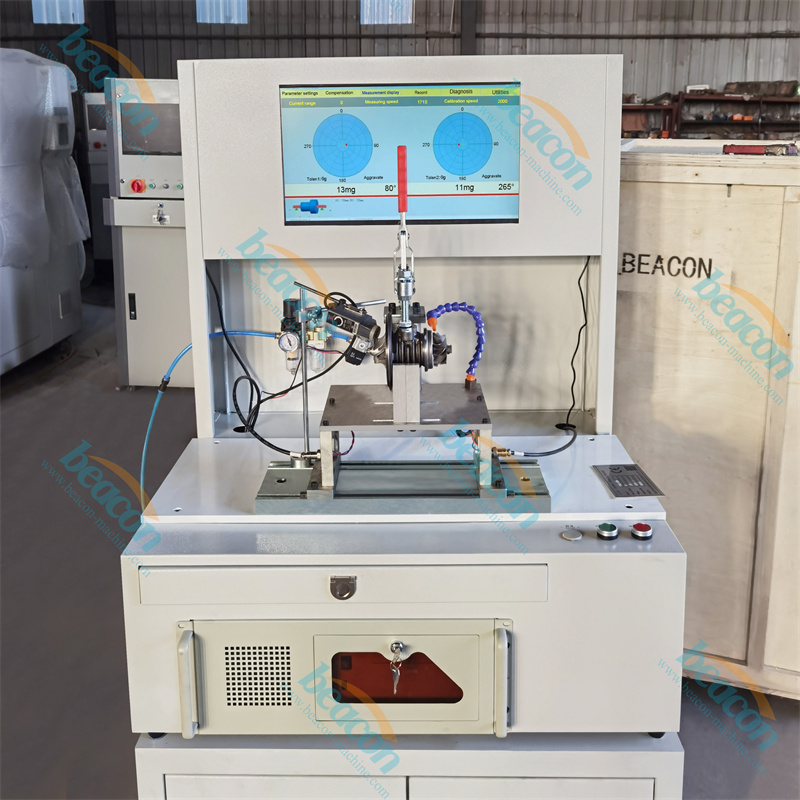

YYQ-10A Small Motor Rotor Turbocharger Dynamic Balancing Machine
The balancer is with air drive for balance 0.01-10kg rotor
Tel:+86-13375386268
Email: beacon@beacon-machine.com
YYQ-10A Small Motor Rotor Turbocharger Dynamic Balancing Machine
High measuring accuracy and efficiency
Safe and simple handling
Infinitely variable DC drive
Large weight range
Ergonomic working height
Horizontal balancing machine, soft-bearing, belt drive,
Balancing mechanical parts (can put on a table) Measuring
system balancing software computer display.
Technical parameters
Model RYQ-10
Mass of Workpiece (kg) 0.01-10
Max.diameter of workpiece (mm) Φ350
Distance between two support bearing(mm) 30-450
Range of Journal Diameter(mm) φ3-22
Balancing speed(r/mm) 400-10000
Min. Achievable residual Unbalance (g.mm/kg) ≤0.5
Unbalance reduction ratio(%) ≥90
Drive power (kw) 0.09
