The balance machine mainly balance within 300kg rotor with cardan jiont drive
Tel:+86-13375386268
Email: beacon@beacon-machine.com

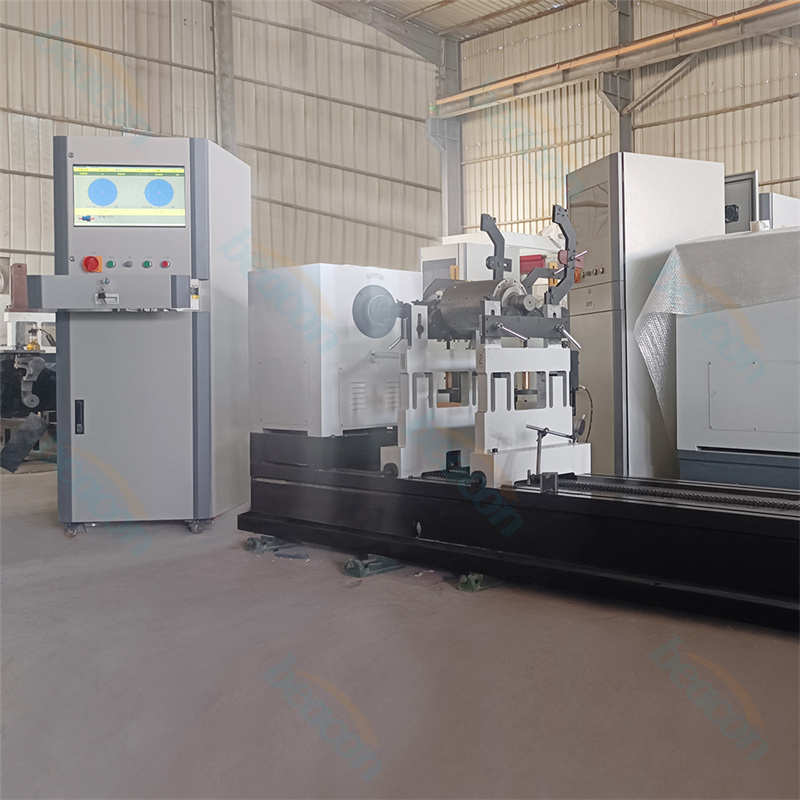

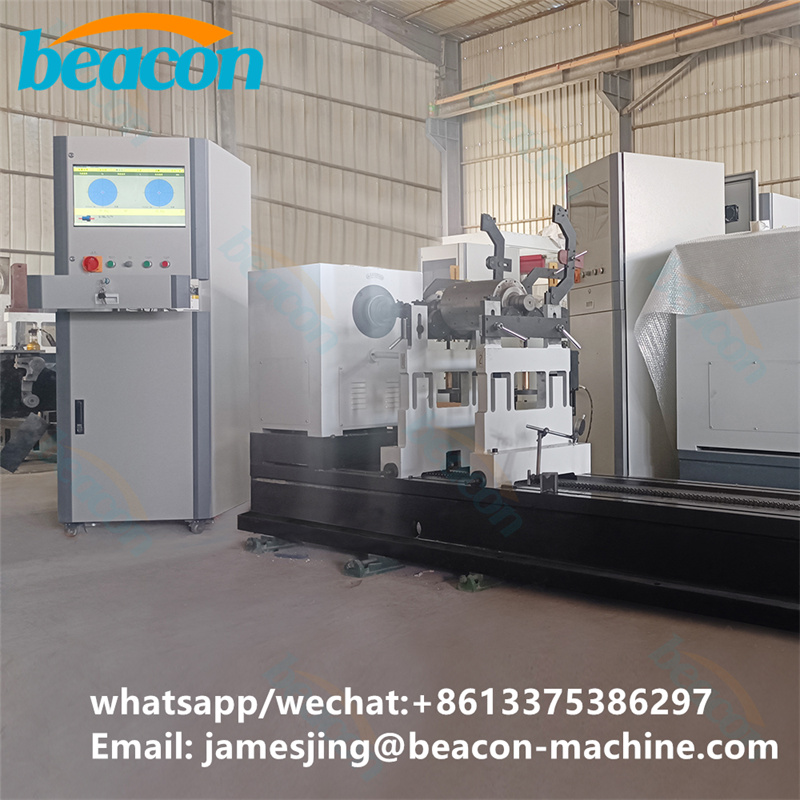

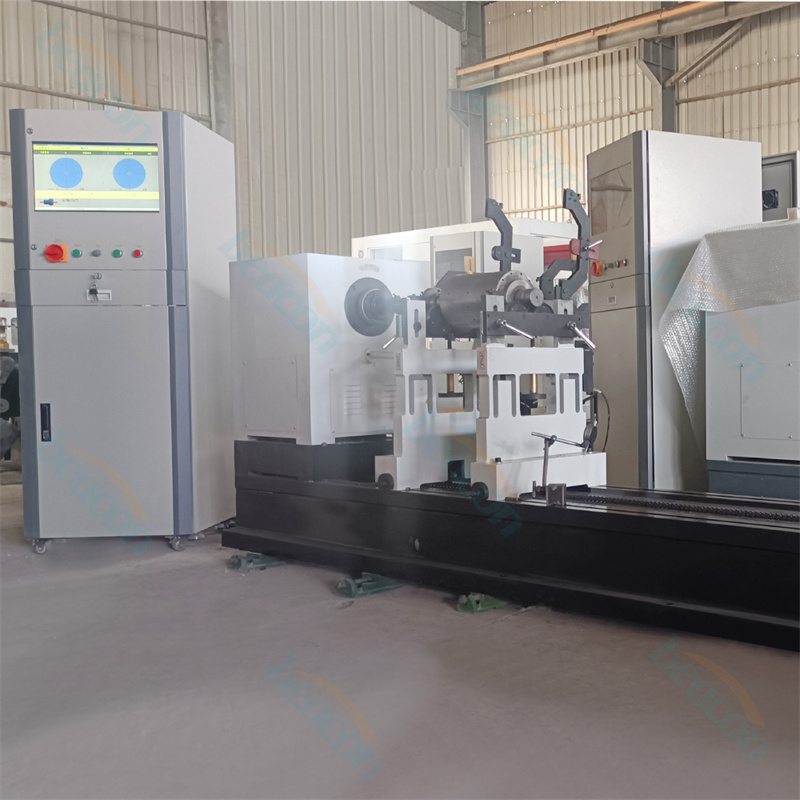

YYW-300S Universal joint shaft dynamic crankshaft rotor hard bearing balancing bank machine equipment
Main technical index:
One-time permanent calibration
More humanized,more powerful.
The permanent calibration brings high accuracy.
Real time display imbalanced value,phase angle,the real time speed of workpiece,real time measurement
of vibration signal strength and the vector trajectory diagram, et.
Data input, storage, printing, realize one click work.
Workpiece clamping is convenient;fixture automatic compensation,higher precision.
Only need to replace the fixture can be adapted for disc rotating workpiece’s balance calibration.
The measurement system is provided with a clamp compensating function,with professional fixture,the hardware and software really match,improve the accuracy.
weight of work-piece (kg): 10-300
Max diameter of work-piece (mm): φ1200
Max distance from universal joint interface to right swing frame center(mm) 2000

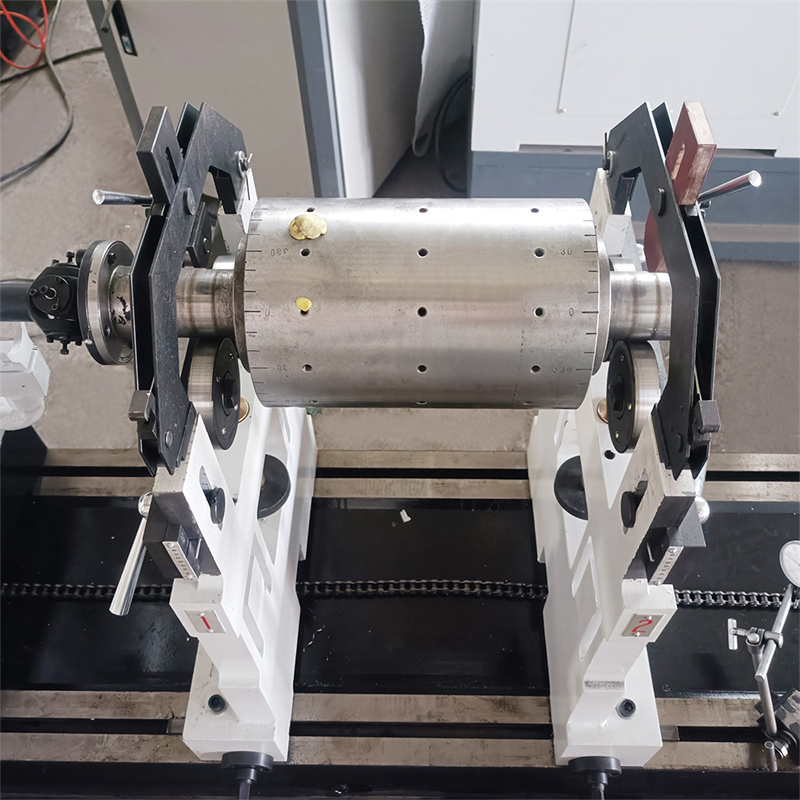

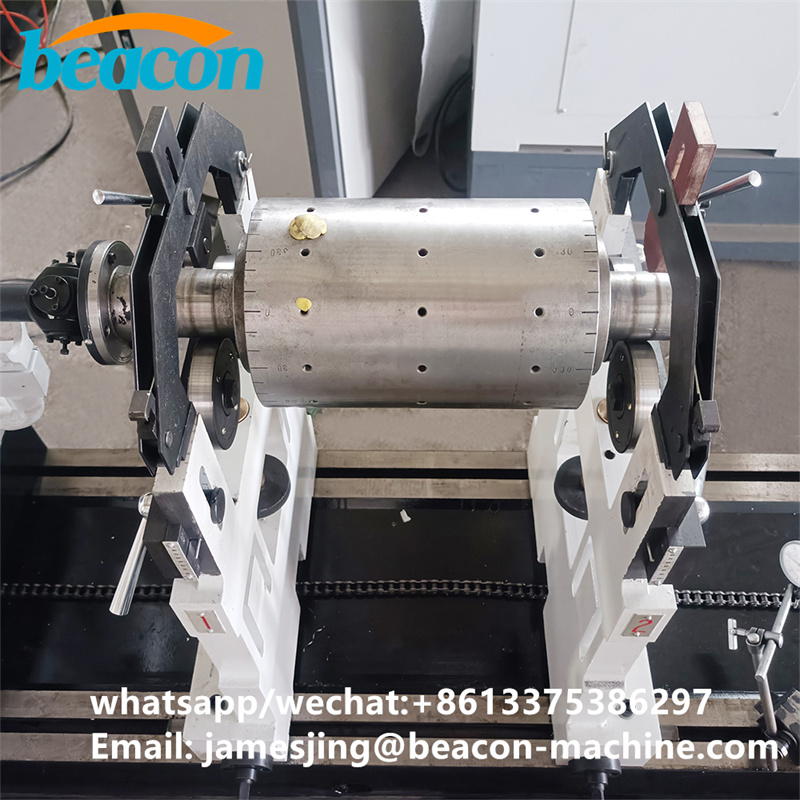

Journal diameter scope of work-piece(mm): φ20-90(standard bearing roller frame)
Min achievable residual unbalance amount(gmm/kg): ≤1
Unbalance reduction ratio(%): ≥90
Rotating speed(r/min): 200-1500
Motor power(kw): 5.5

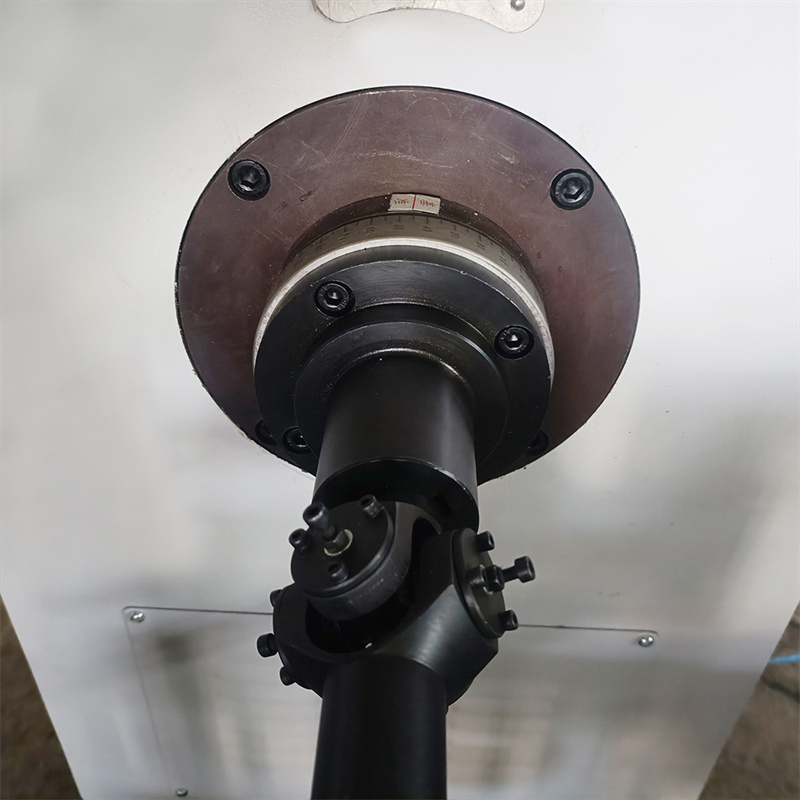

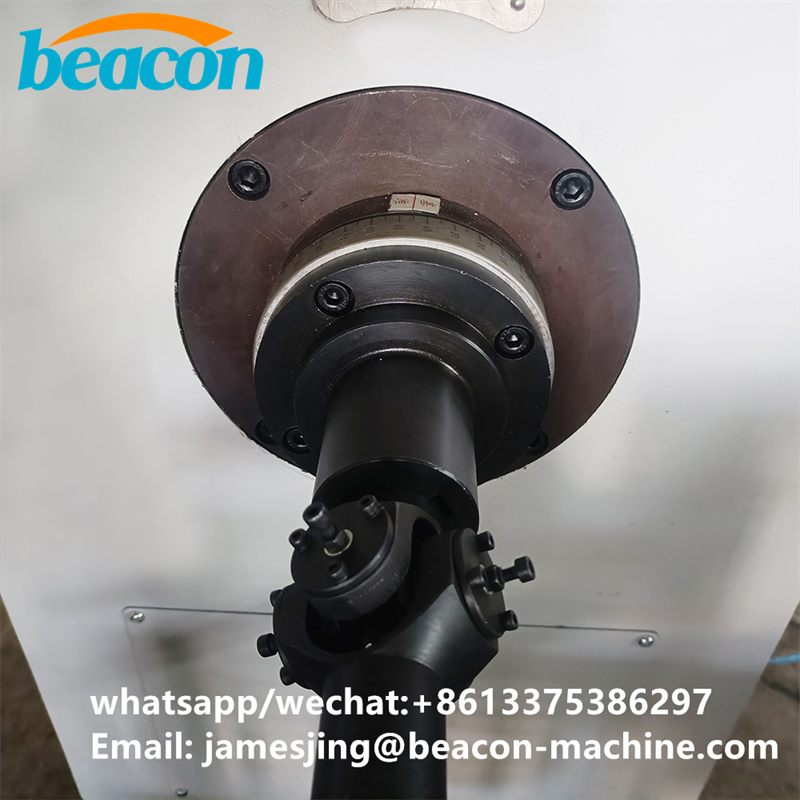

Drive mode:universal spindle coupling
Work environment: temperature: -5---45℃;
humidity: 0-85%
