The banlancing machine mainly balance 500-30000kg rotor with cardan joint
1)weight of work-piece universal joint driven(kg): 500-30000
2)Max diameter of work-piece universal joint driven(mm): φ2800
3)Length of lathe bed :(mm) 4300*2
Width of lathe bed:(mm) 1200
Tel:+86-13375386268
Email: beacon@beacon-machine.com

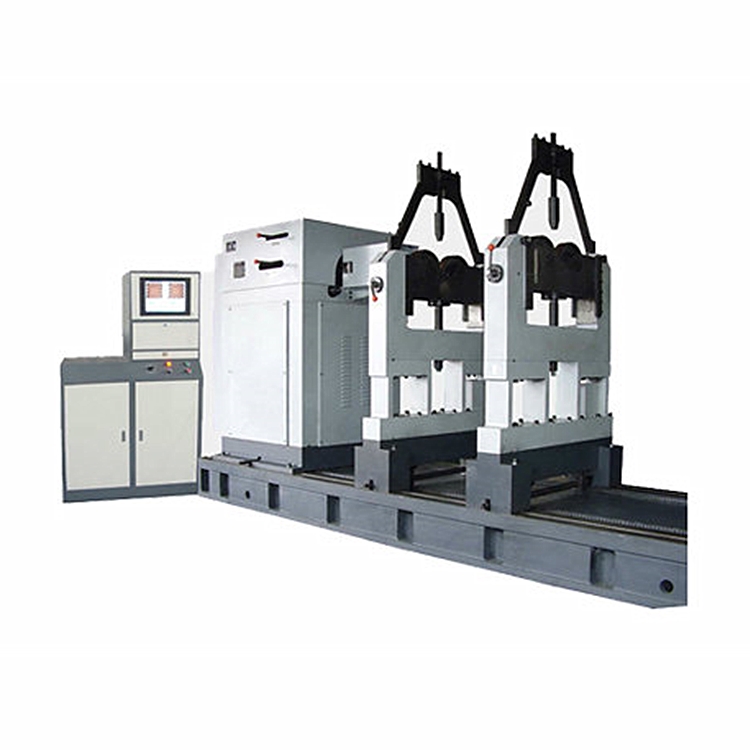

30000kg rotor balancing Calibration equipment machine schenck high speed dynamic balancer YYW-K30S
Main technical index
Way of driving: universal joint driven, 75 kw motor and Shaanxi FAST five speed gearbox

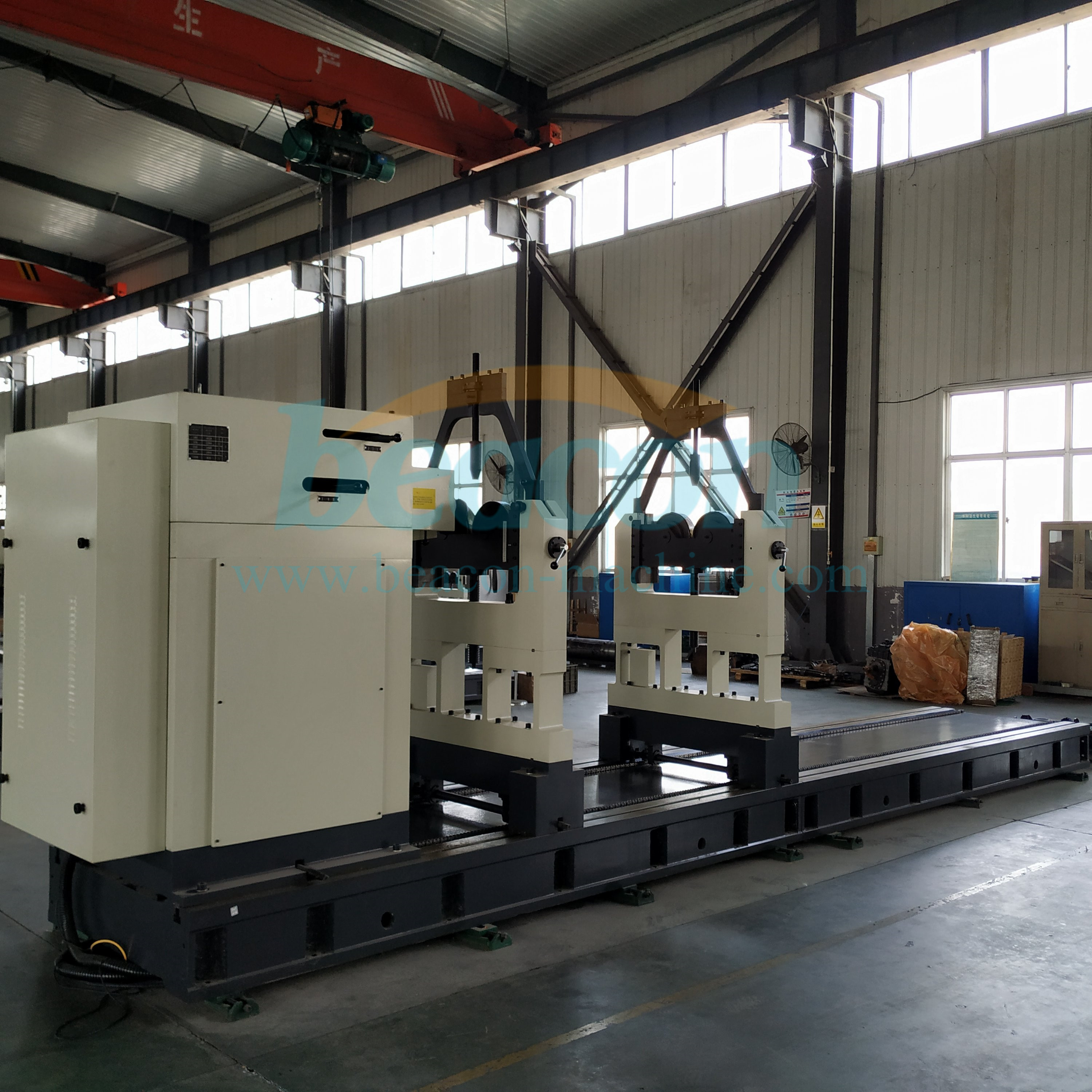

For convenient to place and adjust large work-piece rotor, gearbox can fine tune about 40cm on head stock, and whole head stock can free move on lathe bed, in case of breaking universal joint when installing, and realized fast connecting.
Measuring system: independent developed dynamic balancing machine special measuring software.
Device configuration:

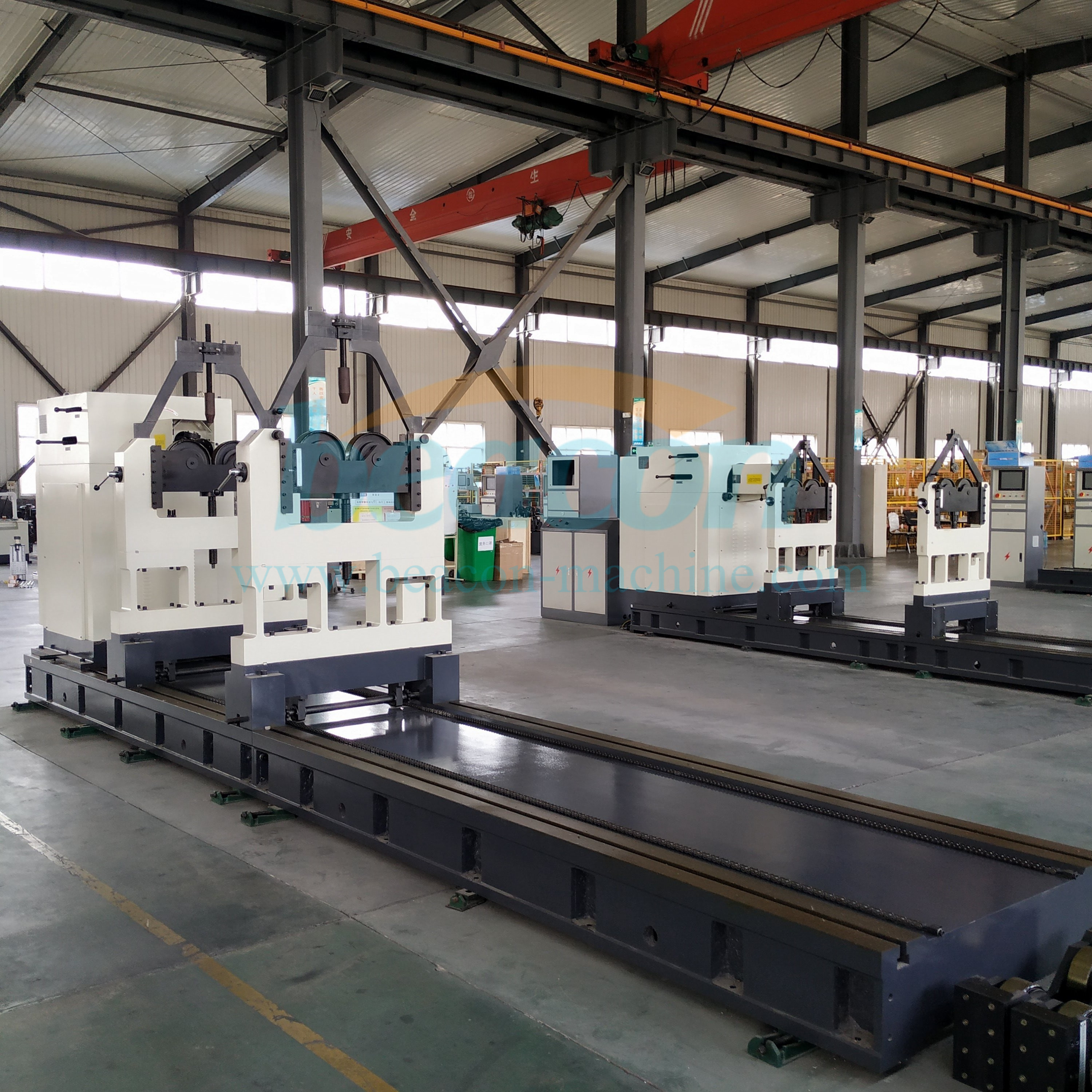

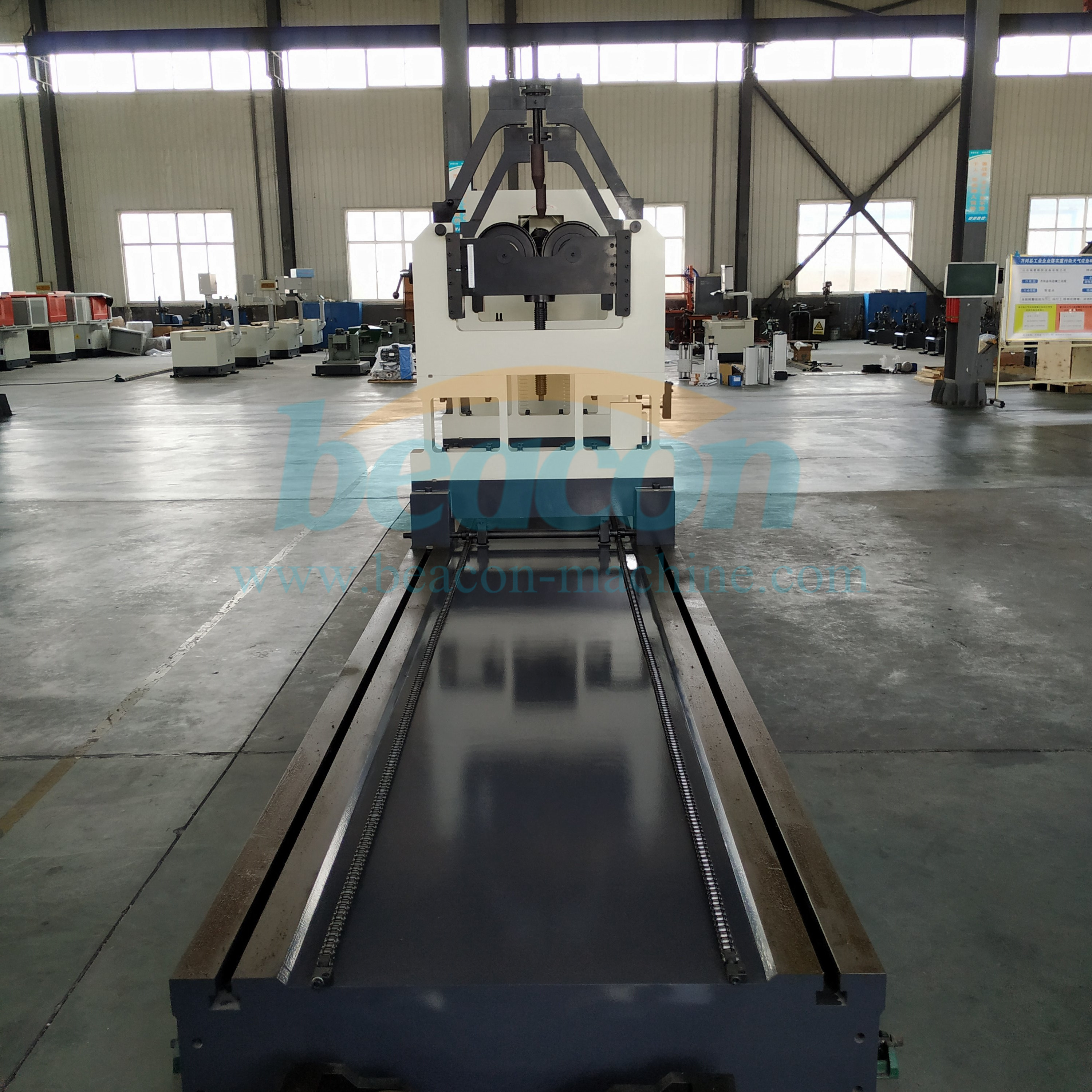

1) lathe bed dimension: two part 4300mm lathe bed separate installation,junction is milled by milling planer, material is HT250 cast iron, there are two T type grooves on lathe bed for move and fasten swing frame.
2)There are two sets standard bearing frame on lathe bed
The swing frame made by QT450 cast iron, modular structure, roller is “H” type bearing, with lockable and adjustable clamp safety frame, there is piezoelectric sensor assembly behind elastic beam, used to measuring the shake of swing frame.
3)universal joint driven part:
One head stock
One set 75kw motor and five speed gearbox
One set universal spindle coupling with graduated disc
Two sets universal joint, rated torque is 5000/1000Nm, with safety cover
One set reference signal sensor
4)strong current system include:
Operation control panel ahead control cabinet installed power switch, start stop knob, inside vertical industry cabinet installed strong current controlling circuit board, air switch, IVNT frequency converter, converter dedicated filtering device, all above low-voltage components adopt domestic famous brands.
5)measuring system include:
One set 32 bits industrial control computer;
One set 19 inches flat panel LCD monitor;
One piece LENOVO anti-interference keyboard, one piece mouse;
One set double door high-end electronic control cabinet;
A set of foundation bolt, wedge iron for leveling, and tools with the machine;
A set of balancing machine software and technical manual.
YYW-K30S dynamic balancing machine technical index:
1)weight of work-piece universal joint driven(kg): 500-30000
2)Max diameter of work-piece universal joint driven(mm): φ2800
3)Length of lathe bed :(mm) 4300*2
Width of lathe bed:(mm) 1200
4)Journal diameter scope of work-piece(mm): φ50-260, φ240-500(2 sets rotor)
5)Min achievable residual unbalance amount(gmm/kg): ≤1
6)Unbalance reduction ratio(%): ≥90
7) Rotating speed(r/min): 180/330/540/850/1350 Step less speed regulation
8) Motor power(kw): 75
9) Drive mode: universal spindle coupling+five speed gearbox
10) Work environment: temperature: -5---45℃; humidity: 0-85%
