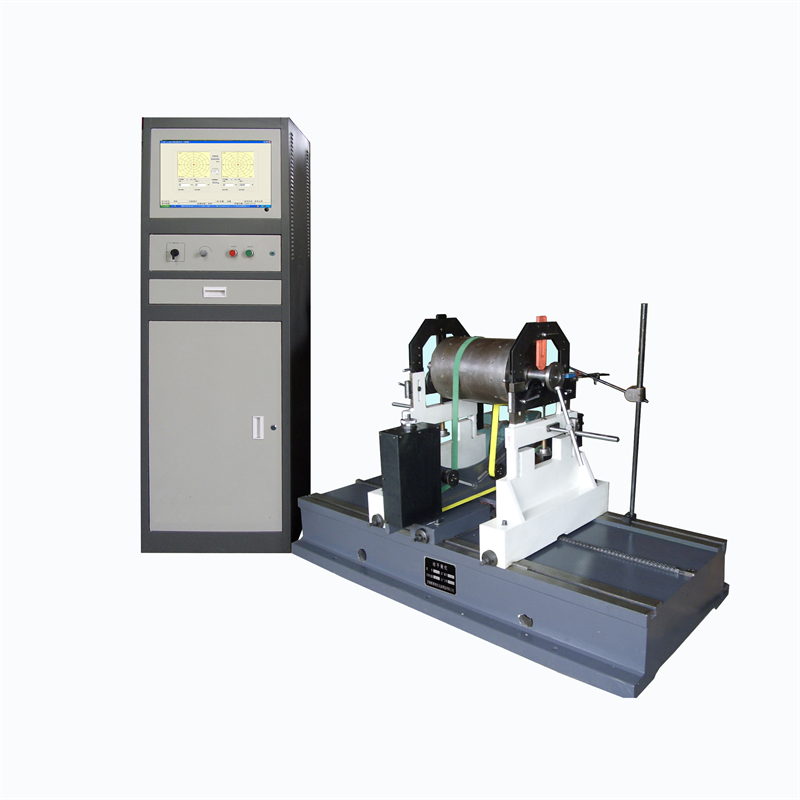

YYQ-500S Soft bearing dynamic turbo rotor balancing machine
Features
General hard bearing dynamic balancing machine strictly according to GB/T 4201-2006 to produce, using semi hard bearing, belt driven, screen display structure,
industrial control computer processing the data. 19 inches LCD screen display unbalance amount, phase angle and real-time rotating speed.
It is widely used in paper making machine, textile machine, agriculture machine, electric motor, blower fan, etc, can measuring balance on single interface, suited for plate work-piece, center of gravity overhung rotor.
Main technical index
Way of driving: belt driven and 4 kw motor
Measuring system: independent developed dynamic balancing machine special measuring software.
Specification
1)weight of work-piece (kg): 10-500
2)Max diameter of work-piece (mm): φ1600
3)Max diameter of scope of driving belt(mm): φ500
4)Max distance between two swing frame center(mm): 1500
5)Length of lathe bed(mm): 1800
6)Journal diameter scope of work-piece(mm): φ20-130 (standard bearing roller frame)
7)Min achievable residual unbalance amount(gmm/kg): ≤0.5
8)Unbalance reduction ratio(%): ≥90
9)Rotating speed(r/min): 200-1500
10)Motor power(kw): 4
11)Drive mode: belt driven
12)Work environment: temperature: -5---45℃; humidity: 0-85%
