Model :YYQ-50A
Mass scope of work piece kg :1-50
Biggest diameter work piece : mm 900
Tel:+86-13375386268
Email: beacon@beacon-machine.com

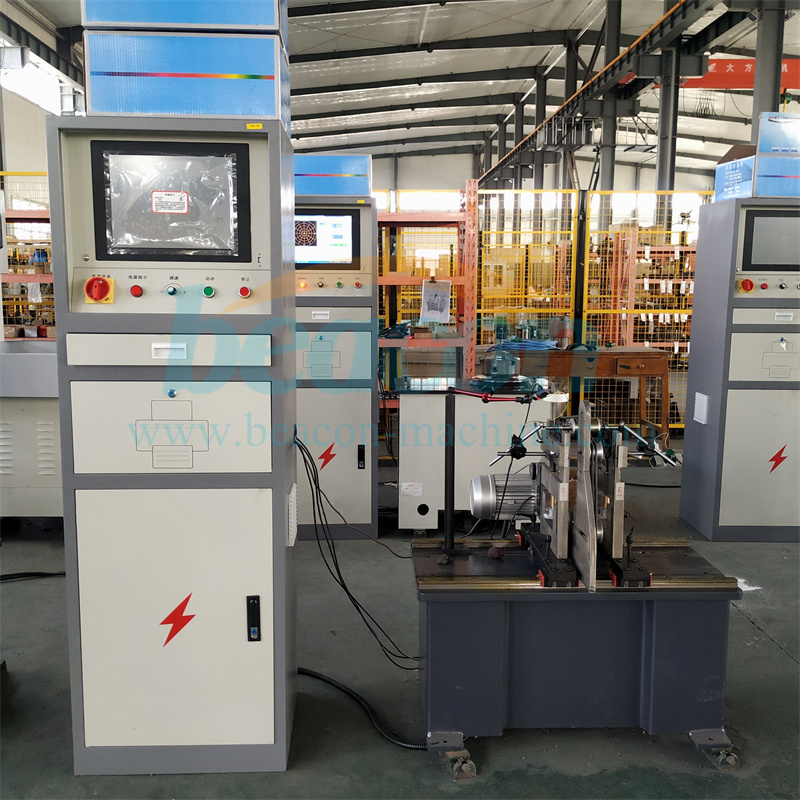

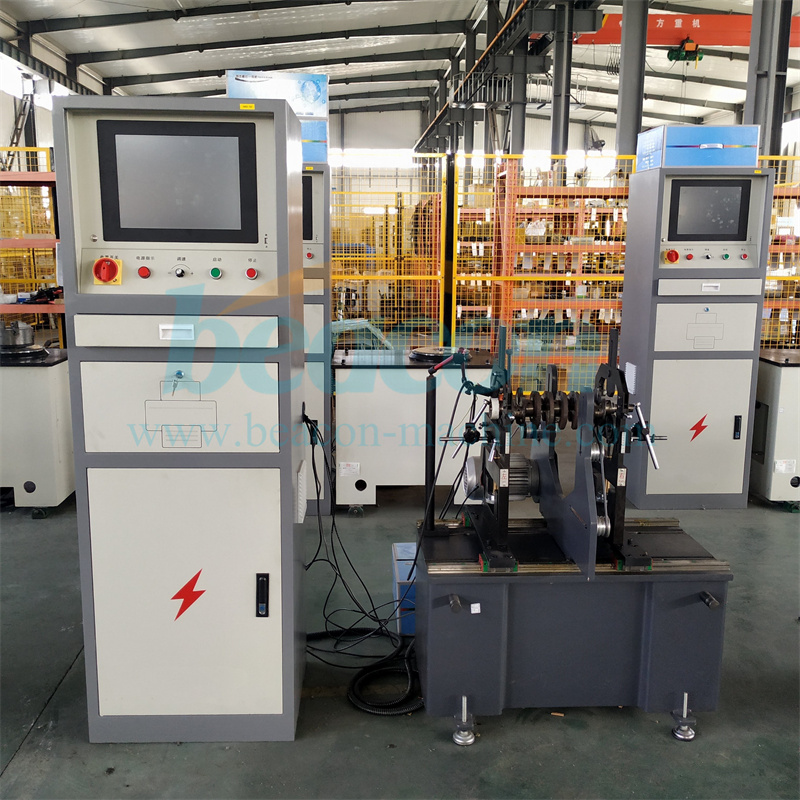

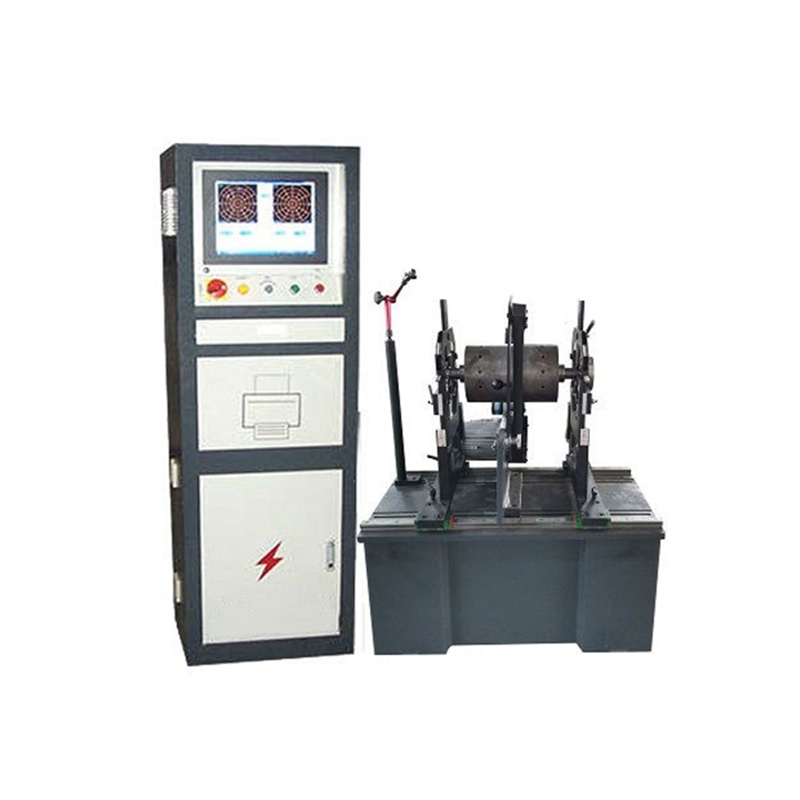

YYQ-50S Motor rotor fan rotor fan impeller Roll Roller dynamic balancing machine
Introduction:
1.YYQ-50S balancing machine characteristics:
1.Widely apply for industries like motor, blower, diesel motor, turbocharger,
armature, rotors of paper machinery and textile machinery etc.
2.Horizontal hard bearing dynamic balancing machine serials
3. Wheel bearing
4.Belt drag
5. Motor and Inverter for speed regulation
6. Industrial computer to process data
7 .Colored screen display unbalance value, phase angle, and practical rotation speed
8.Overall cast base, better stability
9.Balance test as single side, double side, multi side
10.Apply for shaft, plate, and extended focus rotor
11.High accuracy, direct, dependable quality, convenient maintenance
12.Software has two calibration function like usual piece and standard rotor
13.Parameter input, overview, test, data save, operate and menu
2.YYQ-50S balancing machine applications:
The balancing machines are widely used in motors, fans, pumps, cars, houses, chemicals, agricultural machinery, petroleum machinery, paper machinery, printing machinery and other industries, the maximum reduction in the mechanical parts work vibration and noise, to help users improve the accuracy of the product and life, praised by users.
Model :YYQ-50S
Mass scope of work piece kg :1-50
Biggest diameter work piece : mm 900
Two span of supports mm :60-800
Trunnion support mm :8-70
Balancing speed r/min :300-5000
Min achievable residual unbalance amount :≤0.5gmm/kg
Unbalance reduction ratio % :≥90%
Motor power kW : 0.75(A:0.75)
