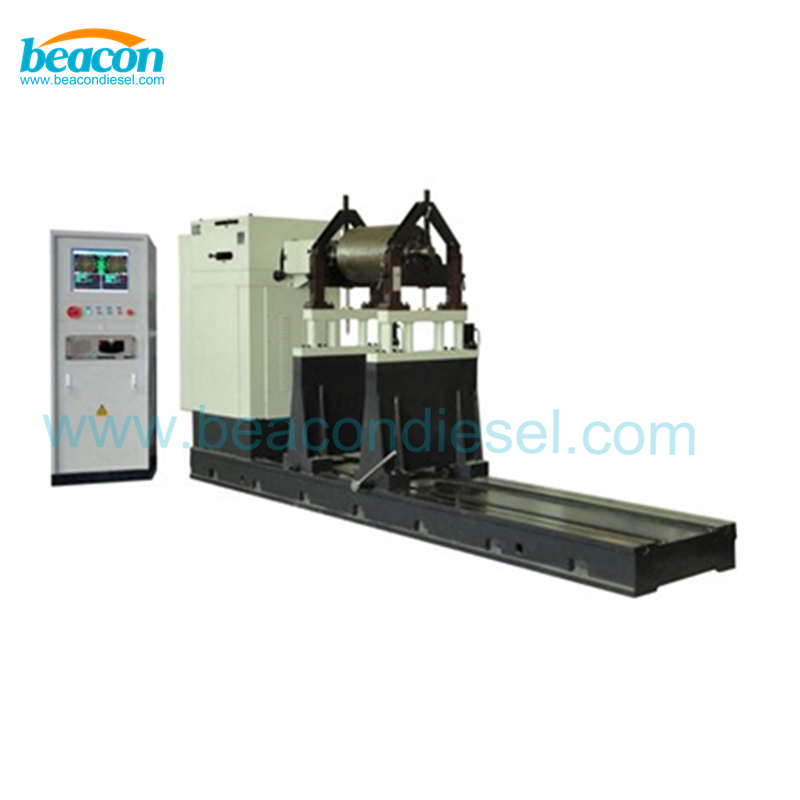

YYQ-8000A Dynamic Balancing Machine for Supply of Generator Rotor Balancing Machine for Dynamic Balancer
Model Number YYQ-8000A
Workpiece mass range (kg) 80-8000
Maximum diameter of workpiece (mm) 2600
Effective length of workpiece (mm) 300-5600
Diameter of ring belt drag (mm) 200-1100
Bed size (length * width * height) (mm) 3000*900*260
Swing frame structure Split swing frame, roller H-shaped support
Shaft diameter range (mm) 40-400
Balance speed (r/min) 100-1000 stepless speed regulation
Minimum residual unbalance ≤0.5gmm/kg
Unbalance reduction rate (%) ≥95%
Inverter and motor power 15kw
Speed mode Frequency
Transfer method Circle drag
Overall dimensions (length*width*height) 6000*900*1800
Tel:+86-13375386268
Email: beacon@beacon-machine.com
YYQ-8000A Dynamic Balancing Machine for Supply of Generator Rotor Balancing Machine for Dynamic Balancer

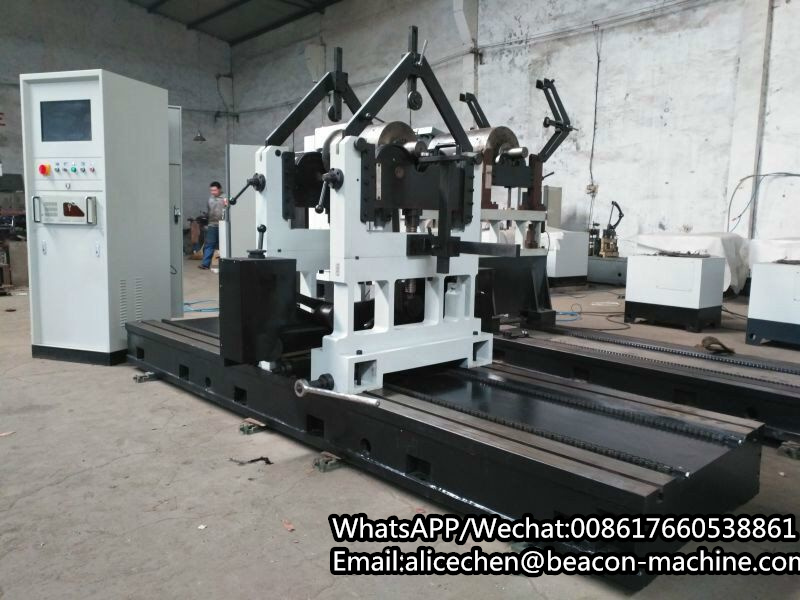

Belt drive balancing machines are of robust design and are operated by JINAN BEACON MACHINE CO.,LTDindustry leading measuring systems. Several models such as Digital display, Industrial Control for your choice.
Various Measuring Methods: dynamic balancing, static balancing or both, ten support modes, adding or reducingdata compression, faster, more stable and accurate measurement.
