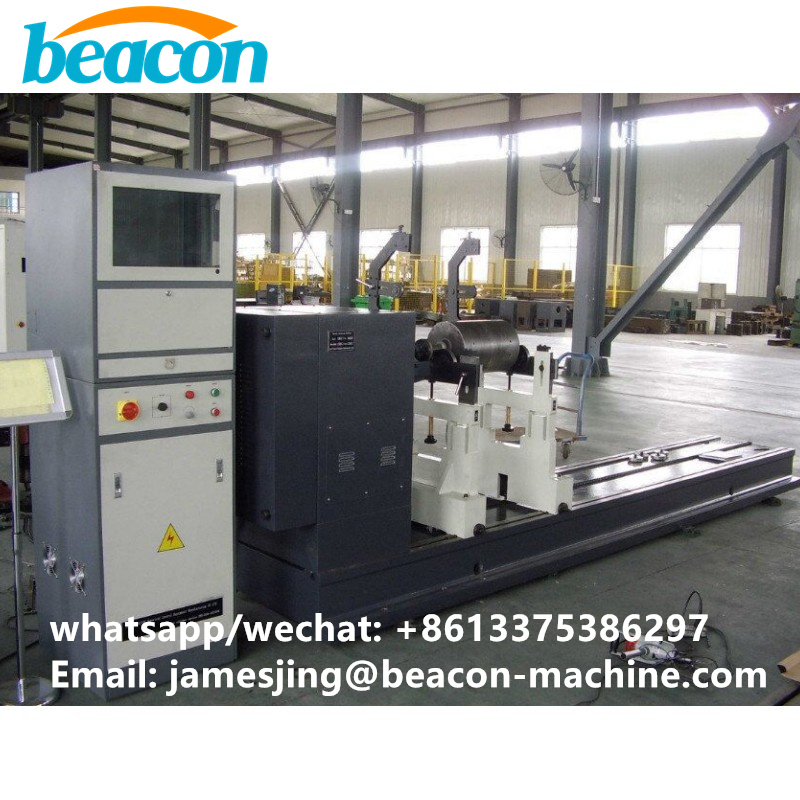

YYW-500A mainly balance within 500kg rotor with cardan joint drive
It mainly balance 20-500kg rotor .
Tel:+86-13375386268
Email: beacon@beacon-machine.com
Beacon YYW-500A Dynamic Fan Rotor Balancing Machine Universal Joint Drive Shaft Propeller Dynamic Balancing Instrument Equipment
1. Special designed brackets can effectively transmit mechanical force
2. The durable and reliable sensor possesses high sensitivity
3. The permanent calibration brings high accuracy
4. Driven by universal coupling,transmit the power steadily
5. Applicable to rotors which can't be driven by belt or need large power
6. Advanced electrical measuring system and friendly man-machine interface
7.YYW series are applicable for blower, large-sized motor, pump, centrifuge, rubber roller, drying cylinder, internal-combustion engine etc
|
Model |
Max. mass of workpiece (kg) |
Max.diameter of workpiece (mm) |
The distance between the two bearing(mm) |
Max.rotor Diameter (mm) |
balancing speed(r/min) |
minimum achievable residual unbalance (g.mm/kg) |
Unbalance rate % |
|
YYW-160 |
5-160 |
Φ950 |
60-1420 |
Φ10-180 |
325/650/1300 |
≤1 |
≥90 |
|
YYW-300A |
10-300 |
Φ1200 |
60-1700 |
Φ20-180 |
325/650/1300 (A300-2500) Neutral speed regulating |
≤1 |
≥90 |
|
YYW-500A |
20-500 |
Φ1500 |
70-1600 |
Φ15-240 |
325/650/1300 (A300-2500) Neutral speed regulating |
≤1 |
≥90 |
