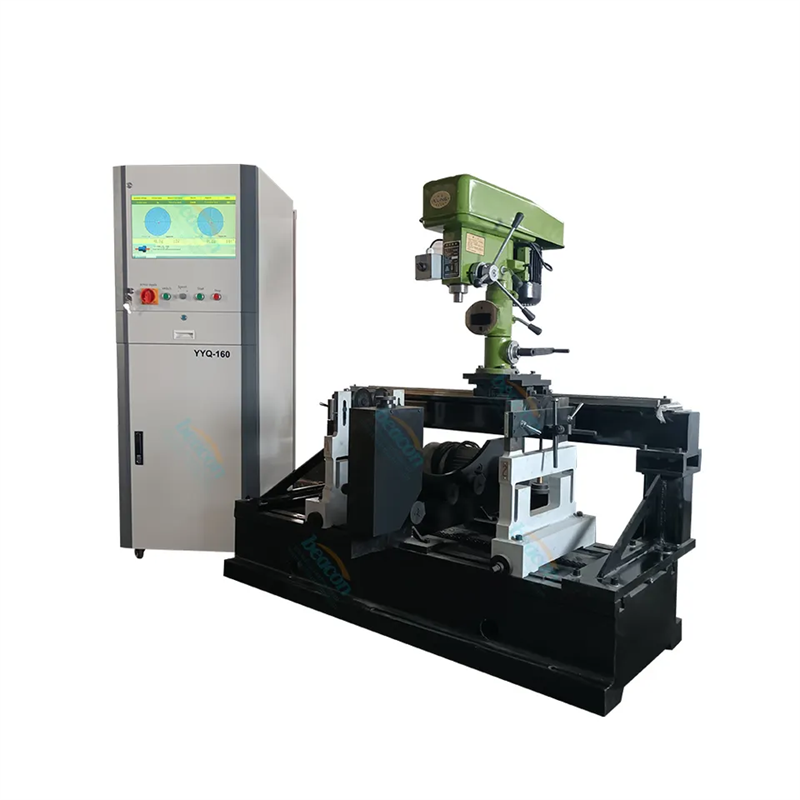

YYQ-160A Crankshaft Universal Joint Drive Balancing Machine for Rotors YYQ-160
Model YYQ-160A
EThe measuring time 10s (measurement cycle can be arbitrary set).
Software version Windows XP
display mode 19 inch LCD
power supply The power of three-phase four-wire type AC 380V, 50/60HZ
Working continuously
Workpiece quality range (Kg) 50
Beam supporting interval distance (mm) 60-1300
Trunnion range (mm) Φ 10-90
Workpiece diameter (mm) 950
Balance speed (r/min) 300-2500 variable frequency speed regulation
Motor power (KW) 1.5
Unbalance reduction ratio% ≤90
Minimum can reach surplus balabcing (emar) ≤0.5g・mm/kg
Tel:+86-13375386268
Email: beacon@beacon-machine.com

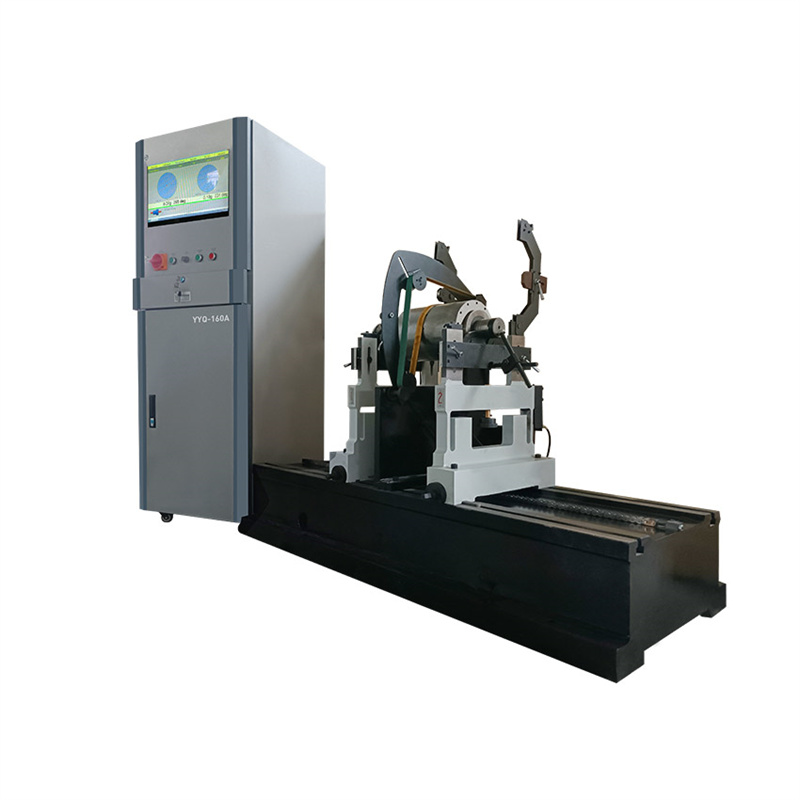

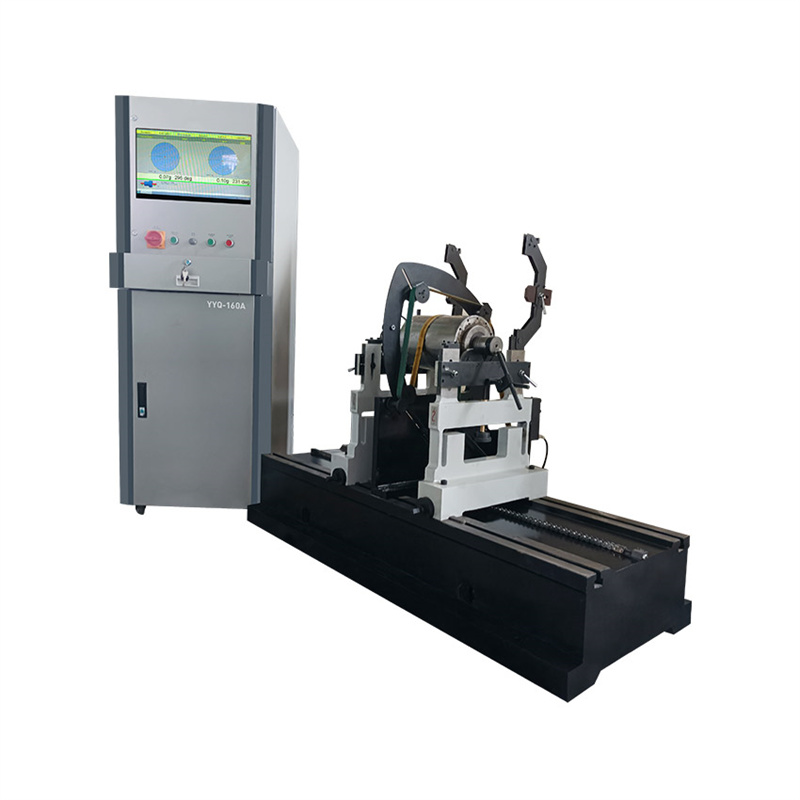

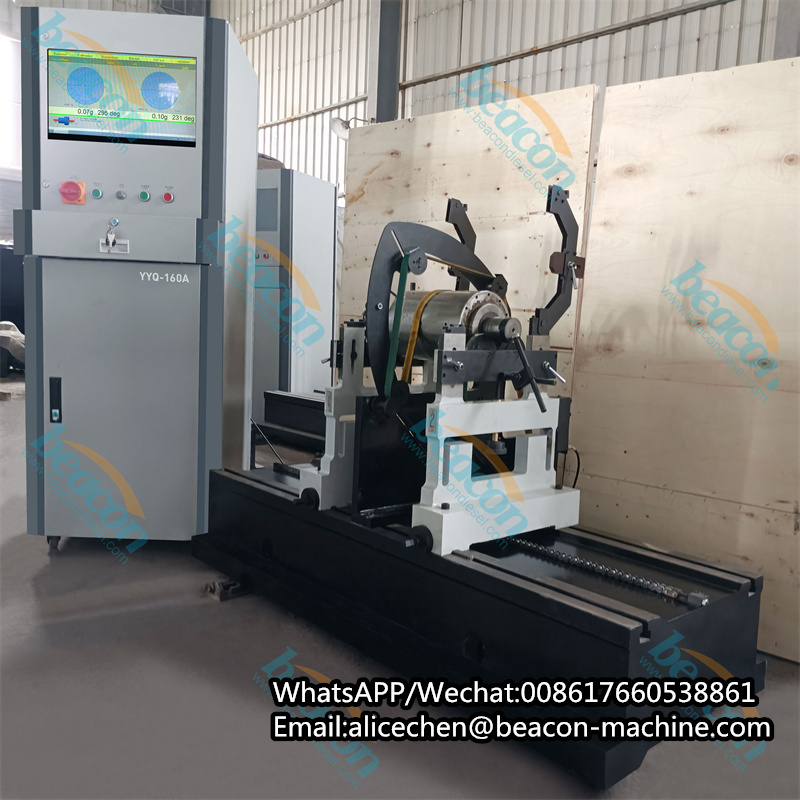

YYQ-160A Crankshaft Universal Joint Drive Balancing Machine for Rotors YYQ-160

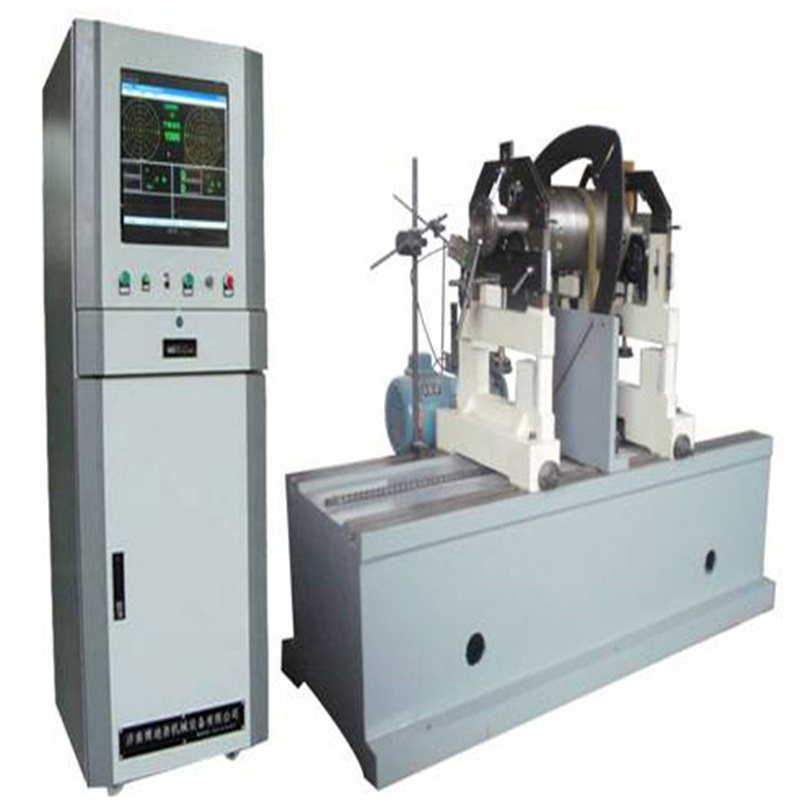

This series is hard supporting horizontal dynamic balance machine, with roller bearing, the circle take drag, regular for double speed motor drive, "A" type for frequency conversion motor speed and frequency converter, the industrial control computer for data processing, color screen real-time display don’t balance phase Angle and value, real-time speed, lathe bed all use whole casting, the stability is good.Widely used in electric motors, blower, diesel engine, auto parts, etc, can be in the single side, double side and multiple correction plane balance measurement, suitable for axle, dish out and center of gravity of the rotor. Have high efficiency, precision accurate, show intuitional, reliable quality, easy maintenance, the characteristics of software with ordinary workpiece and standard rotor two calibration function, overcoming the other hard supporting balance machine measurement system to users to calibration equipment of the defect, and a variety of measurement method and function to choose, can realize the input parameters, preview, the experiment, the results storage, print, operating all adopt the localization menu structure, the man-machine dialogue, automatic hints.
Accessories:
