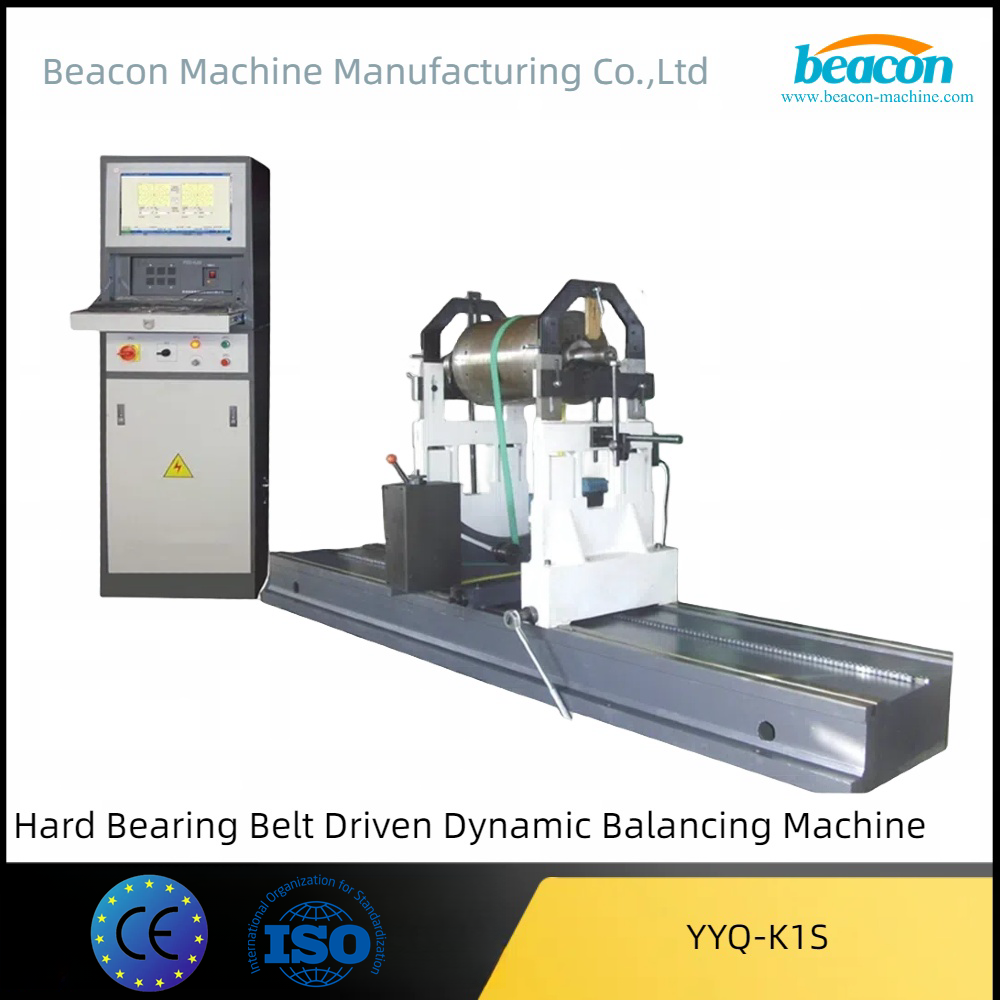

Beacon YYQ-K1S Dynamic Turbo Rotor Belt Drive Balancing Machine YYQ-1000 Electric Industrial Automatic Equipment Crankshaft Fan Blade Rotor Dynamic Balancing Machine
1. Features:
General hard bearing dynamic balancing machine strictly according to GB/T 4201-2006 to produce, using semi hard bearing, belt driven, screen display structure, industrial control computer processing the data. 15 inches LCD screen display unbalance amount, phase angle and real-time rotating speed. It is widely used in paper making machine, textile machine, agriculture machine, electric motor, blower fan, etc, can measuring balance on single interface, suited for plate work-piece, center of gravity overhung rotor.
2. Main technical index
Way of driving: belt driven and 5.5 kw motor
Measuring system: independent developed dynamic balancing machine special measuring software.
Tel:+86-13375386268
Email: beacon@beacon-machine.com
1) weight of work-piece (kg): 20-1000
2) Max diameter of work-piece (mm): φ1600
3) Max diameter of scope of driving belt(mm): φ650
4) Max distance between two swing frame center(mm): 1500
5) Length of lathe bed(mm): 1800
6) Journal diameter scope of work-piece(mm): φ20-130(standard bearing roller frame)
7) Min achievable residual unbalance amount(gmm/kg): ≤0.5
8) Unbalance reduction ratio(%): ≥90
9) Rotating speed(r/min): 200-1500
10) Motor power(kw): 5.5
11) Drive mode: belt driven
12) Work environment: temperature: -5---45℃; humidity: 0-85%
|
Model |
YYQ-1000A |
|
EThe measuring time |
10s (measurement cycle can be arbitrary set). |
|
Software version |
Windows XP |
|
display mode |
19 inch LCD |
|
power supply |
The power of three-phase four-wire type AC 380V, 50/60HZ |
|
Working |
continuously |
|
Workpiece quality range (Kg) |
20-1000 |
|
Beam supporting interval distance (mm) |
150-2600 |
|
Trunnion range (mm) |
Φ 10-120 |
|
Workpiece diameter (mm) |
1500 |
|
Balance speed (r/min) |
180-1800 variable frequency speed regulation |
|
Motor power (KW) |
5.5 |
|
Unbalance reduction rate% |
≤90 |
|
Minimum can reach surplus balabcing (emar) |
≤0.5g・mm/kg |
