High measuring accuracy and efficiency
Safe and simple handling
Infinitely variable DC drive
Soft-bearing
System balancing software computer display
Tel:+86-13375386268
Email: beacon@beacon-machine.com

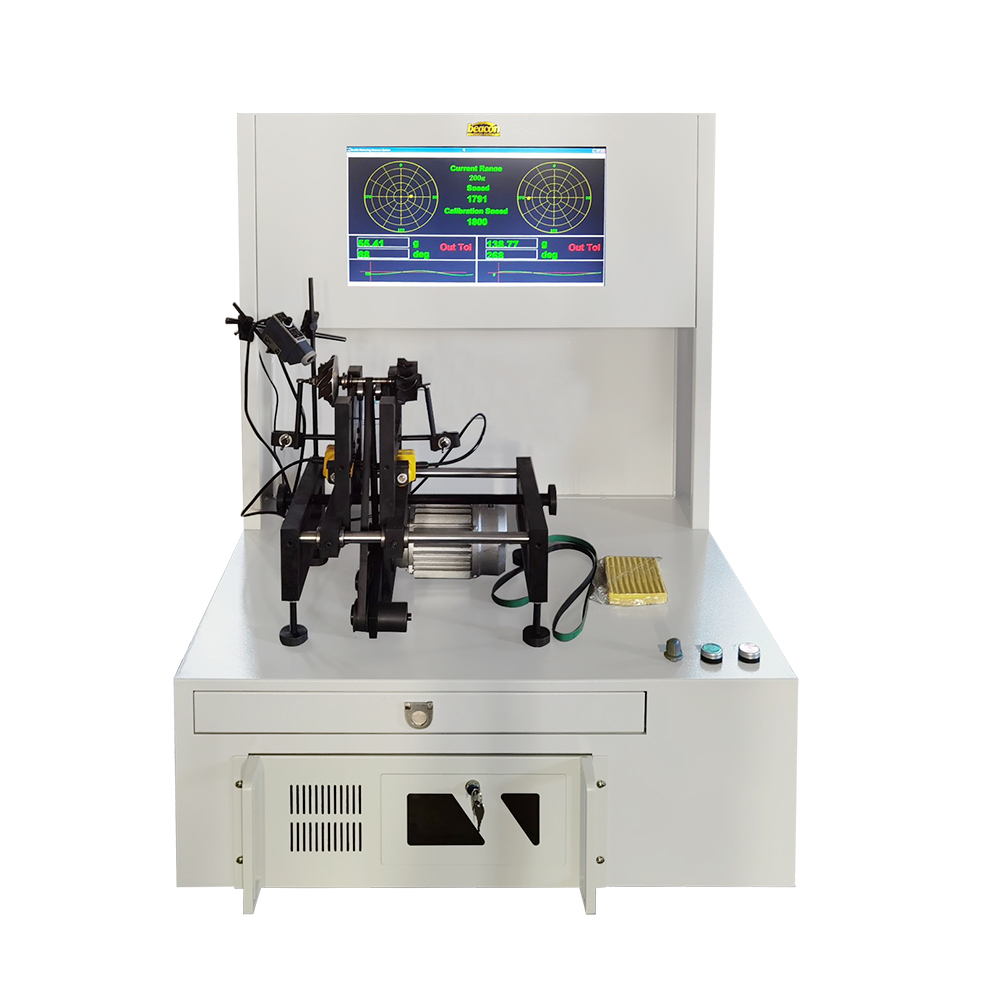

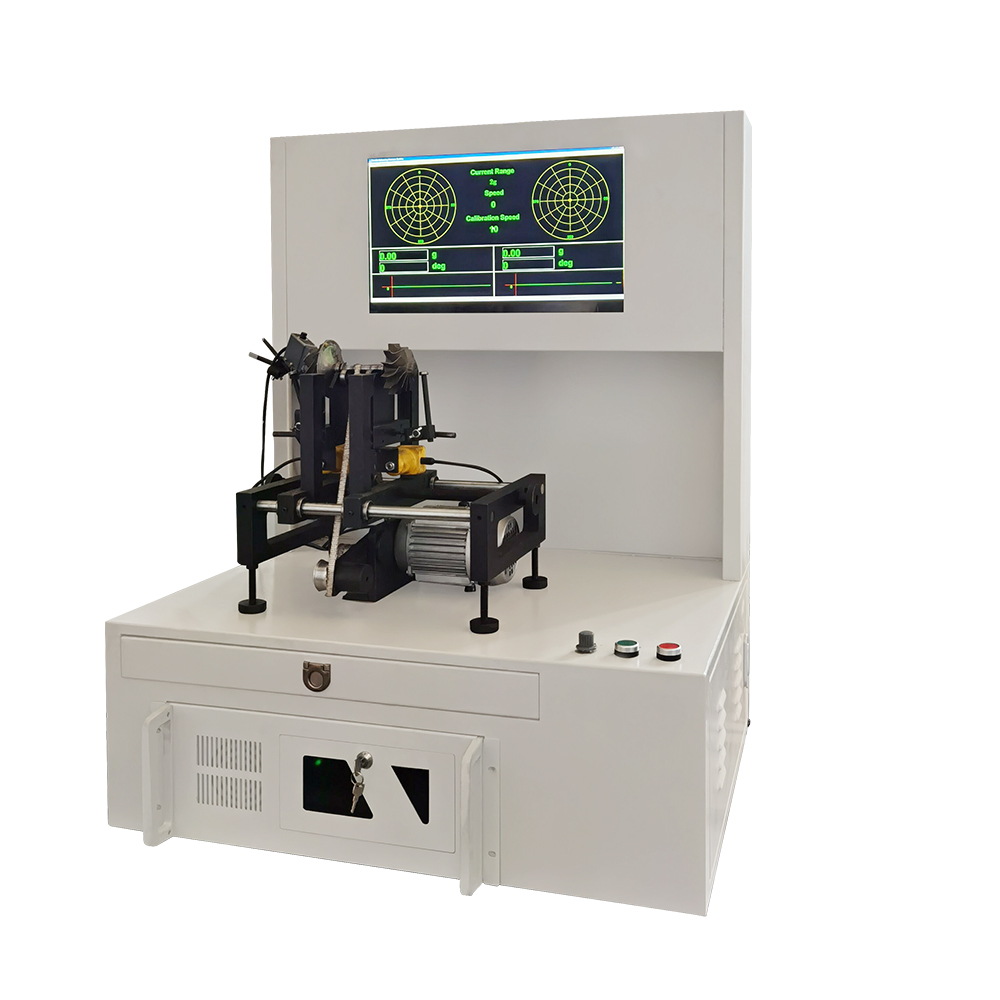

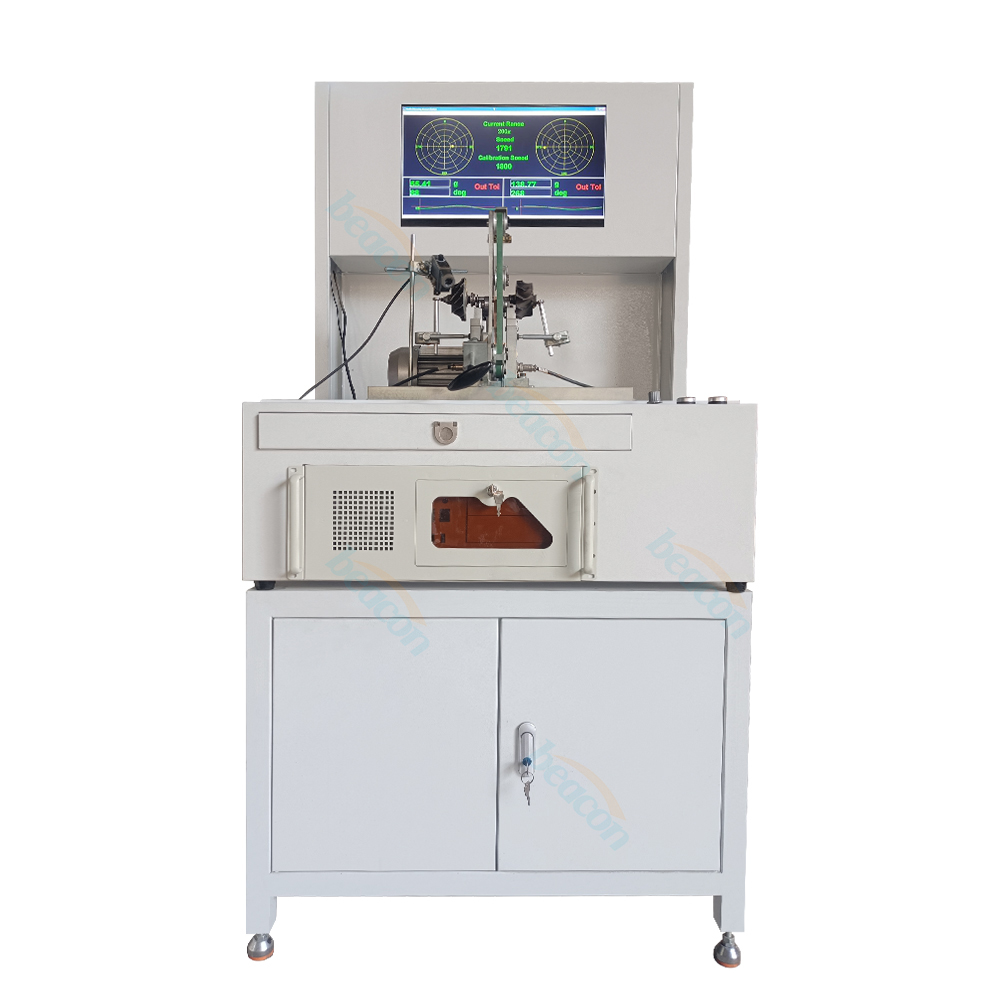

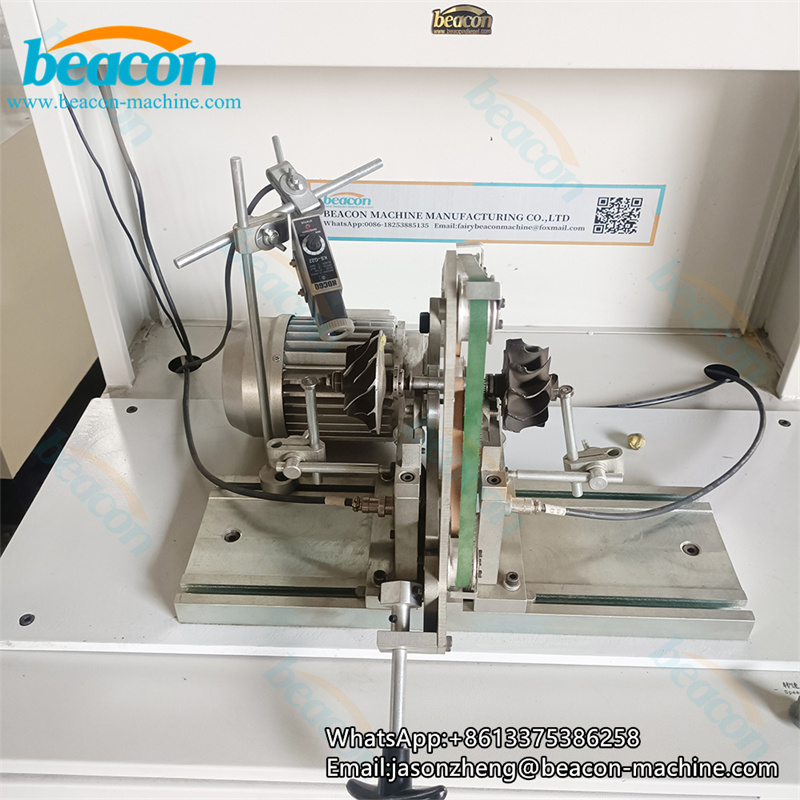

YYQ RYQ series ring belt balancer is especially suitable for balance detection of motor rotors, fan impellers, water pump impellers, supercharger rotors, centrifuge rotors, rubber rollers, machine tool spindles, crankshafts and other mechanical rotating parts. The ring belt is directly driven to reduce the error of the fixture, the operation is simple, and the detection accuracy is higher.

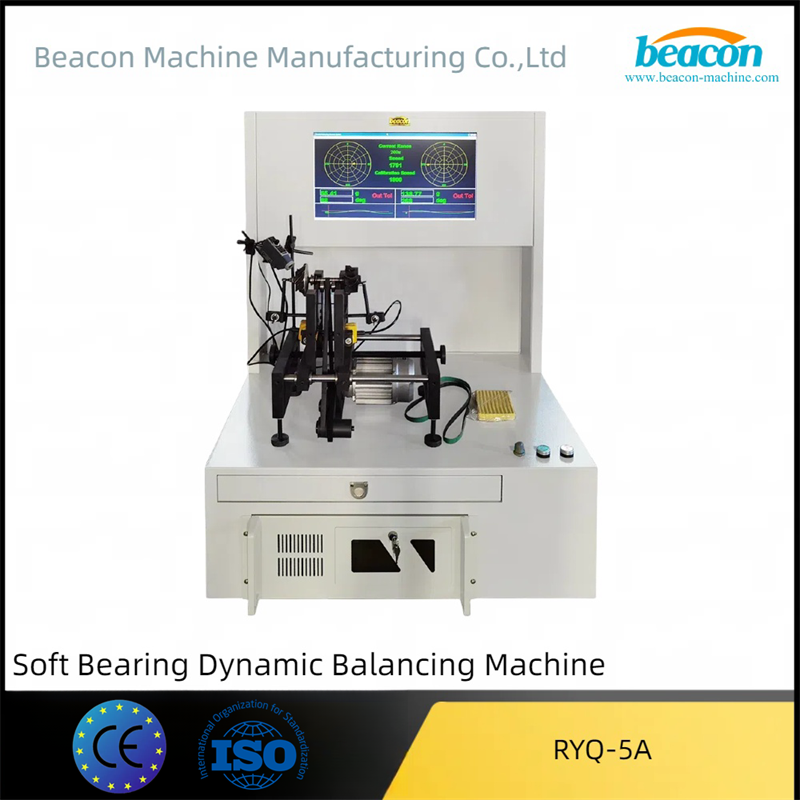

Model RYQ-3A/5A/10A
weight range (Kg) ：0.1~10kg
The maximum diameter of the workpiece (mm) ：φ350
Distance between two supports (mm)： 30- 450
Shaft diameter range in bracket (mm) ：φ4-17
The diameter range of the ring belt driving part (mm) ：≤φ150
Balance speed (R/min) ：400~4000
The Minimum Achievable Residual Imbalance (G .mm/kg)： ≤0.5
Imbalance reduction rate (%)： ≥90
Engine power (Kw)： 0.18
speed mode： Variable frequency motor
|
Model |
RYQ-3A/5A/10A |
|
Piece weight range (Kg) |
0.1~10kg |
|
The maximum diameter of the workpiece (mm) |
φ350 |
|
Distance between two supports (mm) |
30- 450 |
|
Shaft diameter range in bracket (mm) |
φ4-17 |
|
The diameter range of the ring belt driving part (mm) |
≤φ150 |
|
Balance speed (R/min) |
400~4000 |
|
The Minimum Achievable Residual Imbalance (G .mm/kg) |
≤0.5 |
|
Imbalance reduction rate (%) |
≥90 |
|
Engine power (Kw) |
0.18 |
|
speed mode |
Variable frequency motor |
