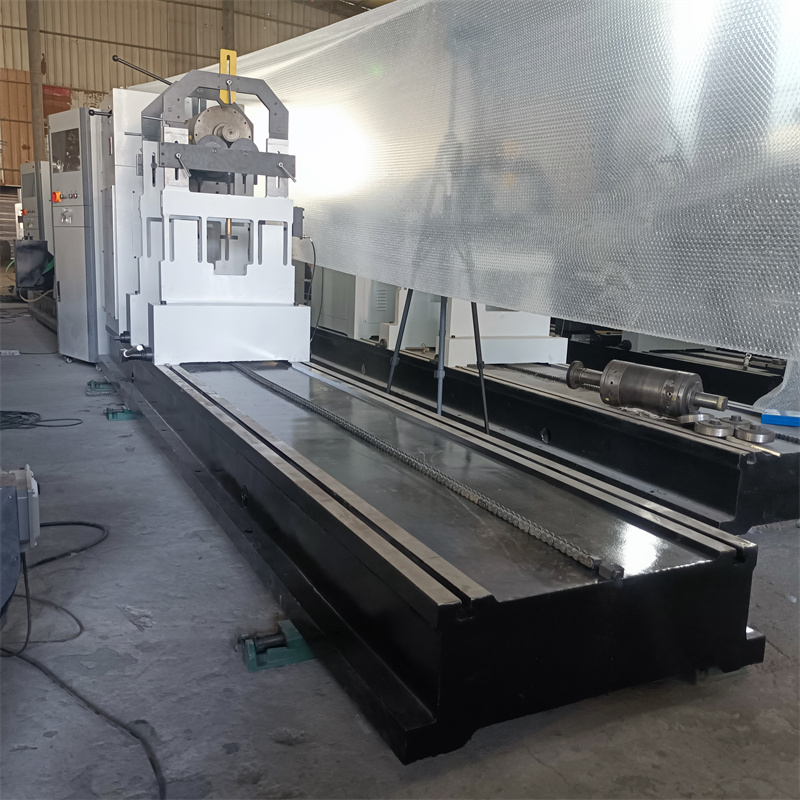

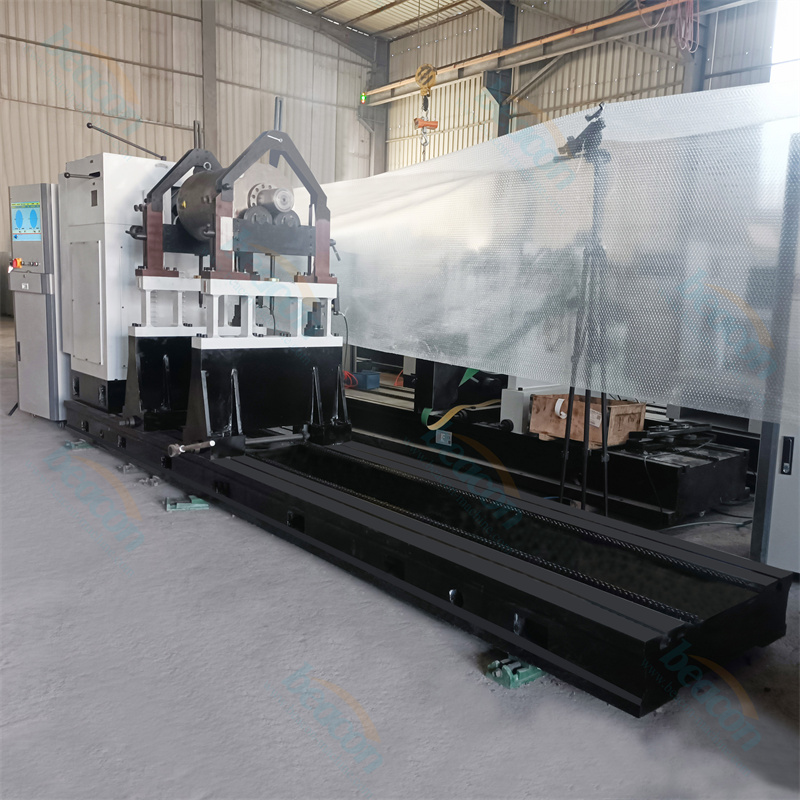

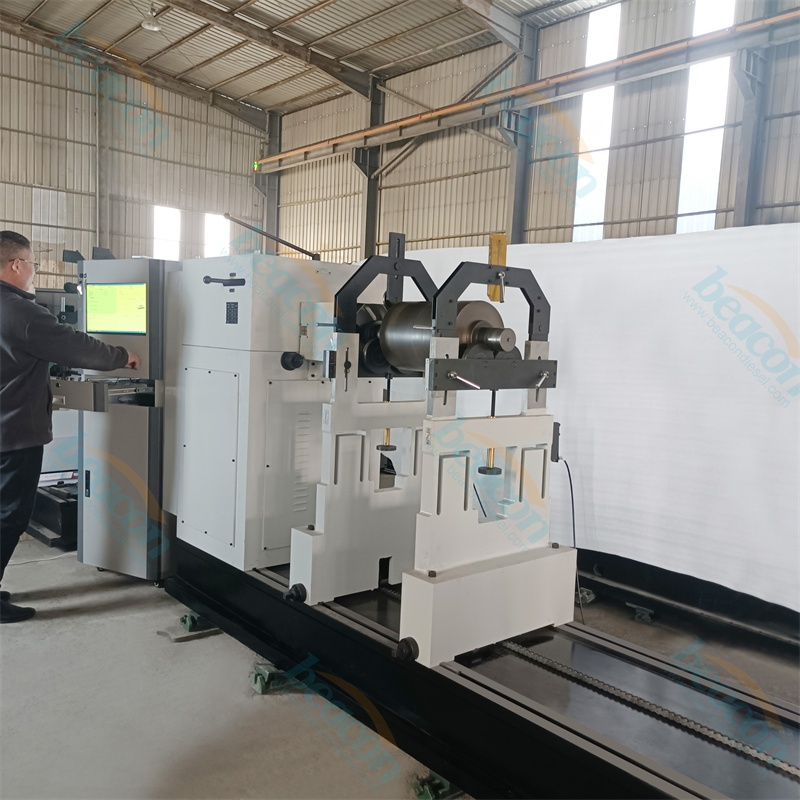

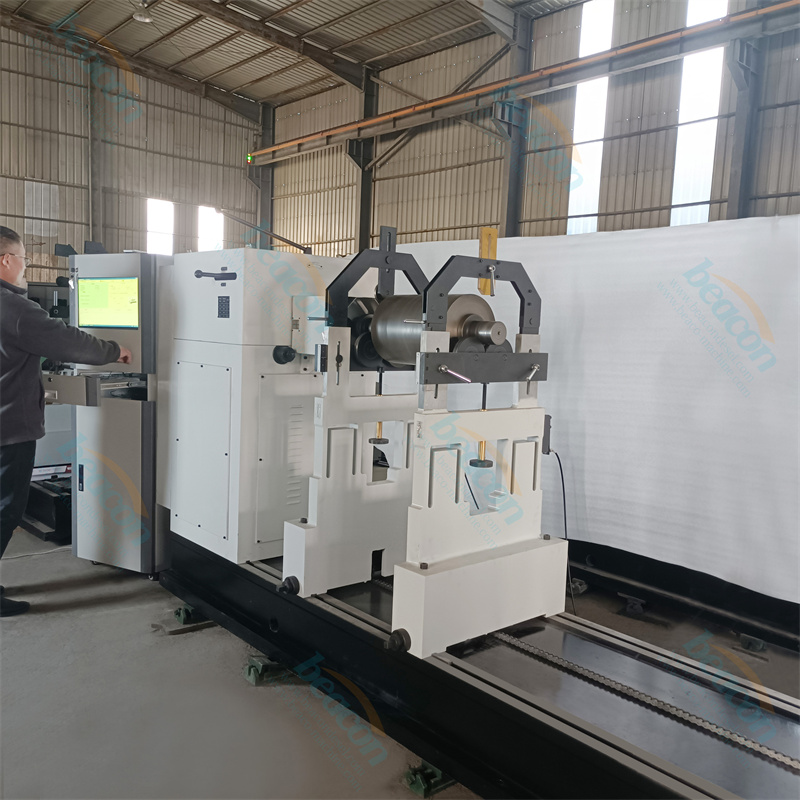

The balancing machine mainly balance rotor weight 50-3000kg with cardan joint drive
Tel:+86-13375386268
Email: beacon@beacon-machine.com
There are 10 series and more than 40 models of balancing machine, including the belt drive balancing machine,universal joint drive balancing machine , vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine , soft bearing balancing machine, manual milling machine etc. Our products have been widely used in fields like fans, motors, air-conditioners, automobiles, internal combustion engines, aera-spaces, textile machinery, metallurgy and etc.
※ industrial control computer 19-inch LCD color screen display
※ Widows in the English system double choose
※ equipped with GB-2000 Universal microcomputer balance measuring system
※ automatic programmable amplifier module
※ any artifacts scaling function, arbitrary angle compensation jig and workpiece information storage
※ qualified quantity display, measurement period adjustment
※ signal automatic zoom and manual zoom adjustment, signal self-test, automatic diagnosis
※ vector graphics, waveforms and unbalance, also shows
※ residual imbalance kg, g, mg and unbalanced torque g. Cm, g .mm choose to display
※ Optional features
1, the automatic tracking function equilibrium angle
2, the automatic parking function
3, the vector angle decomposition function
|
Model |
Max. mass of workpiece (kg) |
Max.diameter of workpiece (mm) |
The distance between the two bearing(mm) |
Max.rotor Diameter (mm) |
balancing speed(r/min) |
minimum achievable residual unbalance (g.mm/kg) |
Unbalance rate % |
|
YYW-160 |
5-160 |
Φ950 |
60-1420 |
Φ10-180 |
325/650/1300 |
≤1 |
≥90 |
|
YYW-300A |
10-300 |
Φ1200 |
60-1700 |
Φ20-180 |
325/650/1300 (A300-2500) Neutral speed regulating |
≤1 |
≥90 |
|
YYW-500A |
20-500 |
Φ1500 |
70-1600 |
Φ15-240 |
325/650/1300 (A300-2500) Neutral speed regulating |
≤1 |
≥90 |
|
YYW-1000A |
20-1000 |
Φ1500 |
70-2300 |
Φ15-240 |
325/650/1300 (A300-2500) Neutral speed regulating |
≤1 |
≥90 |
|
YYW-1600A |
30-1600 |
Φ1800 |
100-2500 |
Φ15-240 |
300-2500 Neutral speed regulating |
≤1 |
≥90 |
|
YYW-3000A |
50-3000 |
Φ2400 |
300-3000 |
Φ40-300 |
180-1500 Neutral speed regulating |
≤1 |
≥90 |
