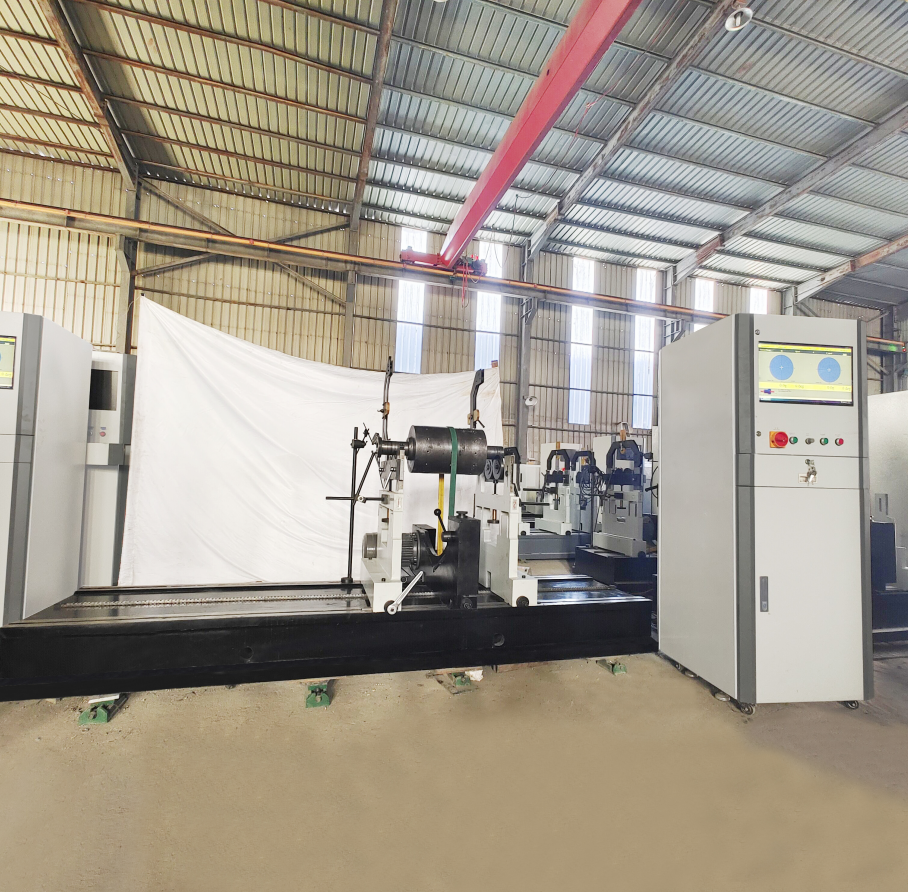

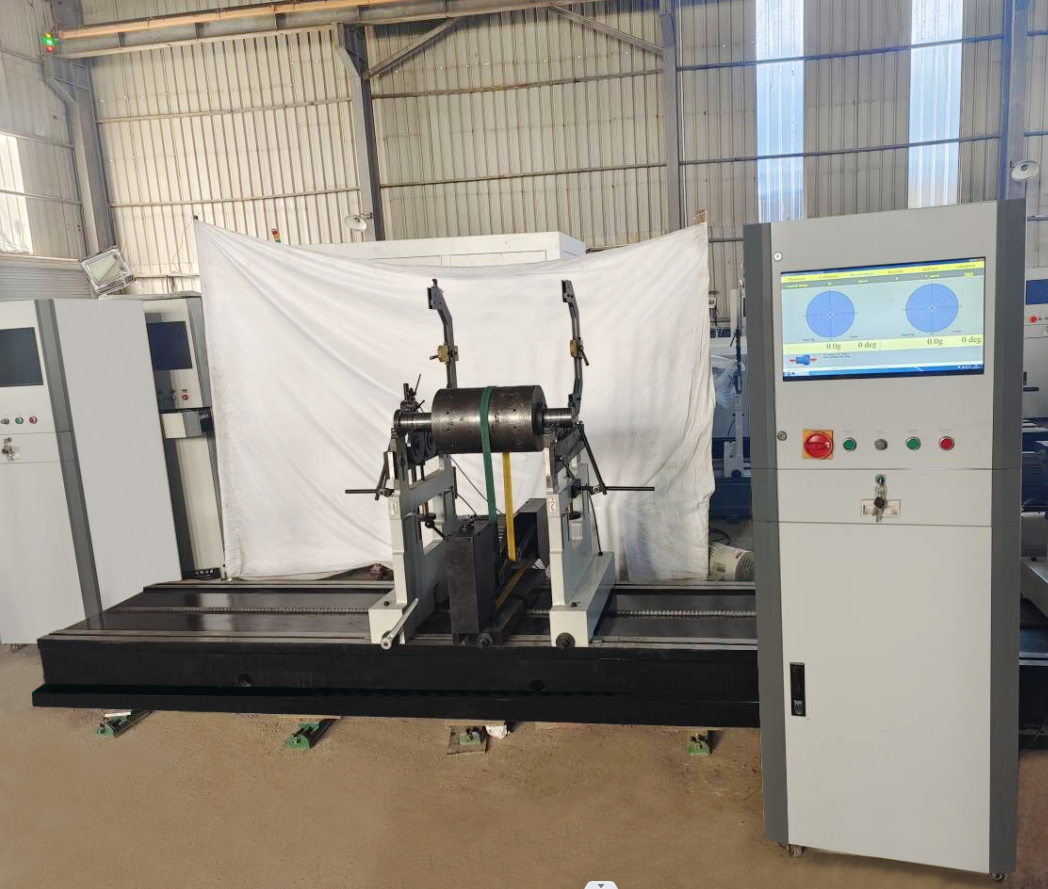

YYQ-500A YYQ-500A fan blade belt drive dynamic balancing machine

Model: YYQ-500A
Range of workpiece weight (kg): 10-500
Diameter range of the drag zone (mm): Φ 20-240
Max. diameter of workpiece (mm): Φ1500
Distance between two bearing (mm): 150-1500

Tel:+86-13375386268

Email: beacon@beacon-machine.com

inquiry now

Introduction

YYQ-500A YYQ-500A fan blade belt drive dynamic balancing machine

belt drive dynamic balancing machine

Belt drive balancing machines are of robust design and are operated by JINAN BEACON MACHINE CO.,LTD

industry leading measuring systems. Several models such as Digital display, Industrial Control for your choice.
Various Measuring Methods: dynamic balancing, static balancing or both, ten support modes, adding or reducing
weight and CW or CCW rotating can be customized flexibly. High Precision: multi-Calibration coefficient combination,
automatically adjust the system sensitivity, no shift-skip, dual wave filtration by both hard and soft-ware, high speed

data compression, faster, more stable and accurate measurement.

belt drive dynamic balancing machine

parameter

SPECIFICATIONS FOR YYQ-500A

Model YYQ-500A

Max. mass of workpiece (kg) :10-500

Max.diameter of workpiece (mm) : φ1500

Distance between two supporting (mm) : 100-1500

Max.journal Diameter (mm) : φ15-240

Balanncing speed min (r/mm) :300-2500

min. achievableresidualun balance(g.mm/kg):≤1

unbvalance reduction ratio(%):≥90

Drive power(kw) : 4.0
