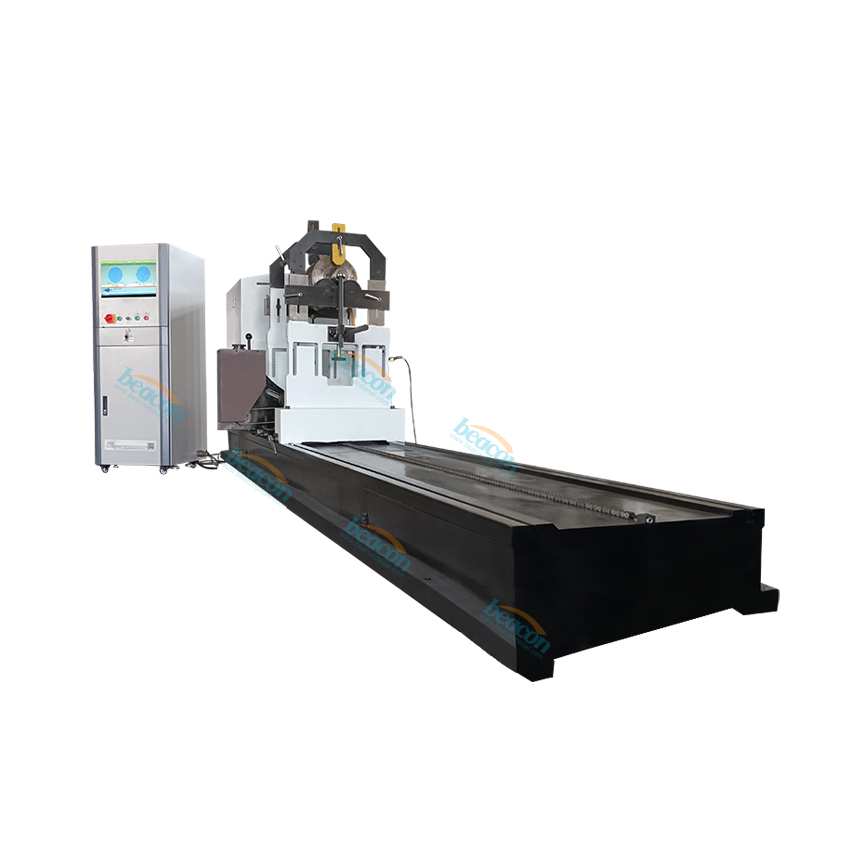

YYH-2000A Double-sided horizontal hard support turbo shaft dynamic balancing machine

This series of equipment is a hard-supported horizontal dynamic balancing machine, which is supported by rollers and driven by universal joints. The ordinary type is driven by a two-speed motor, and the "A" type is a variable frequency speed control system, which is processed by an industrial control computer. LCD display Real-time display of unbalance value, phase angle and real-time speed, the bed is cast as a whole. It is widely used in motors, blowers, diesel engines, agricultural machinery, textile machinery and other industries. It can measure balance on one side, two sides and multiple calibration surfaces. Suitable for shafts, discs and overhanging rotors. It has the characteristics of high efficiency, accurate precision, intuitive display, reliable quality and convenient maintenance.

Tel:+86-13375386268

Email: beacon@beacon-machine.com

inquiry now

Introduction

Mode	YYH-2000A
Drive mode	Universal joint	Belt
Workpiece quality range(kg)	30-2000	20-2000
Maximum diameter of workpiece(mm)	1800	1800
Diameter range of belt drag(mm)	/	40-800
Distance between two supports(mm)	150-2300	150-2300
Length of machine body(mm)	3600820260
Swing structure	Overall swing frame, roller cantilever support (shared by swing frame)
Support shaft diameter(mm)	20-120（Shared roller rack）
Balance speed r/min	200-1100	300-2500
Minimum residual unbalance	≤1gmm/kg	≤0.5gmm/kg
Imbalance reduction rate(%)	≥90%	≥90%
Motor Power	11KW	7.5KW
Speed mode	Frequency	Frequency
Transfer method	universal joint	Belt

Video

TAGS:rotor balancing machine,dynamic balancing machine,turbo balancing machine,
Views:

PREV: LS-C Portable Handheld New Pulsed Laser Parts Paint Steel Metal Surface Rust Remover Cleaning Machine NEXT: Auto test heui injector test bench common rail fuel injector machine MINI HEUI-B

LEAVE A MESSAGE

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Dynamic Balance Machine

YYH-2000A Double-sided horizontal hard support turbo shaft dynamic balancing machine

Introduction

Video

LEAVE A MESSAGE

RELATED PRODUCTS

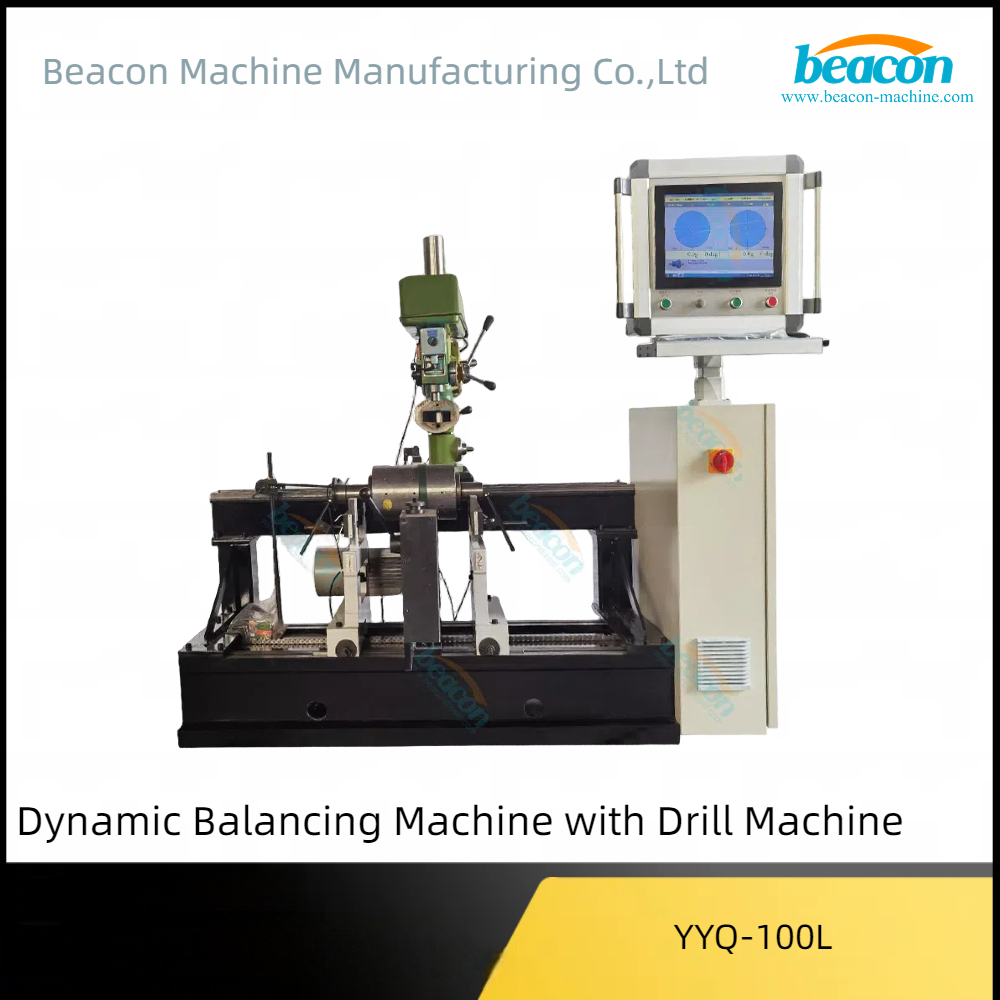

YYQ-100L Crank Shaft Balancing Machines Motor Rotor Dust Exhausting Fan Balance Machine Drilling machine
