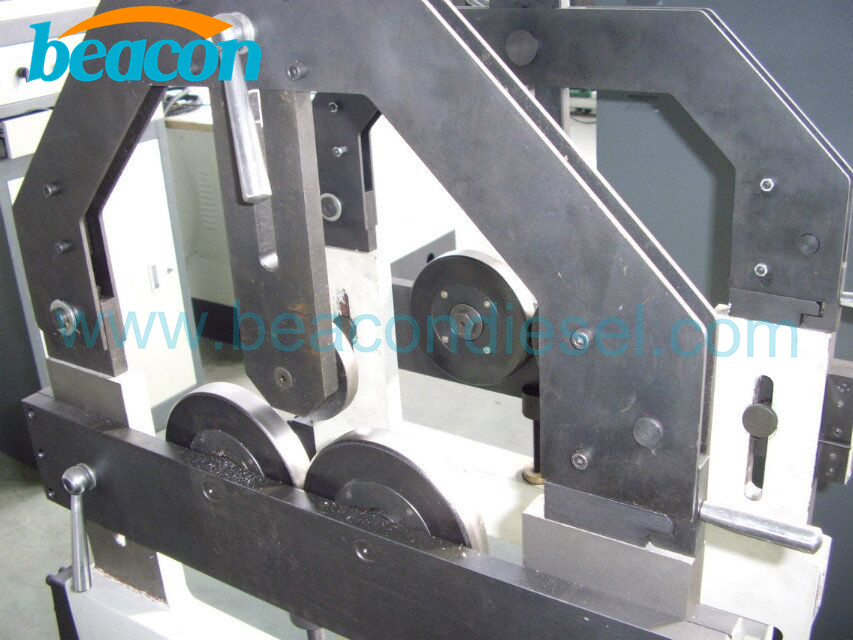

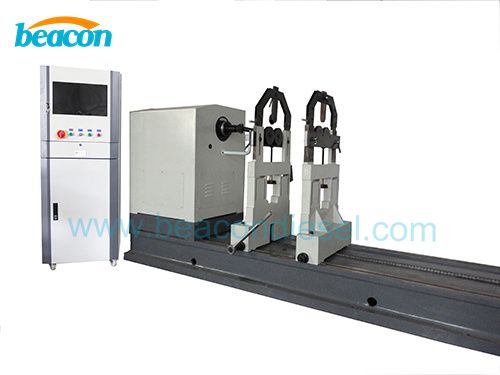

This series is designed for fan blower, industry, and other large diameter workpieces production requirements of the hard supporting horizontal special dynamic balance machine, with roller bearing, universal couplings drive, frequency conversion motor speed and frequency converter, the industrial control computer for data processing, color screen real-time display don’t balance phase Angle and value, real-time speed, lathe bed all use whole casting, the stability is good.
1. Balance Angle automatic tracking function
2. Parking automatic positioning function
3. Vector Angle function decomposition
|
Technical data at a glance |
YFW-1000A |
|
Mass scope of workpiece kg |
20-1000 |
|
Biggest diameter workpiece mm |
1800 |
|
Two span of supports mm |
100-1600 |
|
Trunnion support mm |
20-120 |
|
Balancing speed r/min |
300-1500 |
|
Min achievable residual unbalance amount |
≤0.5gmm/kg |
|
Unbalance reduction ratio % |
≥90% |
|
Motor power |
7.5Kw |
|
mode of speed regulation |
Variable frequency speed regulation |
|
Transmission model |
Universal joint |
