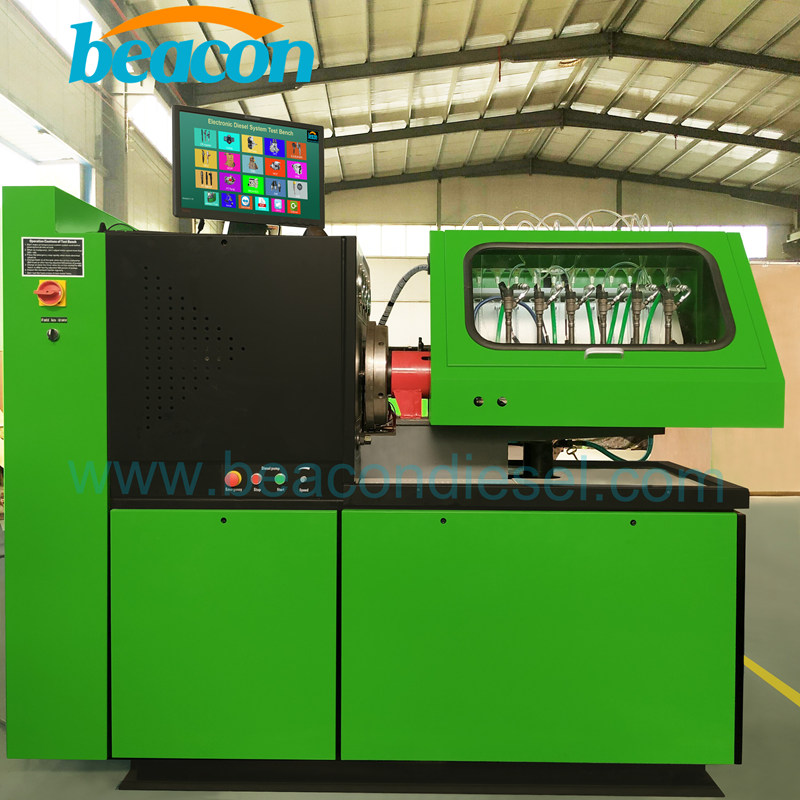

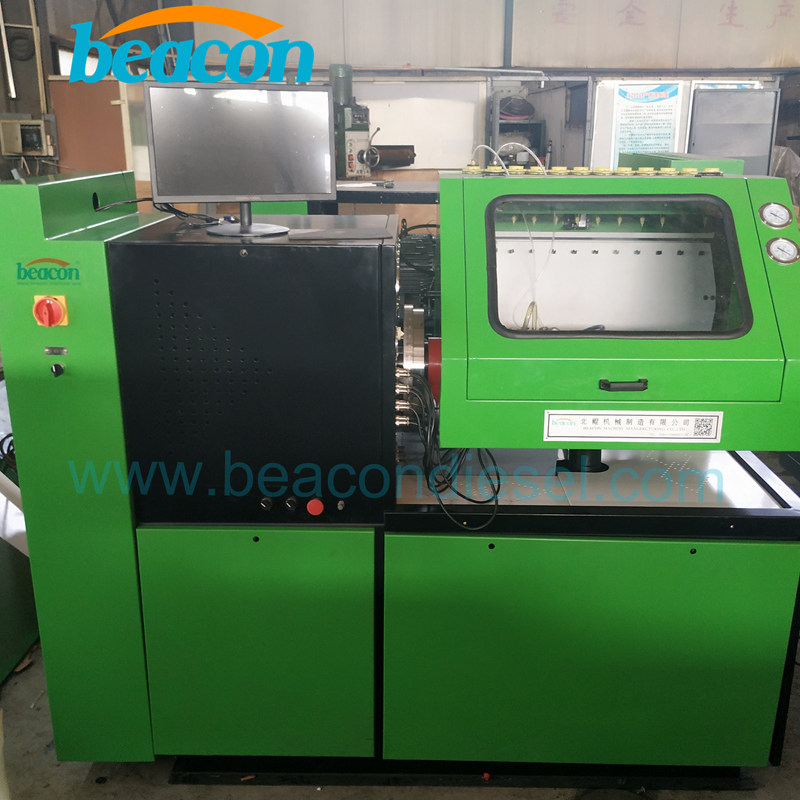

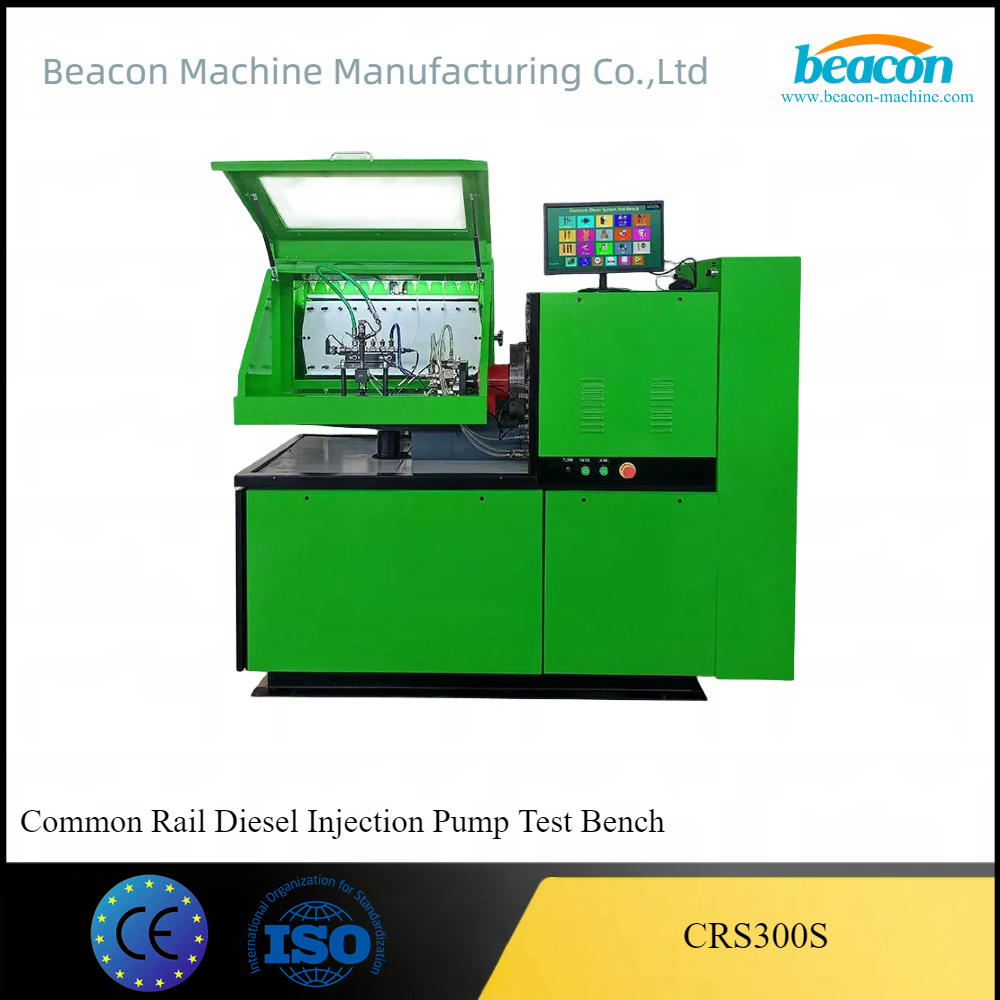

CRS300S diesel pump test bench machine common rail injection injector pump test bench

Product name:cr300s common rail injector and pump test machine
Main Voltage(Vac):220V / 380V
Function -1:BOSCH,DENSO,DELPHI ,SIEMENS. injector
Function -2:BOSCH CP1,CP2,CP3,DELPHI,DENSO HP2 and HP3
Function -3:can test 6 electromagnetic injector at same time
Function-4:test the Electromagnetic and Piezoelectric injectors.
Used:Checking the Injectors return oil and injection oil.
Display:LCD display rail pressure

Tel:+86-13375386268

Email: beacon@beacon-machine.com

inquiry now

Introduction

The function of the tester for CR high pressure pumps is to provide the desired signal to drive the solenoid in the pump being tested.
CRS300 common rail Tester can used for testing following pumps: BOSCH CP1,CP2,CP3,DELPHI,SIEMENS, DENSO HP2 AND HP3.
It has the functions to test the Electromagnetic and Piezoelectric injectors.

It also can test 6 common rail injectors in one time.

Design Features
* Modulated driving signal to ensure the safety of the solenoid of the CR pump
* Adjustable duty cycle for the driving signal
* Short circuit protection for the output circuitry of the solenoid driving signal
* Measure and LCD display rail pressure
* To test if the CR injector is still function, To connect a CR injector to a high pressure fuel source by a high pressure fuel line and to the CR tester by harness.

The tester is set to continuous injection mode. The CR injector is in normal condition, if it is capable to inject fuel under the driving signals by the tester.
* To test injector spray atomization, To connect a CR injector to a high pressure fuel source by a high pressure fuel line
and to the CR tester by harness. The tester is set to single injection mode to allow observing the nozzle spray pattern to judge

if the nozzle is normal or orifice plugged.
* Checking the Injectors return oil and injection oil.

Testing following pumps
BOSCH CP1,CP2,CP3,DELPHI,SIEMENS, DENSO HP2 AND HP3.
Functions
test the Electromagnetic and Piezoelectric injectors.
Can test 6 common rail injectors in one time.

TAGS:diesel pump test bench,injection pump test bench,
