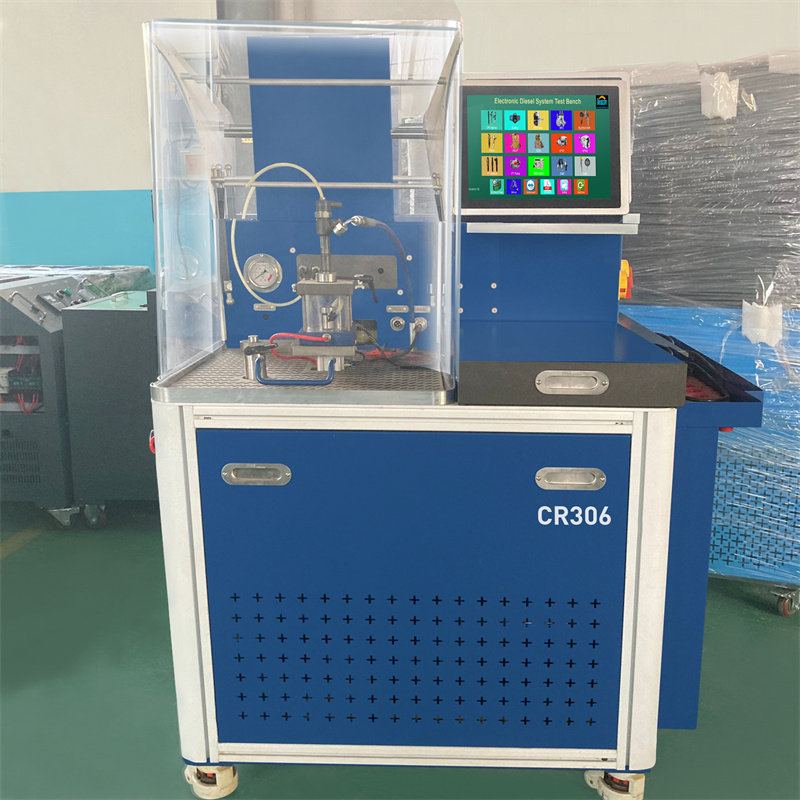

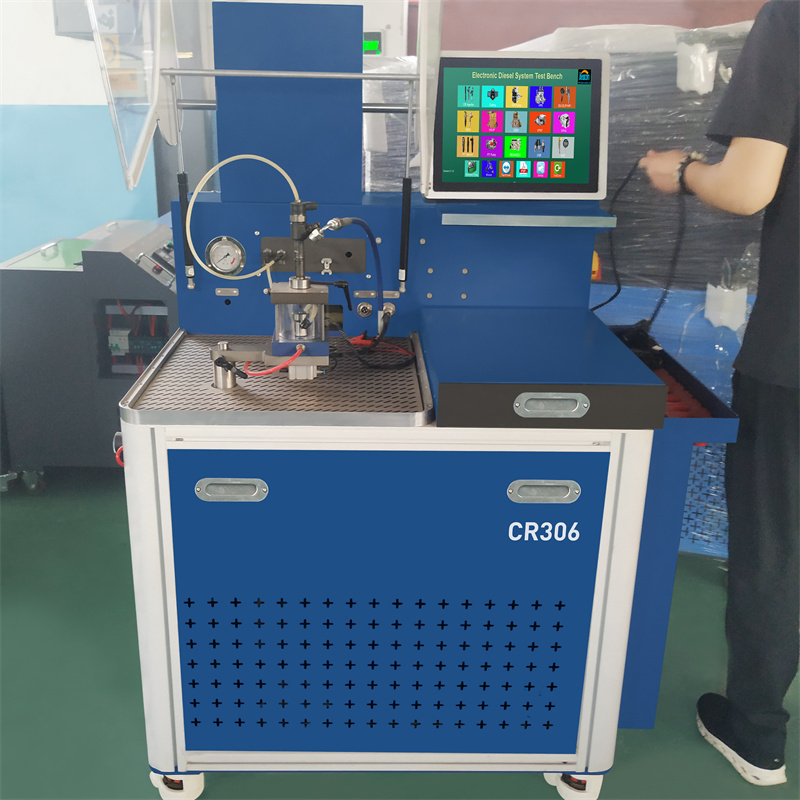

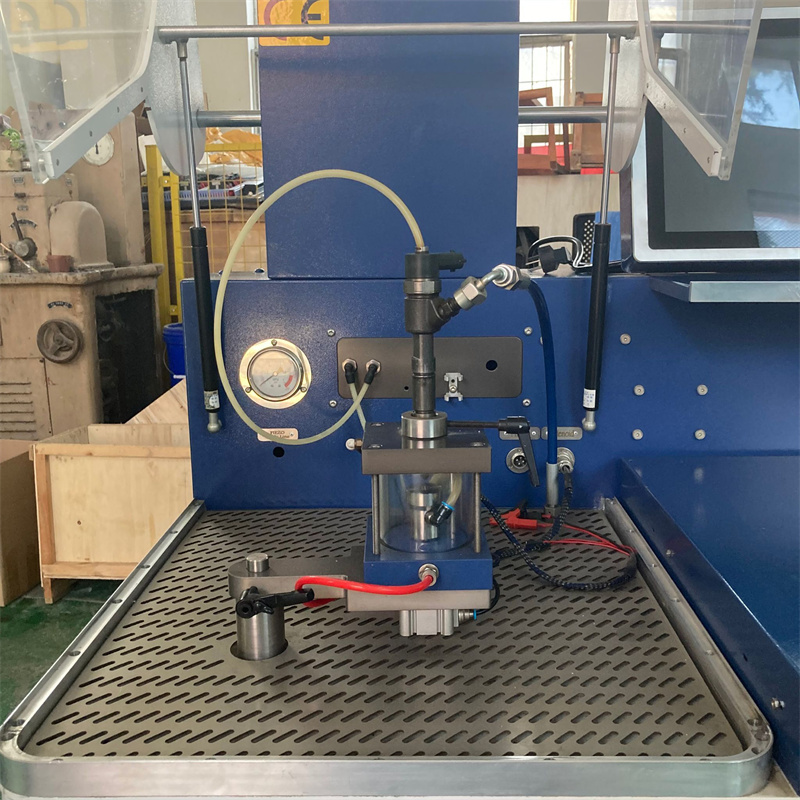

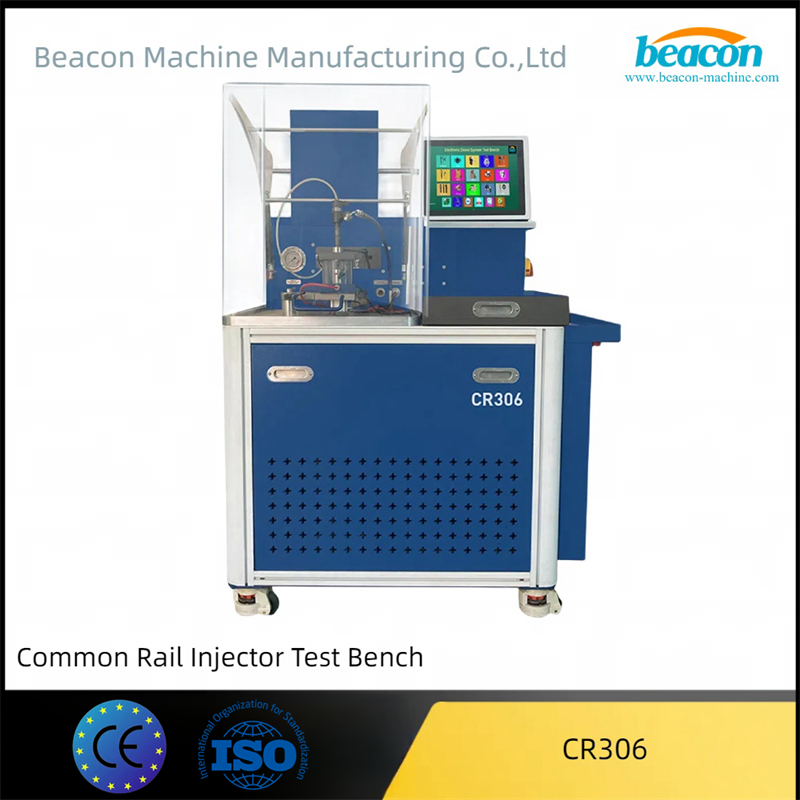

CR306 Common Rail Diesel Fuel Injector Test Bank injector coding test bench
Motor:1.5KW geared motor 220V/50HZ
Number of consecutive injections :0～1000 times
Rail pressure :0～2300 bar
Pulse Width :100～3000μs
Oil temperature control :38±2℃
Test oil filtration accuracy :＜5μ
Fuel tank capacity :35L
Weight :300kg
Flow measurement range :0-4000ml/min
Motor speed range :0-2000RPM
inquiry nowIntroduction
Function:
1. Detection range: BOSCH, DENSO, DELPHI, SIEMENS and other brand injectors
2. Detect 1 common rail injector
3. Test the tightness of the high-pressure common rail injector and observe its atomization effect
4. Measure the high-speed fuel quantity of the high-pressure common rail injector
5. Measure the medium-speed fuel quantity of the high-pressure common rail injector
6. Measure the idling fuel quantity of the high-pressure common rail injector
7. Measure the pre-injection amount of the high-pressure common rail injector
8. Measure the oil return of the high-pressure common rail injector
9. High-pressure flushing of high-pressure common rail injectors can be carried out
10. The injection status and fuel quantity measurement of the high-pressure common rail injector can be set
