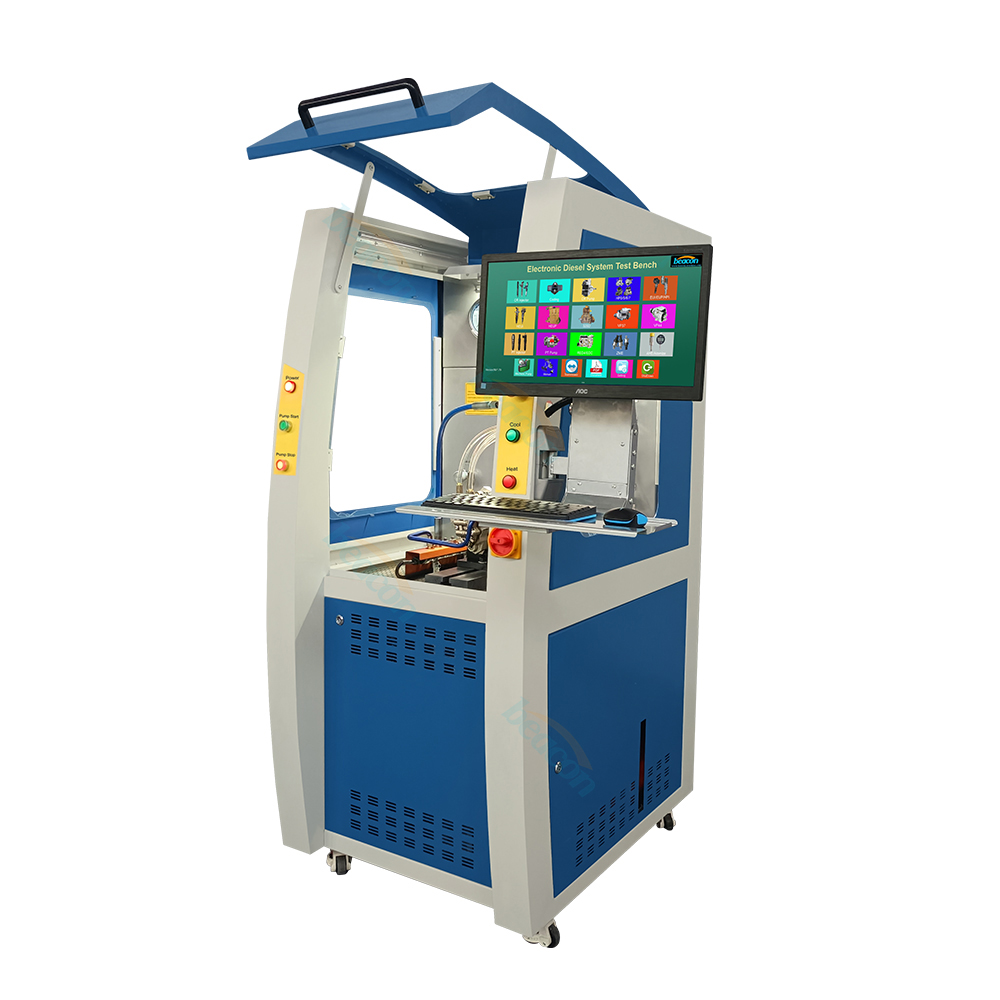

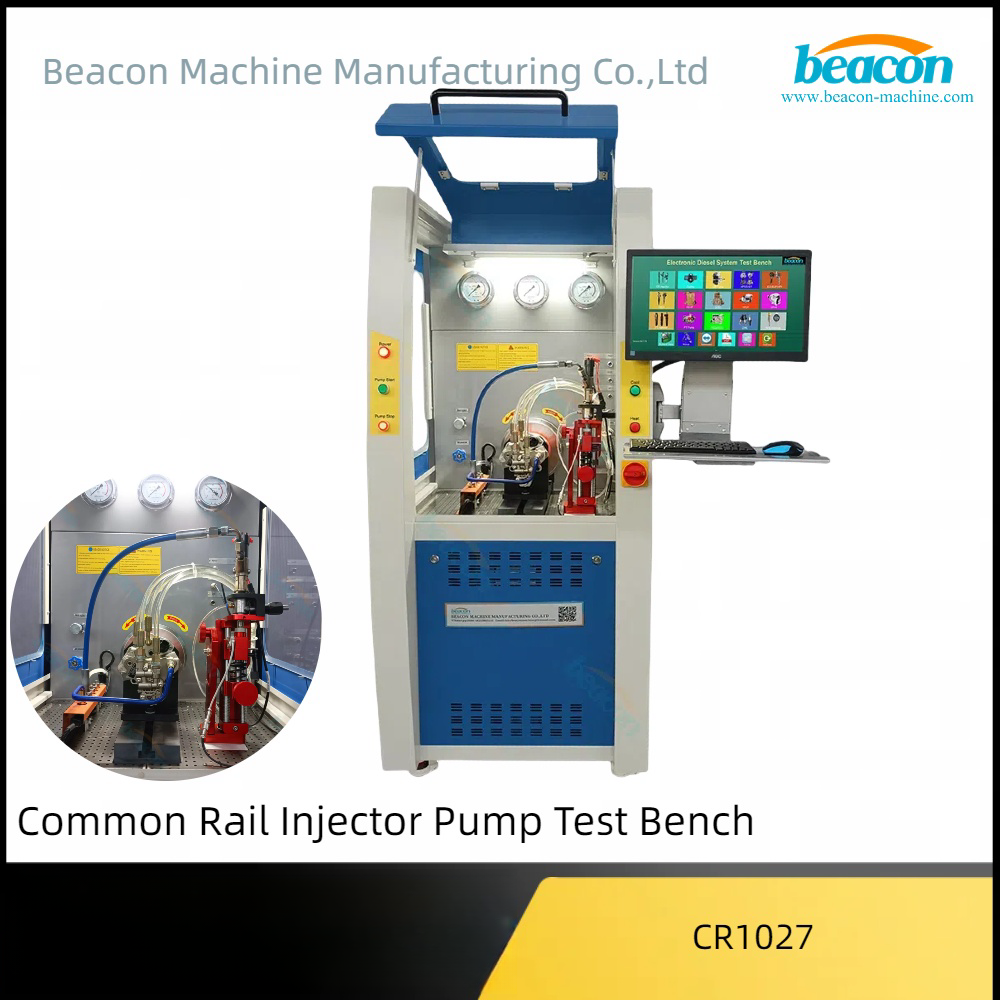

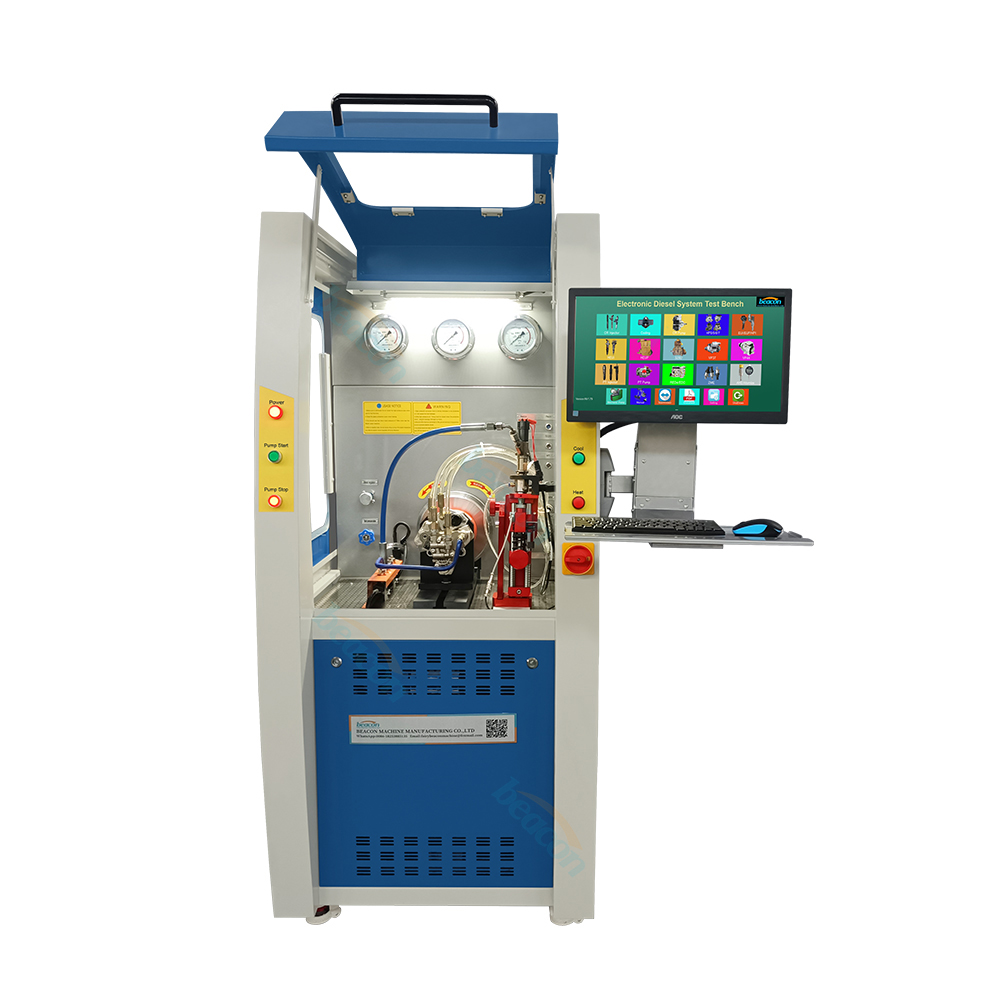

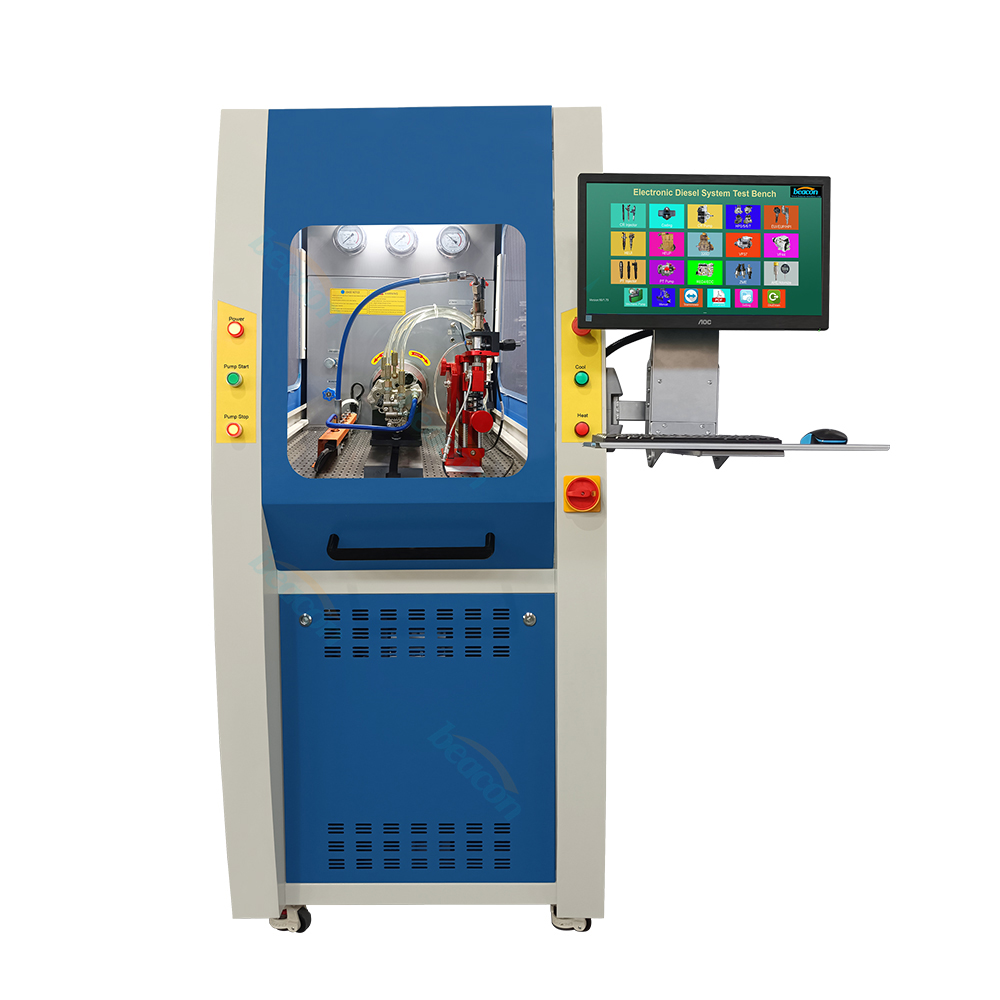

CR1027 Common Rail Injector Test Bench Diesel Pump Testing Machine

Product description:

CR1027 common rail test bench: adopts a fully automatic control system, which can easily test and repair electronically controlled common rail injectors (including piezoelectric common rail injectors), high-voltage electronically controlled common rail pumps, etc. It can test thousands of models of electronically controlled injectors and high-voltage electronically controlled common rail pumps including Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins (Dongkang, Fukang), etc. The test data is complete. Optional EUI EUP and other functions.

Function:

1. Electronically controlled common rail injector brands that can be tested: BOSCH, DENSO, DELPHI, CATERPILLAR, CUMMINS, SIMENS.

2. High-pressure common rail pump brands that can be tested: BOSCH, DENSO, DELPHI, CATERPILLAR, CUMMINS, SIMENS.

3. It can accurately and automatically test the high-pressure sealing, full-load fuel injection volume, oil return volume, discharge point fuel injection volume, idle speed injection volume, pre-injection volume, and pre-injection return volume of the electronically controlled common rail injector.

4. Can automatically generate electronically controlled common rail injector fuel quantity correction codes: QR, IQA, IMA, ISA, c2i, c3i, (VD0) ICC.

5. It can accurately detect the high-pressure oil supply capacity of the high-pressure electronically controlled common rail pump, the pressure regulating characteristics of the low-pressure oil inlet metering valve and the PCV high-pressure proportional valve, and the oil suction capacity and oil supply pressure of the high-pressure common rail pump's own oil transfer pump.

6. It can be equipped with a new cam box control unit and a new clamping fixture, which can conveniently detect the oil quantity of the pump nozzle and single pump for each load, and can quickly and accurately judge the electronically controlled pump nozzle and electronically controlled single pump. damaged parts. (optional)
