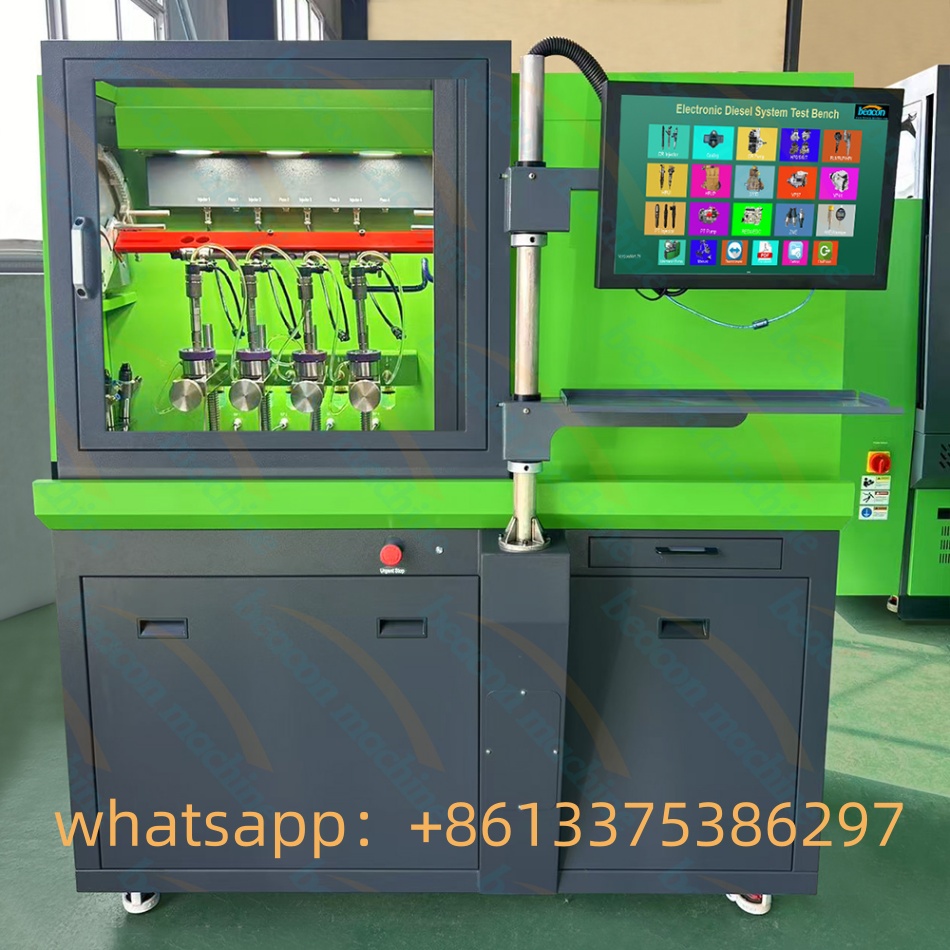

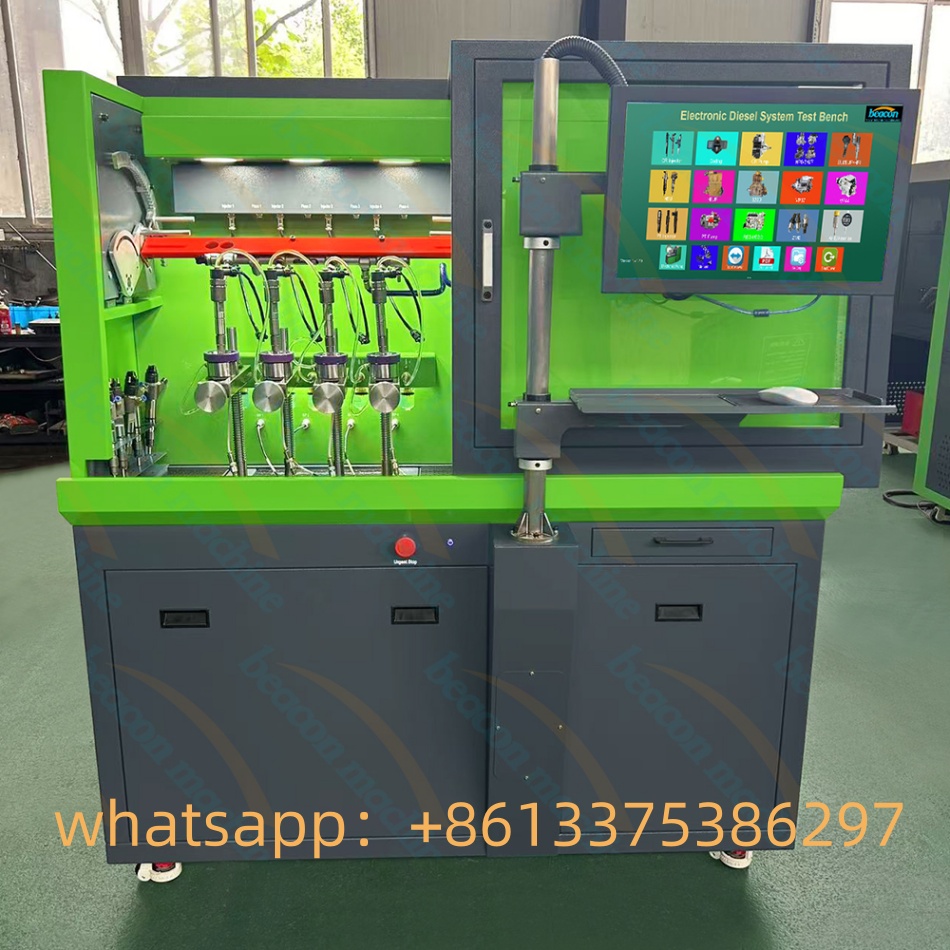

Auto Engine Testing Calibration Machine CR304S Electronic Equipment Coding Common Rail Injector Test Machine

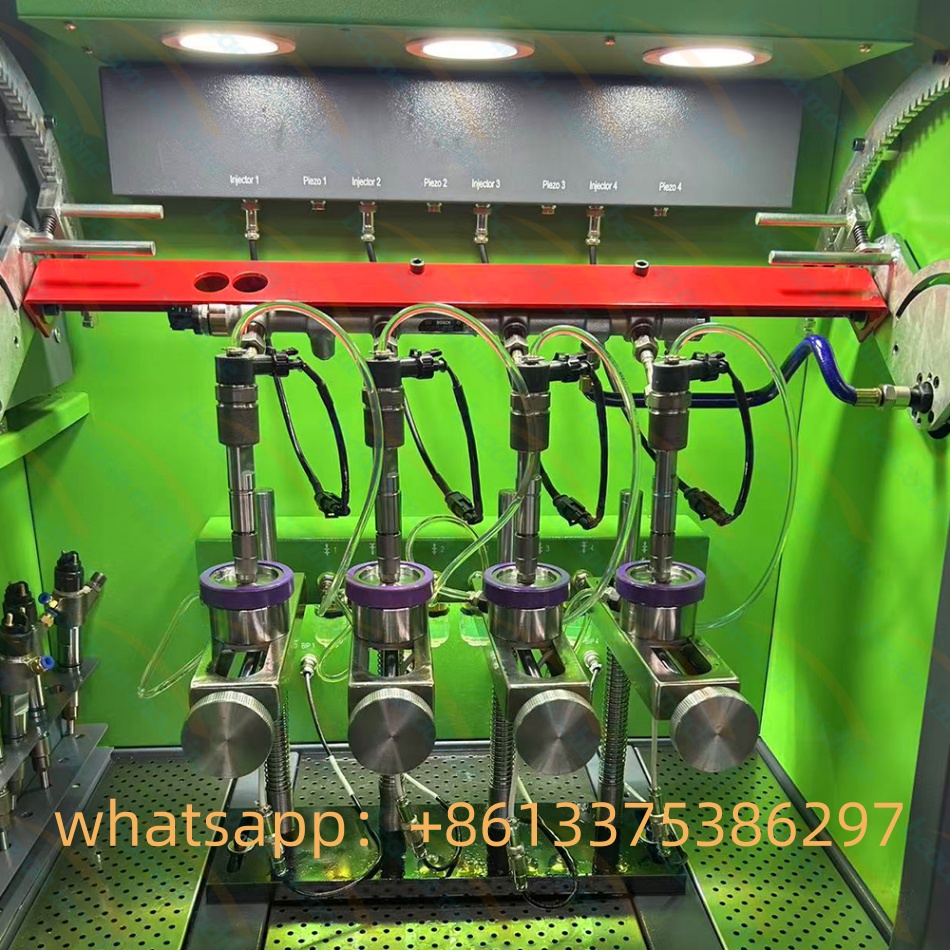

CR304S test bench mainly test common rail injector ,piezo injector with 4 pcs injector testing at the same time .

Tel:+86-13375386268

Email: beacon@beacon-machine.com

inquiry now

Introduction

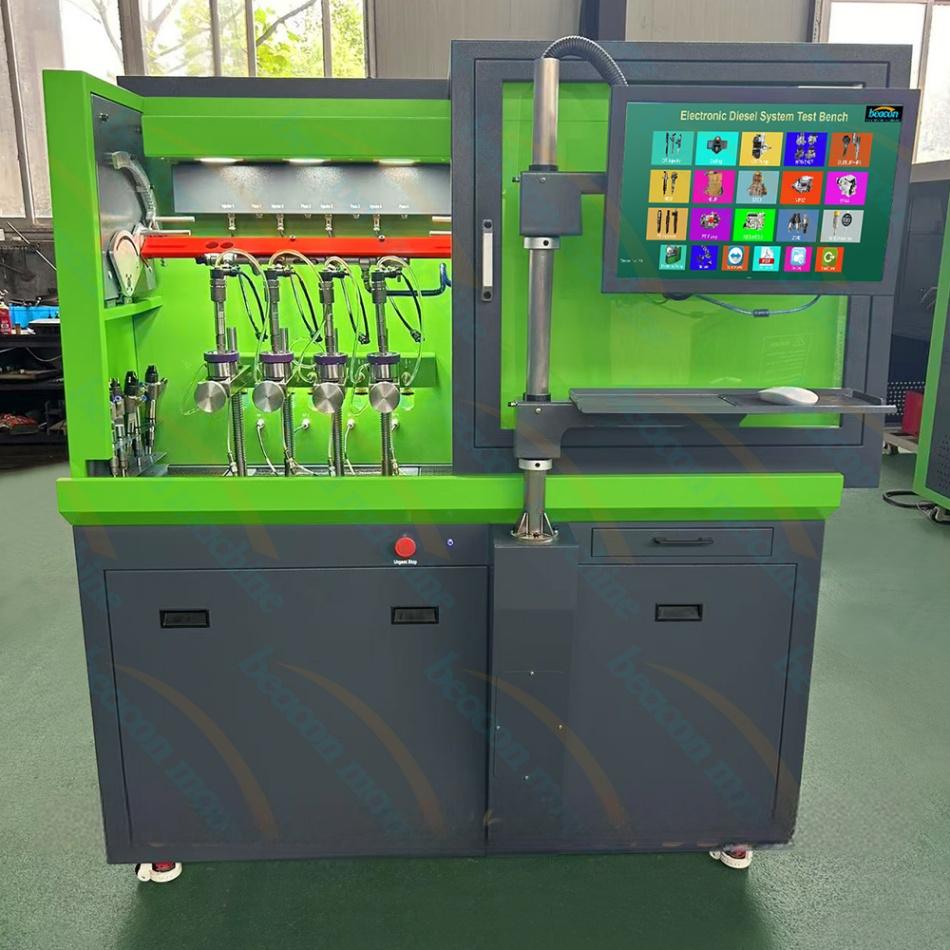

Auto Engine Testing Calibration Machine CR304S Electronic Equipment Coding Common Rail Injector Test Machine

parameter

FUNCTION:
1. Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.
2. Test 4 pcs of injectors at the same time.
3. Test the pre-injection oil quantity of common rail injector.
4. Test the max. oil quantity of common rail injector.
5. Test the cranking oil quantity of common rail injector.
6. Test the backflow oil quantity of common rail injector.
7. Test the average oil quantity of common rail injector.
8. Test the seal performance of common rail injector.
9. Data can be searched and saved.
10. Clean the common rail injector.
11. All injector coding data.
OPTIONAL FUNCTIONS:
1. Test injecto response time.(BIP function).
2. Delphi E3 double pulse control system.
3. AHE injector dynamic stroke (with Bosch 110, 120 stroke measuring tool + dial indicator).
4. Test 6pcs injectors at the same time (additional flow sensor can be added).

1. Current
0-11.5A
2. Motor power
5.5KW
3. Temperature range
38-42°C
4. Rail high pressure
240Mpa
5. ECU internal boost
0-200VDC
6. Power supply
220V/380V
7. Common rail pump
Bosch CP3 pump
8. Oil tank capacity
19L
9. Weight
350KG
