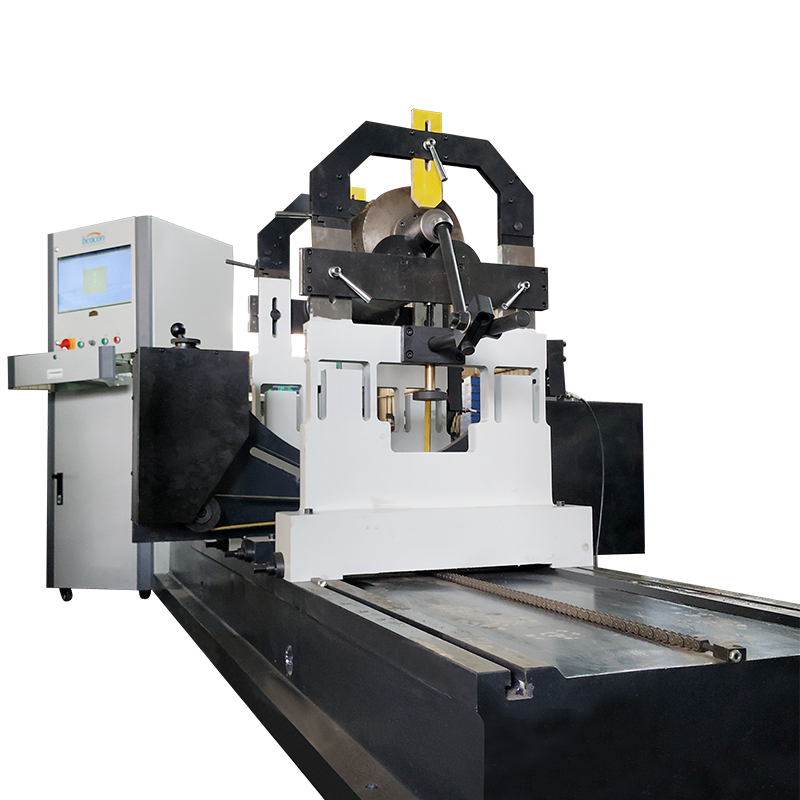

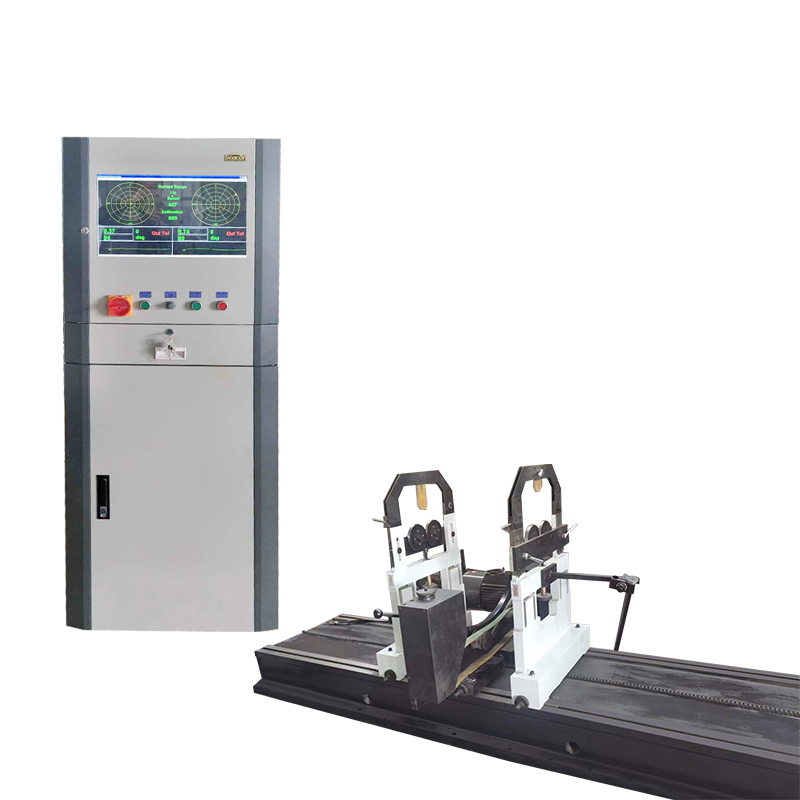

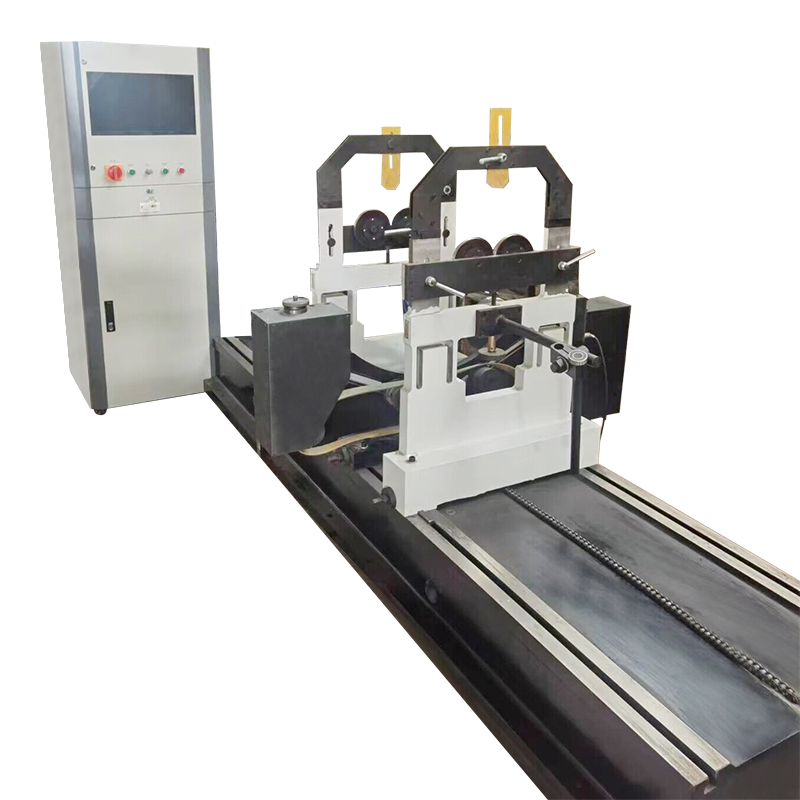

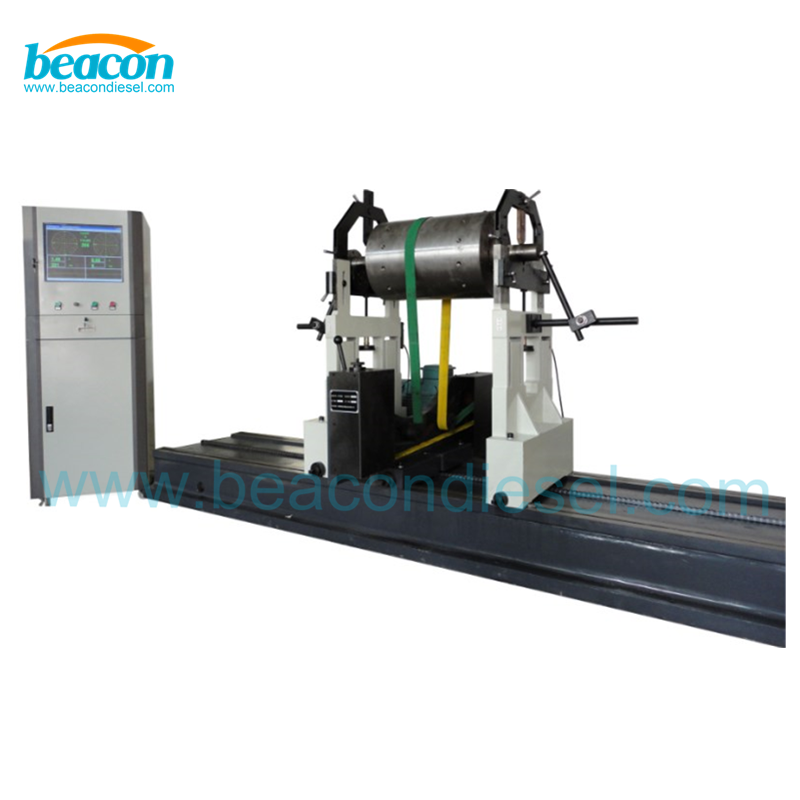

Beacon YYQ-1600A Dynamic Hard Support Horizontal Dynamic Balance Machine With Roller Bearing
This series of equipment is hard support horizontal dynamic balance machine, with roller bearing, gimbal couplings drive, routine for double-speed motor drive, "A" type for variable frequency speed regulation system, an industrial control computer data processing LCD monitor real-time display imbalance, value, phase Angle and real-time speed, and lathe bed are integrally cast. Widely used in motor, blower, diesel engine, agricultural machinery, textile machinery and other industries, can be in the single side, double side and multiple correction plane balance measurement. Suitable for axle plate type and the barycenter overhanging rotor. With high efficiency and precision accurate, show intuitional, reliable quality, convenient maintenance characteristic.
Tel:+86-13375386268
Email: beacon@beacon-machine.com
Beacon YYQ-1600A Dynamic Hard Support Horizontal Dynamic Balance Machine With Roller Bearing
USE ENVIRONMENT
1) ℃ room-temperature: 0-50
2.) relative humidity < 85%
3.) industrial PC power supply voltage fluctuation 190-240V (when necessary user self-provided manostat), the power supply voltage fluctuation -9 400V.
4) machine should be installed in a stable basis, installation is spent in.2/1000 within.
5.) preventing electromagnetic interference, far from the interference.
6.) to prevent oil, salt, acid and corrosive gas enter.
7.) to prevent water, steam, dust, cotton, metal powder invading.
8.) banned in inflammable and explosive gas, flammable, liquid or solid, dangerous environment.
The first chapter
MAIN TECHNICAL PARAMETERS
|
Model |
YYQ-1600A |
|
EThe measuring time |
10s (measurement cycle can be arbitrary set). |
|
Software version |
Windows XP |
|
display mode |
19 inch LCD |
|
power supply |
The power of three-phase four-wire type AC 380V, 50/60HZ |
|
Working |
continuously |
|
Workpiece quality range (Kg) |
20-1600 |
|
Beam supporting interval distance (mm) |
340-3300 |
|
Trunnion range (mm) |
Φ 20-120,120-240 |
|
Workpiece diameter (mm) |
2100 |
|
Balance speed (r/min) |
180-1800 variable frequency speed regulation |
|
Motor power (KW) |
11 |
|
Unbalance reduction rate% |
≤90 |
|
Minimum can reach surplus balabcing (emar) |
≤0.5g・mm/kg |
Industrial PC parameters
|
Speed range |
100 R.P.M. - 5000r/min |
|
Phase error |
use a standard signal measurement error < 0.3 DHS |
|
Amplitude error |
use a standard signal measurement error < 1,000 |
|
Storage rotor number |
255 a |
|
Angle decomposition coun |
60 |
|
The machine maximum power |
2million |
|
Equipment model |
YYQ-2000A |
|
Workpiece mass range kg |
30-2000 |
|
Diameter range of belt dragging position mm |
Φ40-1000 |
|
Maximum diameter of workpiece mm |
Φone thousand and eight hundred |
|
Spacing between two supports mm |
200-1500 |
|
Bed size (L * w * h) mm |
1800*820*260 |
|
Swing frame structure |
Integral swing frame, roller cantilever support |
|
Roller support shaft diameter mm |
Φ20-120 |
|
Balance speed r / min |
Drag diameterΦ180-1450 at 200mm |
|
Minimum residual unbalance |
≤0.5gmm/kg |
|
Unbalance reduction rate% |
≥95% |
|
Motor power |
7.5kw |
|
Speed regulation mode |
frequency control |
|
Transmission mode |
Loop drag |
|
Power Supply |
AC 380V,50/60Hz |
|
Overall dimension (length * width * height) |
1800*1360*1600 |
