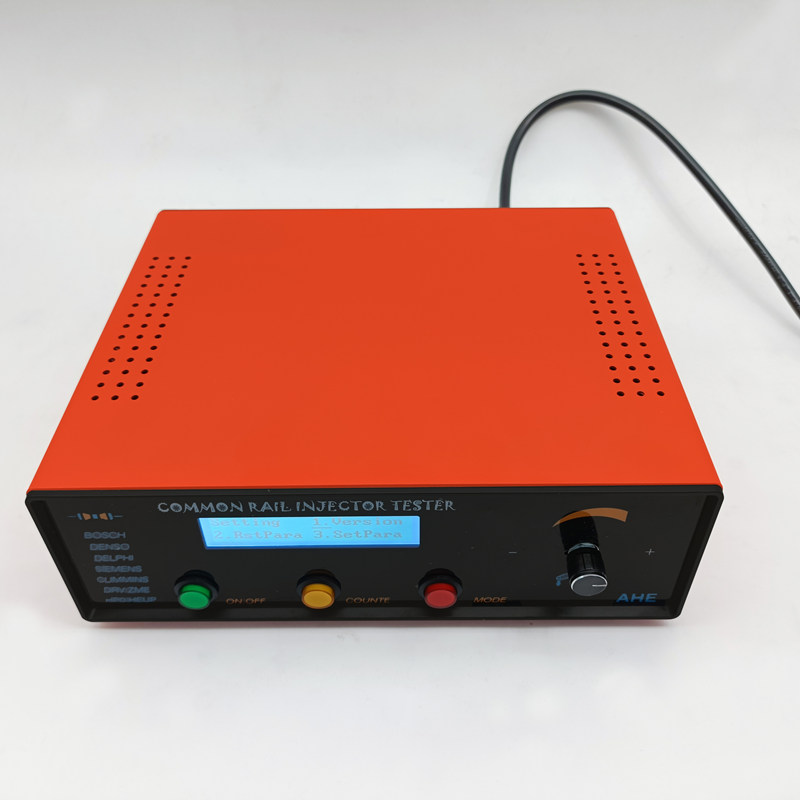

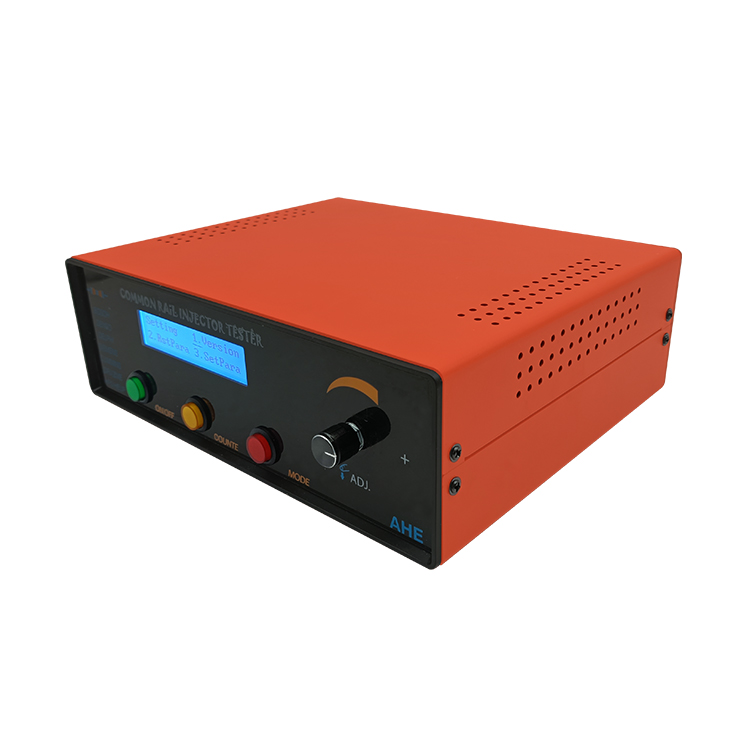

Beacon CRI205 Common Rail Injector Stroke Tester Multifunction Professional Diesel Fuel Injection Tester Toolsupports Electromagnetic And Piezoelectric Injectors And Supports Ahe Measurement

Functions:

	The function of the CRI205 high pressure common rail injector tester is to drive common rail injectors and injector AHE function tests. It also provides control signals for common rail injectors such as Bosch, Denso, SIEMENS, CUMMINSand Delphi to drive high pressure common rail injectors. When the oiler is working, the drive signal parameters can be set by the user according to their actual conditions, and can be saved in groups, which is convenient for maintenance personnel to judge and repair the working status of the high-pressure common rail injector under different working conditions.

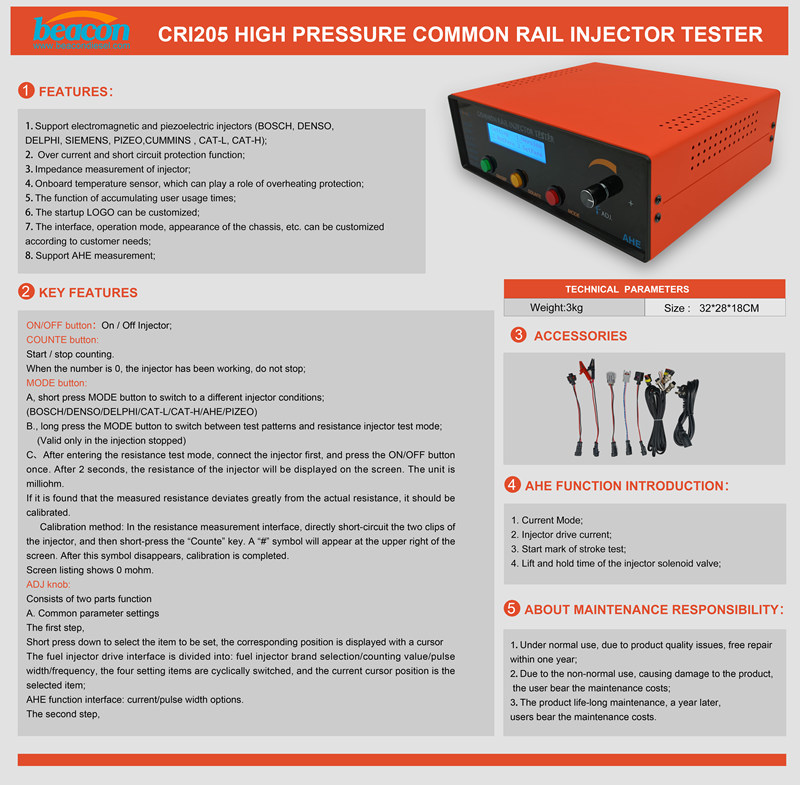

Design Features

		Support electromagnetic and piezoelectric injectors (BOSCH, DENSO, DELPHI, SIEMENS, PIZEO,CUMMINS , CAT-L, CAT-H);
Over current and short circuit protection function;
Impedance measurement of injector;
Onboard temperature sensor, which can play a role of overheating protection;
The function of accumulating user usage times;
The startup LOGO can be customized;
The interface, operation mode, appearance of the chassis, etc. can be customized according to customer needs;
Support AHE measurement


Tel:+86-13375386268

Email: beacon@beacon-machine.com

inquiry now

Introduction

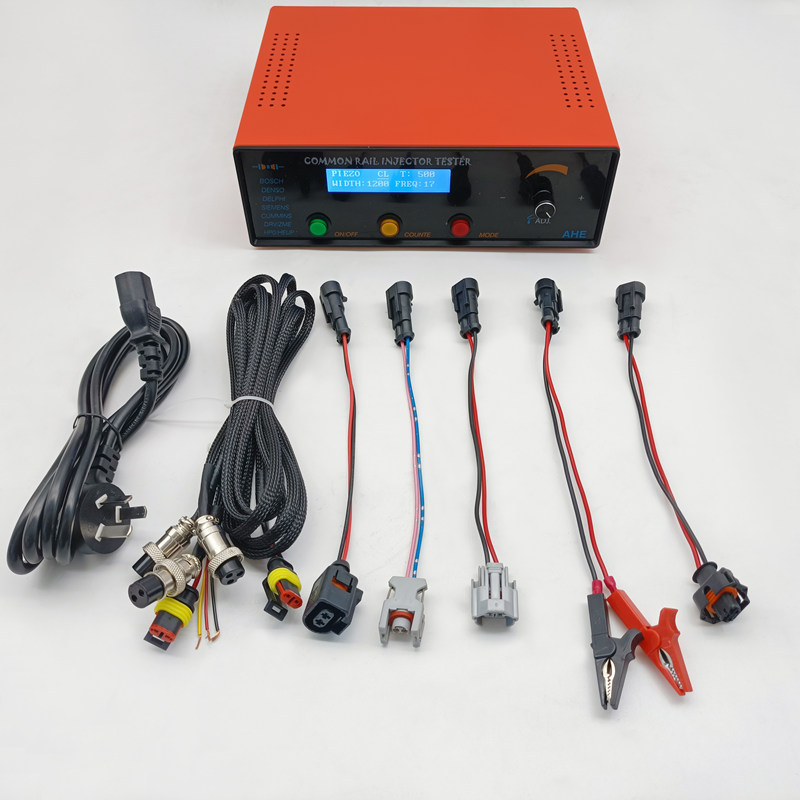

Check the accessories
The function of the CRI205 high pressure common rail injector tester is to drive common rail injectors and injector AHE function tests. It also provides control signals for common rail injectors such as Bosch, Denso, SIEMENS, CUMMINSand Delphi to drive high pressure common rail injectors. When the oiler is working, the drive signal parameters can be set by the user according to their actual conditions, and can be saved in groups, which is convenient for maintenance personnel to judge and repair the working status of the high-pressure common rail injector under different working

parameter

1、Select the type of injector：

BOSCH、DENSO、DELPHI、CAT-L、CAT-H、AHE, SIEMENS, PIZEO,CUMMINS

2、Current Injector conditions：

VL TL LL VE U1 U2 CL

3、the injector count method:

T: according to the number of counts;

4、injector counting time:

T :0-6000 times

5、injection signs: icon display indicates the beginning of the injector fuel injection;

6、pulse width: 0 ~ 6000uS;

7、injection frequency: 1 ~ 30Hz

AHE function introduction

1. Current Mode;

2. Injector drive current;

3. Start mark of stroke test;

4. Lift and hold time of the injector solenoid valve;

TAGS:CRI205 Diesel Common Rail Injector Tester,Injector Tester,Common Rail Injector Stroke Tester,
