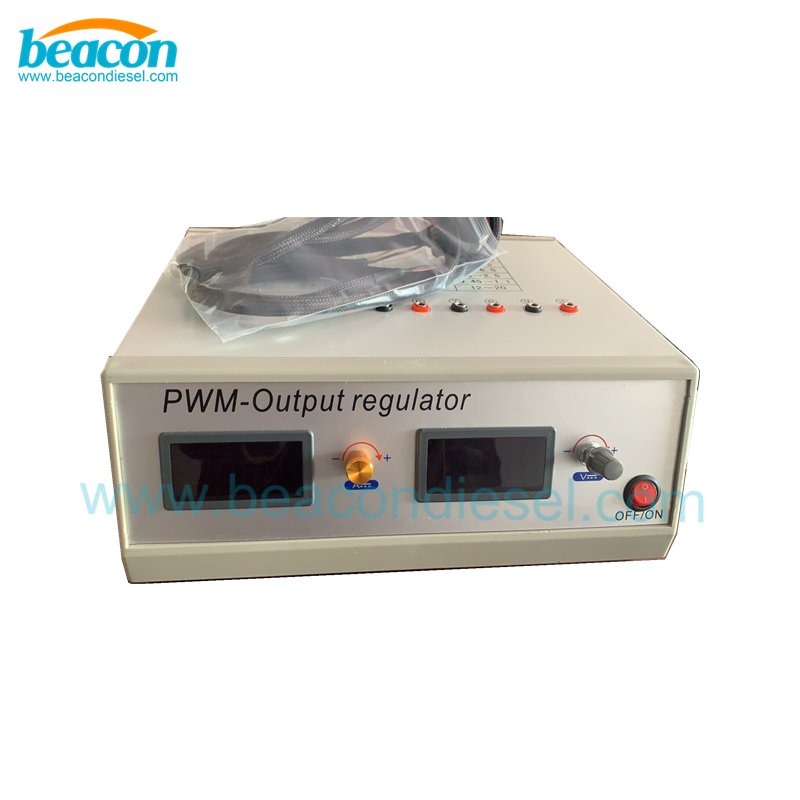

VP37/RED4 Electronic control high pressure pump detector
|
Detectable pump type:
|
VP37、VE37
|
|
Drive current:
|
4-5A
|
|
Driving voltage:
|
0-5V
|
|
Current frequency:
|
165-195HZ
|
|
Response time:
|
≤0.1S
|
|
Instrument power:
|
AC220V
|
|
Operating temperature:
|
-5C ° to 50C °
|
Introduction
Product description:
The core drive module of the high-voltage control pump tester uses ST (STMicroelectronics) current-modulation control chip, which completely waits for the ECU to control the high-pressure pump. The built-in current protection system can be used safely by users. Digital display of rail pressure and driving current can directly observe parameter changes, which helps maintenance personnel to quickly diagnose common rail pump faults.

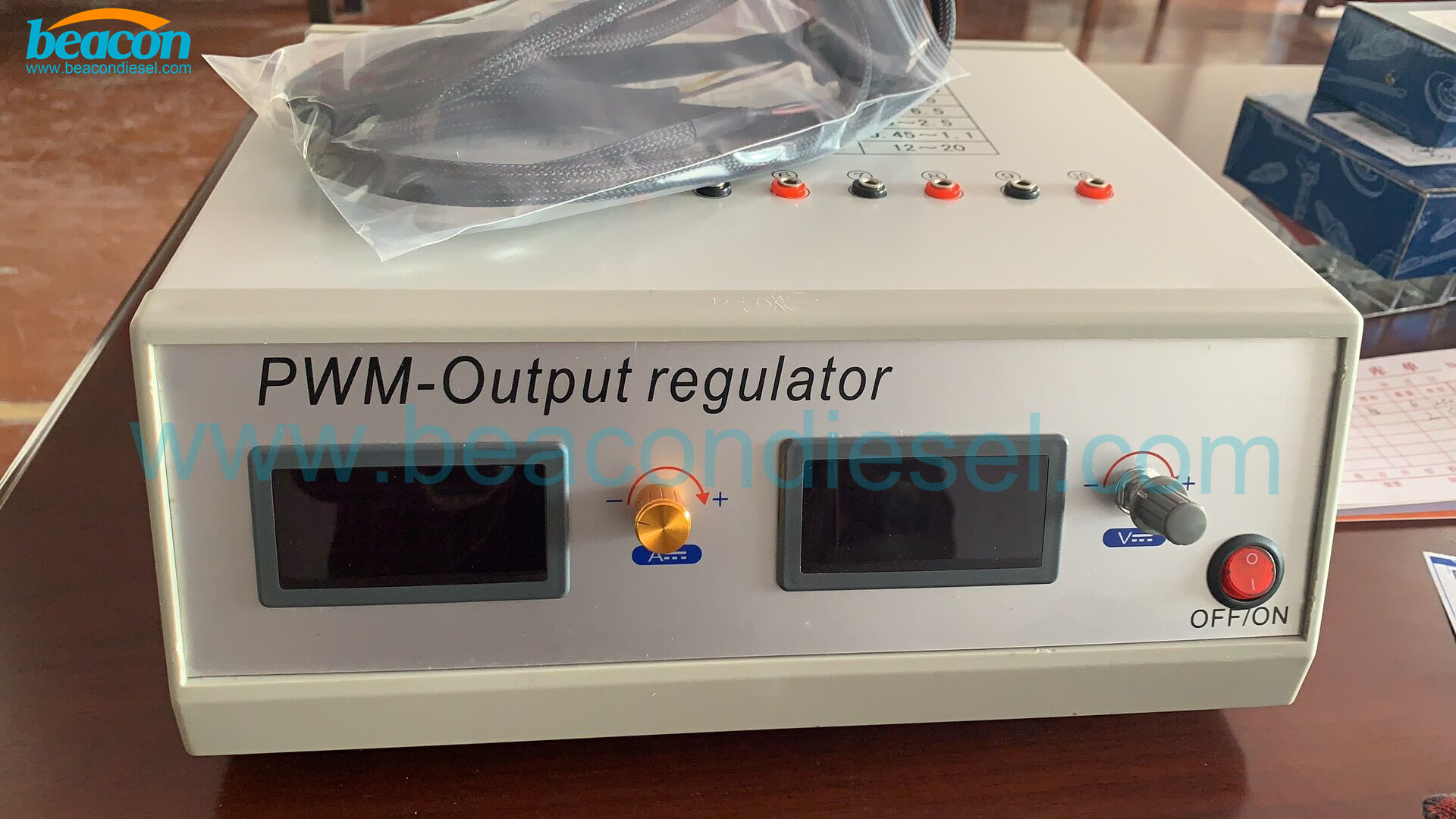

Introduction of operation panel
Left display window: drive current Right display window: driving voltage Left potentiometer knob: vacant
Right potentiometer knob: increase the drive current and voltage ratio
