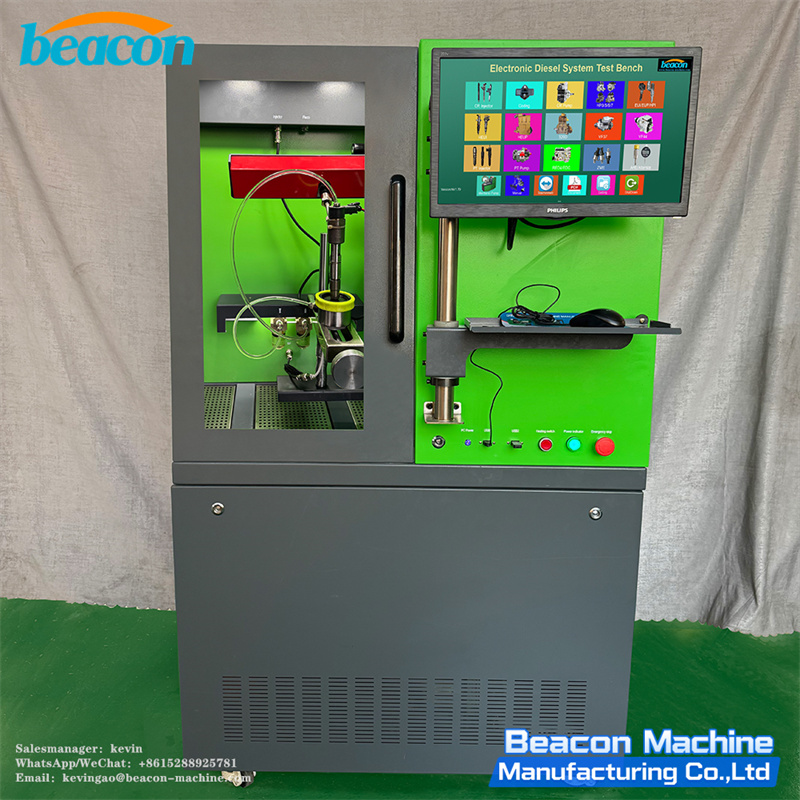

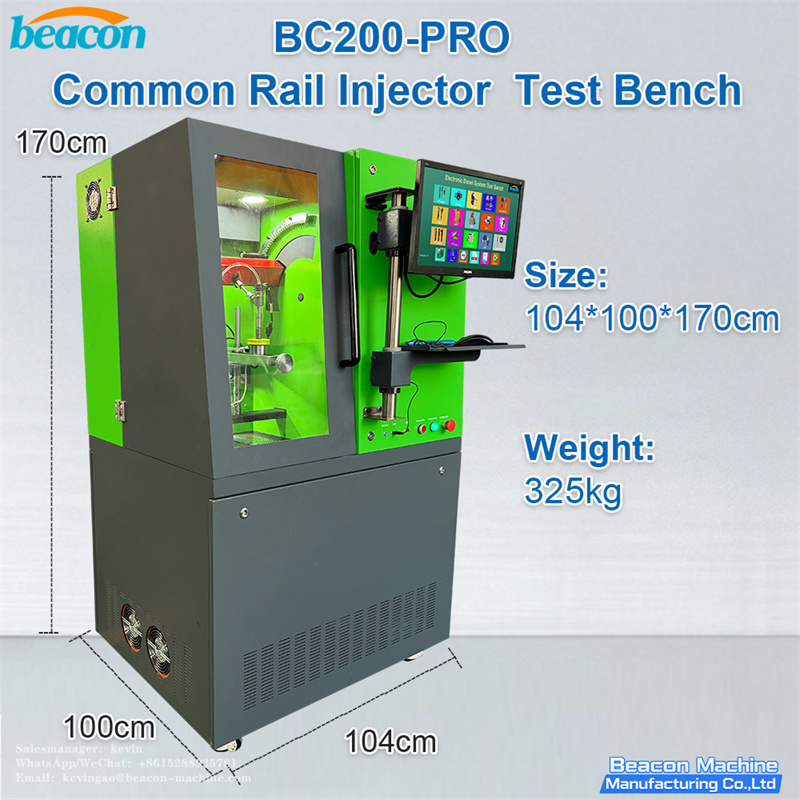

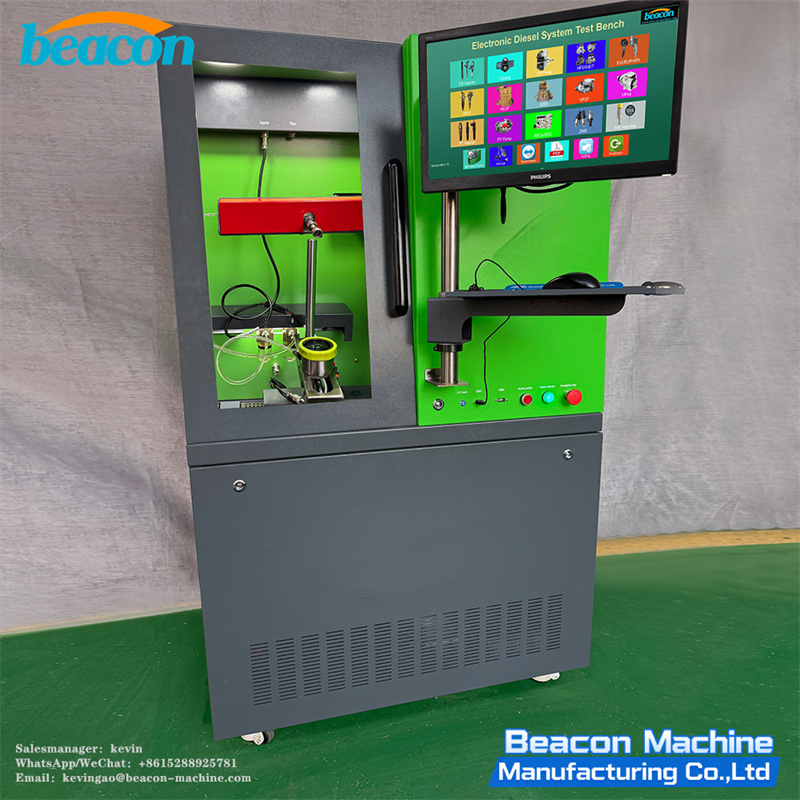

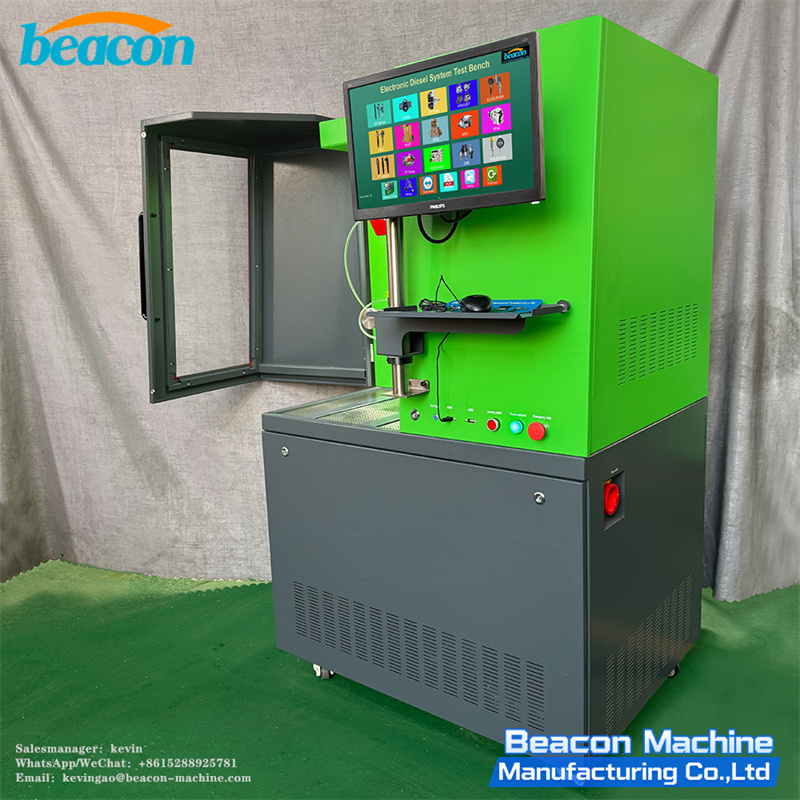

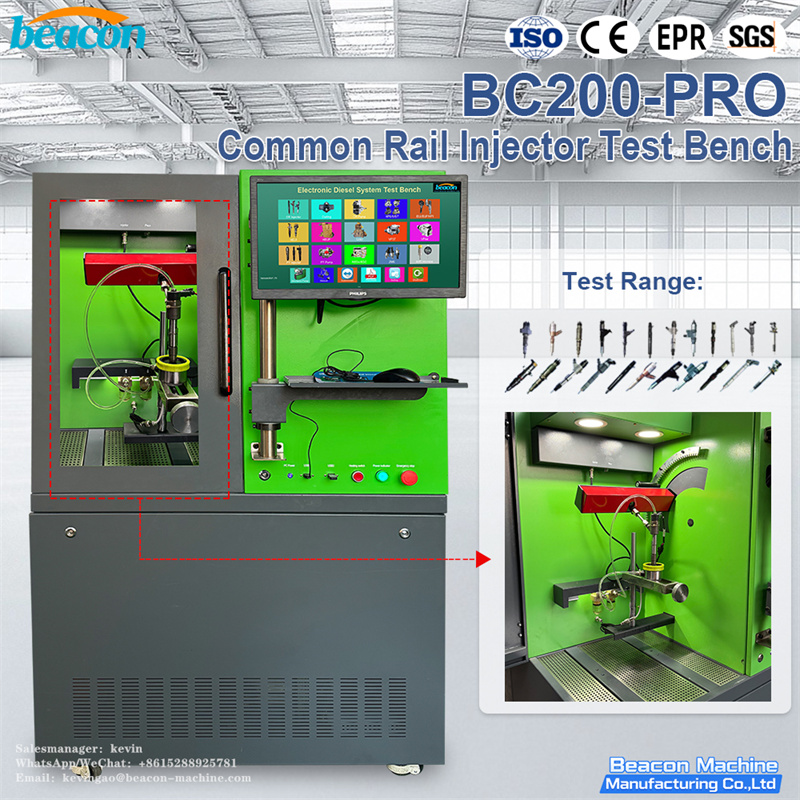

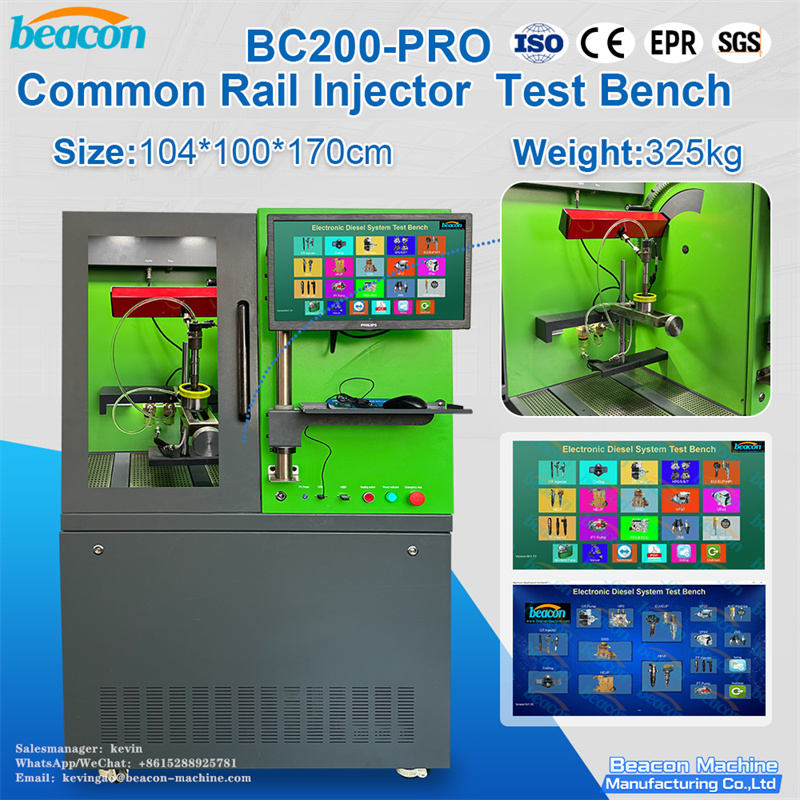

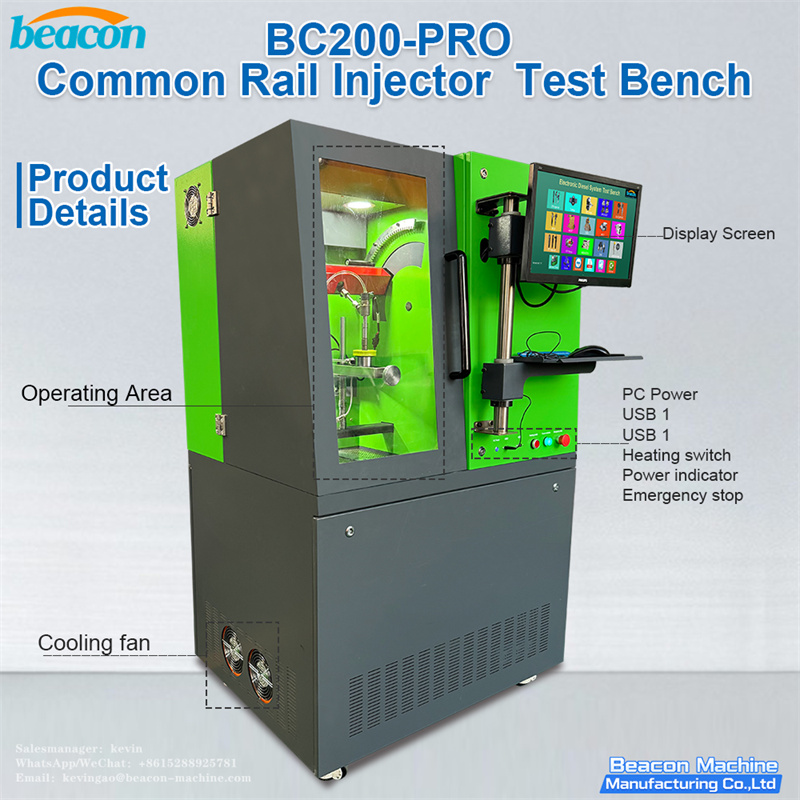

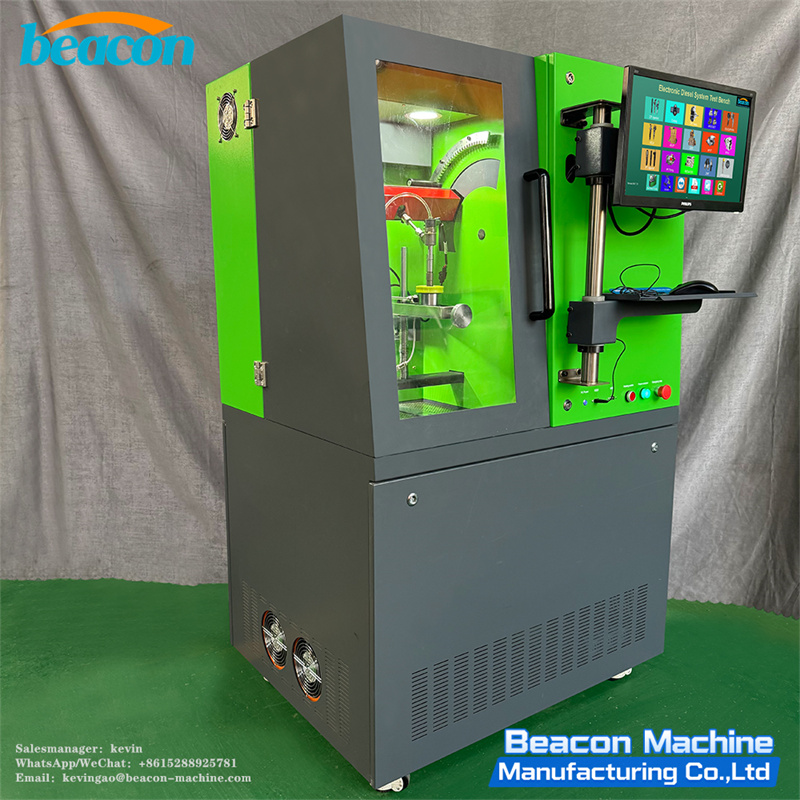

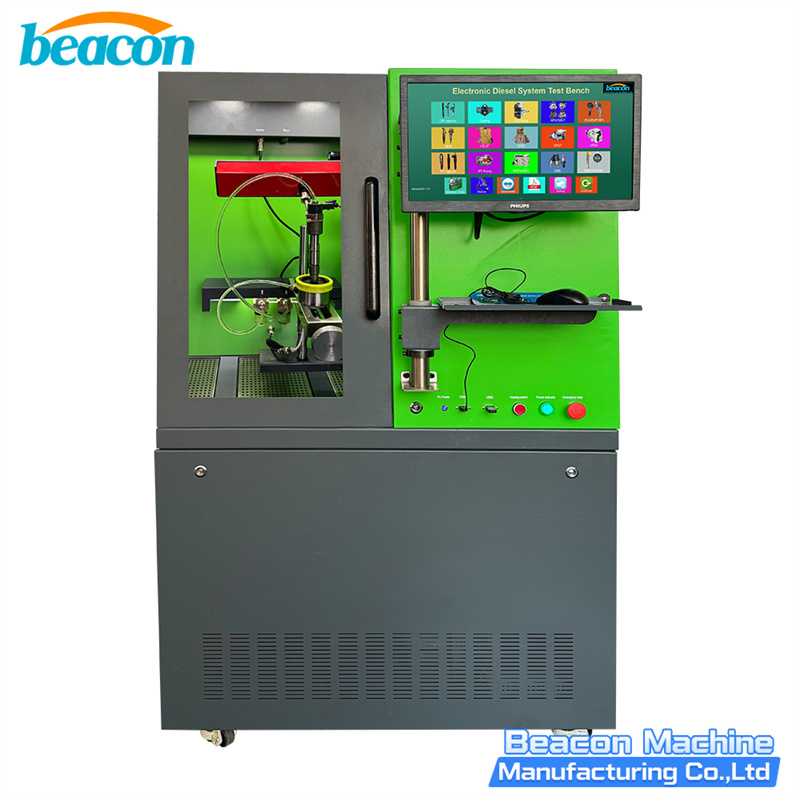

BC200 PRO Diesel Injector Tester Common Rail Injector Test Machine Test Bench
1/ INTRODUCTION
The function of the BC200-PRO common rail injector test bench is to imitate the work- ing conditions of the diesel engine ECU (Engine Control Unit), while providing control signals for common rail systems such as Bosch, Denso, Delphi, and piezoelectric ceramics to drive high-pressure common-rail fuel pumps and high-pressure common rail systems. Rail injectors work; users of drive signal parameters can be set according to their actual conditions and saved, which is convenient for maintenance personnel to judge and maintain the working status of the high-pressure common rail system.

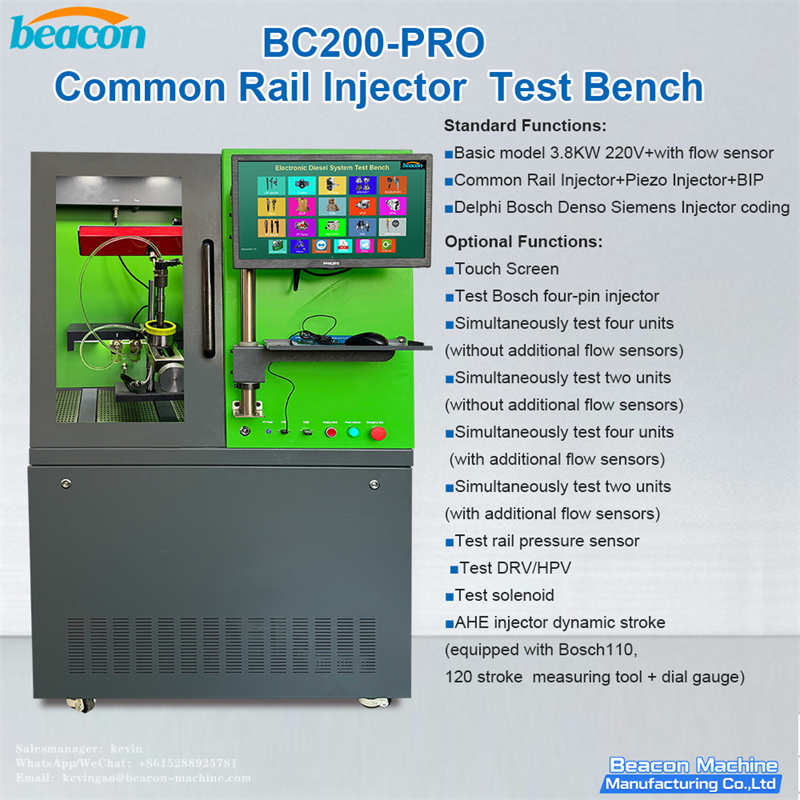

2/ Standard Functions
Basic model: 3.8KW 220V + with flow sensor
Supports testing of Common Rail Injector, Piezo Injector, and BIP
Capable of Delphi, Bosch, Denso, and Siemens injector coding
3/ Optional Functions
Touch Screen
Test Bosch four - pin injector
Simultaneously test four units (without additional flow sensors)
Simultaneously test two units (without additional flow sensors)
Simultaneously test four units (with additional flow sensors)
Simultaneously test two units (with additional flow sensors)
Test rail pressure sensor
Test DRV/HPV
Test solenoid
AHE injector dynamic stroke (equipped with Bosch 110, 120 stroke measuring tool + dial gauge)
