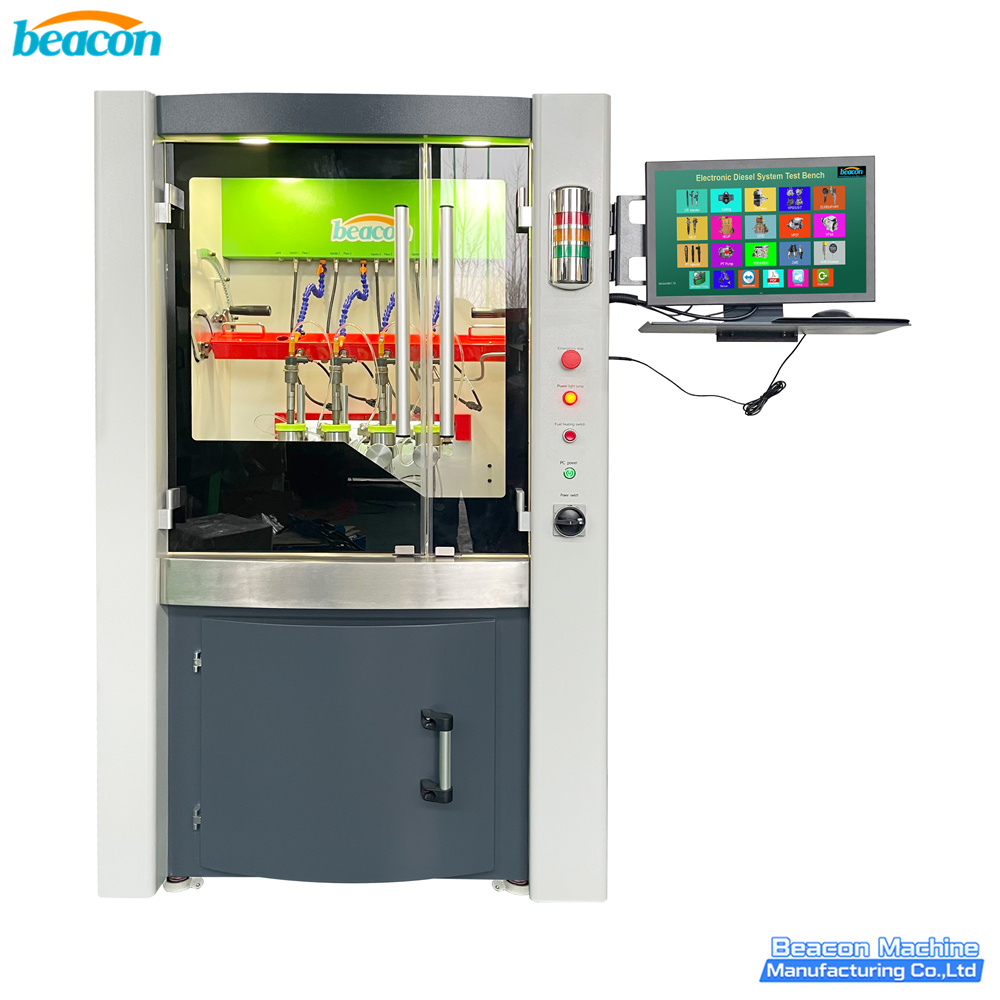

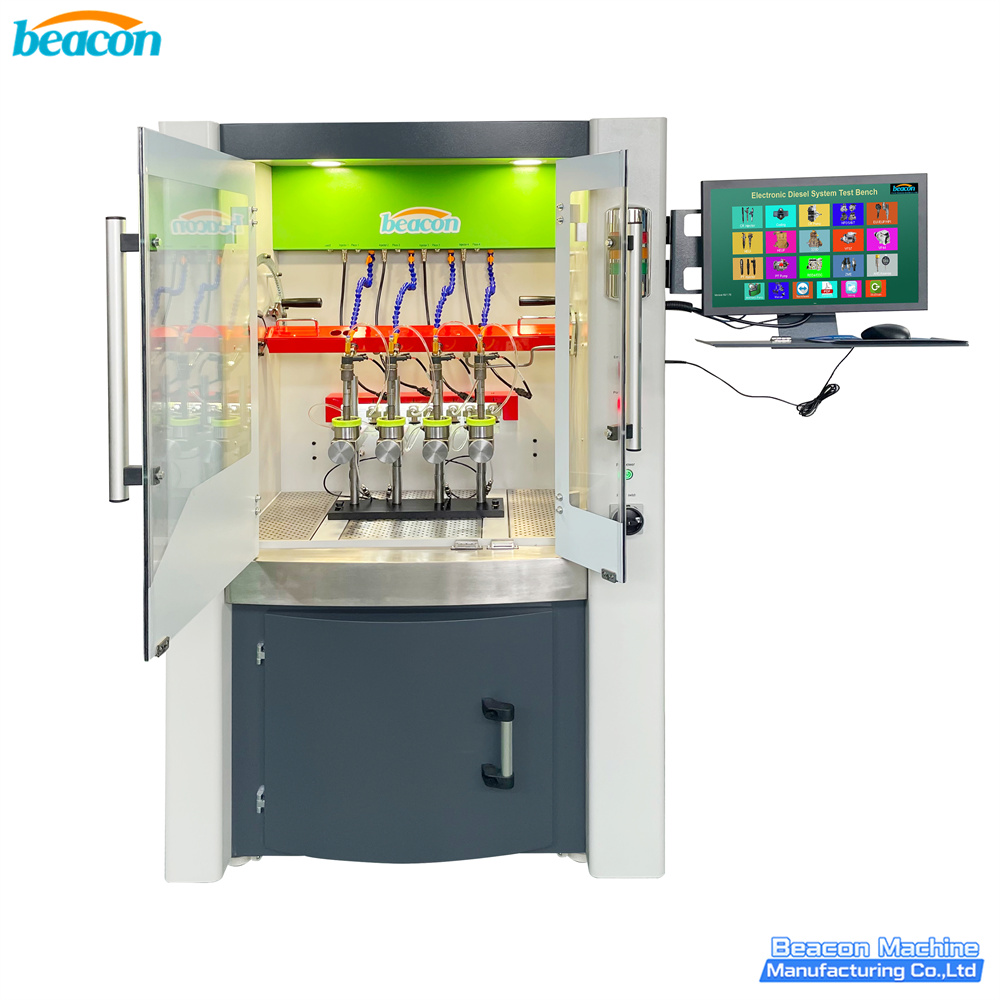

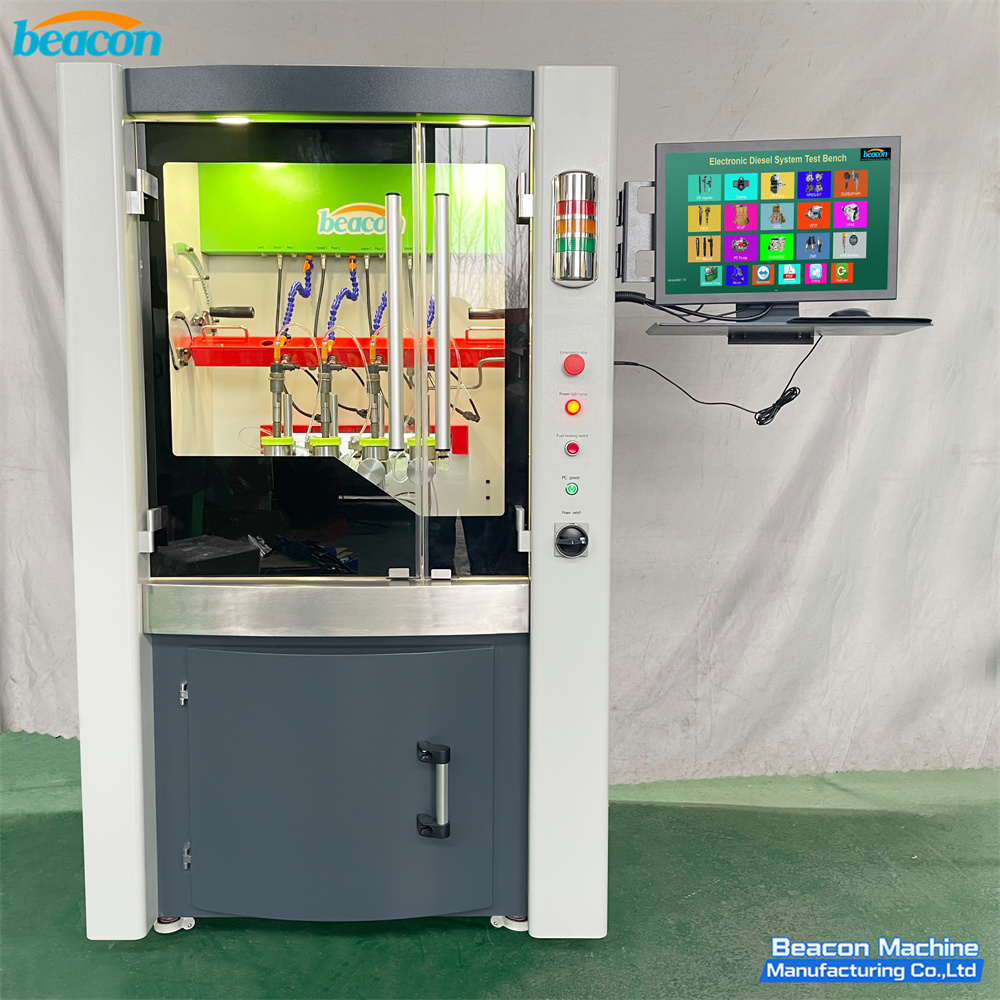

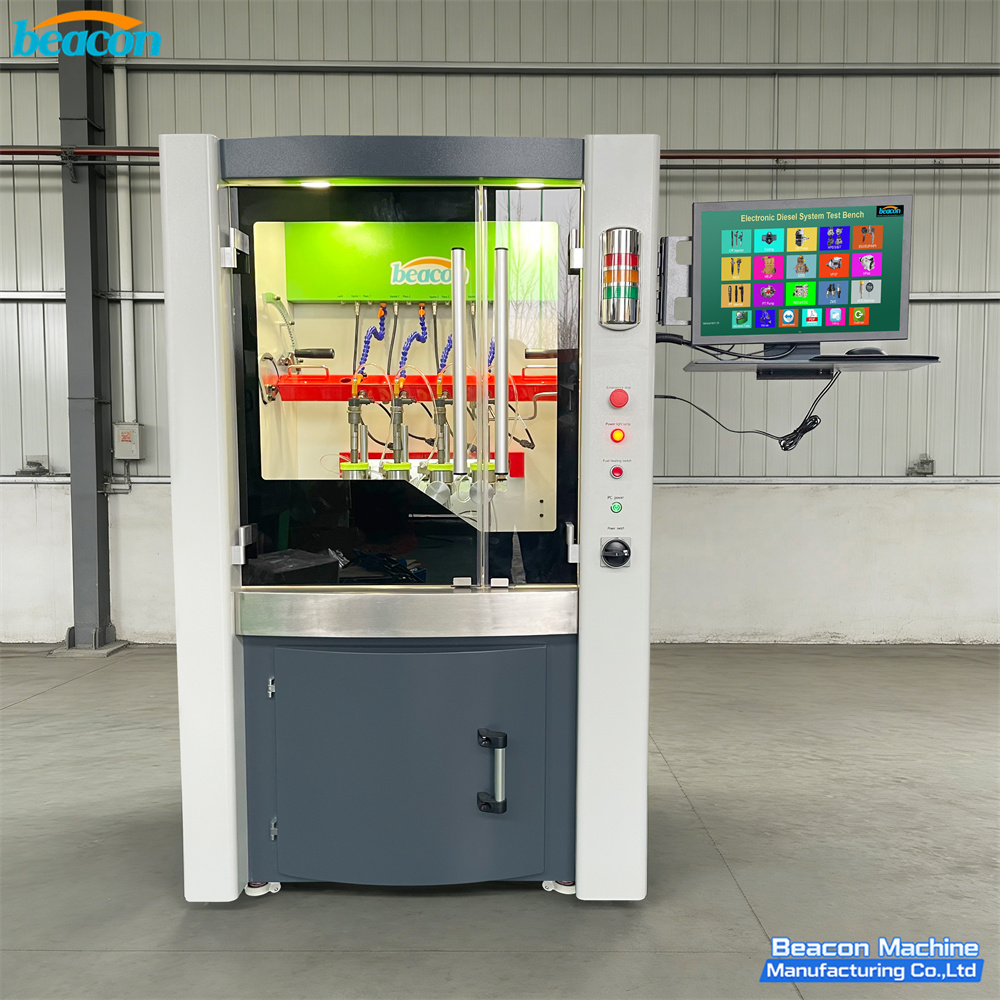

BC800-PRO Common Rail Injector Test Bench

Supports Bosch, Denso, Delphi, Siemens, CAT, Cummins and most domestic common rail injectors.

One‑key automatic operation for speed, pressure, flow test & report generation.

Original factory matching data, high test accuracy & open database.

4 flow sensors, supports testing 4 injectors simultaneously.

Online auto-update, keeps test data & functions up-to-date.

Tel:0086-18253885135

Professional test bench for common rail solenoid & piezoelectric injectors.

Simulates ECU working conditions for stable & reliable testing.

Generates injector compensation codes and tests resistance & inductance.

Safe design with 2400bar high-pressure protection and safety door interlock.

Integrated system supports pump, nozzle & HEUI tests (optional functions).

Main power: 5.5 KW

Operating temperature: -10 ~ 50℃

Max test pressure: 2400 bar

Dimensions: 160×100×180 cm

Net weight: 350 KG

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
