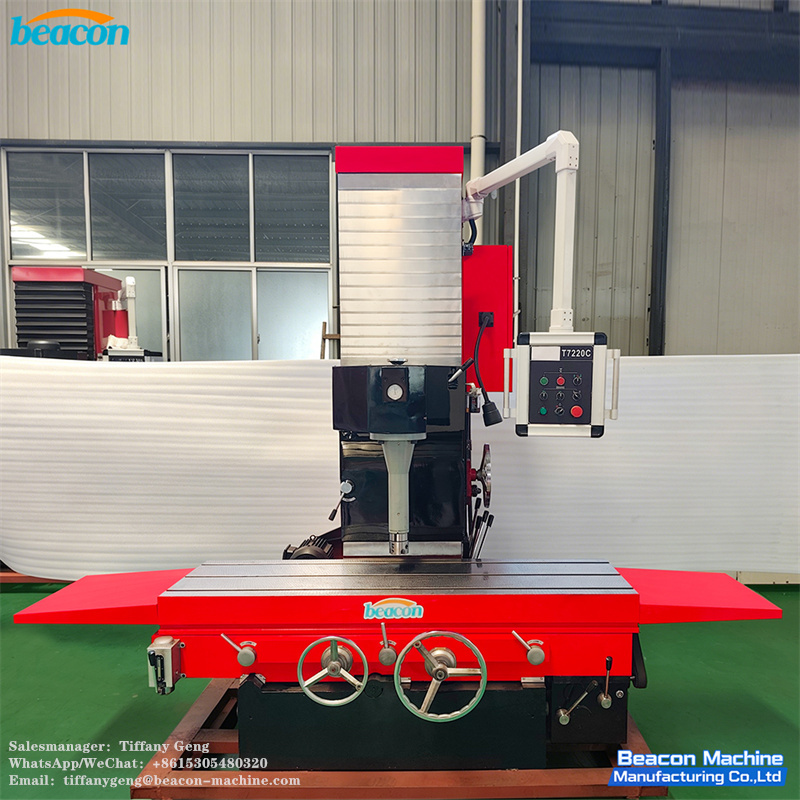

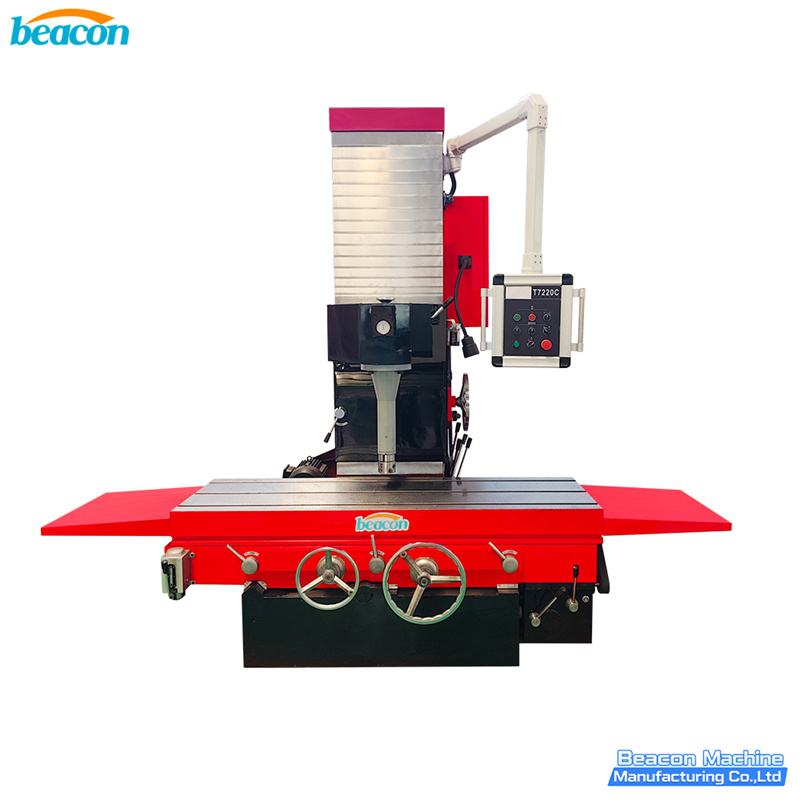

T7220C Vertical Cylinder Boring and Milling Machine for Engine Rebuilding and Cylinder Liner Repair
Tel:0086-18253885135
Email: info@beacon-machine.com

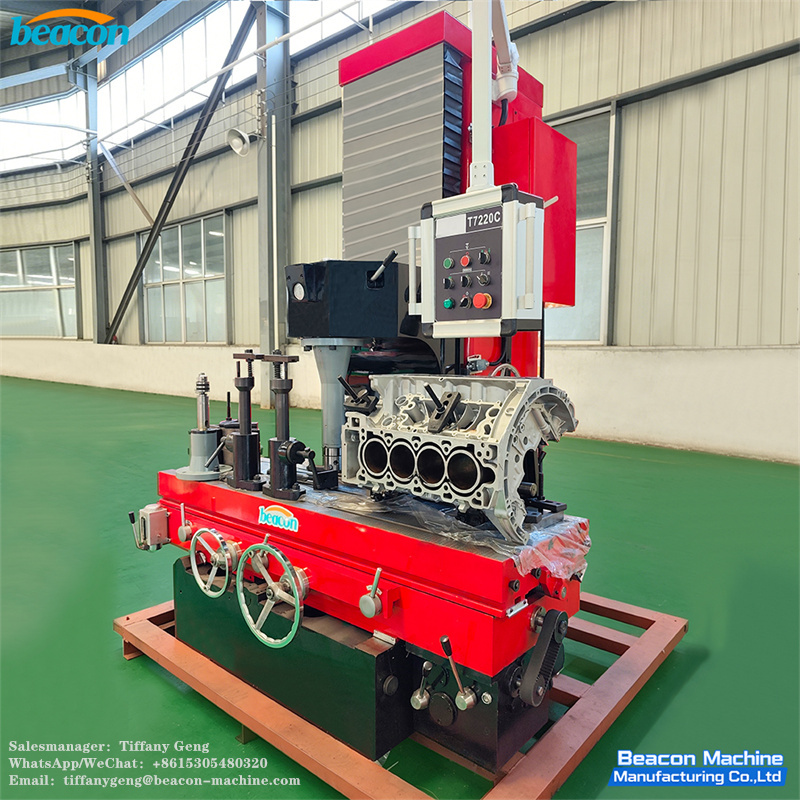

T7220C mainly for medium/large/heavy engines

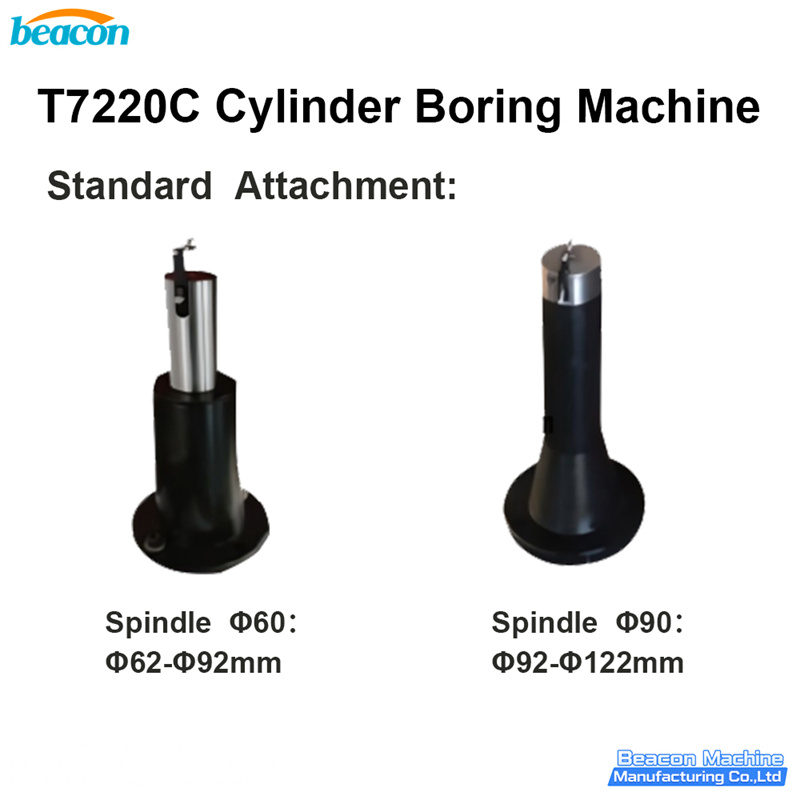

Accessory:

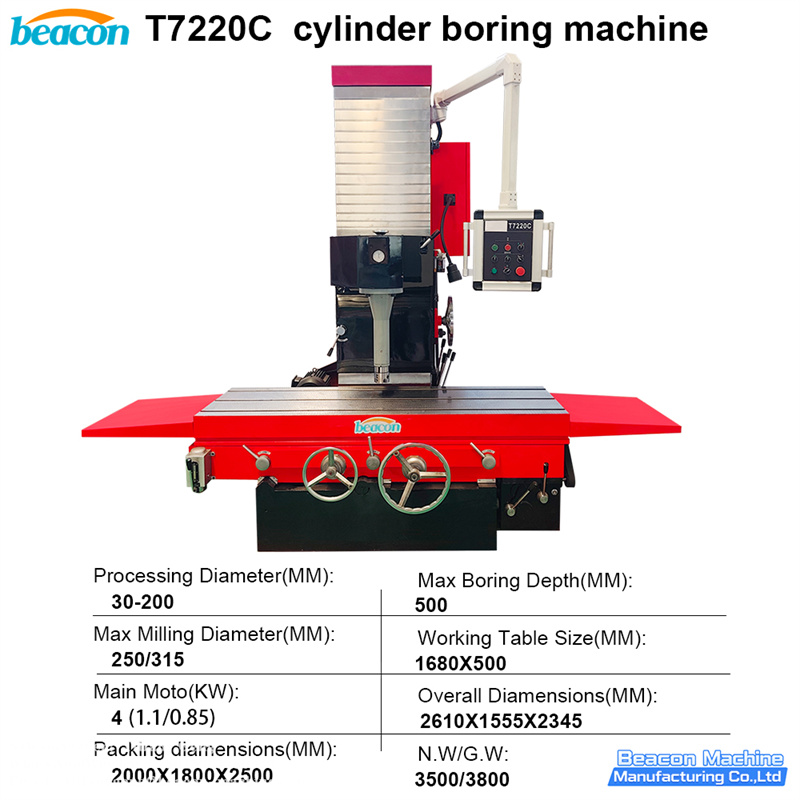

| Item | Specification |
|---|---|
| Processing Diameter (mm) | 30-200 |
| Max Boring Depth (mm) | 500 |
| Max Milling Diameter (mm) | 250/315 |
| Spindle Speed (r/min) | 53/75/106/150/210/ |
| Spindle Feeding Capacity (mm/r) | 300/420/590/840 |
| Spindle Feed Speed (mm/min) | 0.05/0.08/0.125/0.2 |
| Rapid Moving Speed of the Spindle (mm/min) | 3900 |
| Distance Between Spindle End Face and Table | 0-1250 |
| Distance Between Spindle Axis and Carriage Vertical Plane | 315 |
| Longitudinal Feed of Worktable (mm/min) | 55-100 |
| Rapid Moving Speed of the Table Longitudinal Travel | 1500 |
| Max Longitudinal Travel of the Working Table | 1100 |
| Max Cross Travel of the Working Table | 100 |
| Working Table Size (L×W) | 1680×500 |
| Main Motor (KW) | 4(1.1/0.85) |
| Overall Dimensions (L×W×H) | 2610×1655×2345 |
| Packing dimensions (L×W×H) | 2000×1800×2500 |
| N.W/G.W (KG) | 3500/3800 |
