High measuring accuracy and efficiency
Safe and simple handling
Infinitely variable DC drive
Soft-bearing
System balancing software computer display
Tel:+86-13375386268
Email: beacon@beacon-machine.com

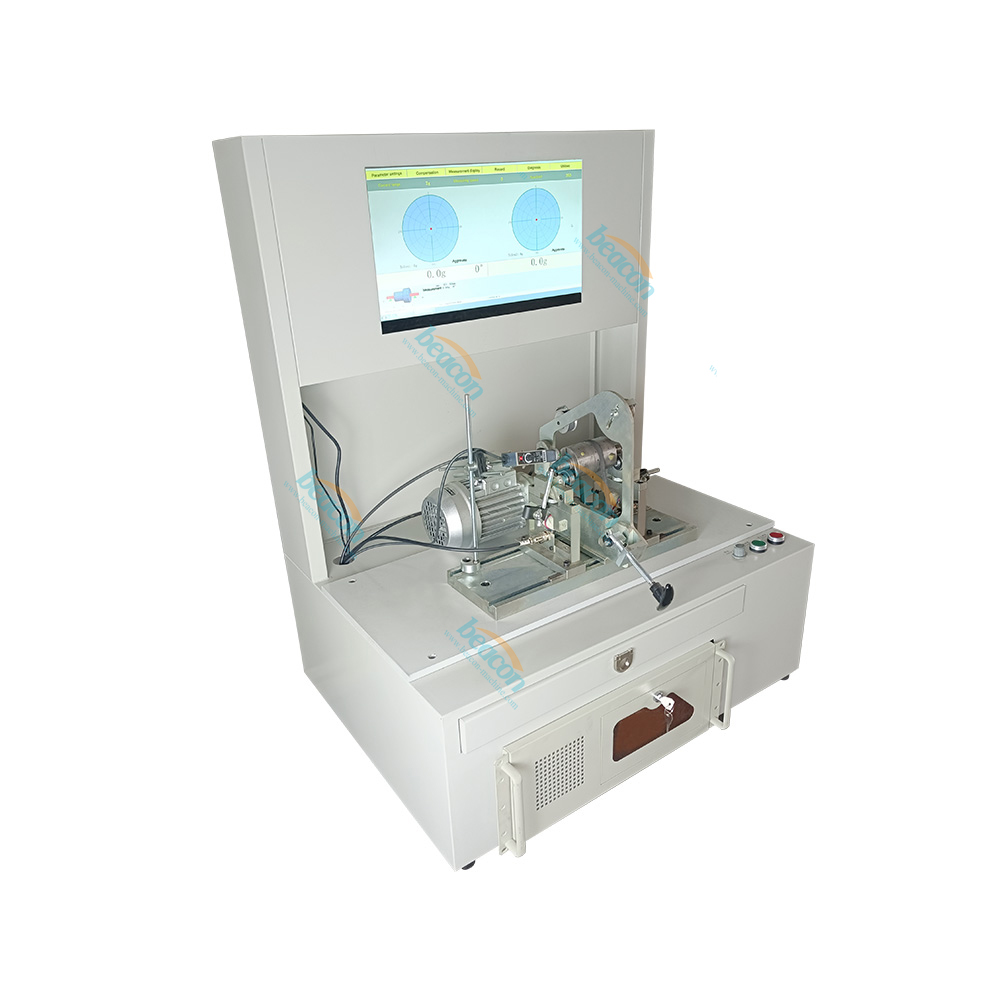

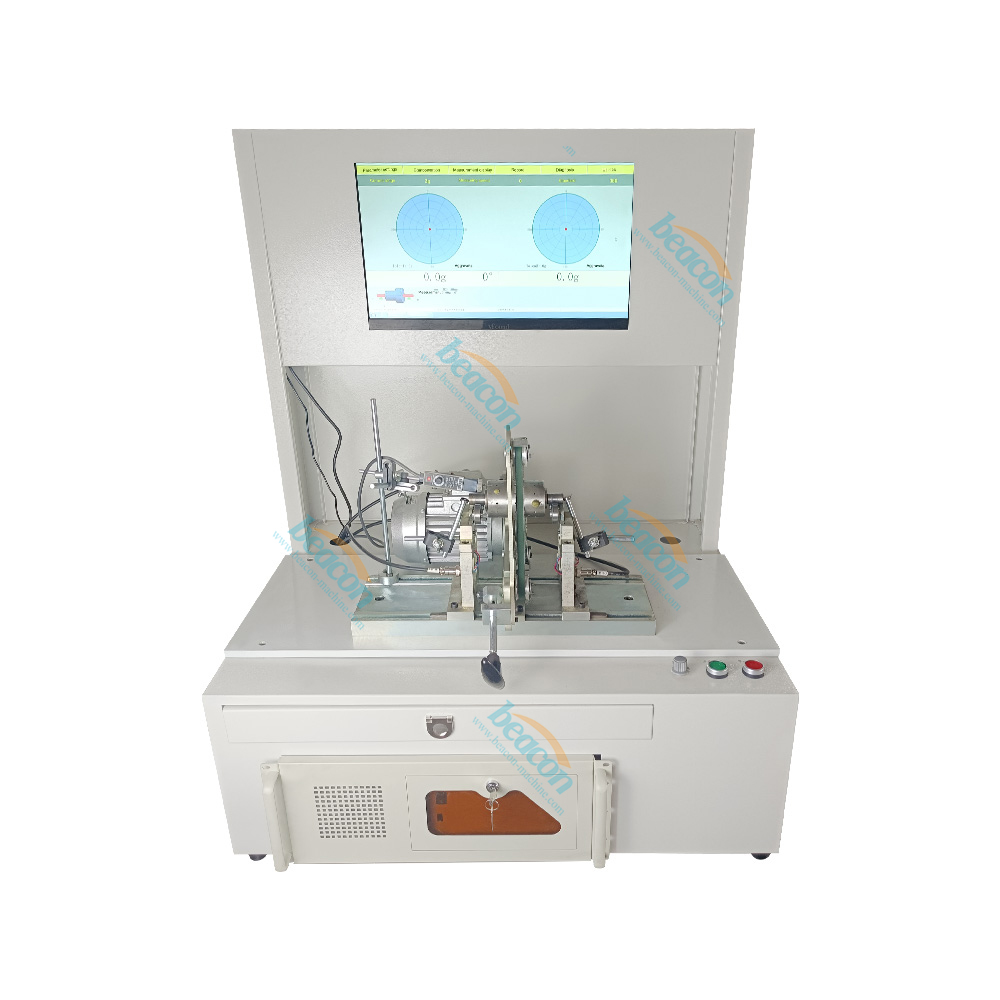

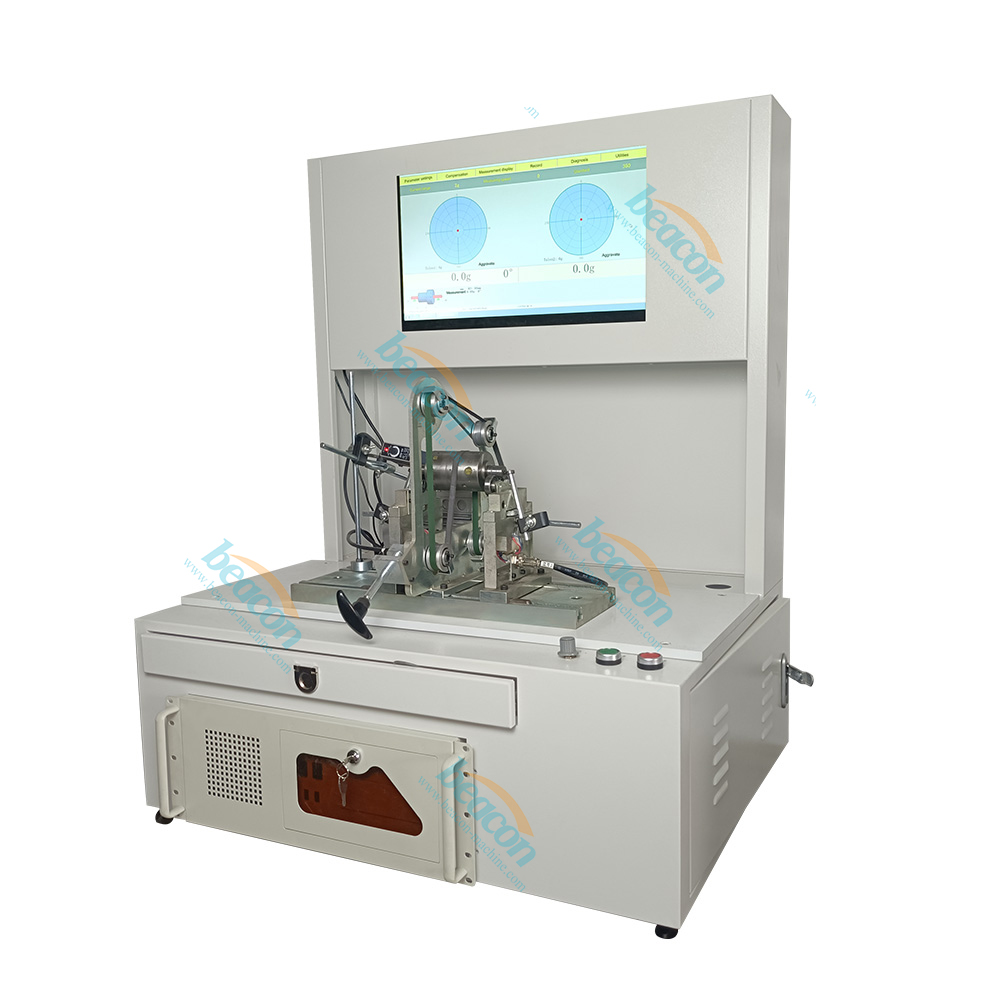

YYQ RYQ series ring belt balancer is especially suitable for balance detection of motor rotors, fan impellers, water pump impellers, supercharger rotors, centrifuge rotors, rubber rollers, machine tool spindles, crankshafts and other mechanical rotating parts. The ring belt is directly driven to reduce the error of the fixture, the operation is simple, and the detection accuracy is higher.

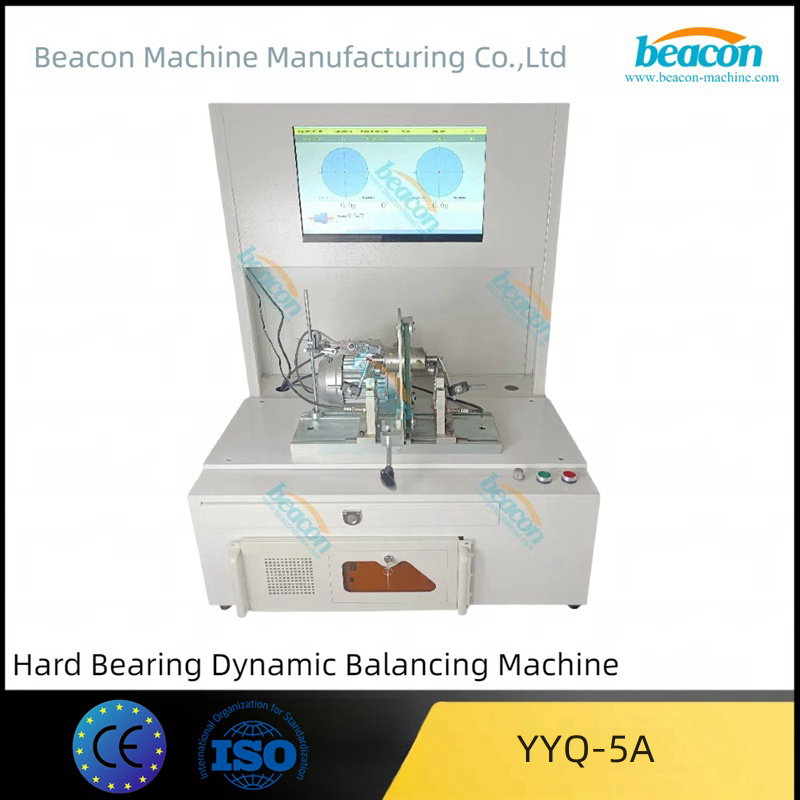

Model: YYQ-5A/10A
Piece weight range (Kg): 0.1~10kg
The maximum diameter of the workpiece (mm): φ500
Distance between two supports (mm): 60- 550
Shaft diameter range in bracket (mm): φ5-36
The diameter range of the ring belt driving part (mm): φ15~φ200
Balance speed (R/min): 400~1400
The Minimum Achievable Residual Imbalance (G .mm/kg): ≤0.5
Imbalance reduction rate (%): ≥90
Engine power (Kw): 0.18
Speed mode: Variable frequency motor
|
Model: |
YYQ-5A/10A |
|
Piece weight range (Kg): |
0.1~10kg |
|
The maximum diameter of the workpiece (mm): |
φ500 |
|
Distance between two supports (mm): |
60- 550 |
|
Shaft diameter range in bracket (mm): |
φ5-36 |
|
The diameter range of the ring belt driving part (mm): |
φ15~φ200 |
|
Balance speed (R/min): |
400~1400 |
|
The Minimum Achievable Residual Imbalance (G .mm/kg): |
≤0.5 |
|
Imbalance reduction rate (%): |
≥90 |
|
Engine power (Kw): |
0.18 |
|
Speed mode: |
Variable frequency motor |
