Test the fuel supply amount and fuel supply uniformity of each cylinder of the fuel injection pump at different speeds;
Test the fuel supply starting point and fuel supply interval angle of the fuel injection pump;
Inspection and adjustment of the working performance of the governor;
Test and inspection of the performance of the pressure compensator;
Testing and adjustment of the working performance of the distribution pump;
Inspection of the performance of the solenoid valve of the distribution pump;
Measuring the oil return volume of the distribution pump at various speeds;
The internal pressure measurement of the distribution pump at various speeds;
Sealing performance test of distribution pump;
The oil pump can be inspected by installing the self-priming oil supply pipe.
Tel:+86-13375386268
Email: beacon@beacon-machine.com

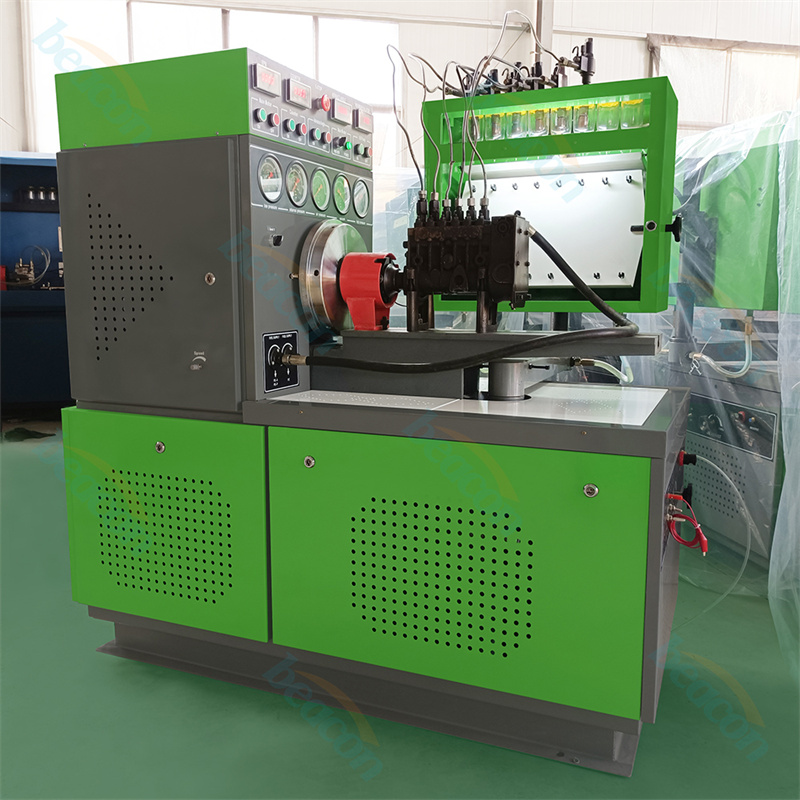

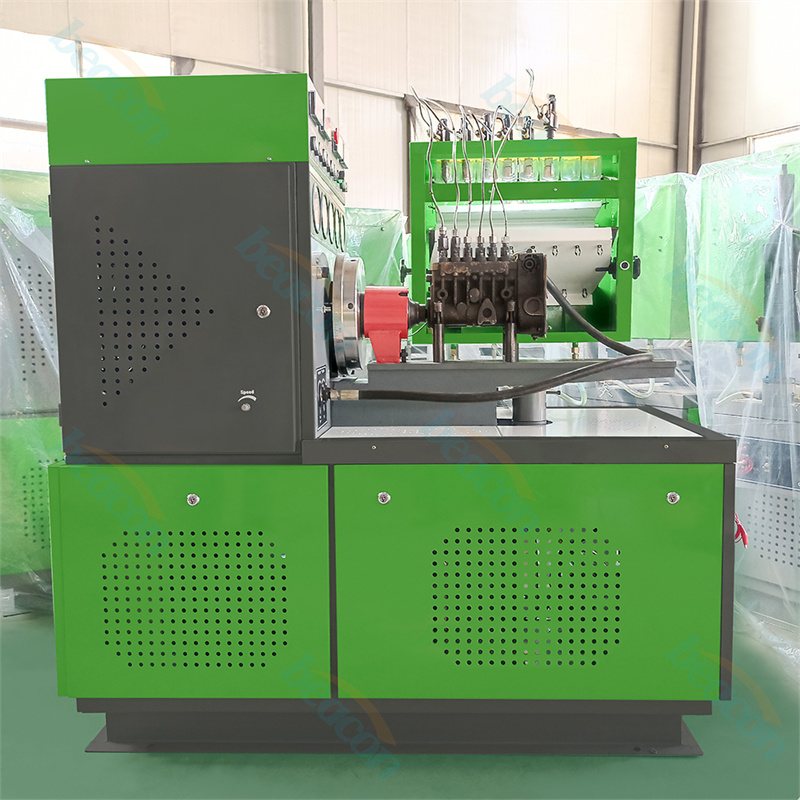

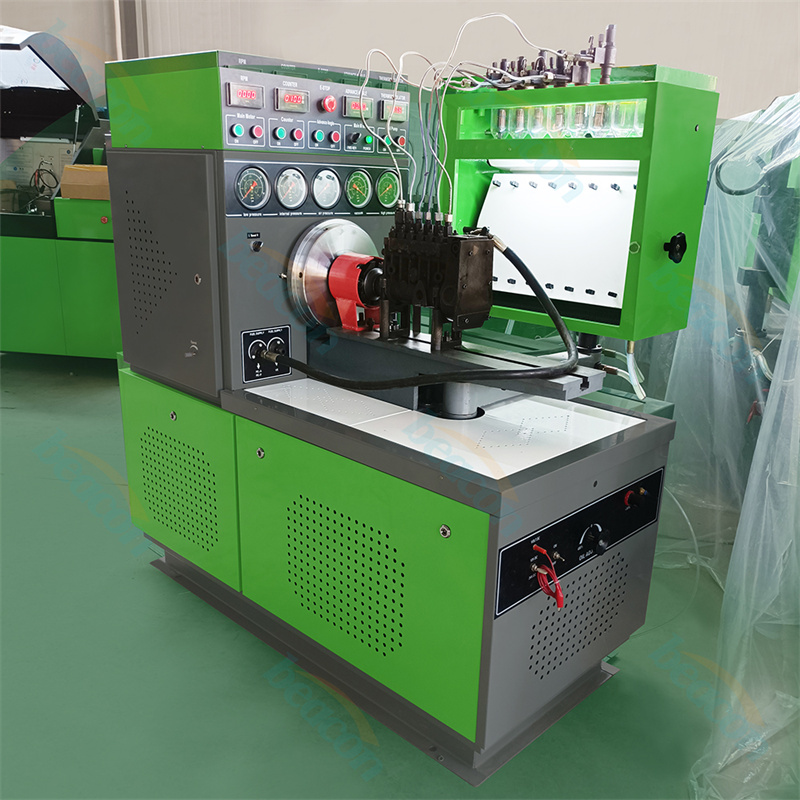

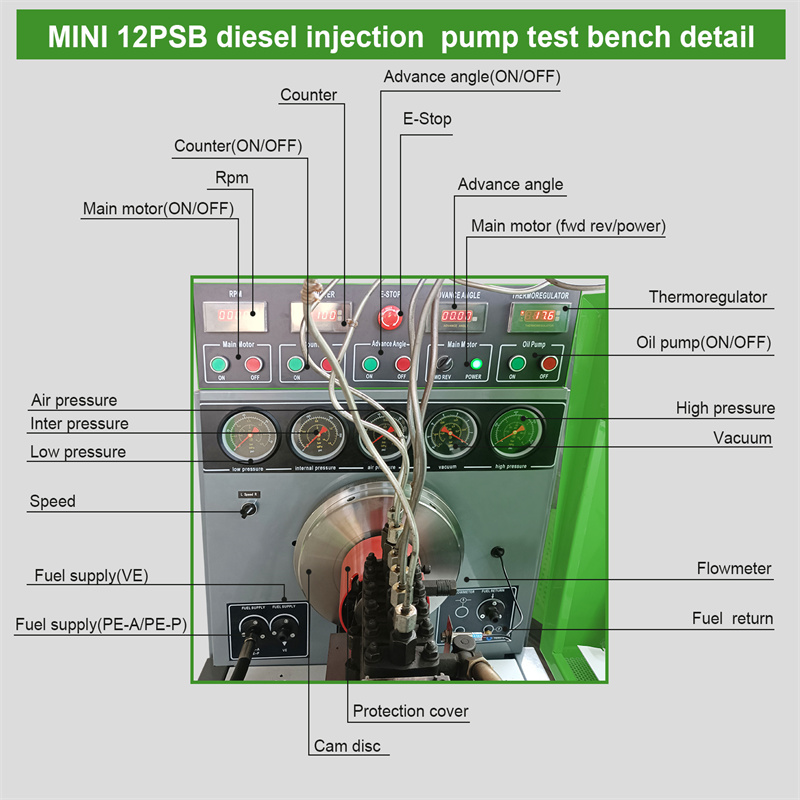

MINI12PSB-H 8 cylinder Diesel Fuel Injection Pump Test Bench
Features:
(1) The main engine drive adopts frequency conversion speed regulation, and the speed regulation range: ±4000 rpm;
(2)Four-digit display is adopted for oil metering count and spindle speed;
(3) The fuel temperature is displayed in three digits;
(4)The gas pressure is displayed by a mechanical meter;
(5) It is provided with an internal air pump, and the adjustable range of air pressure is: positive pressure 0～4MPa; negative pressure -0.03～0MPa;
(6) With 12V/24V DC power supply;
(7) The main engine is a channel steel frame structure, and the overall structure is compact and stable. The inertia wheel is installed after the high-speed dynamic balance test to make the speed stable without vibration;
(8) The shell adopts electrostatic spraying, and the shell is beautiful;
(9) The oil collection tank can be rotated left and right, and can also be adjusted up and down;
(10) The test bench has an emergency stop button;
(11) The test bench has protections such as undervoltage, overvoltage, overheating, and overload;
(12) Ultra-low noise of the test bench;
(13) The test bench saves energy.
1. Speed adjustment range :±4000 rpm/min
2. The number of cylinders can be tested 8 cylinders
3. Spindle speed fluctuation :±1 rpm/min
4. Main engine power :11KW
5. Oil temperature automatic control :40±2℃ (can be set by yourself)
6. Oil supply pressure low pressure 0～0.4MPa; high pressure 0～4MPa;
7. Test oil filtering accuracy :5μ
8. Air pressure adjustment range :positive pressure 0～0.3MPa, negative pressure -0.03～0MPa
9. Fuel tank volume :60L
10.Fuel pump supply :>10 liters/min
11.Cooling method :axial flow fan refrigeration
12.Size :1700×960×1750
13.Weight :300KG
