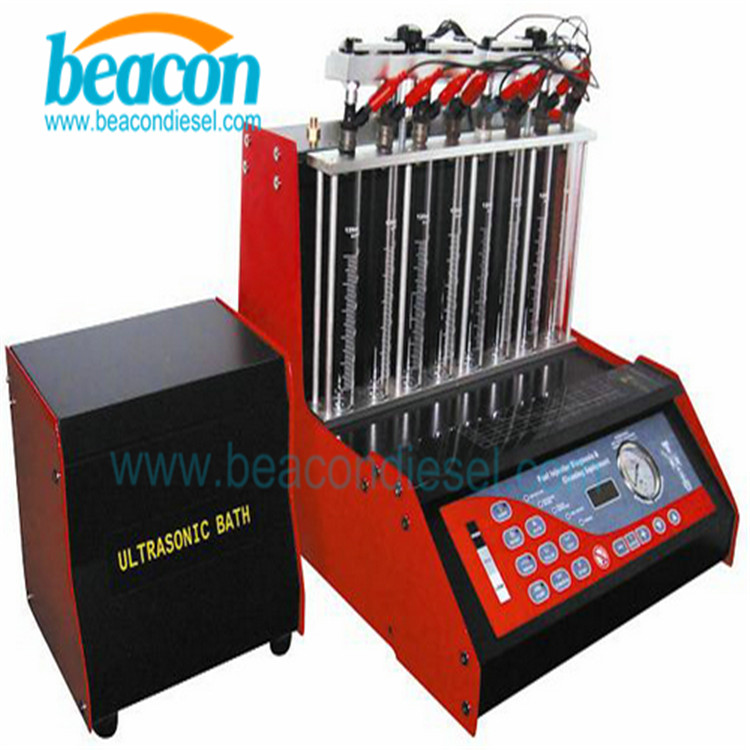

Gasoline fuel injector nozzle test bench BC-8H 8 cylinder petrol injector tester and cleaning machine
BC-8H 8 cylinders gasoline gdi petrol calibration test equipment injector tester and Ultrasonic cleaner
inquiry nowIntroduction
Main functions
●Engine injector cleaning and detecting;
●Test 8 injectors in one time;
●Injector fuel distribution and delivery checking;
●Engine on-car cleaning;
●Leakage hunting;
●Injector cleaning;
●Multilanguage applicable including English, Arabic,Russian, etc.;
●LED display with clear menu and easy operation;
●Wide models can be tested with stable performance and reliable data;
●Liquid in tube drain back to tank automatically;
●Separated ultrasonic bath(Installed in cabinet);

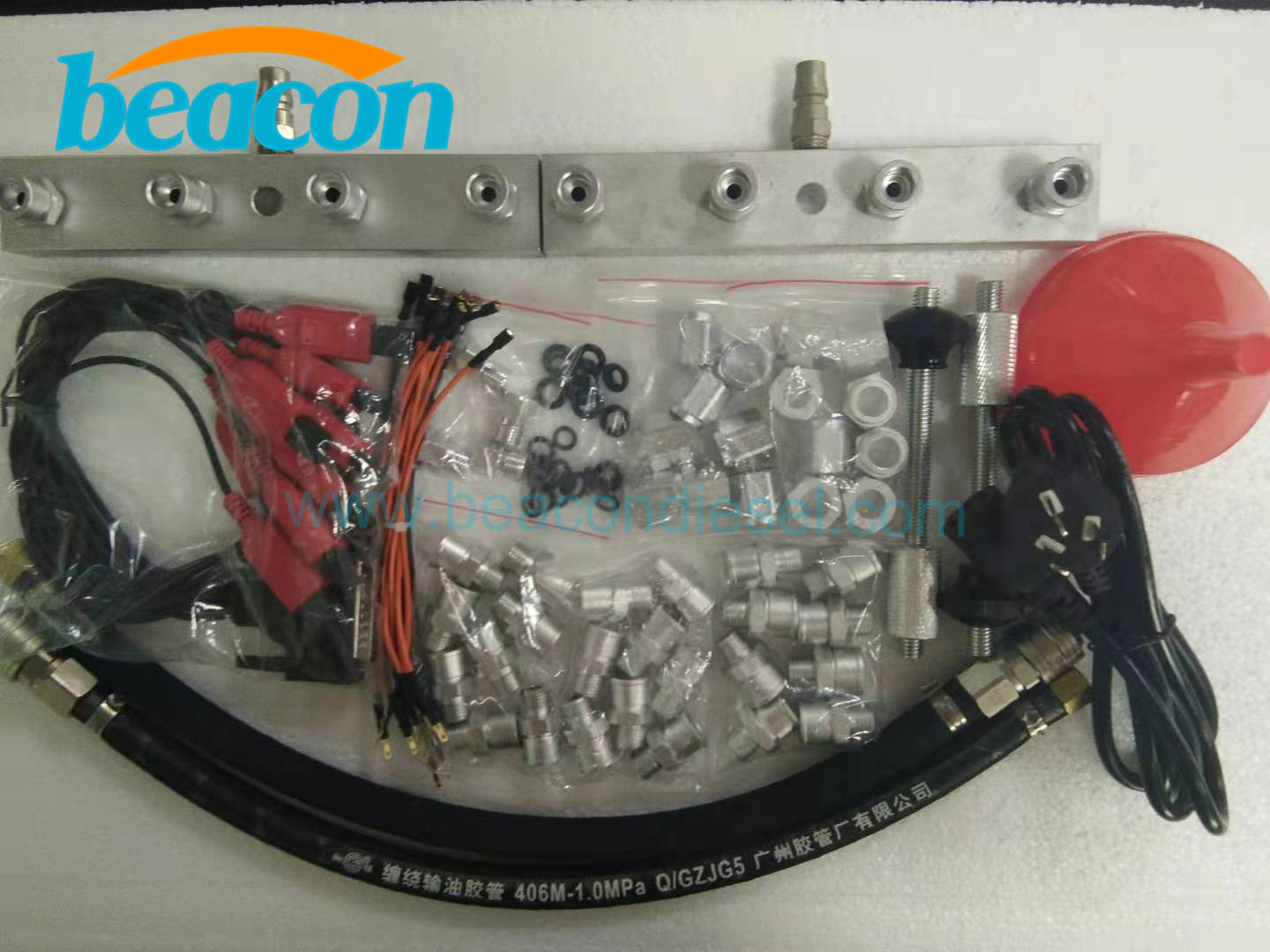

●Optional:Special adapter for MONO & Side-feed injector;
●Packed inside dolly when shipped,CBM save.
parameter
|
Power supply
|
AC220V±10%, 50/60Hz;AC110V±10%, 50/60Hz
|
|
Input power
|
250W
|
|
Ultrasonic cleaner power
|
100W,25KHz
|
|
Simulated RPM range
|
10000rpm
|
|
step
|
50rpm
|
|
Injection time
|
0~600sec, step 1sec
|
|
Pulse width
|
0-20ms
|
|
Test liquid tank volume
|
6L
|
|
Testing tube volume
|
120ml
|
|
Dimensions
|
600mm×500mm×750mm
|
|
Weight
|
About 54kg
|
