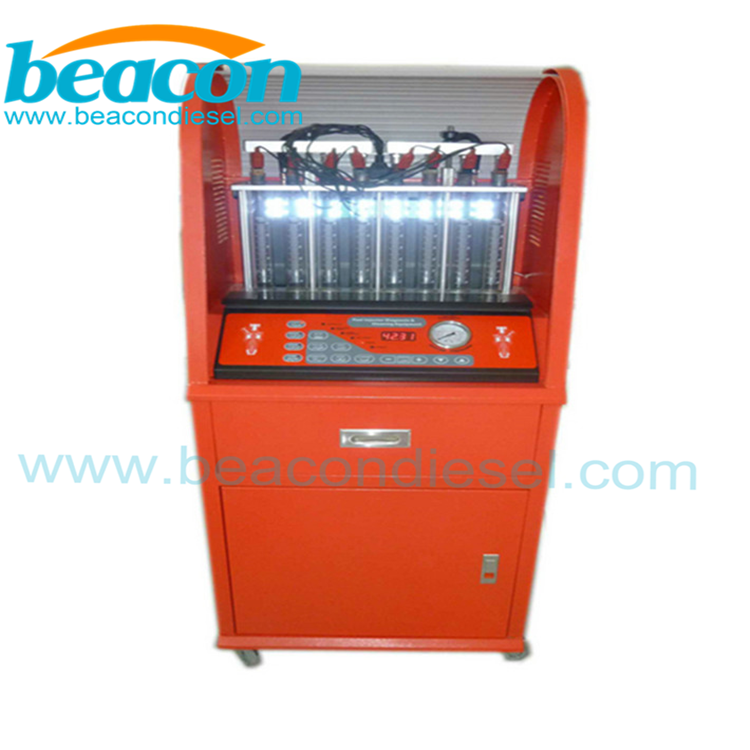

1.Diagnose working condition of multiple fuel injectors
2. Inspect the injector leak tightness and fuel delivery
3. Test the fuel delivery and uniformity coefficient in the working condition of variable rotation speed and pulse width.
4. Identify whether the injectors are of the same brand and their on-off cycle match
5. Optional between number of times counting-down and time counting-down, automatic detection and manual detection
6. Reverse flushing, on-car cleaning
7. Protector for oil pump
8. Automatic drainage of testing liquid
9. Inspect the injection of the injectors by the backlight
10. Automatically simulate and diagnose the overall process during continuous injection, idle speed, medium speed, high speed and variable speed.
11.Detect fuel delivery, uniformity, injecting angle and atomization during idle speed, medium speed and high speed
12. Equipped with universal fuel rail; Optional equipped with connectors for special models of cars, and can be used for analyzing and cleaning with all types of connectors, domestic or abroad
Max. Detector Cylinder | 8 |
Power Supply | AC 220V±15% 50Hz 400W |
Tank Capacity | 6 Liters |
Test Tube Capacity | 120ml |
Ultrasonic Power | 100w |
Ultrasonic Frequency | 25khz |
Rotation speed: 0-9999 r/min Step | 50r/min |
Pulse Width | 0-20ms Step: 0.1ms |
Number of Times Counting Range |
0-9999 |
Timing Range |
0-9999 sec (Adjustable) |
Oil Pump Pressure |
0-6.5kg |
Weight |
100kg |
Dimension | 660 (W) x 600 (D) x 1450 (H) mm |
