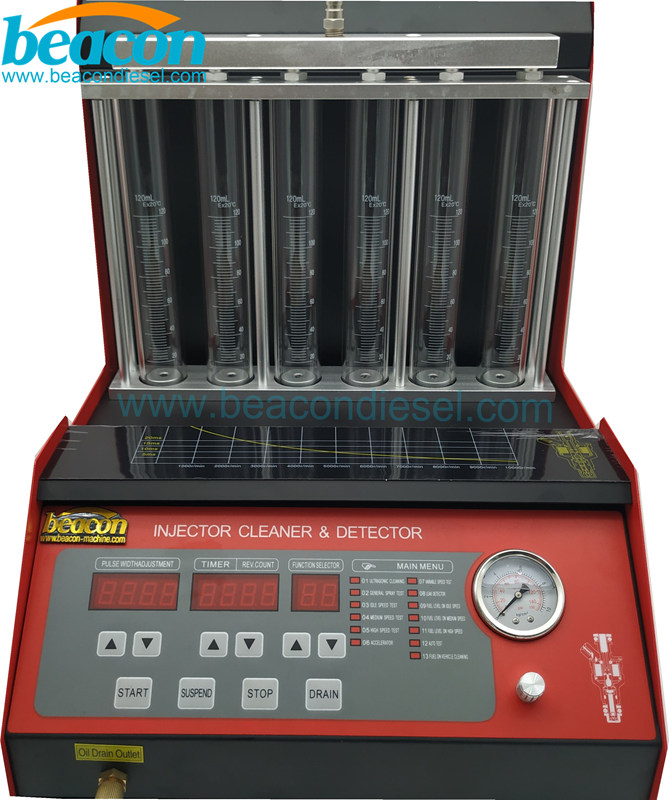

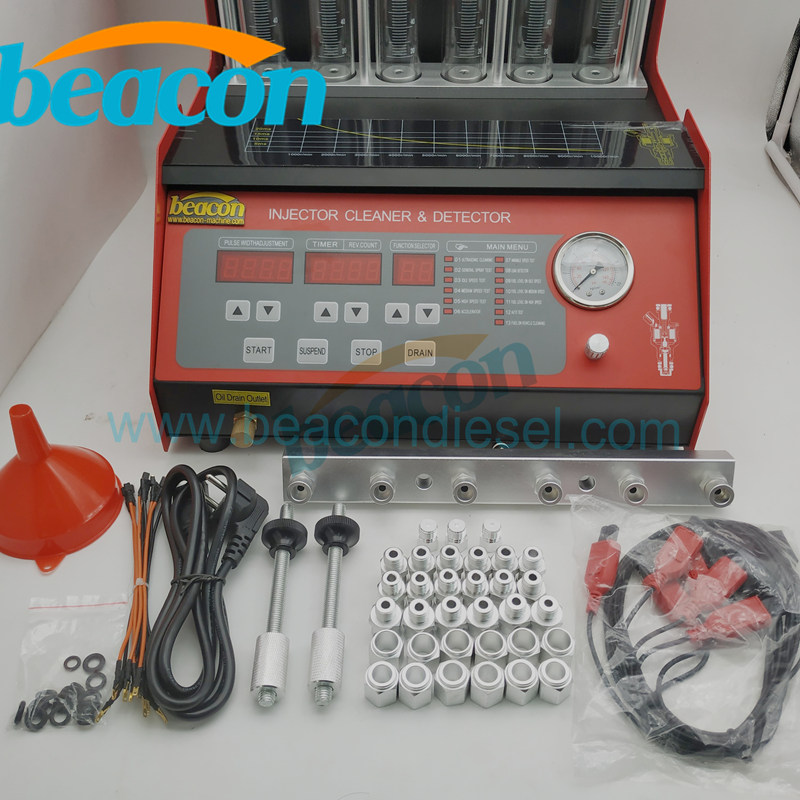

Auto service Gasoline injector cleaner injector tester BC-6C Petrol fuel injector ultrasonic cleaning machine

Auto Fuel Injector Cleaner and Tester, 6 cylinders of gasoline fuel injector cleaner. Fuel injector diagnostic system.
This product is applicable to diagnose and clean fuel injectors of various cars manufactured worldwide, improving stability,reliability and reducing pollution. It can perform automatic detecting, analyzing and cleaning.

Tel:+86-13375386268

Email: beacon@beacon-machine.com

inquiry now

Introduction

Main functions:
It can not only diagnose and analyze the performance of the fuel injector, but also inspect dribbling,atomization, injecting angle, distributive value, uniformity coefficient, and their on off cycle, etc of single or multiple fuel injectors.
1 .Can do reverse flushing, flush-back cleaning, ultrasonic flushing, and disaffiliation-free flushing to one or more fuel injectors
2 .Automatically simulate the overall process under various pulse width and engine speed. The operation status of the fuel
injectors can also be observed whether at acceleration and deceleration.
3. Can manually set time, pulse width and rotation speed of the fuel injector, and observe the performance under varied parameters.
Ease and convenience of operation.
4. Can determine the shortest on-off cycle and the quality of the injector

5. Can do oil circuit testing, and disaffiliation-free flushing to the engine

parameter

1.Dimension:	580mm490mm730mm
2. Weight	45KG
3.Voltage:	AC220V/110V± 10% 50HZ 500W40±2°C
4. Rail high pressure	0-1800 bar
5. Operation Temperature:	-10℃-40℃
6. Input power	380V/50hz/3phase or 220V/60hz/3phase
7. Tank Capacity:	4L
8. Test Tube Capacity:	120CC
9. Ultrasonic Frequency:	25KHZ
10.Rotation Speed:	0~10000r/min
11.Time Counting Range:	0~10000 sec
12.Oil Pump Pressure:	1.8kg/cm2---10kg/cm2
13.Fuel Flow:	4.5 L/min
