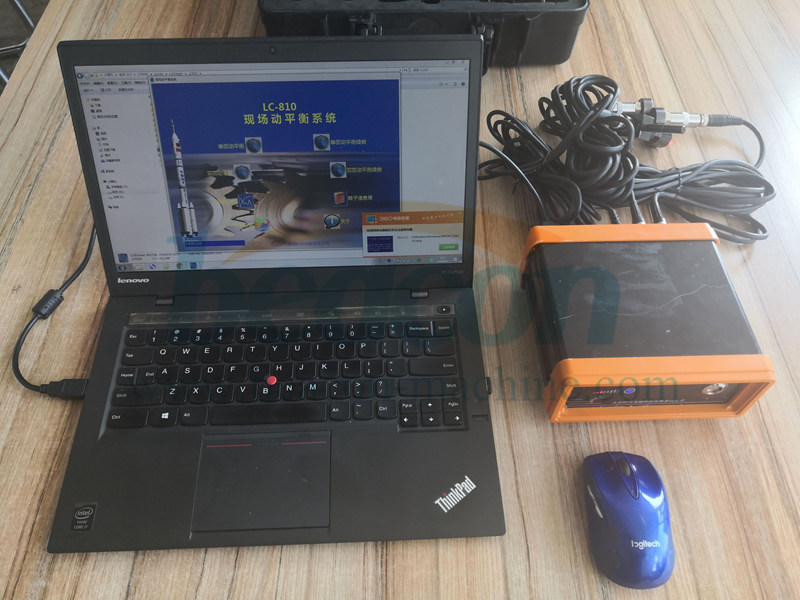

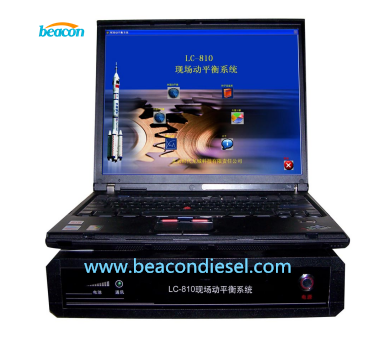

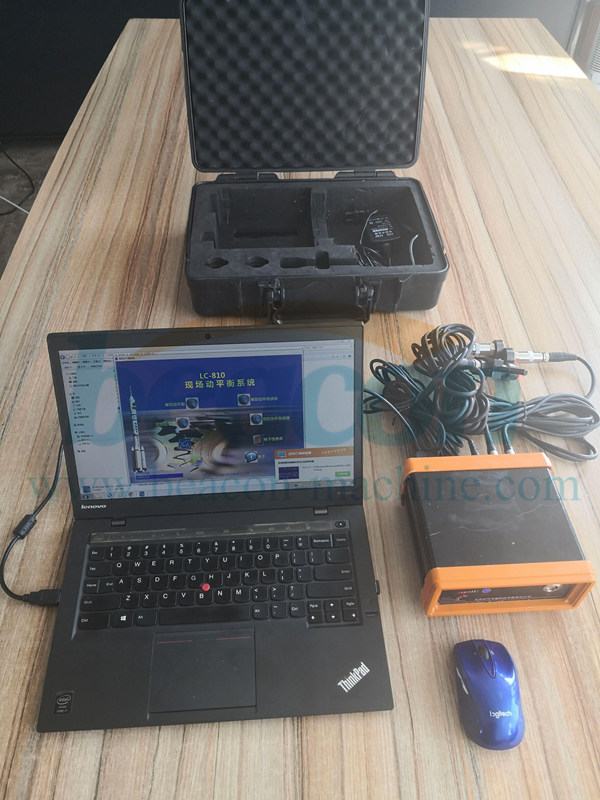

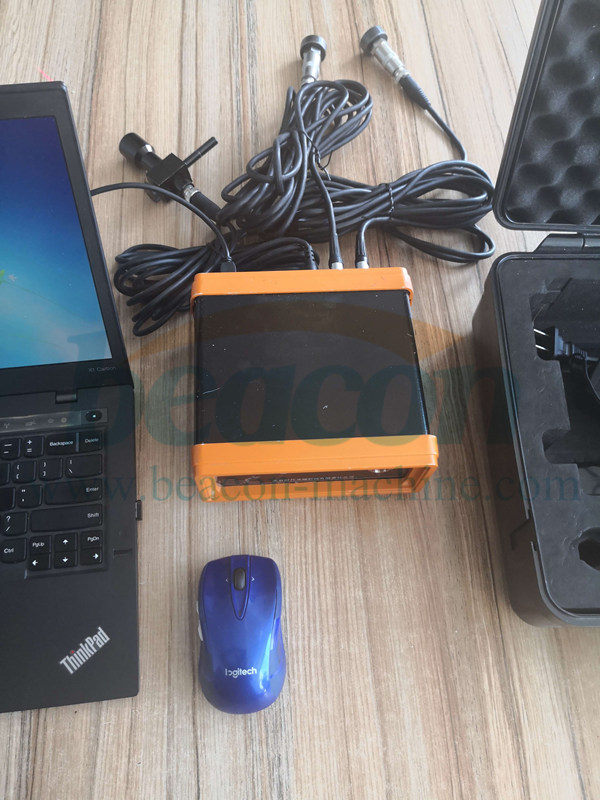

The function and technical index of this model
1. Single-sided and double-sided on-site dynamic balancing functions can be used for tens of grams to tens of tons, and various types of fan rotors are applicable; On-site dynamic balancing of different types of rotors with rotational speeds ranging from 30 rpm to 180,000 rpm.
2. Balance method: try-and-weight method and influence coefficient method.
3. Start-up times: Use the original installation conditions on site to start and stop 2 to 3 times. By using the influence coefficient method, the counterweight can be obtained at one start, which can achieve the effect of dynamic balance correction and greatly improve the work efficiency.
4. The proprietary test weight estimation method can automatically estimate the reasonable dynamic balance test weight according to the input rotor data combined with the actual site environment, reducing one startup time and greatly improving the work efficiency.
5. Flexible and multi-purpose counterweight method: try the weight method, do not try the weight method; there are any angle method, equal distribution weight method;
Add slider method, sliding slider method
6. Wizard-type dynamic balancing operation: It provides a complete wizard-type dynamic balancing function. The operator can easily complete the dynamic balance correction as long as he follows the wizard step by step, which is very easy to use.
7. Humanized dynamic balancing sequel function: If the entire dynamic balancing process is interrupted for some reason, you can continue from the interrupted place, instead of starting from scratch. so as to continue the dynamic balancing process
8. With fast vibration analysis and fault diagnosis function: before balancing, the rotor can be fault diagnosed to ensure that the cause of the fault is poor dynamic balance and avoid blind dynamic balance; this function can diagnose common faults of equipment, and one machine has multiple functions.
9. Vector decomposition: Reasonable vector decomposition and vector synthesis are performed on the calculated balance mass to meet the objective requirements of on-site installation.
10. Perfect balance report: After the dynamic balancing process is completed, the software can automatically generate a dynamic balance report to clarify the basic information of the rotor, vibration reduction and detailed counterweight information.
11. The perfect online help system, combined with concrete examples, explains in detail the steps of software operation and possible problems, which makes the learning and use of the software very convenient.
Applicable range of rotation speed: 300,000 to 180,000 rpm
LC810A is equipped with a high-precision probe, 300 to 180,000 rpm
LC810AL is equipped with low-speed and high-precision probe, 300,000 to 180,000 rpm
LC810 equipped with standard vibration probe 300～60000 rpm
Scope of application of quality: the quality of the whole machine is more than 1KG
Remaining unbalance: Mass is 1mg Vibration value: Velocity: 0.01mm/s, Displacement: 0.01um
One balancing can reduce the unbalance by more than 90%
Vibration parameter accuracy 5%
Speed accuracy: 1%%
The software is upgraded free of charge for life, and the system is maintained for life.
