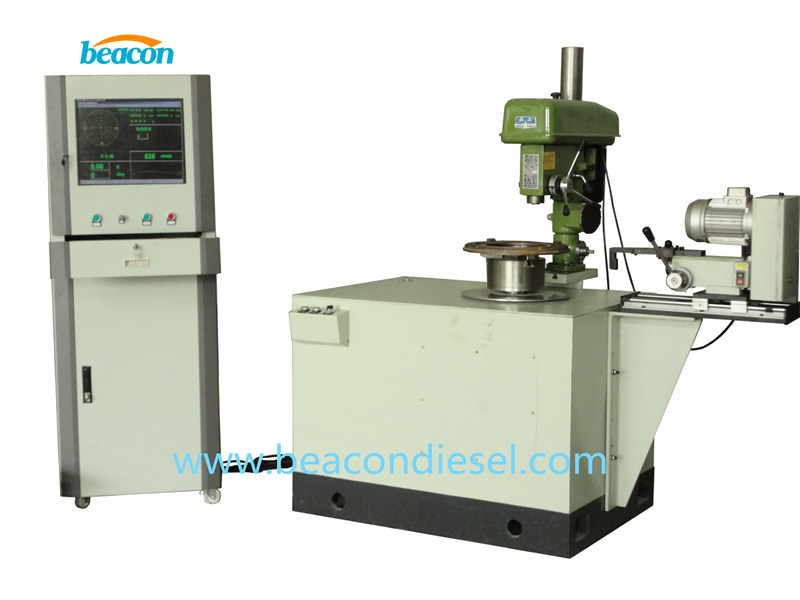

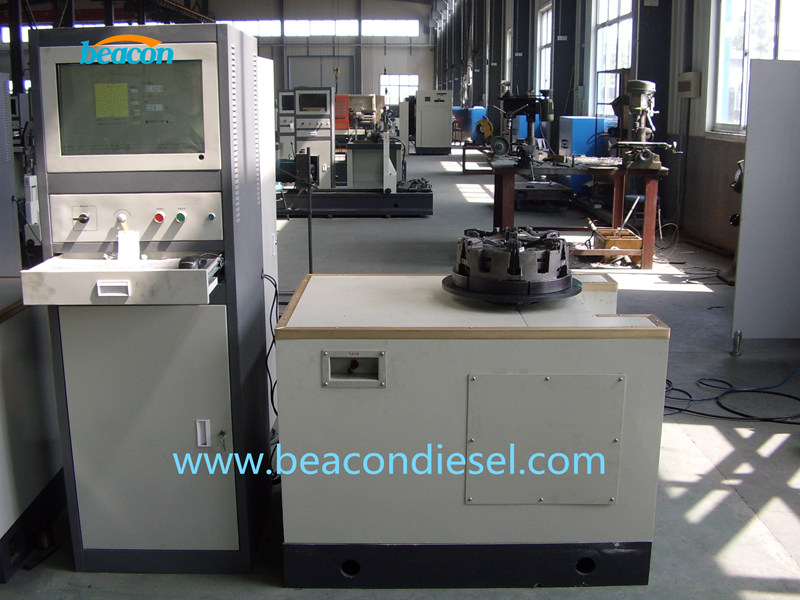

YLD-800A vertical balancing machine

Simple operation, straight display Adopt electromagnetic sensor in electromechanical transducer,. Feature in large output, reliable performance and excellent stability.

Tel:+86-13375386268

Email: beacon@beacon-machine.com

inquiry now

Introduction

Fits for balancing adjustment for parts with disc shape such as fan,pressure plate,flywheel, brake disc, ring blower, impeller, arrester, saw blade, pulley. Adopt industrial computer (SCM) in measuring system. Digital displays for rotate speed, measured value and phase, and unbalanced amount shows in “g” directly. The system can correctly display the unbalance amount (“g”) of workpiece and its phase and also can display its memory after you input various parameters through the keyboard according to the geometric dimension of different kinds of workpiece.

parameter

Model

YLD-5

YLD-20

YLD-50

YLD-100

YLD-200

YLD400

YLD-800

Working piece quantity range:kg

0.1-5

0.5-20

3-50

5-100

10-200

30-400

30-800

Working piece diameter:mm

Φ500

Φ500

Φ500

Φ800

Φ800

Φ800

Φ1200

Balancing  speed:r/min

250-1500

250-1500

250-1500

250-1500

250-1500

250-1500

250-1500

Min. achievable residual unbalance:gmm/kg

3

3

3

3

3

3

3

Unbalance reduction rate%

≥90

≥90

≥90

≥90

≥90

≥90

≥90

Driver power:KW

0.37

1.1

1.5

4

4

5.5

7.5

speed adjustment mode:

Frequency

Frequency

Frequency

Frequency

Frequency

Frequency

Frequency
