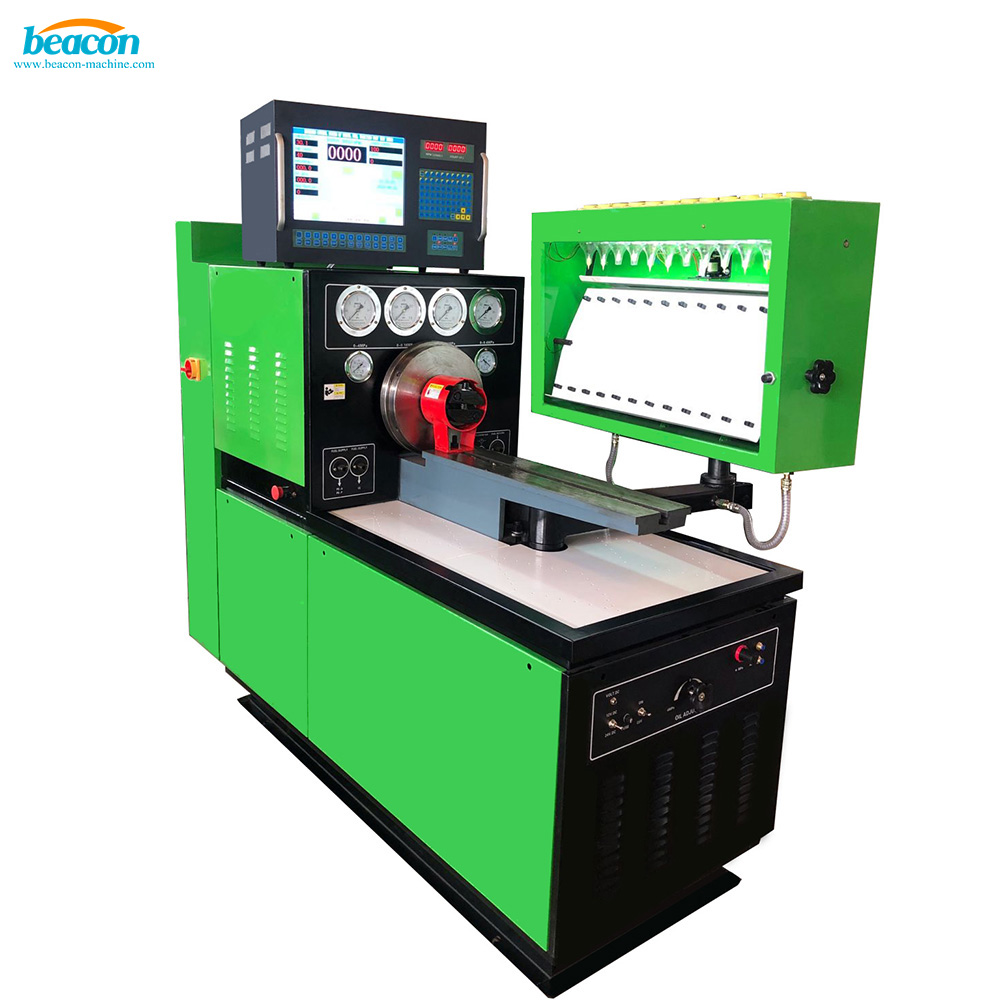

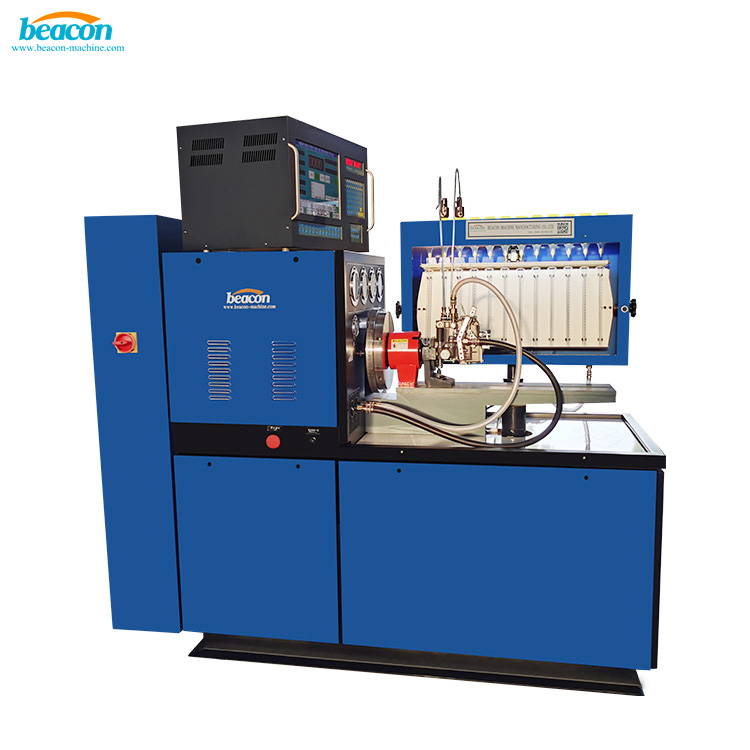

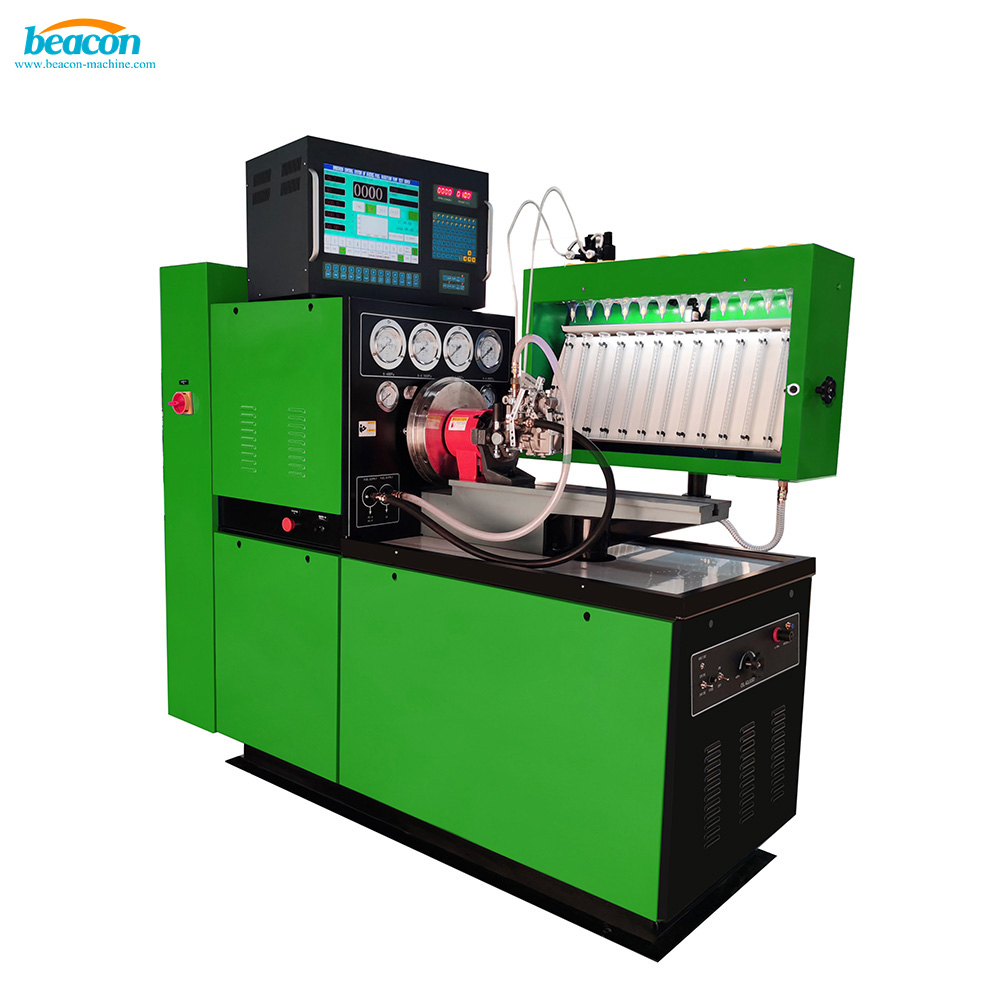

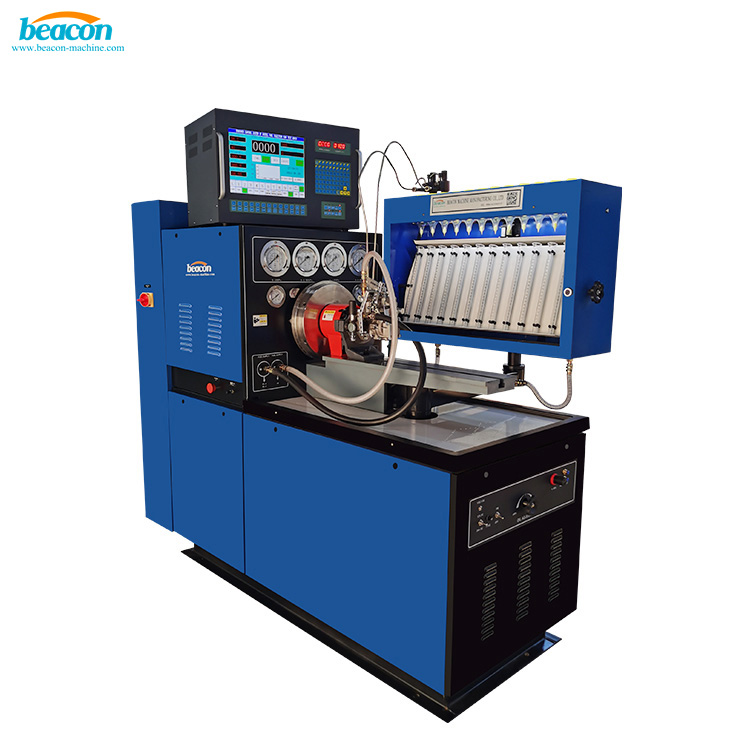

Diesel Fuel Injection Pump Testing Equipment BC3000 Mechancail Conventional Pump Test Bench

BC3000 diesel fuel injection pump test bench is a kind of fuel injection pump test bench adopt industrial pc with color CRT, It's the newly researched production for the direction of high power and safety to the environment.  It has human-machine interface, digital controlling of rpm, temperature, pressure, diesel fuel pump technical parameter and so on, and in pace with print. It easy and quick operates ,it's really human-machine dialog. This series test bench adopt high quality frequency conversing device and  cast  iron base supper size bed, and its distinguishing features are hi-stable character, hi-reliability, ultra-low-noise, perfect auto-protecting function and so on, It is advanced products.

Tel:+86-13375386268

Email: beacon@beacon-machine.com

inquiry now

Introduction

Introduction

BC3000 diesel fuel injection pump test bench is a kind of fuel injection pump test bench adopt industrial pc with color CRT, It's the newly researched production for the direction of high power and safety to the environment.  It has human-machine interface, digital controlling of rpm, temperature, pressure, diesel fuel pump technical parameter and so on, and in pace with print. It easy and quick operates ,it's really human-machine dialog. This series test bench adopt high quality frequency conversing device and  cast  iron base supper size bed, and its distinguishing features are hi-stable character, hi-reliability, ultra-low-noise, perfect auto-protecting function and so on, It is advanced products.


Main Function


1. Measurement of each cylinder delivery at any speed

2. Test point and interval angle of oil supply of injection pump.

3. Checking and adjust the mechanical governor.

4. Checking and adjusting the distributor pump.

5. Experiment and adjusting of behavior of supercharging and compensatory device.

6. Measurement of oil return of distributing pump

7. Testing of the electromagnetic valve of distributor pump.(12V/24V)

8. Measurement of the internal pressure of distributor pump.

9. Checking of the advance angle of advance device.(on request)

10. Checking the sealing of injection pump body

11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)

12. Checking the travel of stroke (on request)

13.oil lubricate(on request)

14.Cast iron base(on request)

15. Foced cooller(on request)


ALSO WE HAVE TEST BENCH OPTIONAL FUNCTION BELOW:

1.TRAVEL OF TOOTH BAR

2.OIL LUBRICATE

3.FORCED COLLING

4.Checking of the advance angle of advance device


Technical Characteristic


Adjustable cylinders numbers

12



Out power(Kw)

5.5

7.5

11

15

18.5

RPM

0-4000

travel of tooth bar

(On request)

Advanced angle

(On request)

Capability with pump type

All in- line and rotary pump


Support Color Customize


Accessories:

Standard export packing:Plywood package
