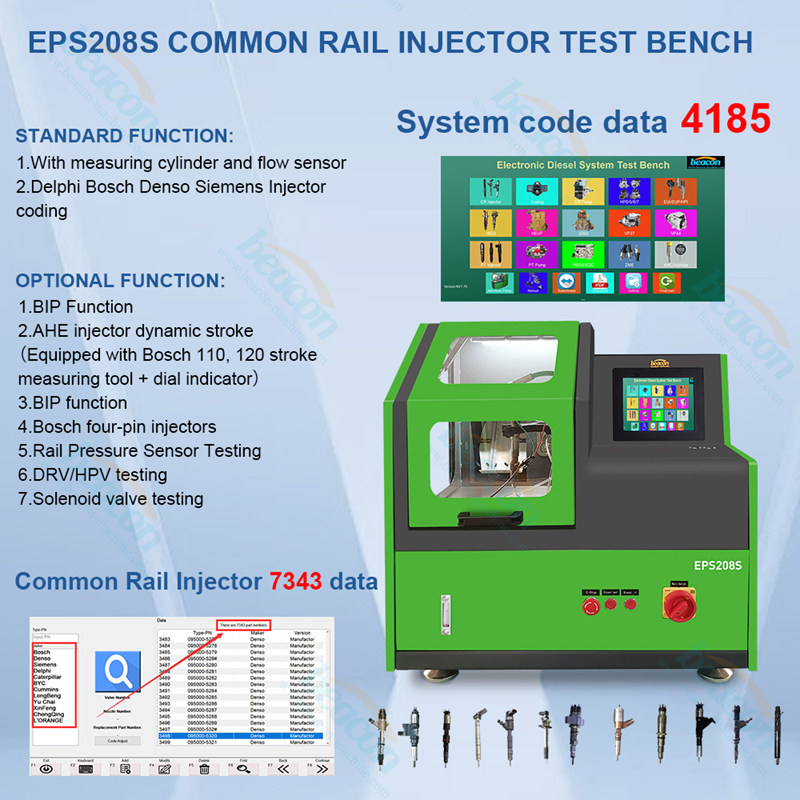

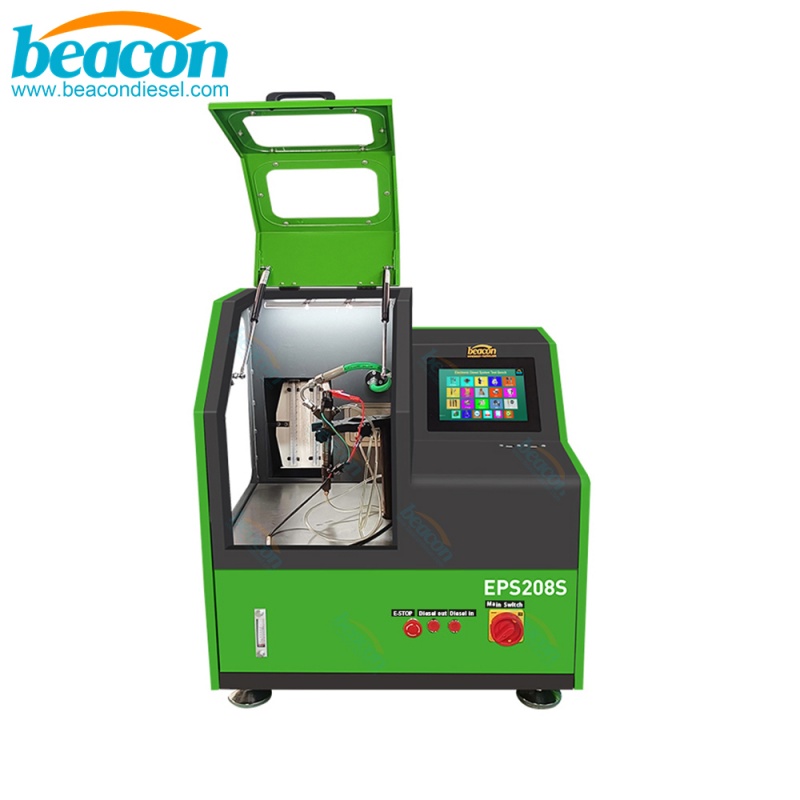

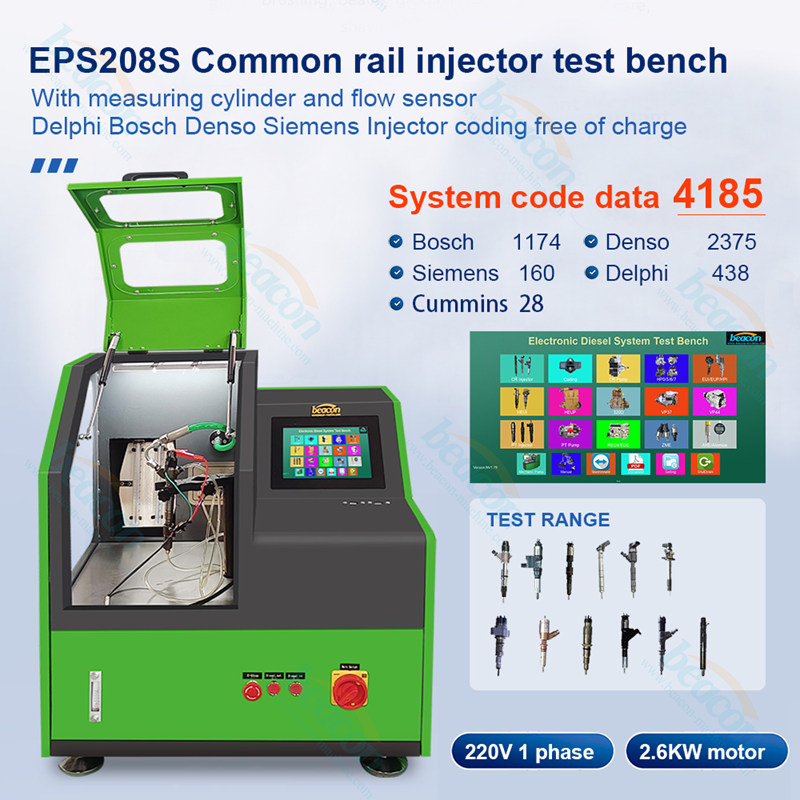

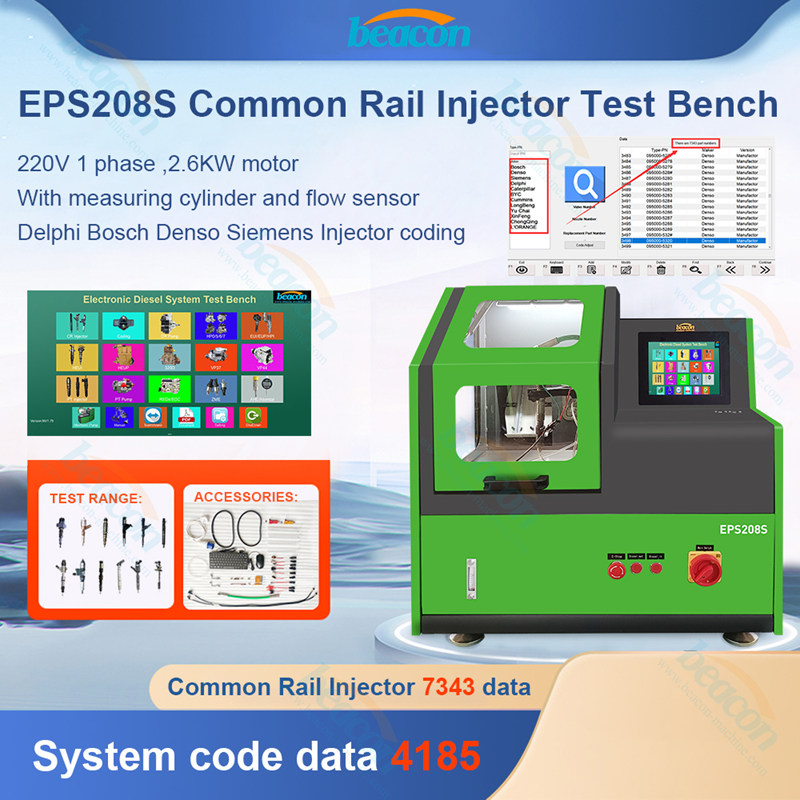

Auto electronics EPS208S common rail injector rebuild diesel engine testing equipment flow test bench
EPS208S (Common Rail System EPS208)high pressure common rail injector test bench is imitation diesel engine ECU（Engine Control Unit），by the same time supply Bosch, Electric installation, Delphi, Siemens and other common rail system control signals（CP1/ CP2/ CP3/ HP3/ HP4/ DELPHI），Drive high pressure common rail pump and high pressure common rail injector to work，The driving signal parameters can be set according to the actual situation of the user，And can be saved in groups,It is convenient for maintenance
personnel to judge and maintain the working condition of high-pressure common rail system.
Power of EPS208S High Pressure Common Rail Test bed is 2.6KW .
>>>CHARACTERISTIC 1. Controlled by industrial computer in real time, Windows operating system. 2. Oil quantity is measured by sensor and displayed on 10.4 tactile LCD screen; 3. More than 7000 kinds of injector data can be searched and used. 4. It is installed B OSCH common rail pump to provide 0~2000 bar 5. Rail pressure can be tested in real time, 6. Provide pressure overload protect 7. Pule and frequency of the injector can be adjusted. 8. Injection time can be set. 9. Protection function of short-circuit. 10. Precise measurement, easy operation, low noise. 11.Frequency converter inside to keep the RPM.
