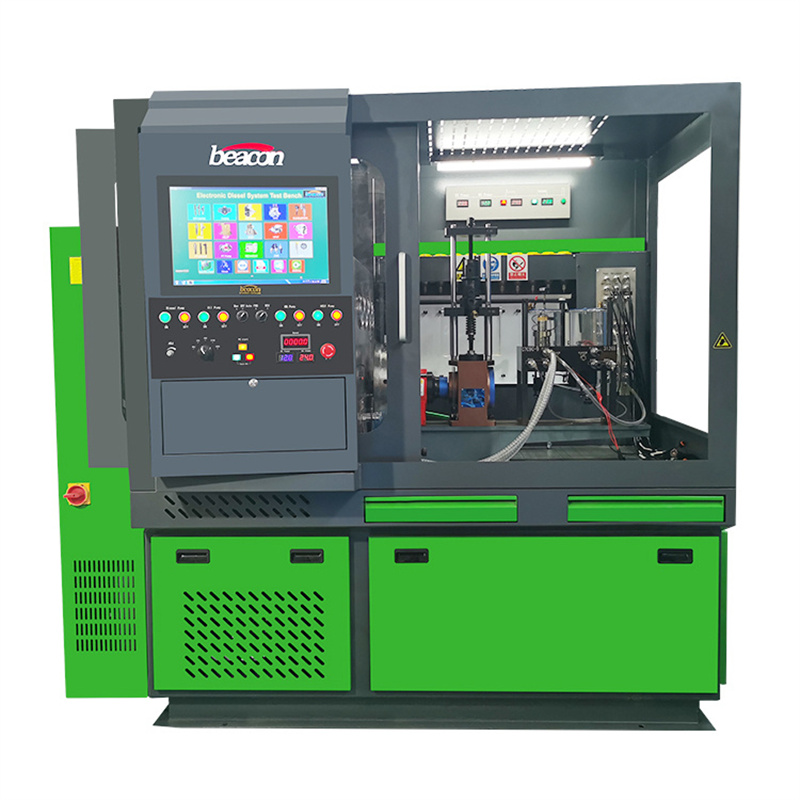

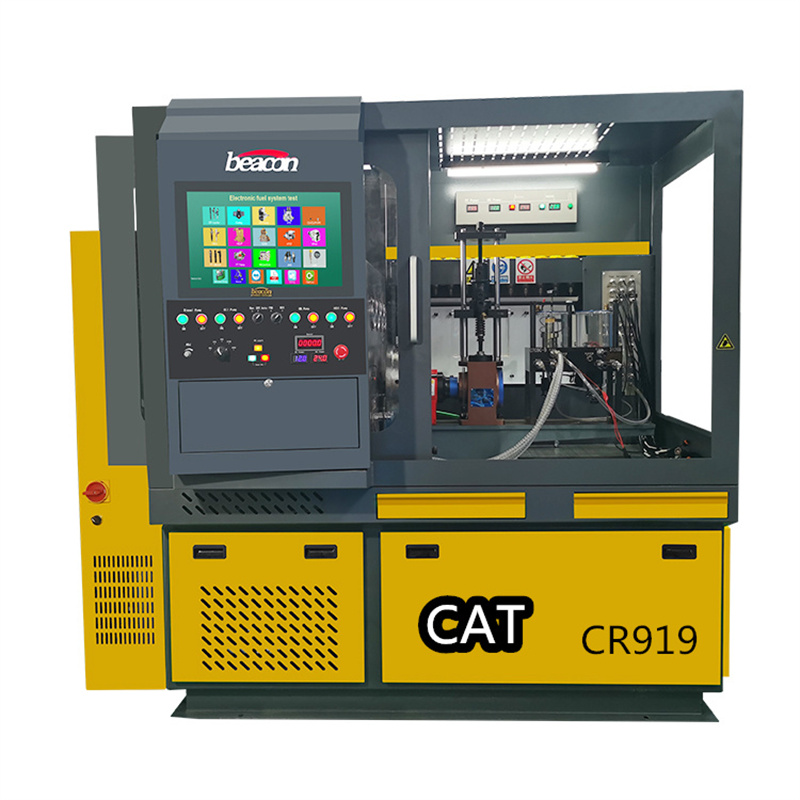

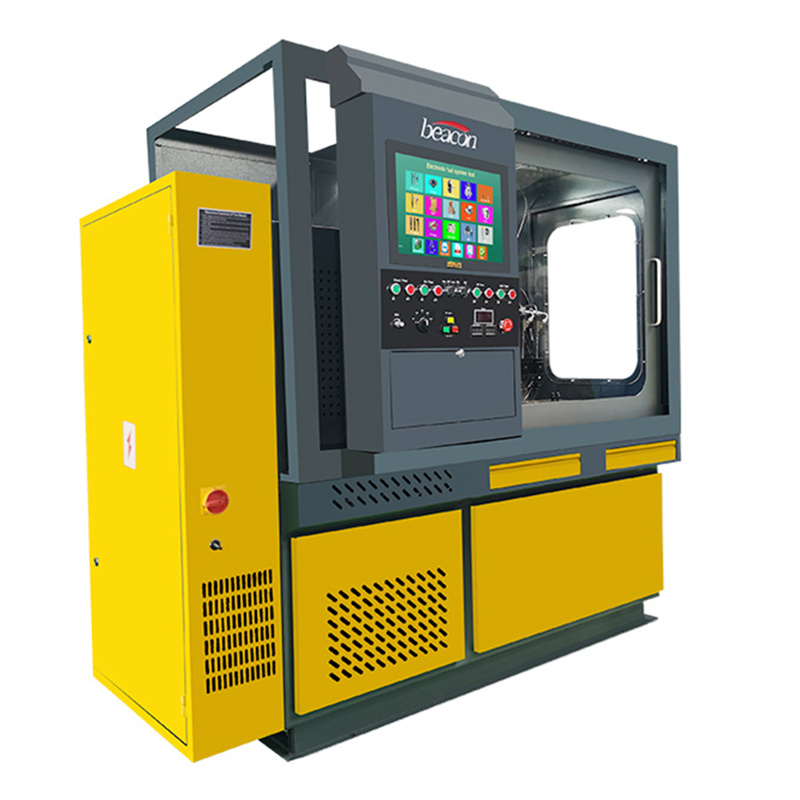

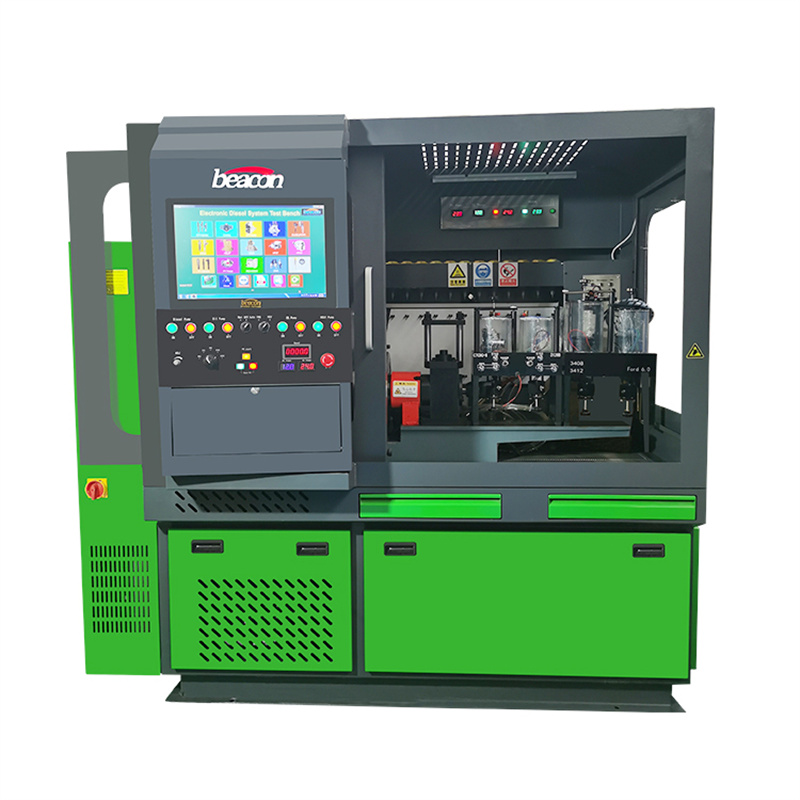

Diesel Fuel Injection Pump Calibration Machine CR919 Common Rail EUI EUP HEUI Injector Pump Test Bench

Test all the manufacturers of common rail injector

Test all the manufacturers of piezo injector

Test all the manufacturers of common rail pump

Test DENSO HP0 pump

Test CAT common rail (HEUI) injector

Test CAT common rail (HEUI) engine oil pump

Test CAT 320D common rail pump (the world's first successful development)



Tel:+86-13375386268

Email: beacon@beacon-machine.com

inquiry now

Introduction

Diesel Fuel Injection Pump Calibration Machine CR919 Common Rail EUI EUP HEUI Injector Pump Test Bench

cr919

FUNCTION CHARACTERISTIC:

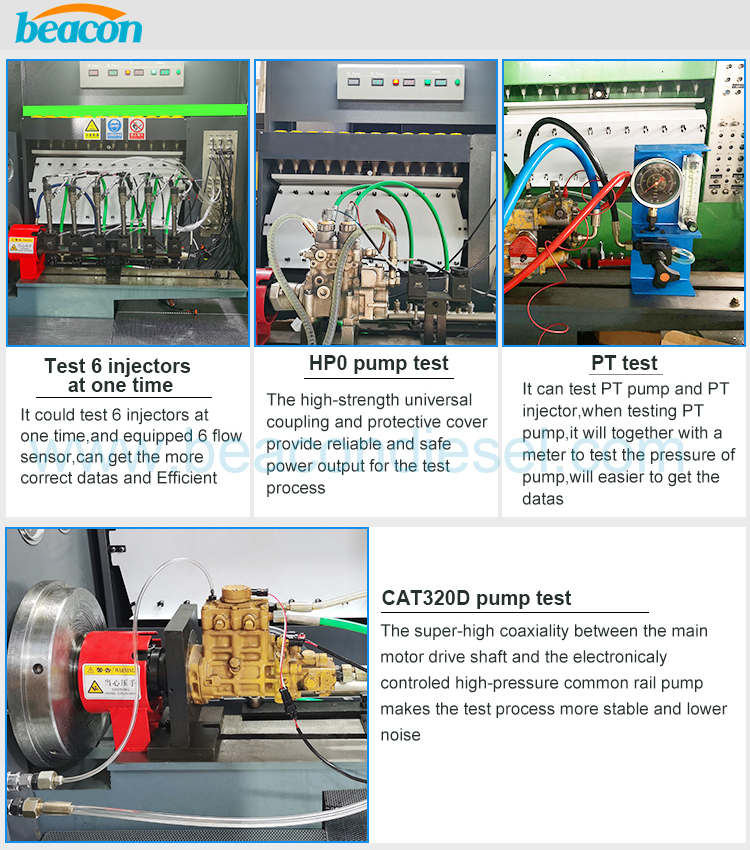

1.Test all the manufacturers of common rail injector

2.Test all the manufacturers of piezo injector

3.Test all the manufacturers of common rail pump

4.Test DENSO HP0 pump

5.Test CAT common rail (HEUI) injector

6.Test CAT common rail (HEUI) engine oil pump

7.Test CAT 320D common rail pump (the world's first successful development)

8.Test EUI/EUP (can adjust the lift but not to change the camshaft)

9.Test VP44 VE VP37 pump optional function

10.Test RED3 RED4 TICS ZEXEL electronic control pump optional function

cr919

11.Drive circuit board(solenold valve electric parameters to enhance the voltage current,time,pull in voltage ,current,time,keep

voltage ,current,time,according to the setting of parameters of production factory)

12.Accept the speed sensor ,encode signal,high speed solenoid valve drive signal.Accept the speed sensor ,encoder signal,output 2

PWM drive signal, 2 way solenoid valve drive signal,1 high speed solenoid valve drive signal.

Driving signal waveform can be programed.

parameter

1. Operating environment, conditions and specifications of rail injector test bench:

Temperature (operating): -10 to 50°C (14 to 122°F)

Temperature (non-operating): -20 to 70°C (-4 to 158°F)

Relative humidity (running): 15% to 95% at 40 ℃ (no frost)

Relative humidity (non-operating): 90% at 65°C (non-condensing)

2. Technical parameters:

Mainframe nominal power (kW): 15KW

Overall size (cm): 225×142×218

Weight (KG): 1250KG
