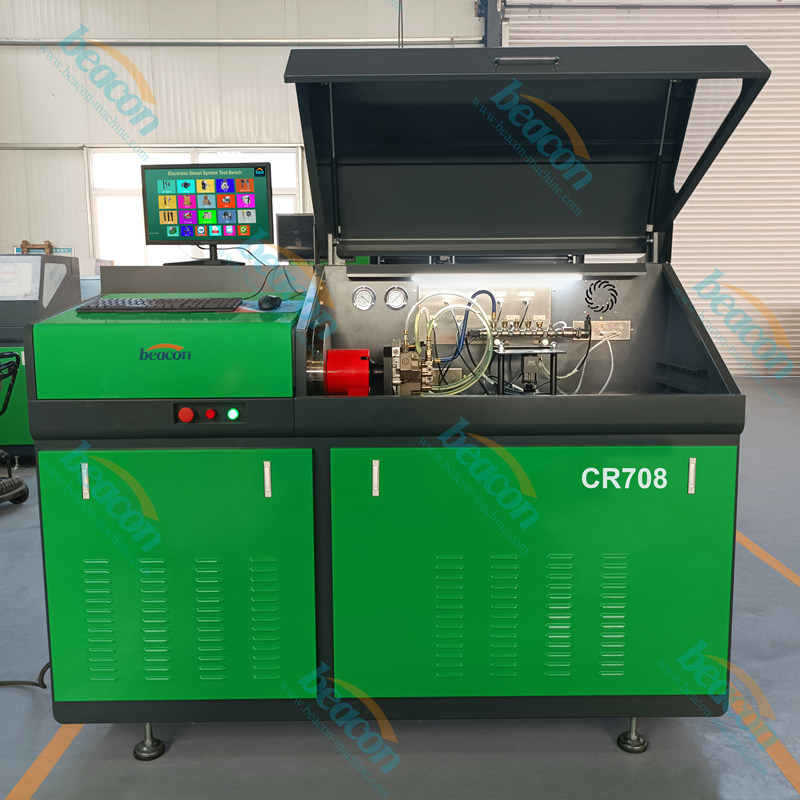

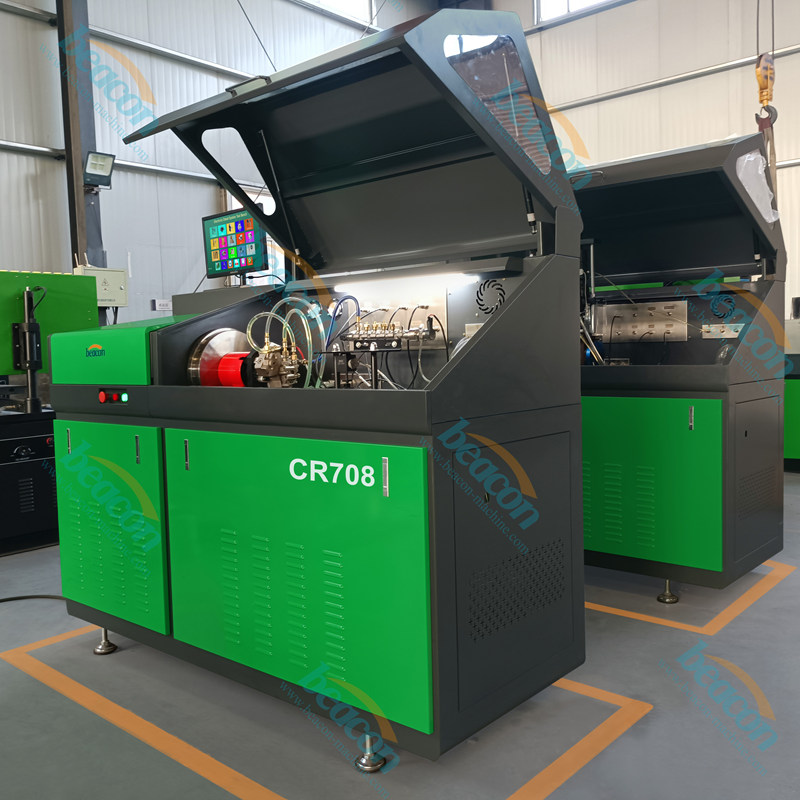

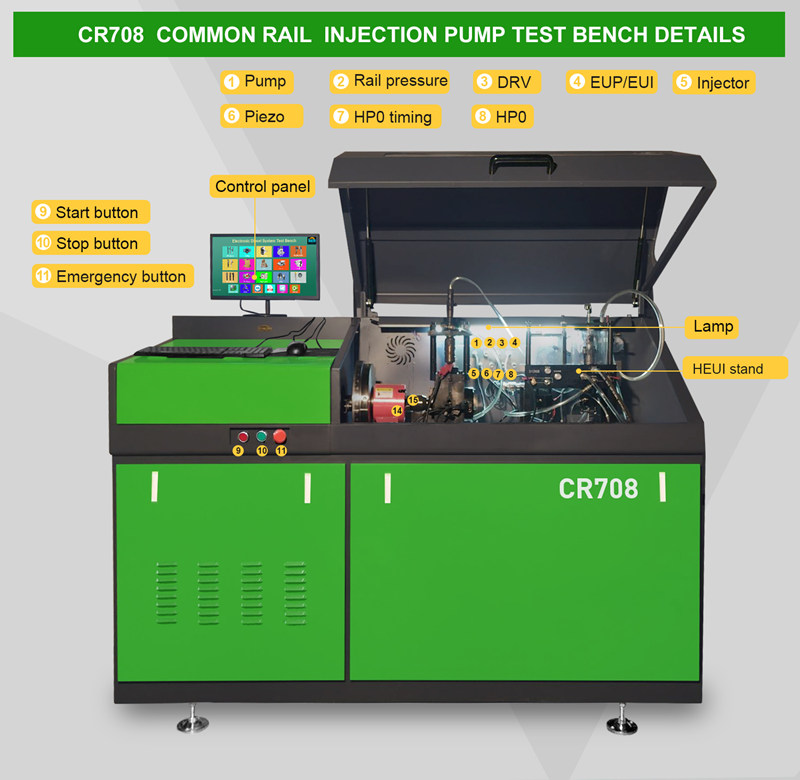

CR708 common rail diesel injector pump test bench fuel injector test equipment


Testing common injectors (more than 7300 kinds of test data )

Testing piezo injector

Bosch denso, siemens, delphi coding functions (more than 4800 coded data)

Testing all high pressure common rail pumps

Testing the Denso HP0 HP5 HP7 Pump

Test EUI EUP PT injector HPI X15 Q60

Test CAT HEUI C7 C9 3126B

System software supports 15 languages

Customized customer logo available




Tel:+86-13375386268

Email: beacon@beacon-machine.com

inquiry now

Introduction


CR708 common rail diesel injector pump test bench fuel injector test equipment

common rail diesel injector pump test bench

1.  common rail injector and  pump test bench Full-automatic operation procedure, save the time to set up the data.

2. Germany  flow sensor: flow range 0.008-2L/min, test precision 0.5%.

3. Bosch common rail system (external connection DRV to Bosch rail with DRV) is used.

4.Rail pressure is controlled accurately by DRV and ZME valve.

5. Original Bosch CP3 common rail pump is equipped.

6. Industrial computer with windows system.

7 Rich database:8000 types of data.

8. Self-protection under following status:overheat, oil-mist, overpressure, low oil level,

9. Remote control is convenient for software upgrading and after-sale service.

10. Frequency converter is used to change the rotation speed.

11. Iron fuel  tank with industrial air-conditioner inside .


common rail diesel injector pump test bench


System Application:

1. The system is suitable for detection of DENSO, DELPHI and SIEMENS common rail pump and injectors. Such as CP1, CP2,CP3, HP3 series injector pump and the type of Electromagnetic injectors .

2. The system also can test 6 common rail injectors in one time.


1.Application: Bosch,Delphi,Denso,Siemens common rail injector and pump.

2.Pump test: measure feeding and return volume,pump chamber pressure,feeding pressure,check sealing performance, and functions of ZME valve.

3.Injector test: measure the injected fuel quantity & return volume under full-loaded, idling, pre-injection and Emission status.

4. Check the sealing performance of the injector.

5. Check the solenoid valve.

6. Clean the injector and pump before testing.

7. Clean the ZME separately.

8. Testing 6 oil injectors in one setup.

9.User can add and edit the data by themselves.

10.Save and print the testing results & customer information.

11.Support software upgrading.



common rail diesel injector pump test bench

Accessories

common rail diesel injector pump test bench

parameter

Injection testing frequency :50~3000 rpm
Pulse width: 0.1~200 ms
Continuous injection times: 0~1000
Fuel temperature :40±2℃
Supply oil quantity of common rail injector: 0~200cc/min 0.5%
Rail high pressure :0~2000 bar
Test oil filtered precision :5μ
Input power :380V/50hz/3phase or
220V/60hz/3phase
Rotation speed:0~4000RPM
Oil tank capacity: 60L
Flywheel inertia’s moment: 0.8KG.M2
Center height: 125MM
Output power :7.5KW(11kw,15kw,18.5kw as request)
