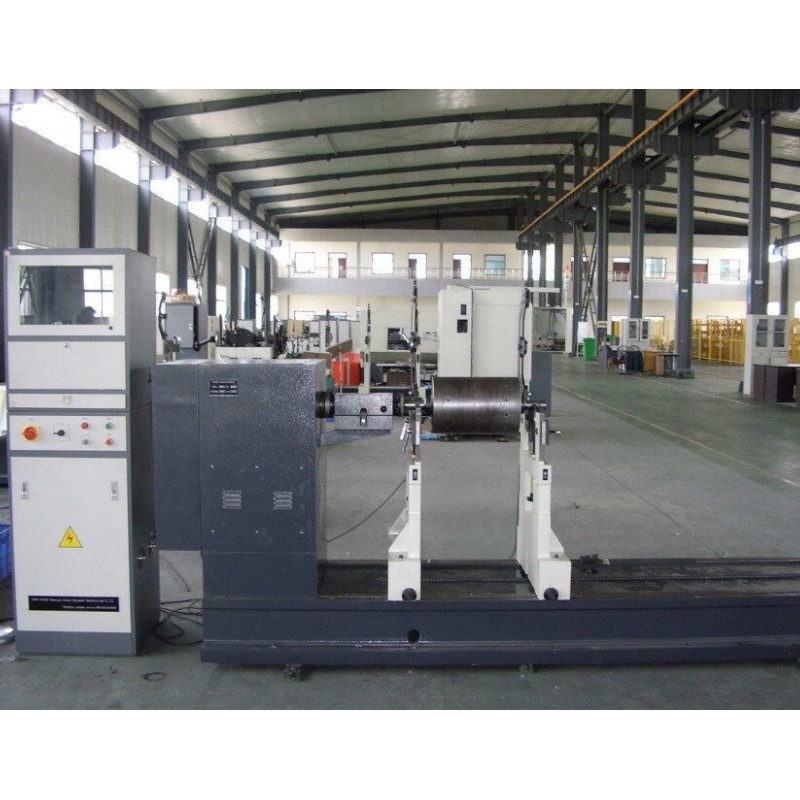

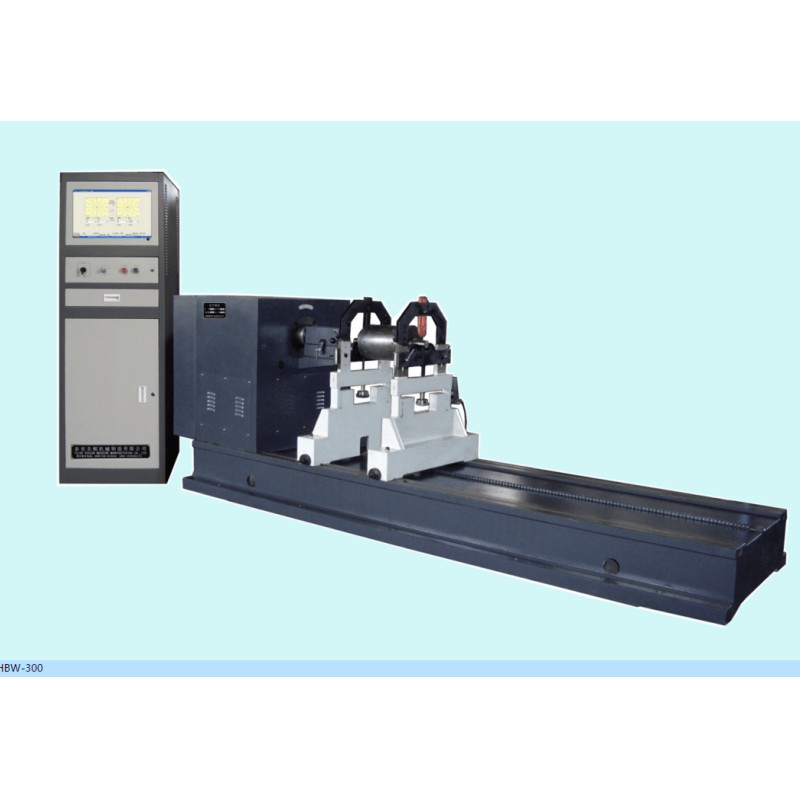

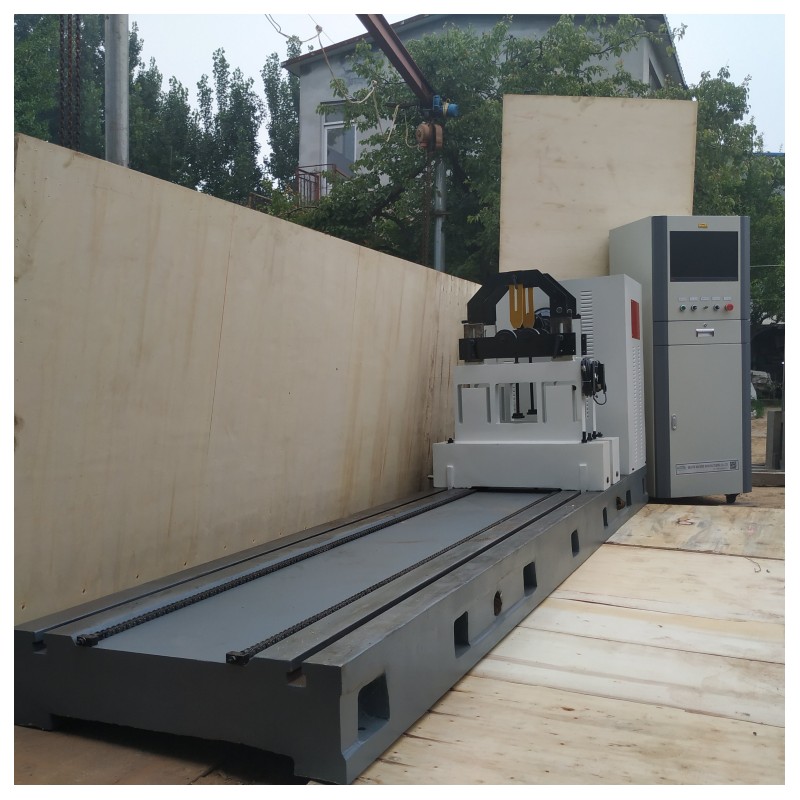

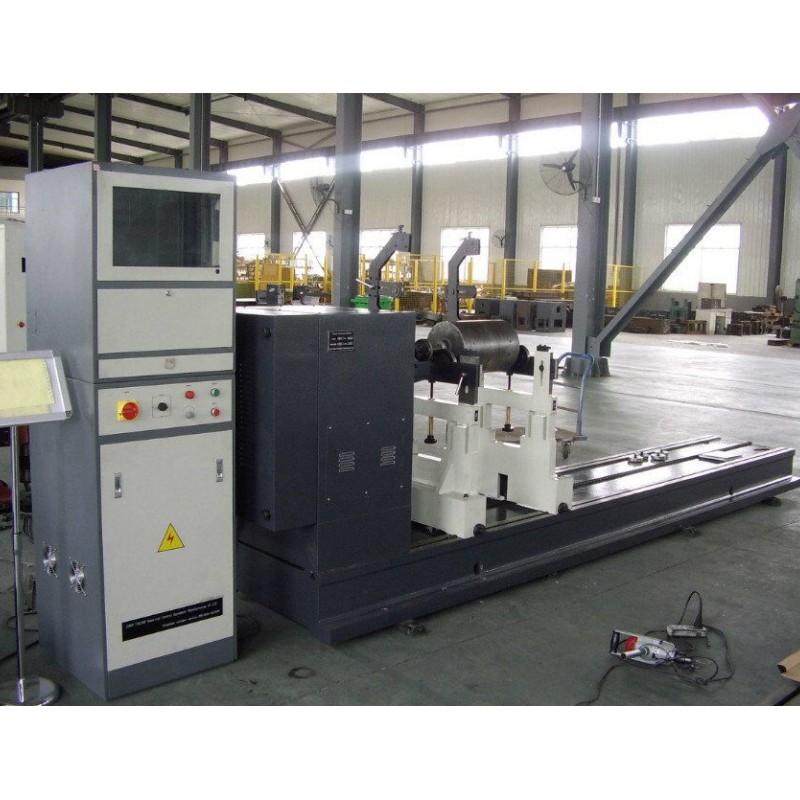

Beacon YYW-500A Dynamic Fan Rotor Balancing Machine Universal Joint Drive Shaft Propeller Dynamic Balancing Instrument Equipment

YYW-500A mainly balance within 500kg rotor with cardan joint drive

It mainly balance 20-500kg rotor .

Tel:+86-13375386268

Email: beacon@beacon-machine.com

inquiry now

Introduction

Beacon YYW-500A Dynamic Fan Rotor Balancing Machine Universal Joint Drive Shaft Propeller Dynamic Balancing Instrument Equipment


Universal Joint Drive Shaft Propeller Dynamic Balancing Instrument


1. Special designed brackets can effectively transmit mechanical force


2. The durable and reliable sensor possesses high sensitivity

3. The permanent calibration brings high accuracy

4. Driven by universal coupling,transmit the power steadily

5. Applicable to rotors which can't be driven by belt or need large power

6. Advanced electrical measuring system and friendly man-machine interface

7.YYW series are applicable for blower, large-sized motor, pump, centrifuge, rubber roller, drying cylinder, internal-combustion engine etc

Universal Joint Drive Shaft Propeller Dynamic Balancing Instrument

Universal Joint Drive Shaft Propeller Dynamic Balancing Instrument





parameter

Model

Max. mass of workpiece

(kg)

Max.diameter of workpiece

(mm)

The distance between the two bearing(mm)

Max.rotor Diameter

(mm)

balancing speed(r/min)

minimum achievable residual unbalance (g.mm/kg)

Unbalance rate

%

YYW-160

5-160

Φ950

60-1420

Φ10-180

325/650/1300

≤1

≥90

YYW-300A

10-300

Φ1200

60-1700

Φ20-180

325/650/1300

(A300-2500)

Neutral speed regulating

≤1

≥90

YYW-500A

20-500

Φ1500

70-1600

Φ15-240

325/650/1300

(A300-2500)

Neutral speed regulating

≤1

≥90
