Testing common injectors (over 7300 test plans)
Testing piezo injector
Bosch denso, siemens, delphi coding functions (more than 4800 coded data)
Optional to test 4 injectors at same time
System software supports 15 languages
Customized customer logo available
Tel:+86-13375386268
Email: beacon@beacon-machine.com

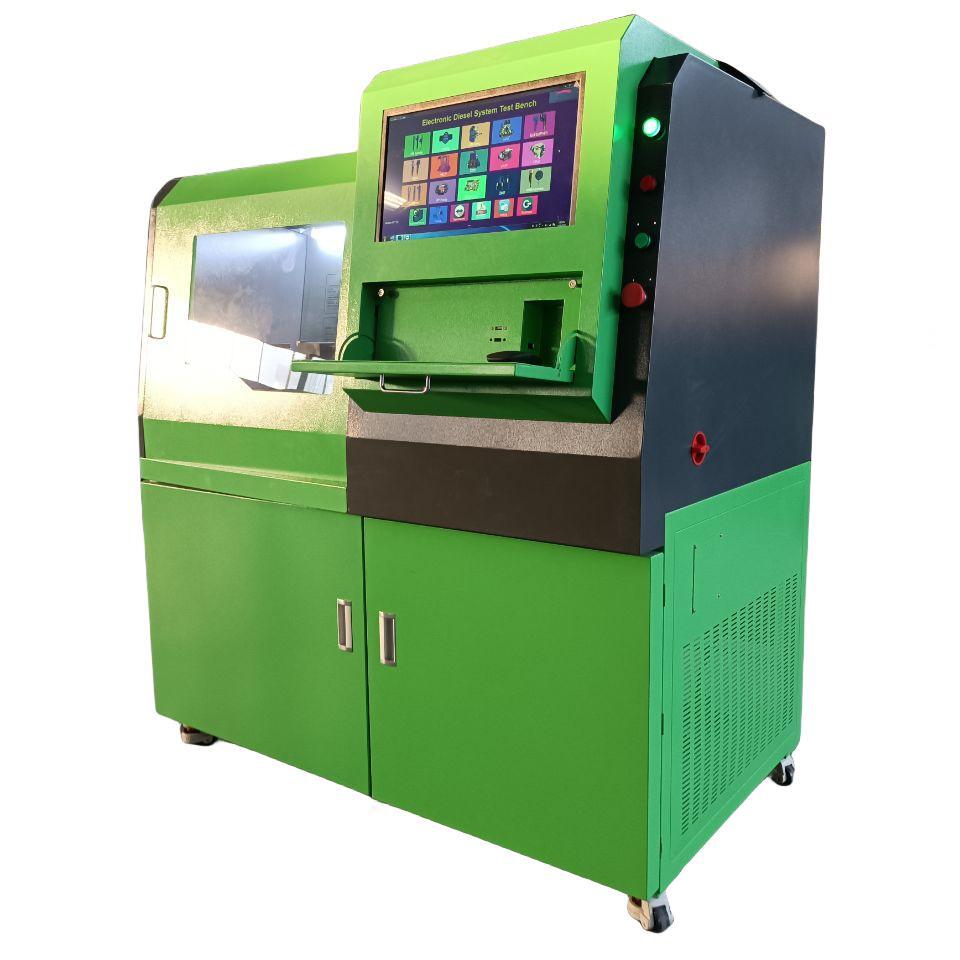

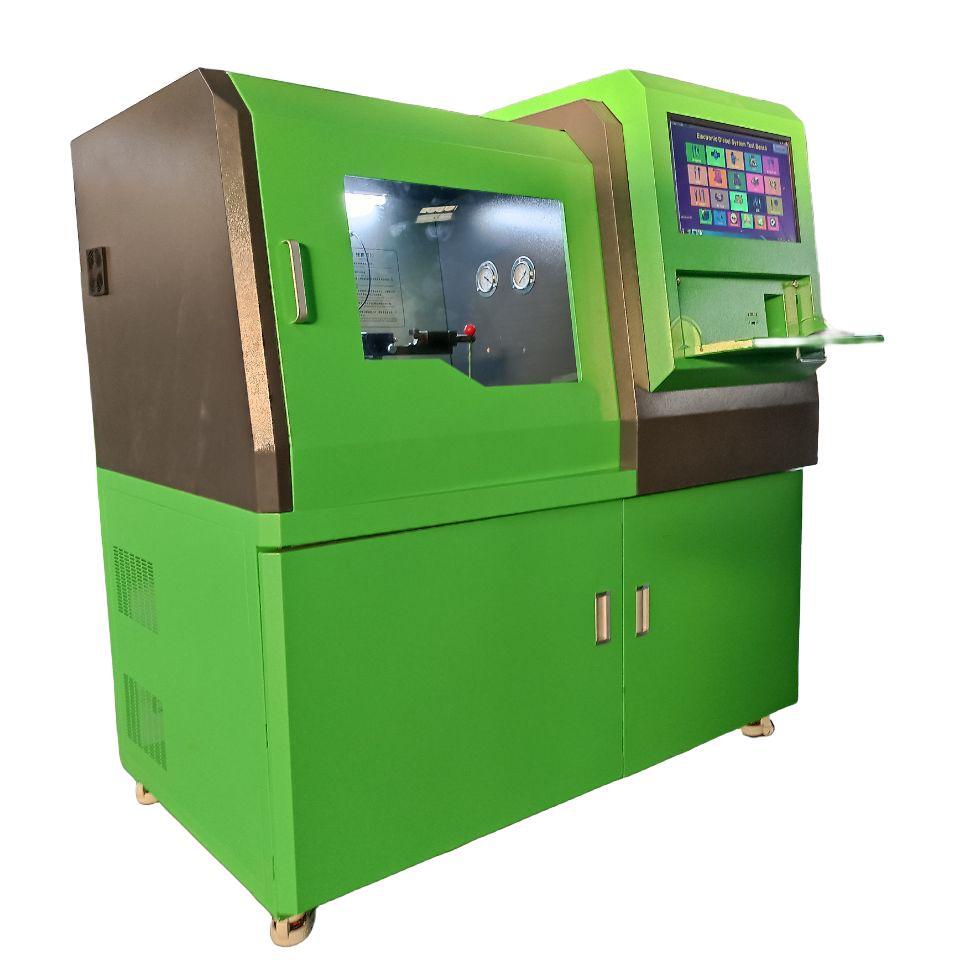

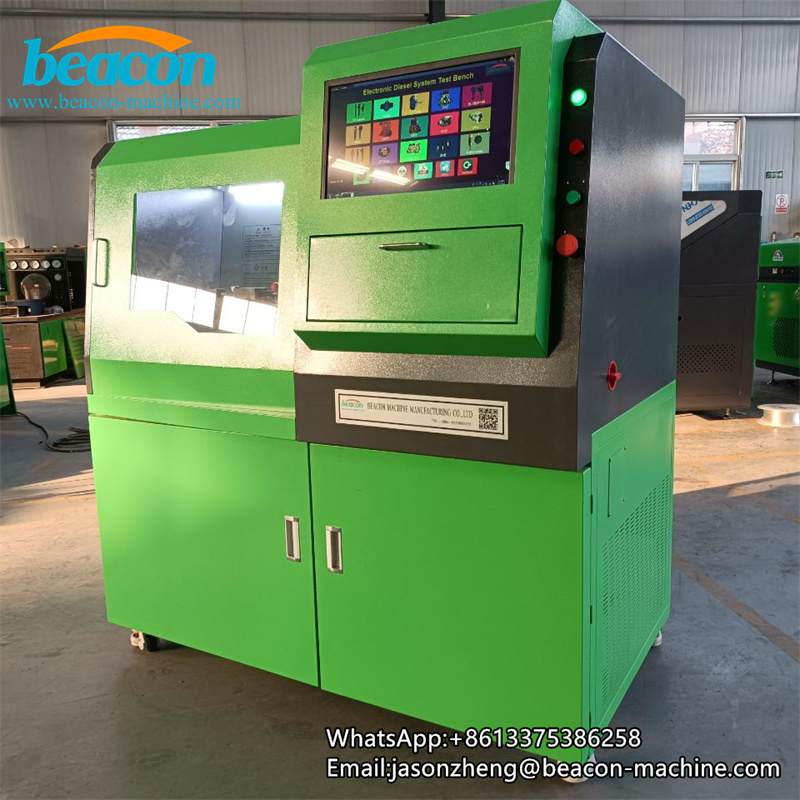

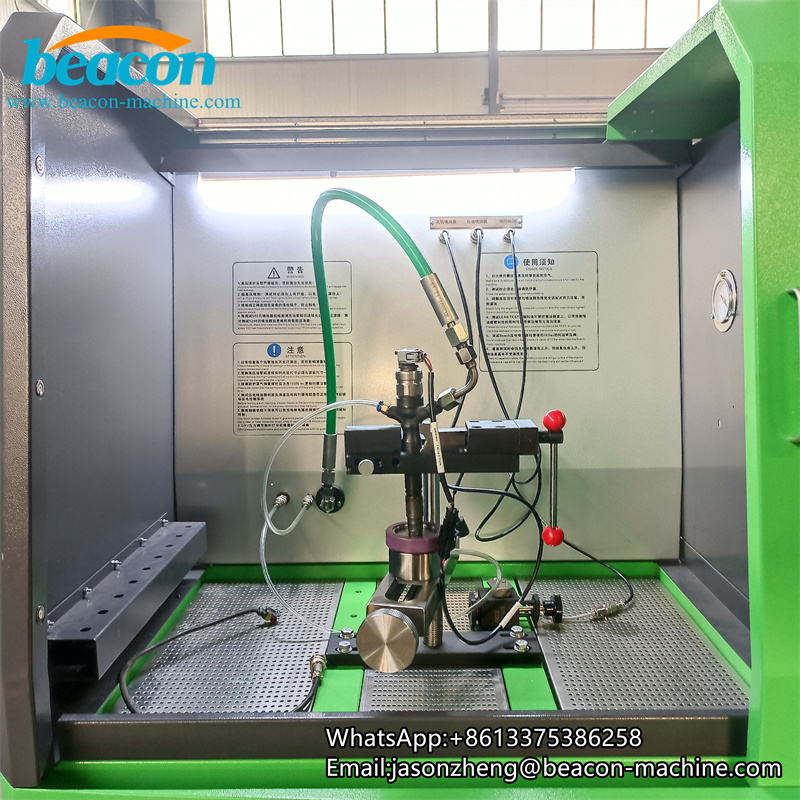

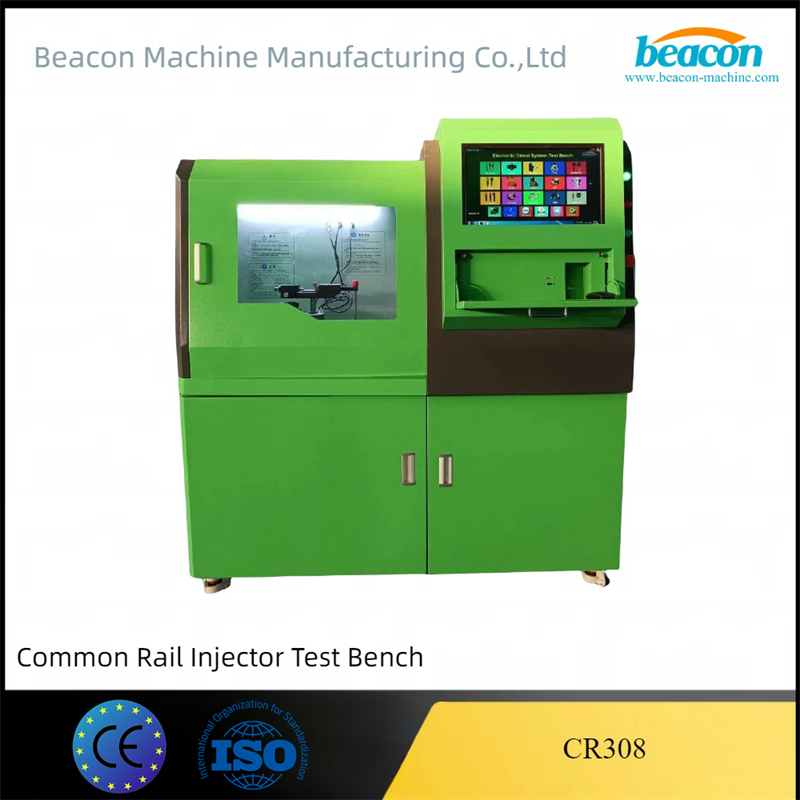

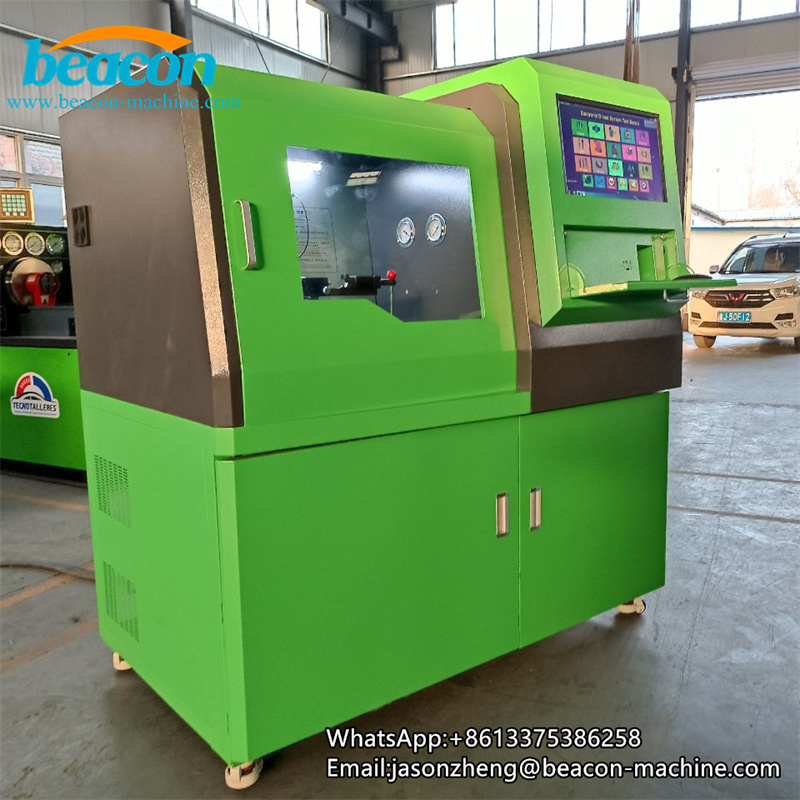

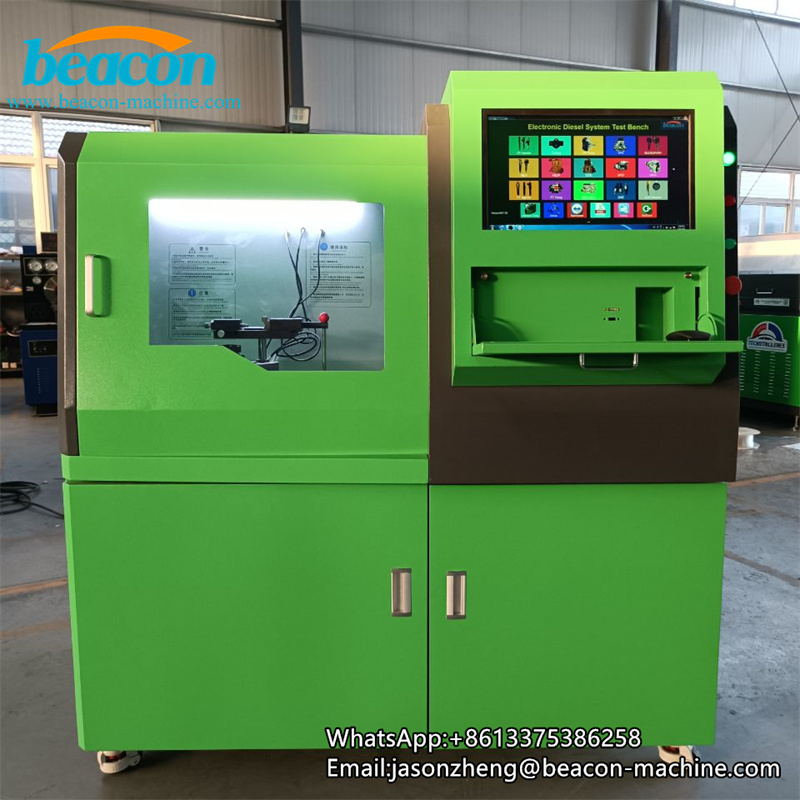

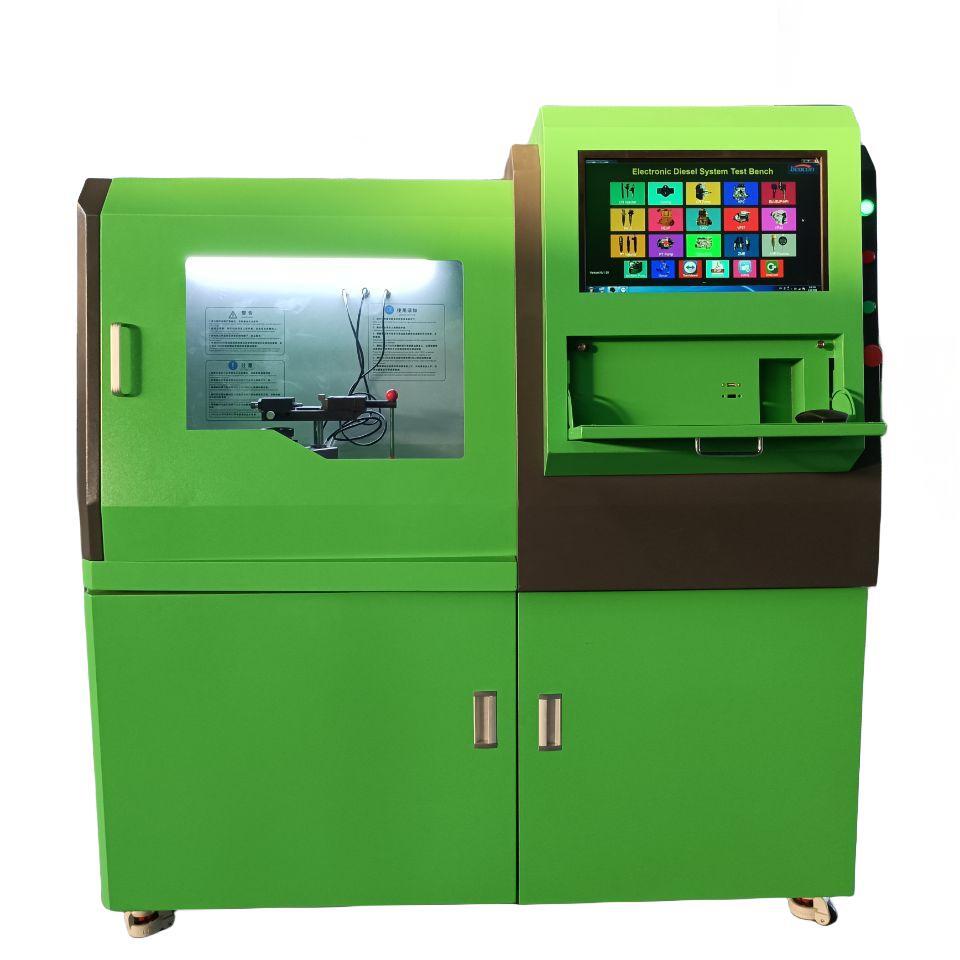

CR308 crdi injector test bench is ourlatest independent researched special device to test the performance of high pressure common rail injector, controlled by industrial computer,Windows operating system. The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved. It adopts BOSCH(DENSO) original common rail pump to provide 0~2400 bar for rail pressure(DENSO). The rail pressure can be adjusted automatically, and it also provide pressure overload protect.It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO.Advanced technology, steady performance, precise measurement and convenient operation.
CR308 cr injector tester MAIN FUNCTION
1. Controlled by industrial computer in real time, Windows operating system.

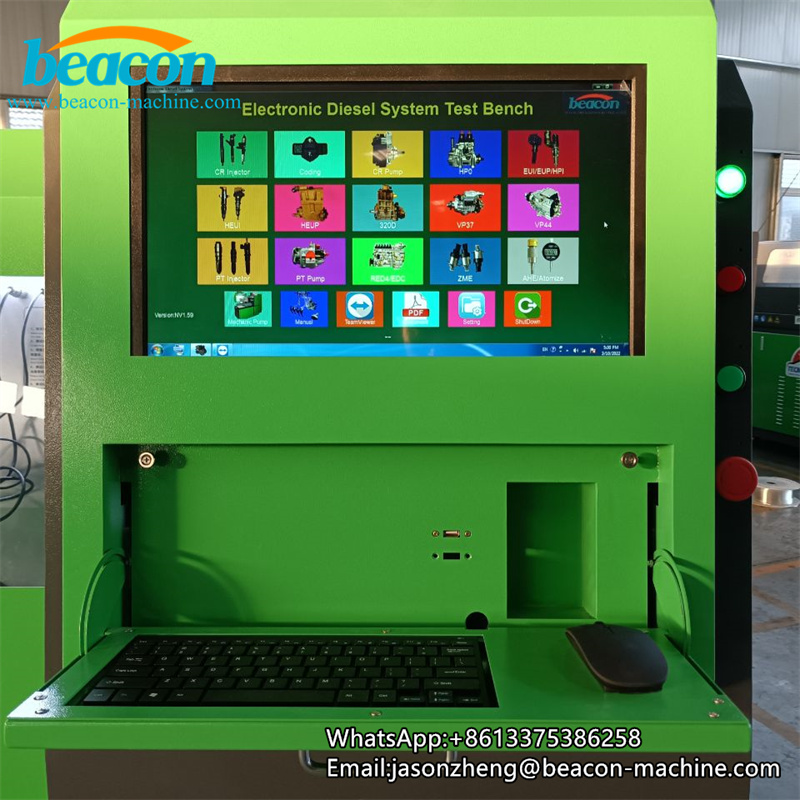

2. Oil quantity is measured by sensor and displayed on 10.4tactile LCD screen;
3. More than 7000 kinds of injector data can be searched and used.
4. It is installed BOSCH(DENSO) common rail pump to provide 0~2400 bar for denso rail.
5. Rail pressure can be tested in real time,
6. Provide pressure overload protect by DENSO rail.
7. Pulse and frequency of the injector can be adjusted.
8. Injection time can be set.
Pulse width: 0.1~20ms
Continuous injection times: 0~1000
Fuel temperature 40±2°C
Rail high pressure 0~2400 bar
Test oil filtered precision 5μ
Input power 380V/50hz/3phase or 220V/60hz/3phase
Rotation speed 0~3000RPM
Oil tank capacity 16L
Weight 300KG.
