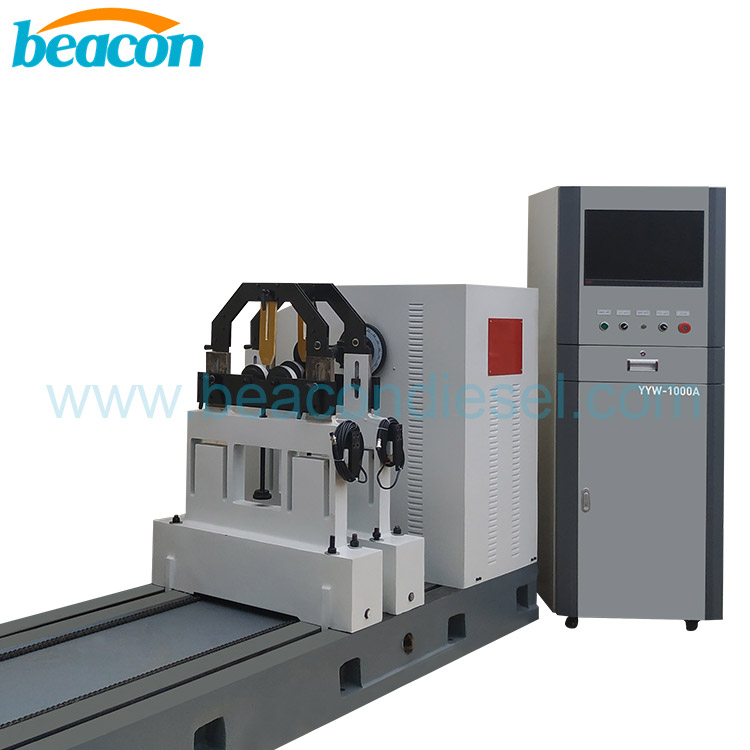

1000 KG hard bearing dynamic balancer YYW-1000 electric motor balancing machine

-Widows in the English system double choose
-equipped with GB-2000 Universal microcomputer balance measuring system
-automatic programmable amplifier module
- any artifacts scaling function, arbitrary angle compensation jig and workpiece information storage
-qualified quantity display, measurement period adjustment
-signal automatic zoom and manual zoom adjustment, signal self-test, automatic diagnosis
-residual imbalance kg, g, mg and unbalanced torque g. Cm, g .mm choose to display

Tel:+86-13375386268

Email: beacon@beacon-machine.com

inquiry now

Introduction

This series is a hard-bearing horizontal balancing machines, with roller bearing, universal coupling drive, ordinary

type of two-speed motor drive, "A" type of variable frequency motor plus inverter speed, industrial control computer Data
processing, color screen real-time display unbalance value, phase angle and real-time speed, overall casting bed are used, good
stability. Widely used in electric motors, blowers, diesel engines, agricultural machinery, textile machinery and other
industries, can be conducted in single, double and multiple correct balance measurement surface, suitable for shafts, disc type
and gravity overhanging rotor. With high efficiency, precision, intuitive display, reliable quality, easy maintenance features,
software and standards with ordinary piece rotor two calibration function, to overcome the other hard bearing balancing machine
measuring system difficult for users to calibrate the equipment on their own shortcomings, and there are coupling compensation and
other measuring methods and functions available, enabling parameter input, preview, test, results are stored, printed, operate in
all Chinese menu structure, man-machine dialogue, automatically prompts.

parameter

Model	Max. mass of workpiece (kg)	Max.diameter of workpiece (mm)	The distance between the two bearing(mm)	Max.rotor Diameter (mm)	balancing speed(r/min)	minimum achievable residual unbalance (g.mm/kg)	Unbalance rate %
YYW-160	5-160	Φ950	60-1420	Φ10-180	325/650/1300	≤1	≥90
YYW-300A	10-300	Φ1200	60-1700	Φ20-180	325/650/1300 (A300-2500) Neutral speed regulating	≤1	≥90
YYW-500A	20-500	Φ1500	70-1600	Φ15-240	325/650/1300 (A300-2500) Neutral speed regulating	≤1	≥90
YYW-1000A	20-1000	Φ1500	70-2300	Φ15-240	325/650/1300 (A300-2500) Neutral speed regulating	≤1	≥90
