CR1019 CRI CRP EUI EUP HPI Common Rail Test Bench Injector Pump Test Bench CR1017

1. High-precision flow measurement, it use imported Flow sensor, high precision, good repeatability,

2. Test a comprehensive, test injector full load, medium speed, idle, pre-spray and other conditions of the fuel injection;

3. It can test BOSCH, DENSO, DELPHI, SIEMENS, CAT etc. injector;

4. Machine low noise, it is using frequency control, speed prefabricated, low noise, no impact;

5. Advanced control, a key selection, the whole process of detection;

6. Massive data;

7. Open data management, the user can add the injector data itself, especially for the new fuel

injector standard oil calibration;

8.injector coding function(optional).

CR019 injector calibration machine Function Details:

1. Common injectors&Piezo injector test （The latest system has more than 7300 injector test data）

Can print Test report

2. Bosch Denso, Siemens, Delphi coding functions

3.Denso HP0 pump test

5.common rail pump test

CR1019 common rail pump test bench Optional function

1.Test 2 injectors in same times

(2 injectors testing System + additionally add 1 flow sensor + 1 high-pressure oil pipe + 2 solenoid valves + 2 filter elements + 1 filter + 1 double injector clamp)

2.Test 4 injectors in same times

(4 injector test system + 3 additional flow sensors + 3 high-pressure oil pipes + 6 solenoid valves + 6 filter elements + 3 filters + 1 four-injector fixture)

3.AHE injector dynamic stroke (with Bosch 110, 120 stroke measuring tool + dial indicator)

4.Test MTU L ORANGE Injector

5.Test Rail pressure sensor

6.Test DRV/HPV

7.Test Solenoid valve

8.Test Bosch 4 pins injector

9.Test XPI Injector

10.Test EUI EUP with CAMBOX

1).Test EUI EUP with TU-A cam box

2).Test EUI EUP with TU-B cam box

3).Test EUI EUP with TU-C cam box

4).Test EUI EUP with TU-D cam box

5).Test EUI EUP with TU-E cam box

11.Test HEUI(8 types of adapters)

Test Heui CAT C7 C9 3126B&3116

1).CAT 3126A

2).CAT3412E

3).NAVISTAR

4).ISUZU

5).Ford G2.8& Ford 6.0

6).Ford G2.9

12.Test CAT 320D pump

13.Test CAT C7 C9 pump(This function must add HEUI function)

14.Test CP4 pump

15.Test Cummins PT injector (This function must be equipped with TU-C/D/E cam box)

16.Test Cummins PT Pump

17.Test Cummins HPI Q60 X15 injector (This function must be equipped with TU-C/D/E cam box)

18.Test ZME

19.Delphi E3 double pulse control system

20.Install BOSCH CP4 pump that supports rail pressure 2800bar

21.Test DENSO HP5 Pump accessories

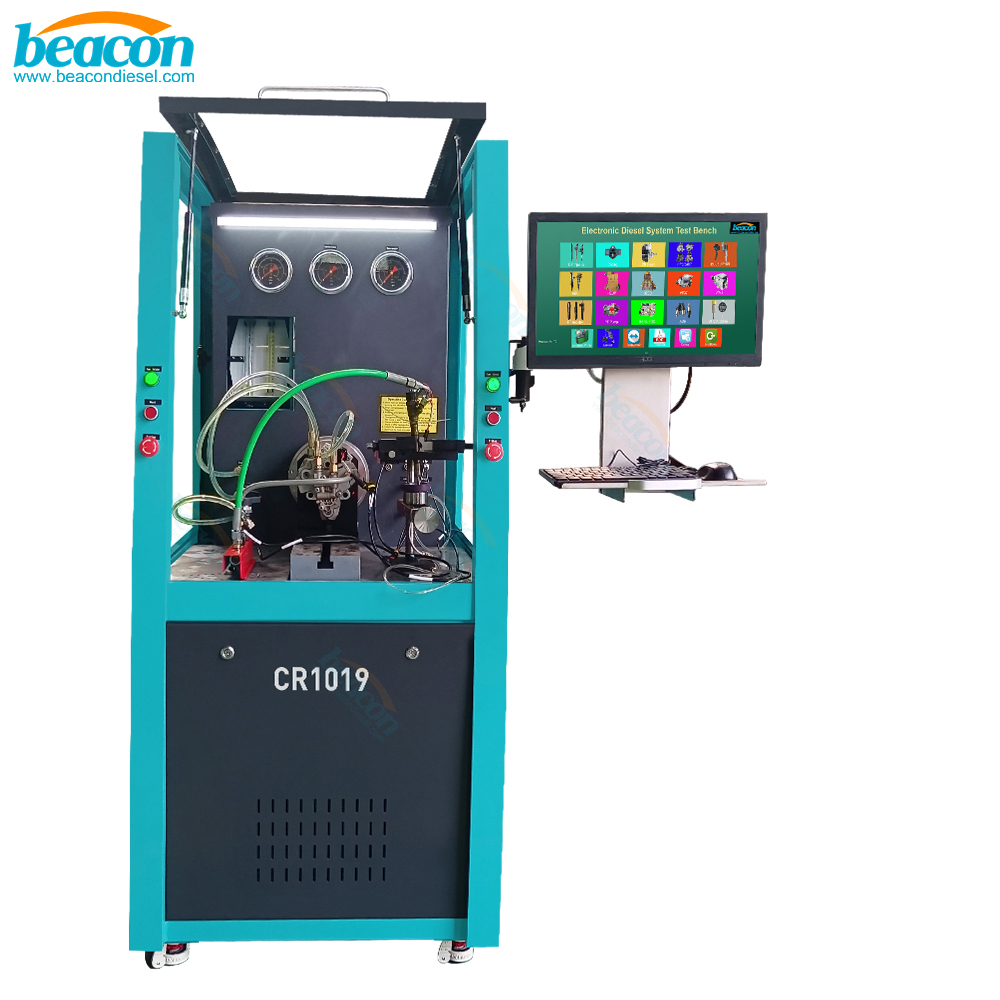

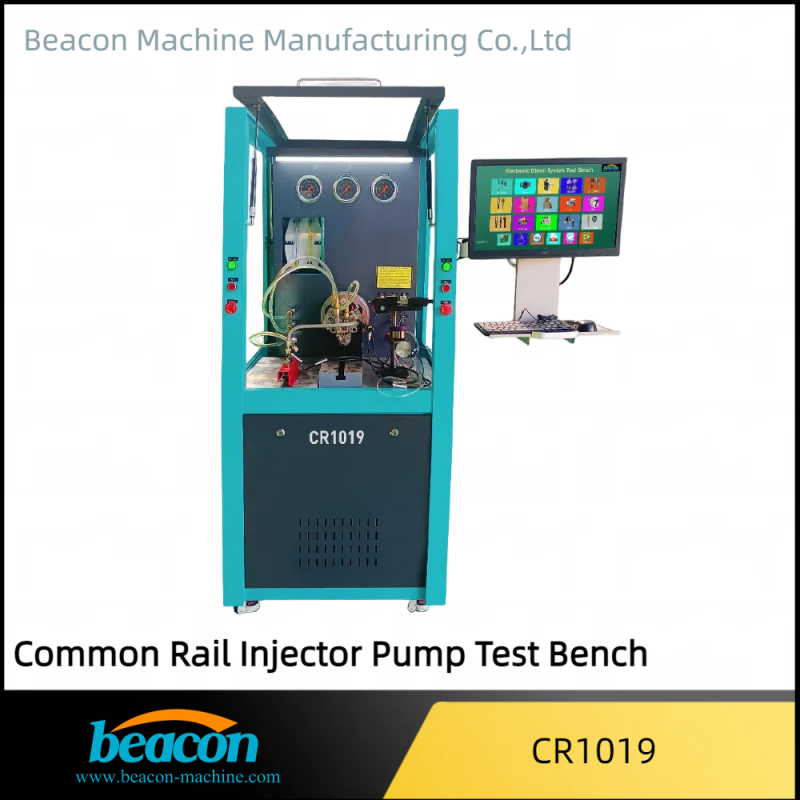

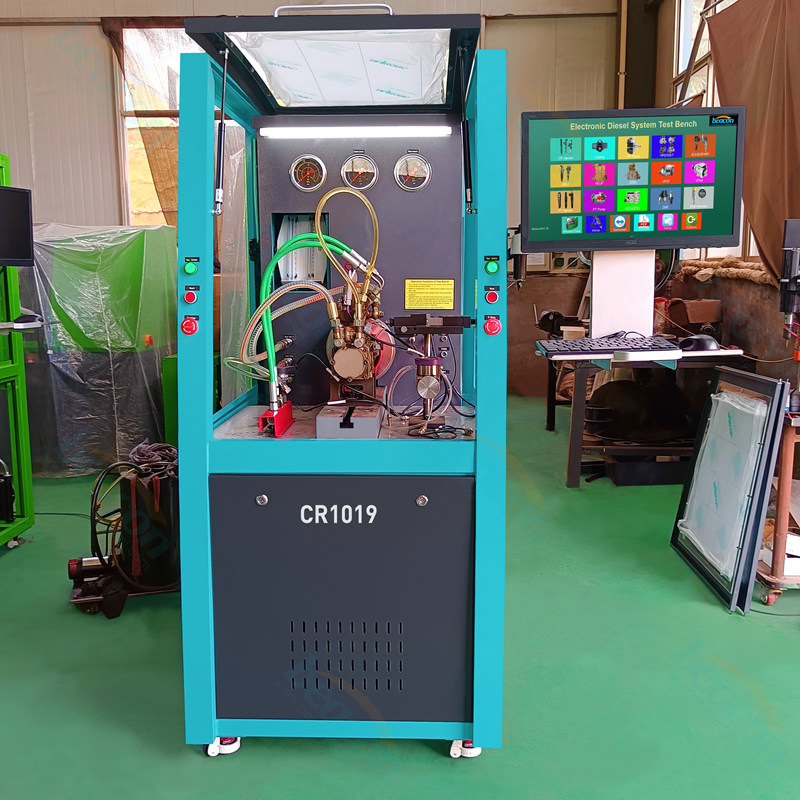

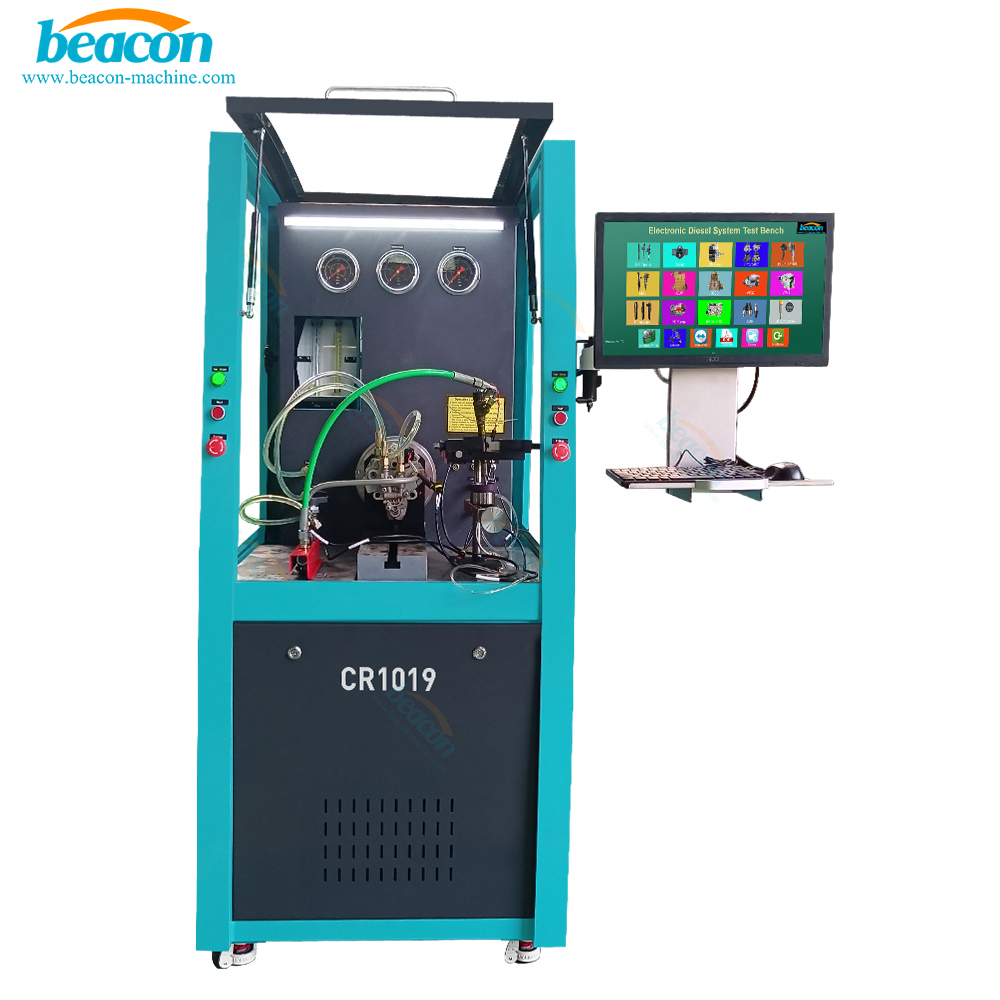

CR1019 diesel fuel injector test bench photo:
