Rotor balancer YYQ-3000S electric motor rotor dynamic standards balancing equipment

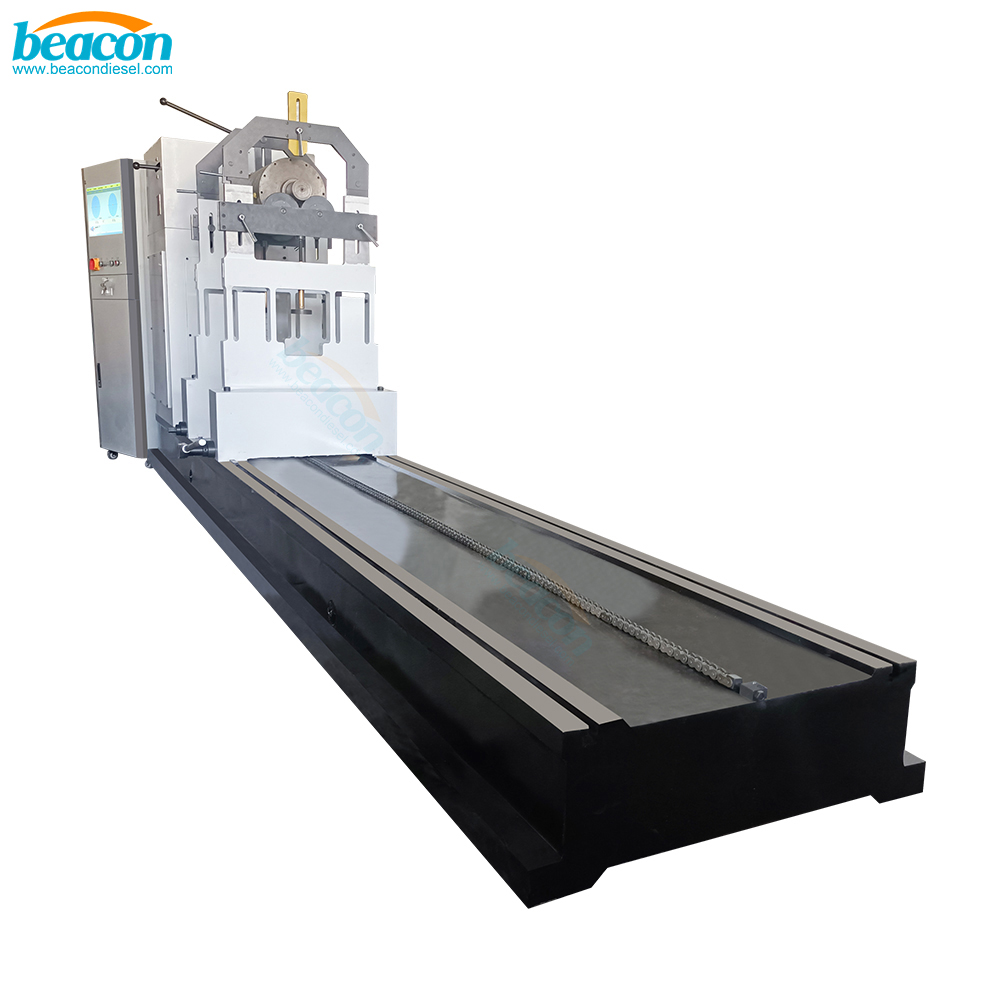

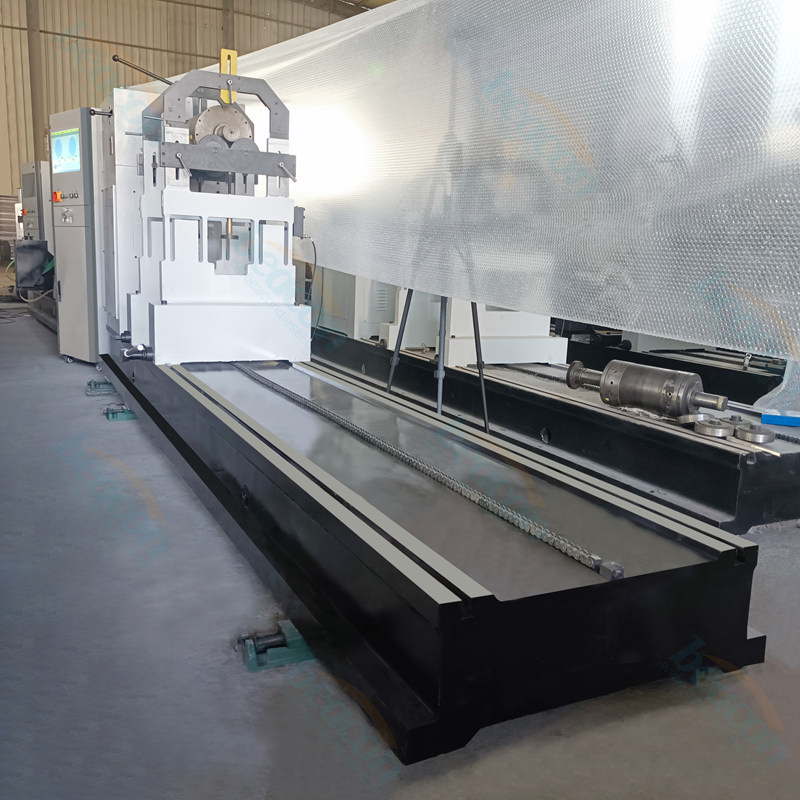

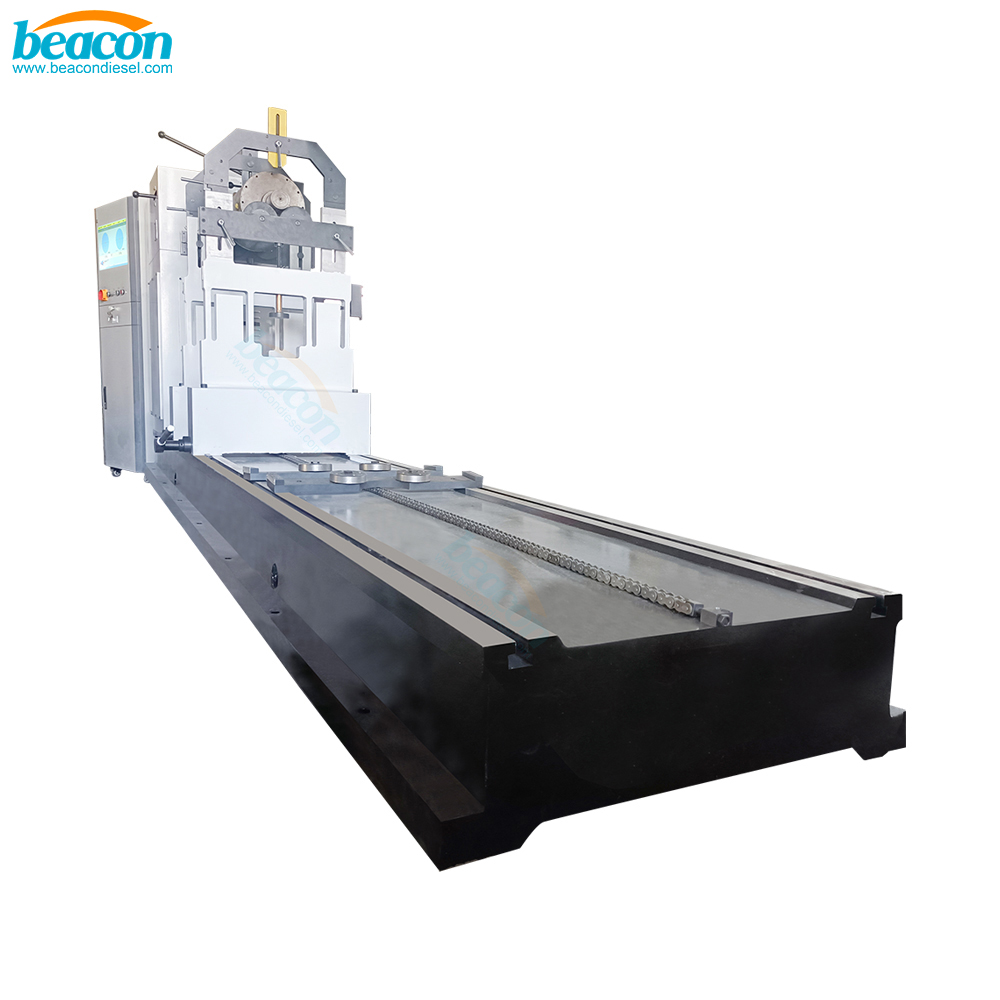

1.The equipment is a double-sided horizontal dynamic balancing machine driven by ring belt, with good stability and rigidity.The equipment has reasonable structural design and beautiful appearance.The equipment is gray and white.
2.The equipment is industrial computer measurement and adopts the automatic filter circuit manufactured by foreign advanced integrated circuits. It has strong anti-interference ability, high measurement accuracy and fast response speed, which makes the system more perfect.
3. The equipment measurement software runs on the windows operating platform, which is the current domestic advanced measurement software.Fully automatic program-controlled amplification module, easy to operate and use.The display mode integrates the graphic display of the light spot vector table, the sinusoidal or cosine wave display of the working state and the digital display of the magnitude and angle of the unbalance.It has the characteristics of high efficiency, accurate precision, intuitive display, reliable quality and convenient maintenance.
4. The quality of the equipment is reliable. The variable frequency speed regulation system is adopted to operate the panel potentiometer for speed regulation. The soft start and soft stop of the motor have little impact on the equipment and prolong the service life of the equipment.The equipment can work continuously, and the maintenance is simple and convenient.Pure electrical equipment does not pollute the environment.
5.The equipment adopts an overall 1.8m bed, and the swing frame can be moved along the bed.
inquiry nowIntroduction
1.The equipment is a double-sided horizontal dynamic balancing machine driven by ring belt, with good stability and rigidity.The equipment has reasonable structural design and beautiful appearance.The equipment is gray and white.
2.The equipment is industrial computer measurement and adopts the automatic filter circuit manufactured by foreign advanced integrated circuits. It has strong anti-interference ability, high measurement accuracy and fast response speed, which makes the system more perfect.
3. The equipment measurement software runs on the windows operating platform, which is the current domestic advanced measurement software.Fully automatic program-controlled amplification module, easy to operate and use.The display mode integrates the graphic display of the light spot vector table, the sinusoidal or cosine wave display of the working state and the digital display of the magnitude and angle of the unbalance.It has the characteristics of high efficiency, accurate precision, intuitive display, reliable quality and convenient maintenance.
4. The quality of the equipment is reliable. The variable frequency speed regulation system is adopted to operate the panel potentiometer for speed regulation. The soft start and soft stop of the motor have little impact on the equipment and prolong the service life of the equipment.The equipment can work continuously, and the maintenance is simple and convenient.Pure electrical equipment does not pollute the environment.
5.The equipment adopts an overall 1.8m bed, and the swing frame can be moved along the bed.
parameter
Model:YYQ-3000S
Weight of workpiece (kg):100-3000
Max.diameter of workpiece (mm):φ2000
Distance between two supportings (mm):150-2600
Range of Journal Diameter (mm):φ15-300
Balancing speed (r/mm):180-2500
Min. achievable residual unbalance (g.mm/kg):≤0.5
Unbalance reduction ratio(%): ≥90
Drive power (kw):11
