FZJ-8 Rotary engine stand or Engine flip frame

Equipment operation method:

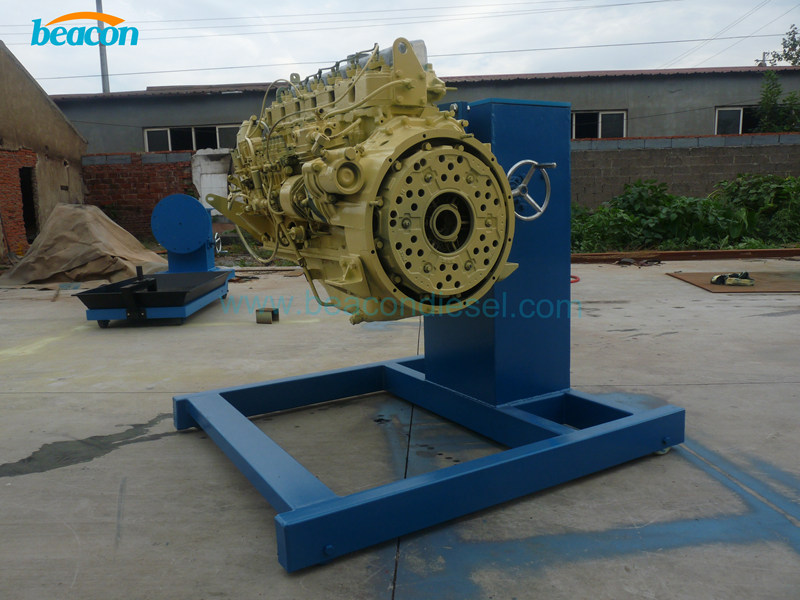

1, in the large, repair or repair, the need for the engine assembly disassembly or assembly. The engine flip was set up to complete the job. It consists of the bracket and the turning head, the engine cylinder radiator side of the coupling screw hole, with the bolt to the engine and the flip head connection, can be rotated 360 degrees, thus completing the engine assembly disassembly and assembly tasks.

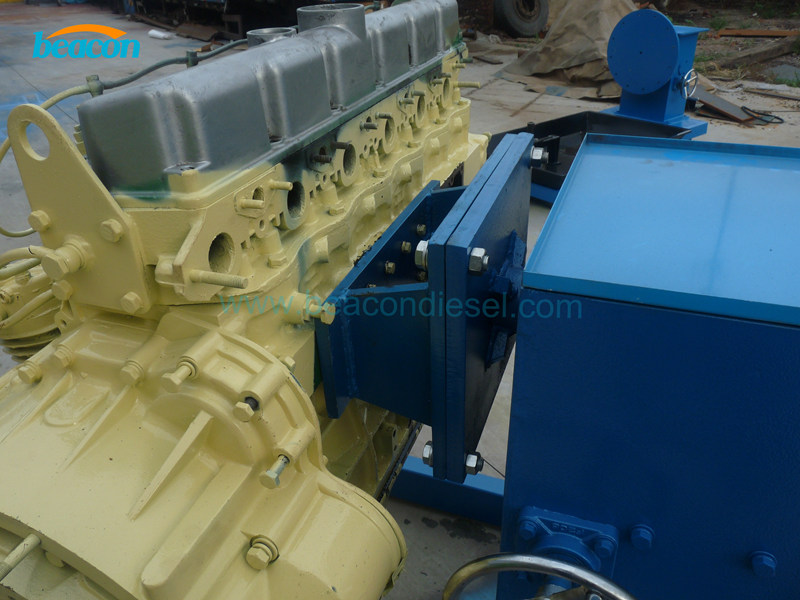

2, the engine was lifted to the flip frame fixed plate, the fixed plate rotation to the position with the engine mounting screw hole consistent position, and then use the bolt to connect the engine and the fixed plate together. If the installed engine installation size does not match the installation disk, the user should install the installation disk according to the engine mounting hole, and then fix it with the equipment installation plate.

3, turn the handwheel to turn the engine to the required working angle, and then the engine can be disassembly and maintenance industry.

The engine and the mounting plate must be reliably connected to remove the hoisting rope or forklift bracket. Before the engine and the fixing plate are disengaged, they must be lifted with a lifting rope or held by a forklift.

The device should be placed on flat ground and fixed with expansion bolts. When the equipment for the engine disassembly, maintenance operations, should check the equipment chassis must be reliable touchdown.

4,Worm gear box transmission parts and adjust the screw should be regularly filling the right amount of lubricating oil.
