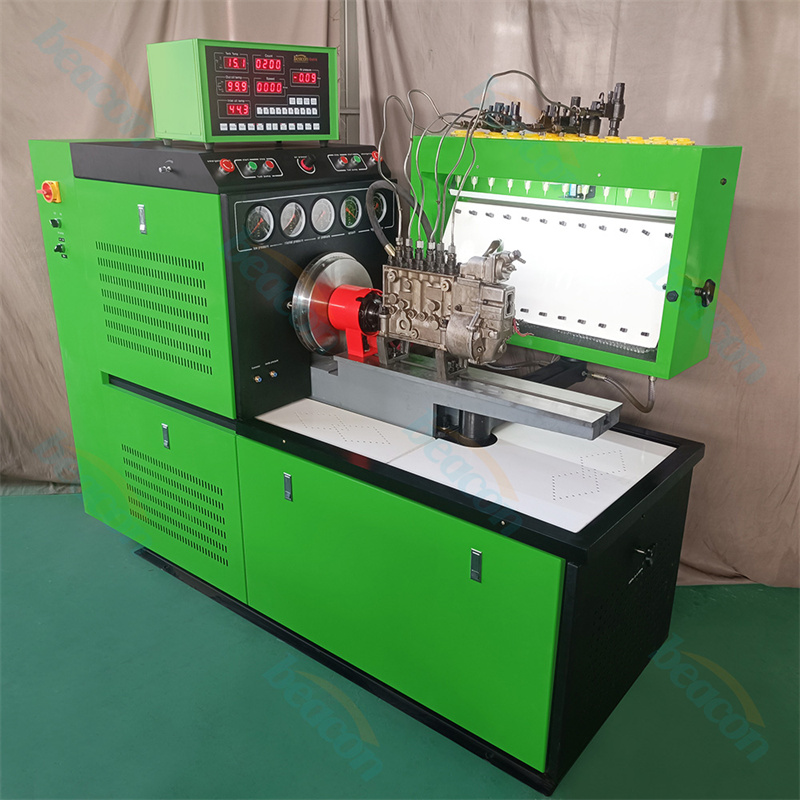

ES619 diesel fuel injection test bench is a kind of fuel injection pump test bench adopt industrial pc with color CRT,
It's the newly researched production for the direction of high power and safety to the environment. It has human-machine interface, digital controlling of rpm, temperature,
pressure, diesel fuel pump technical parameter and so on, and in pace with print. It easy and quick operates ,it's really human-machine dialog.
This series test bench adopt high quality frequency conversing device and cast iron base supper size bed, and its distinguishing features are hi-stable character, hi-reliability, ultra-low-noise, perfect auto-protecting function and so on, It is advanced products.
Tel:+86-13375386268
Email: beacon@beacon-machine.com

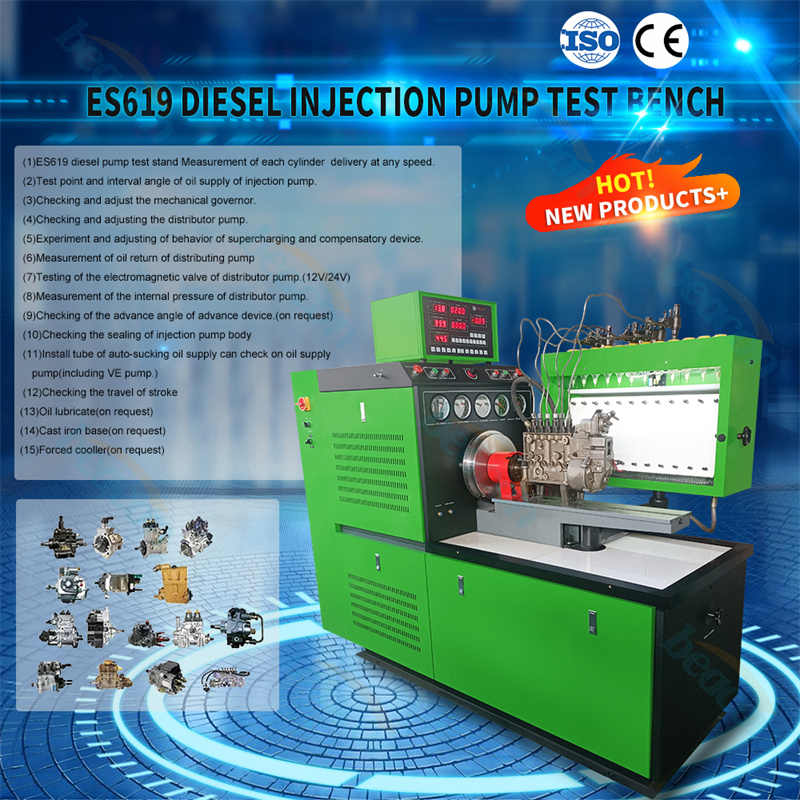

Main function:
1. ES619 diesel pump test stand Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12. Checking the travel of stroke
13.oil lubricate(on request)
14.Cast iron base(on request)
15. Forced cooller(on request)

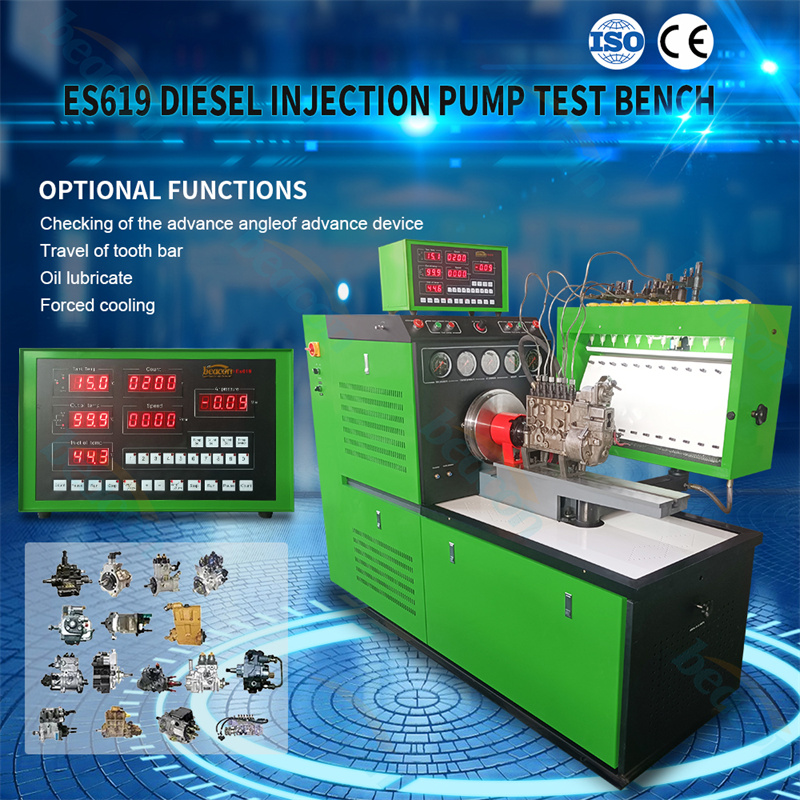

Also WE HAVE TEST BENCH OPTIONAL FUNCTION BELOW:
1.TRAVEL OF TOOTH BAR
2.OIL LUBRICATE
3.FORCED COLLING
4.Checking of the advance angle of advance device
Specification
The principle axis rotation speed
0-4000r/min. the two directions are optional
test oil injection pump cylinders :12
The principle axis rotation speed fluctuate :±1r/min
The host machine power :5.5KW 、7.5KW、11KW、15KW、18.5KW、22KW
The oil supply drive motor power :1.1KW
Principle axis center to center spacing working bench height :125mm
The oil metering counting :0－1000 times , one gear per 50 times
Rotation speed, counting, toothed bar stroke, in advance angle display
four digital display
The pressure, oil temperature display :three digital display
The oil temperature automatic control :40℃±2℃
Gas source pressure :0-0.25Mpa
The oil tank volume :≥ 40L
The oil pump oil supply: ≥ 10L/Min
The oil filter precision :5μ
The glass measuring cylinder volume
Big measuring cylinder: 150ml
Small measuring cylinder: 45ml
