Testing common rail injectors (over 7300 test data )
Testing piezo injector
Bosch denso, siemens, delphi coding functions (more than 4800 coded data)
System software supports 15 languages
Customized customer logo available
Tel:+86-13375386268
Email: beacon@beacon-machine.com

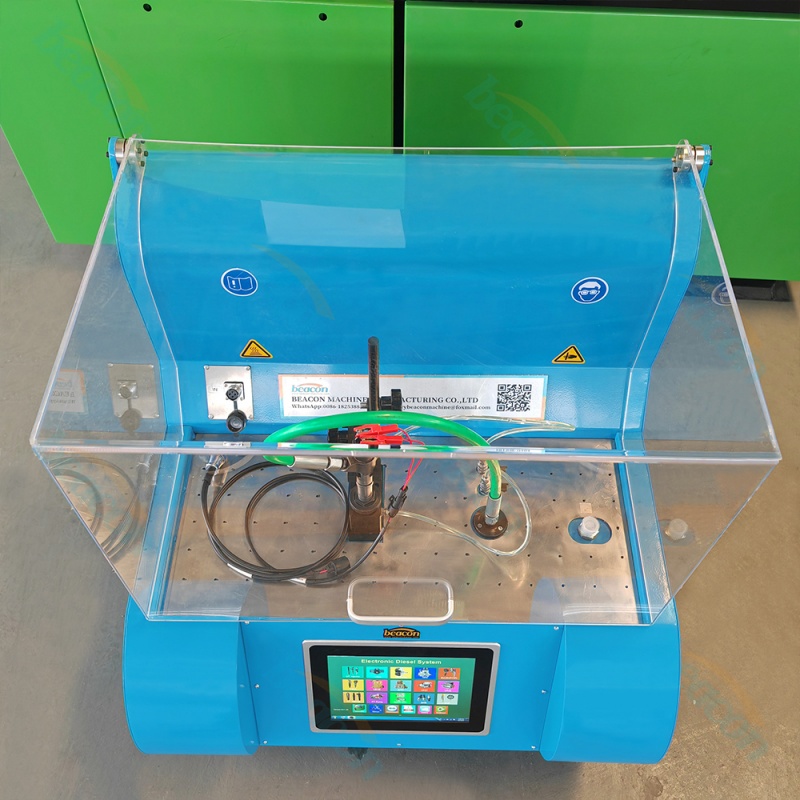

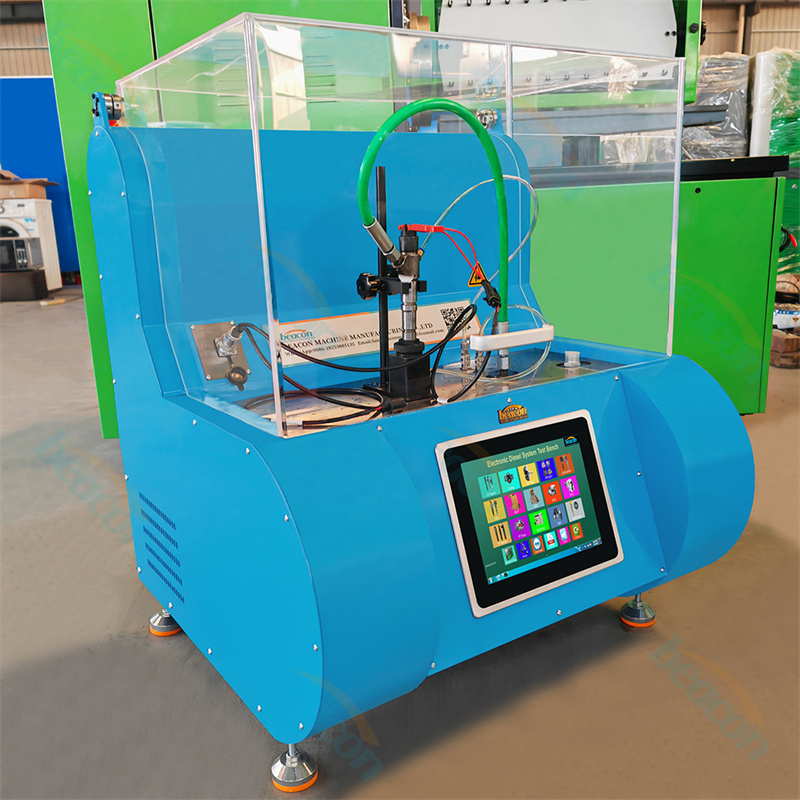

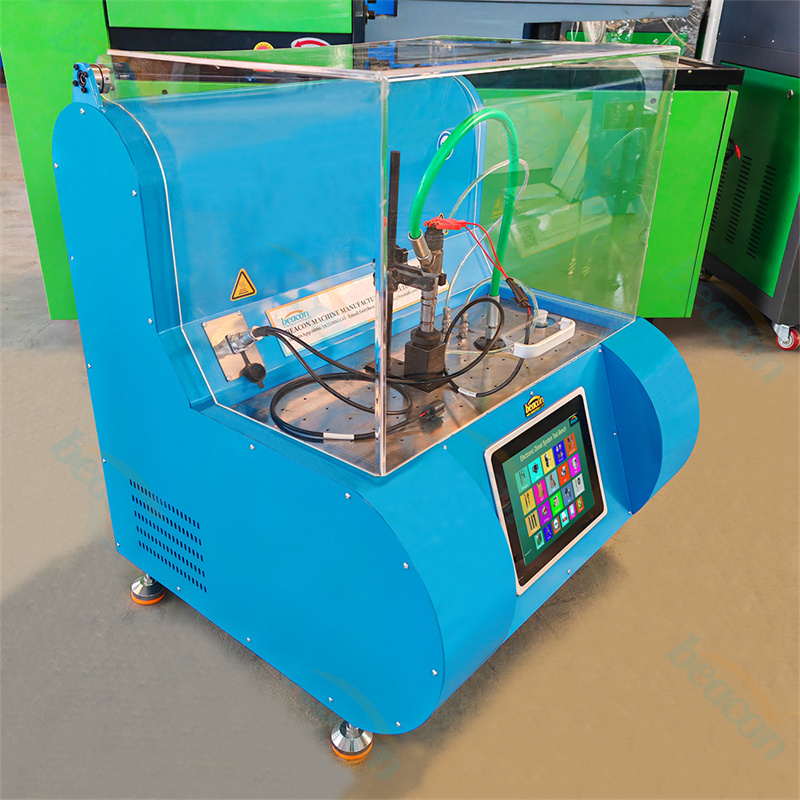

EPS209 Type high pressure common rail test bench is a common rail test product using all-in-one control system, real-time control and measurement.
At the same time, it provides the control signal of Bosch, Denso, Delphi and Siemens to drive the high-voltage common rail injector for work.
The system is equipped with standard drive signal parameters, and users can also adjust the parameters according to their actual situation and save them.
Such as pressure, time, speed and other parameters, all LCD screen display, reliable work, high control accuracy.
It is the ideal equipment for diesel automobile, internal locomotive maintenance, production and testing.
Pressure range :0~200 Mpa
Speed range :0-1500 rpm
Tank volume :10L
Accuracy of test oil filter :3 μ
Heating power : 2.6KW
Heat dissipation power: 1 KW
Temperature control :40 ± 2℃
Power supply :AC220V, 50 HZ
Output power 2.6KW
Flow sensor Flow range :0.008-4 L/min ± 0.3%
