Product name:Common Rail Test Bench EPS100
More easily be tested
And can get the testing result quickly
Terst more than 7343 kinds of injectors
eps100s with the big gauge
Tel:+86-13375386268
Email: beacon@beacon-machine.com

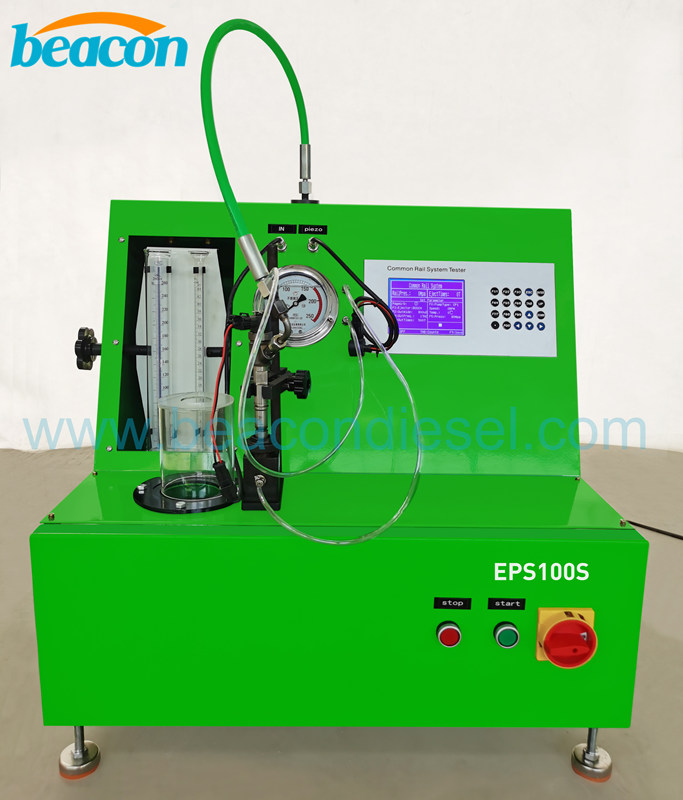

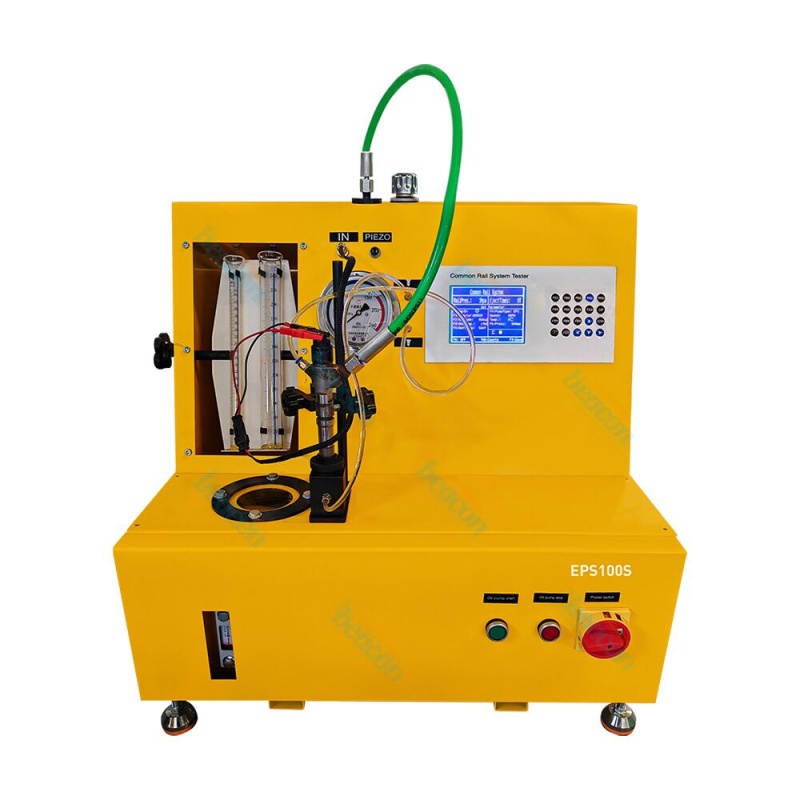

EPS100 common rail injector test bench, pressure controlled automatically, display the frequency and pluse at the screen. It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO.
Advanced technology, steady performance, precise measurement.
Injector testing: leakage, injection oil quantity and back oil quantity(pre-injection,Idling, emissions, full load)

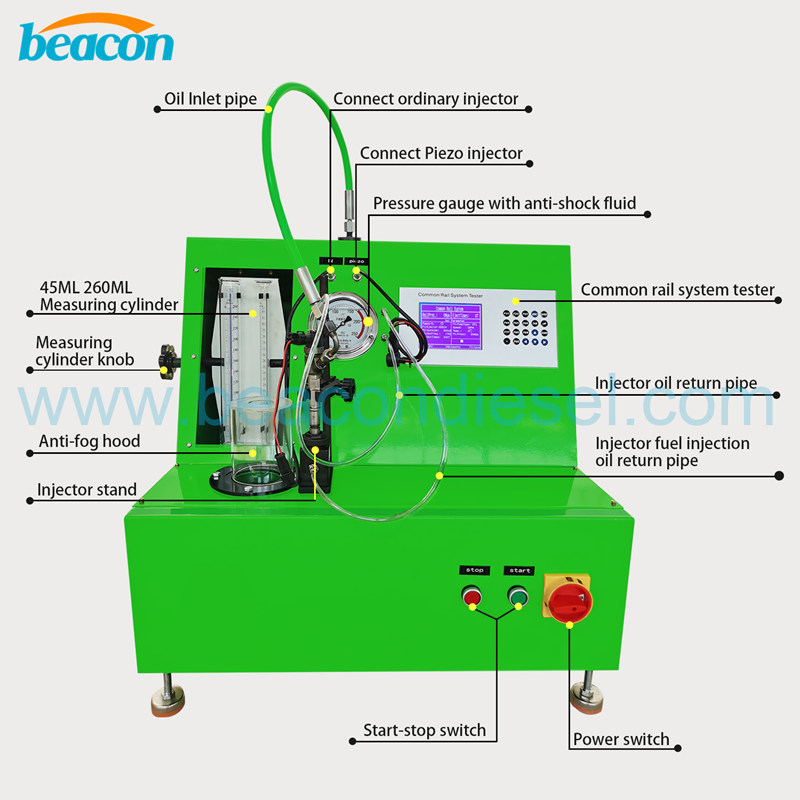

Intrduction:
1,Control device
2,Power switch
3,Main motor start / stop button
4,injector power plug
5,measuring cup flip hand wheel
6,injector holder
7,diesel fuel supply joints
8,the fuel tank
9,measuring cup
10,injector fuel injection pipe,fuel injector return pipe
Product name:Common Rail Test Bench EPS100
Application:Metal
Motor speed:0-3000RPM
Power supply:220V
Warranty:1 Year
Function:rail injector test bench
Weight:100KG
