The CR1017 test bench can choose one based on these functions with different price:
1. Just Test The Common Rail Pump
2. Just Test The Common Rail Injector
3. Common Rail Injector + Common Rail Pump
4. Just test EUI EUP (with TU-D cambox)
5. Only EUI EUP PT test(with TU-D camshaft, complete accessories for PT injectors)
6. Only HEUI test (standard accessory C7 C9 3126B old/new)
Size: 100*100*180CM, 600KG

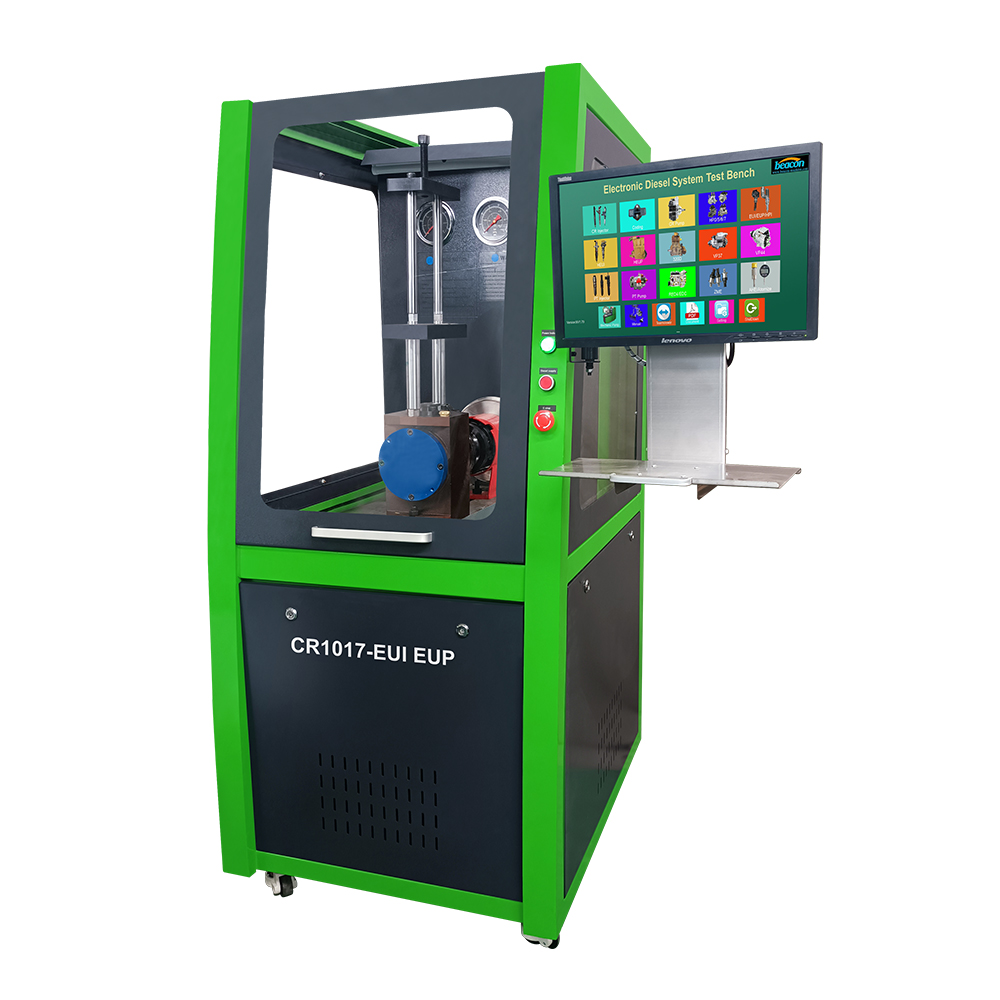

1. CR1017 EUI EUP test bench

Standard function:

Can test unit pump (EUP);

Can test unit injector (EUI);

Lowest limit alarm of the oil level;

Configure multiple precision filters;

Testing oil automatic heating &cooling control;

Real-time display fuel injection & return volume curve.

Optional function:

Test HPI, X15, Q60 injector,

Test PT CUMMINS injectors.

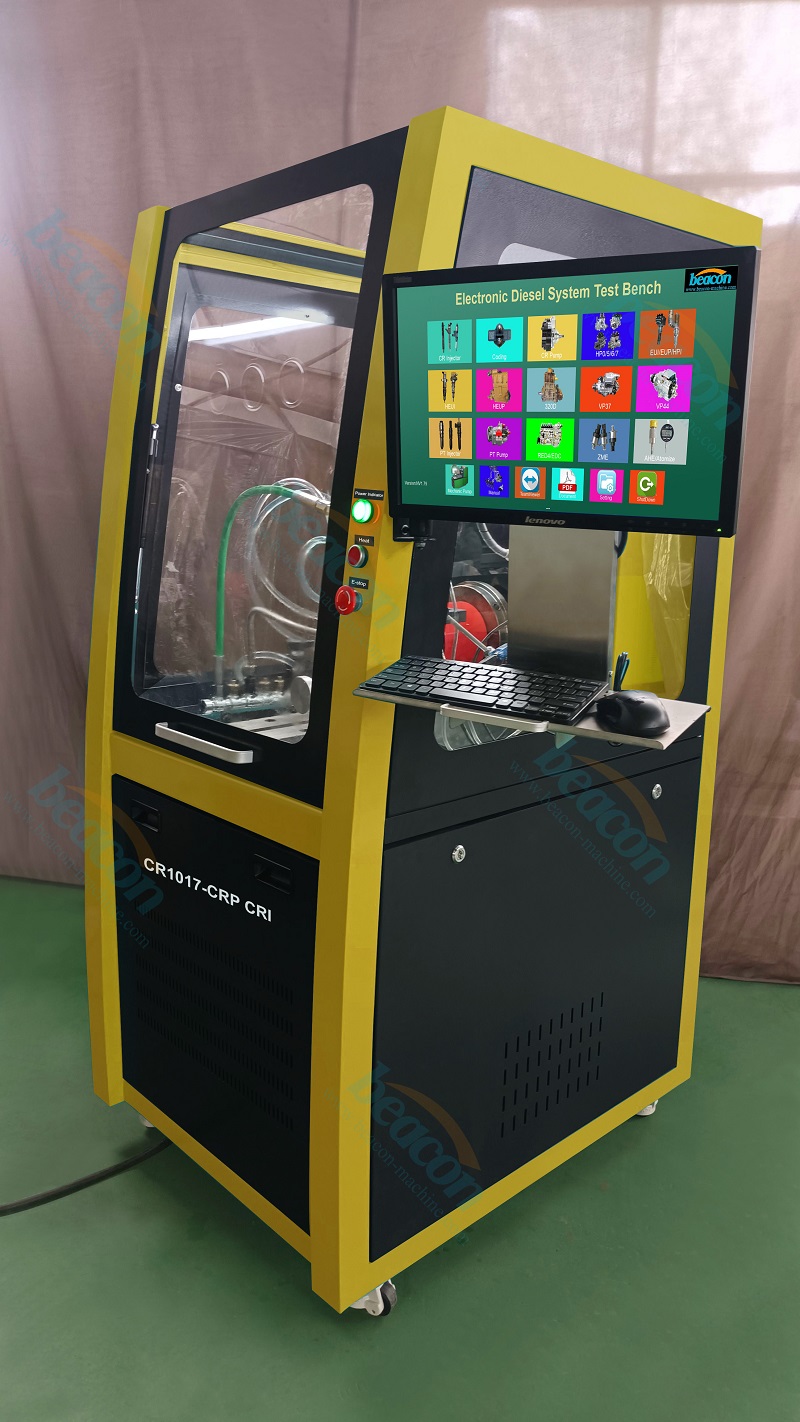

2. CR1017 CRP test bench

1. Test common rail pump;

2. Test HP0 pump;

3. Test common rail pump parts.

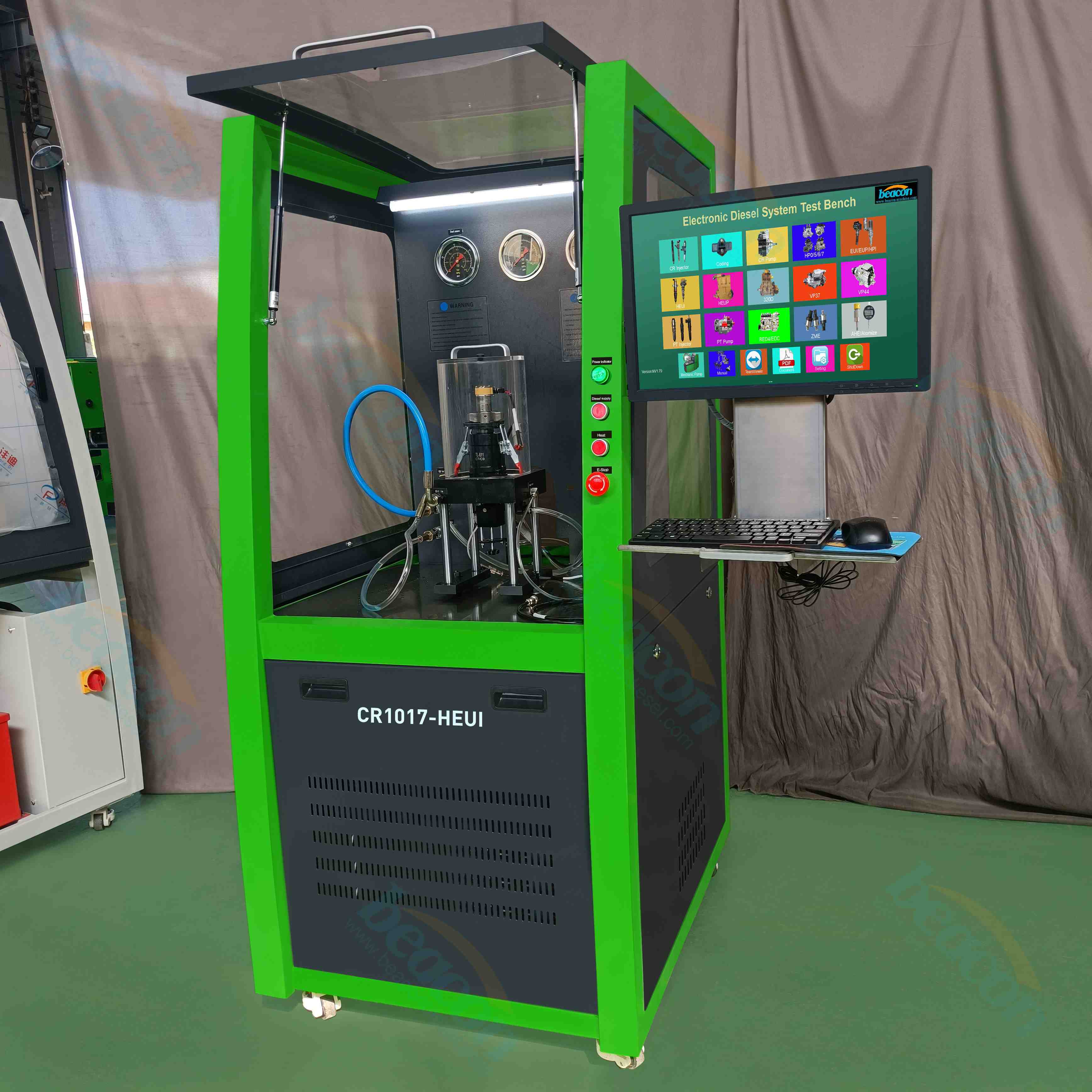

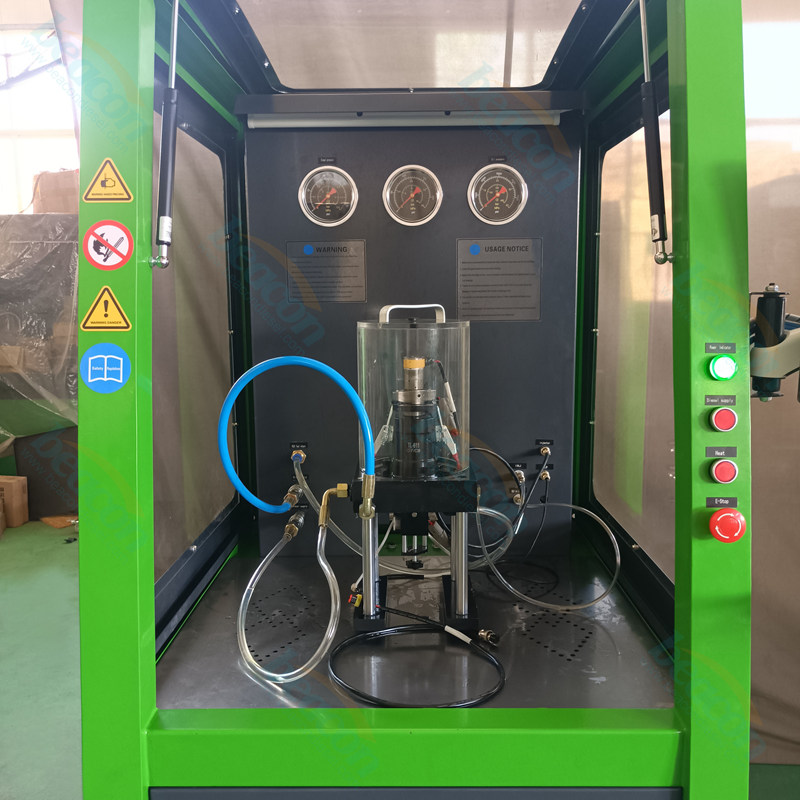

3. CR1017-HEUI Test Bench

CR1017-HEUI is a test bench capable of testing medium pressure injectors.include testing C7, C9, C-9, 3126, 3408, 3412. ISUZU, Ford 6.0L, 7.3L injectors. Digital simulator, CP3 pump, two diesel oil tank, traditional glass tube read datas.

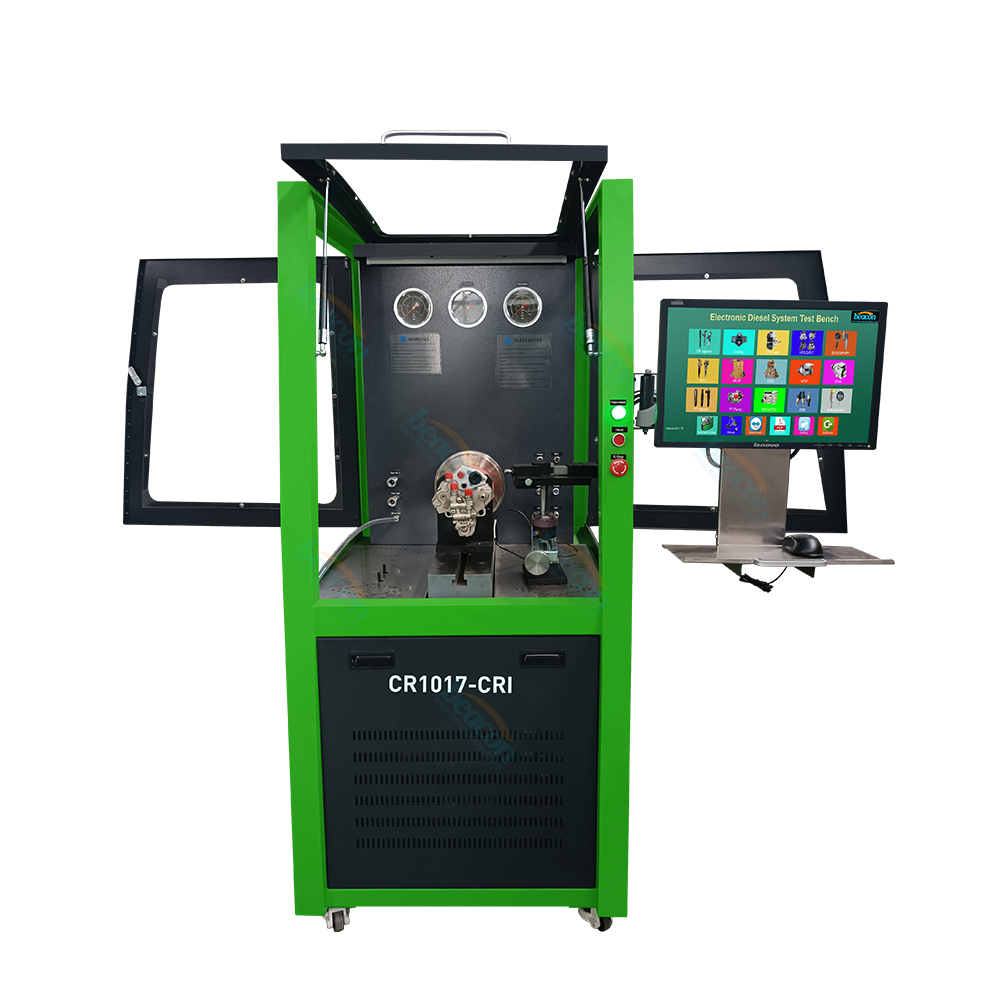

4. CR1017-CRI Test Bench

1. High-precision flow measurement, it use imported Flow sensor, high precision, good repeatability,

2. Test a comprehensive, test injector full load, medium speed, idle, pre-spray and other conditions of the fuel injection;

3. It can test BOSCH, DENSO, DELPHI, SIEMENS, CAT etc. injector;

4. Machine low noise, it is using frequency control, speed prefabricated, low noise, no impact;

5. Advanced control, a key selection, the whole process of detection;

6. Massive data;

7. Open data management, the user can add the injector data itself, especially for the new fuel

injector standard oil calibration;

8. injector coding function(optional).

With latest common rail system :(support update online)
