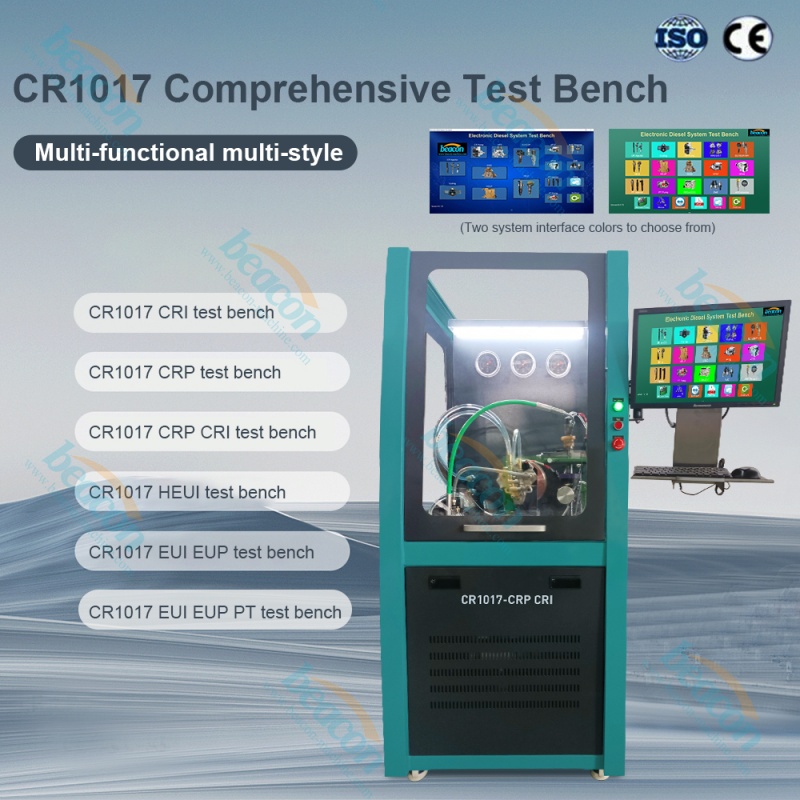

CR1017 Diesel Fuel HEUI EUI EUP Testing Machine Coding Piezo Common Rail Injector Pump Test Bench

CR1017 Diesel Fuel HEUI EUI EUP Testing Machine Coding Piezo Common Rail Injector Pump Test Bench

Product Application:

CR1017 test bench is one advance model for test common rail injector, common rail pump, EUI EUP HPI PT Cummins injector, HEUI C7 C9 C-9 etc injectors alone,

it adopt computer system with all data inside and it can update online.

1. CR1017 EUI EUP test bench

Standard function:

Can test unit pump (EUP);

Can test unit injector (EUI);

Lowest limit alarm of the oil level;

Configure multiple precision filters;

Testing oil automatic heating &cooling control;

Real-time display fuel injection & return volume curve.

Optional function:

Test HPI, X15, Q60 injector,

Test PT CUMMINS injectors.

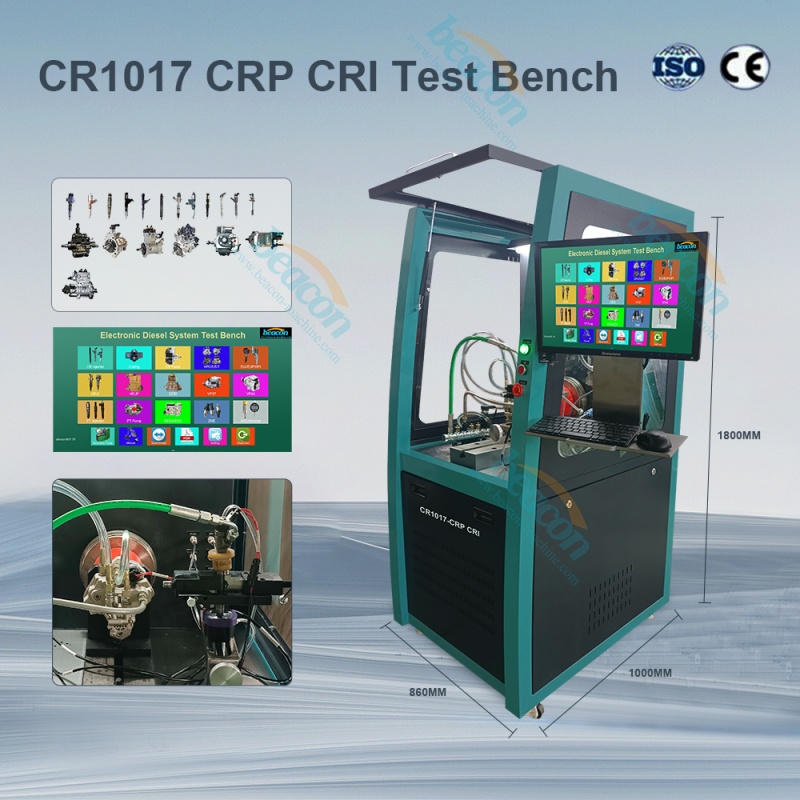

2. CR1017 CRP test bench Test common rail pump; Test HP0pump; Test common rail pump parts.

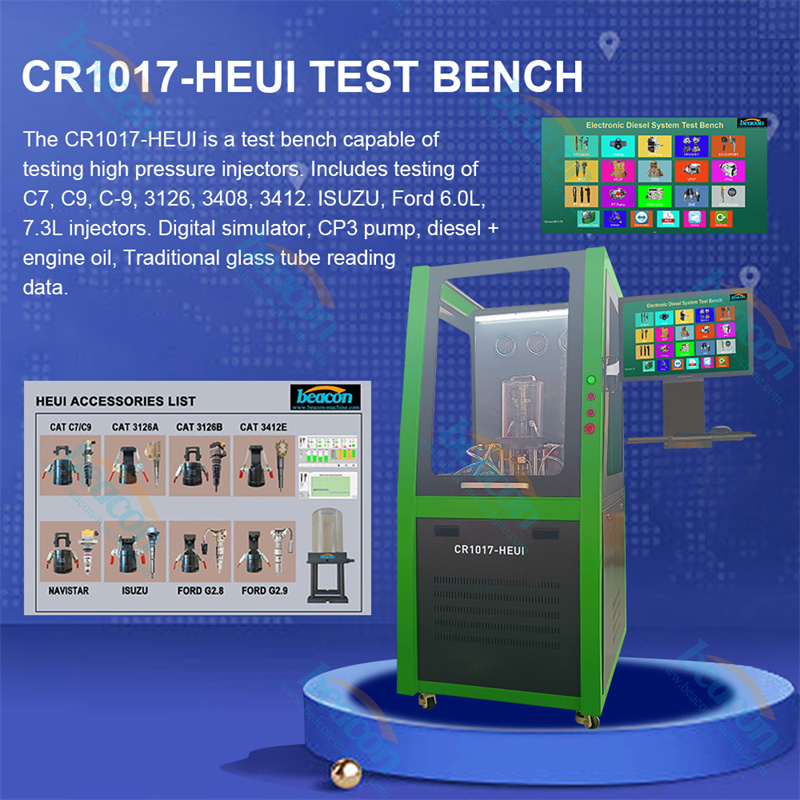

3. CR1017-HEUI Test Bench

CR1017-HEUI is a test bench capable of testing medium pressure injectors.include testing C7, C9, C-9, 3126, 3408, 3412. ISUZU,

Ford 6.0L, 7.3L injectors. Digital simulator, CP3 pump, two diesel oil tank, traditional glass tube read datas.

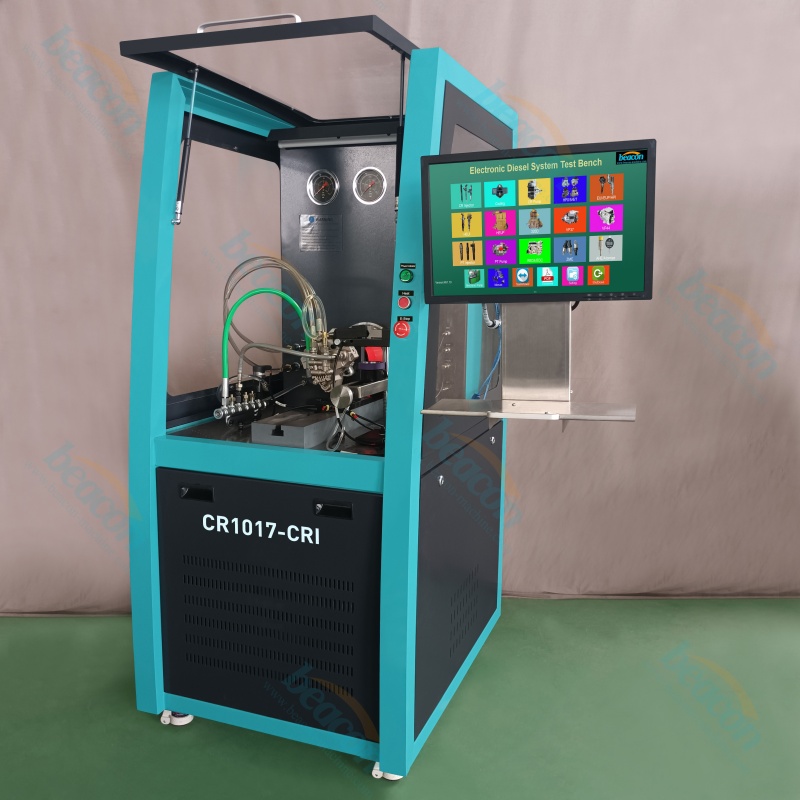

4. CR1017-CRI Test Bench

5. High-precision flow measurement, it use imported Flow sensor, high precision, good repeatability,

6. Test a comprehensive, test injector full load, medium speed, idle, pre-spray and other conditions ofthe fuel injection;

7. It can test BOSCH, DENSO, DELPHI, SIEMENS, CAT etc. injector;

8. Machine low noise, it is using frequency control, speed prefabricated, low noise, no impact;

9. Advanced control, a key selection, the whole process of detection;

10. Massive data;

11. Open data management, the user can add the injector data itself, especially for the new fuel injector standard oil

calibration;

8. injector coding function(optional).
